Makita M2300 Zeichnungen und Teile
Genaue Typennummer:
M2300
M2300

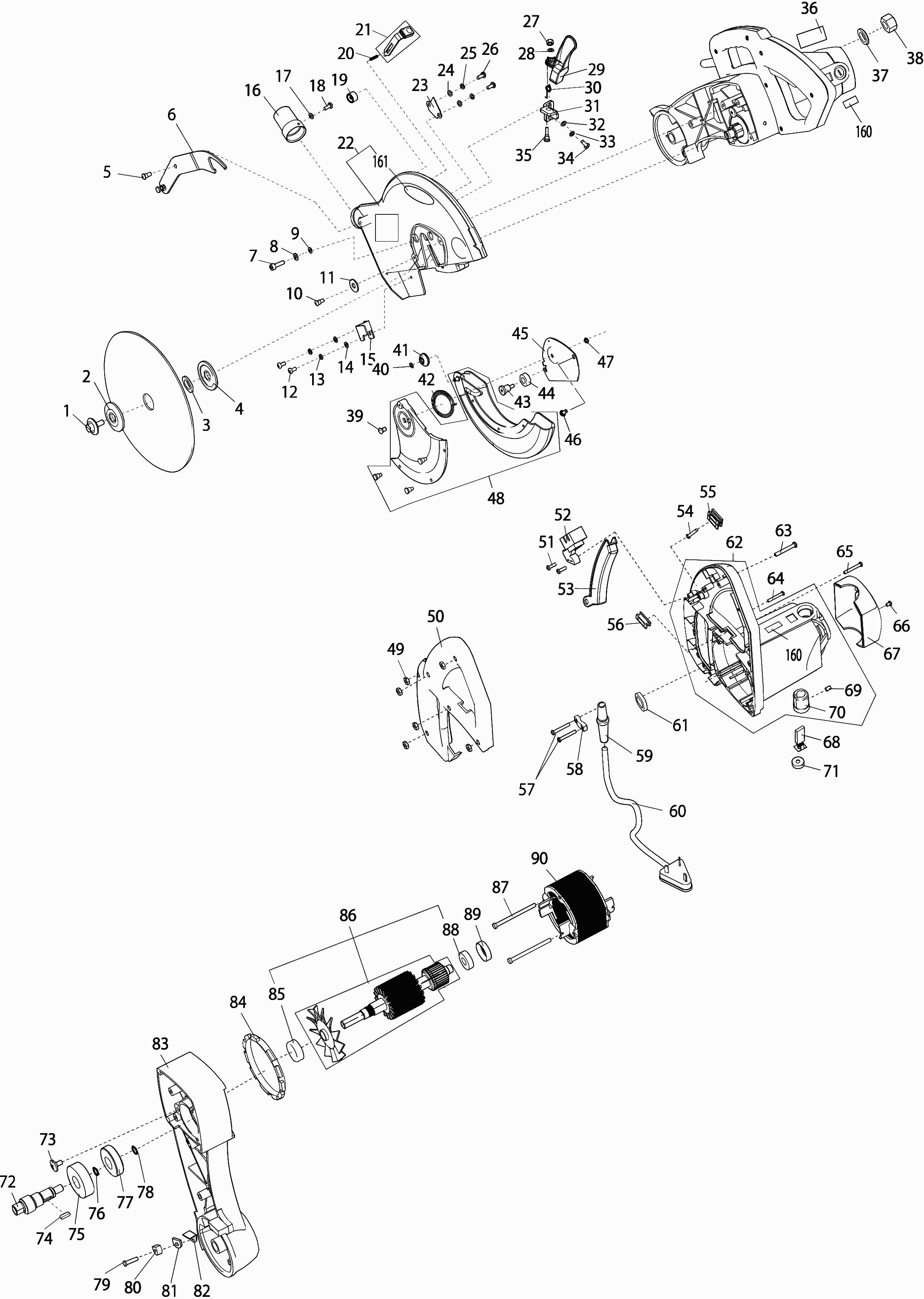

Zeichnungen der MAKITA M2300
Teileliste der MAKITA M2300
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Asbout | ||||
| 001 | JM23000054 | Asbout | € 0.99 | |
| Flens Mls100 | ||||
| 002 | JM23000065 | Flens Mls100 | € 3.64 | |
| Flens Mls100 | ||||
| 004 | JM23000065 | Flens Mls100 | € 3.64 | |
| Stelbout M6 Mls100 * | ||||
| 005 | JM23000057 | Stelbout M6 Mls100 * | € 0.99 | |
| Koppelstrip | ||||
| 006 | JM23000058 | Koppelstrip | € 7.43 | |
| Inbusbout M6X20 Mls100 * | ||||
| 007 | JM23000052 | Inbusbout M6X20 Mls100 * | € 0.99 | |
| Veerring 6Mm Mls100 * | ||||
| 008 | JM23000040 | Veerring 6Mm Mls100 * | € 0.99 | |
| Sluitring 6mm | ||||
| 009 | JM23000041 | Sluitring 6mm | € 0.99 | |
| Stelbout M5 Mls100 * | ||||
| 010 | JM23000055 | Stelbout M5 Mls100 * | € 0.99 | |
| Bus Mls100 * | ||||
| 011 | JM23000056 | Bus Mls100 * | € 1.00 | |
| Metaalschroef M5X10Mm Mls100 * | ||||
| 012 | JM23000032 | Metaalschroef M5X10Mm Mls100 * | € 0.99 | |
| Veerring 5Mm Mls100 * | ||||
| 013 | JM23000031 | Veerring 5Mm Mls100 * | € 0.99 | |
| Sluitring 5Mm Mls100 * | ||||
| 014 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Plaat Mls100 * | ||||
| 015 | JM23000053 | Plaat Mls100 * | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 016 | JM23000178 | Nicht mehr lieferbar | ||
| Sluitring 5Mm Mls100 * | ||||
| 017 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Metaalschroef M4x10 | ||||
| 018 | JM23000060 | Metaalschroef M4x10 | € 0.99 | |
| Opvulring Mls100 * | ||||
| 019 | JM23000063 | Opvulring Mls100 * | € 2.07 | |
| Borgveer Mls100 * | ||||
| 020 | JM23000066 | Borgveer Mls100 * | € 1.71 | |
| Asblokkeerring Mls100 * | ||||
| 021 | JM23000067 | Asblokkeerring Mls100 * | € 1.71 | |
| Nicht mehr lieferbar | ||||
| 022 | JM23000061 | Nicht mehr lieferbar | ||
| Afdekkap Mls100 * | ||||
| 023 | JM23000068 | Afdekkap Mls100 * | € 0.99 | |
| Sluitring 5Mm Mls100 * | ||||
| 024 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Veerring 5Mm Mls100 * | ||||
| 025 | JM23000031 | Veerring 5Mm Mls100 * | € 0.99 | |
| Metaalschroef M5x12 | ||||
| 026 | JM23000069 | Metaalschroef M5x12 | € 0.99 | |
| Borgmoer M5 Mls100 * | ||||
| 027 | JM23000139 | Borgmoer M5 Mls100 * | € 0.99 | |
| Sluitring 5Mm Mls100 * | ||||
| 028 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Verstelhendel Mls100 * | ||||
| 029 | JM23000133 | Verstelhendel Mls100 * | € 1.21 | |
| Veer Mls100 * | ||||
| 030 | JM23000134 | Veer Mls100 * | € 1.43 | |
| Beugel Mls100 * | ||||
| 031 | JM23000132 | Beugel Mls100 * | € 1.00 | |
| Sluitring 4Mm Mls100 * | ||||
| 032 | JM23000136 | Sluitring 4Mm Mls100 * | € 0.99 | |
| Veerring 4Mm Mls100 * | ||||
| 033 | JM23000137 | Veerring 4Mm Mls100 * | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 034 | JM23000138 | Nicht mehr lieferbar | ||
| Schroef M5 Mls100 * | ||||
| 035 | JM23000135 | Schroef M5 Mls100 * | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 036 | JM23000083 | Nicht mehr lieferbar | ||
| Sluitring 16mm | ||||
| 037 | JM23000070 | Sluitring 16mm | € 0.99 | |
| Borgmoer M16 Mls100 * | ||||
| 038 | JM23000071 | Borgmoer M16 Mls100 * | € 0.99 | |
| Metaalschroef M6X10Mm Mls100 * | ||||
| 039 | JM23000074 | Metaalschroef M6X10Mm Mls100 * | € 0.99 | |
| Borgring "e" | ||||
| 040 | JM23000076 | Borgring "e" | € 0.99 | |
| Geleidewiel | ||||
| 041 | JM23000075 | Geleidewiel | € 0.99 | |
| Spiraalveer Mls100 * | ||||
| 042 | JM23000073 | Spiraalveer Mls100 * | € 4.07 | |
| Bout M6 | ||||
| 043 | JM23000077 | Bout M6 | € 0.99 | |
| Rubber Bus Mls100 * | ||||
| 044 | JM23000078 | Rubber Bus Mls100 * | € 1.43 | |
| Montageplaat Mls100 * | ||||
| 045 | JM23000079 | Montageplaat Mls100 * | € 1.43 | |
| Bout M8 Mls100 * | ||||
| 046 | JM23000081 | Bout M8 Mls100 * | € 0.99 | |
| Borgmoer M6 | ||||
| 047 | JM23000080 | Borgmoer M6 | € 0.99 | |
| Verende beschermkap | ||||
| 048 | JM23000072 | Verende beschermkap | € 28.80 | |
| Moer M4 Mls100 * | ||||
| 049 | JM23000096 | Moer M4 Mls100 * | € 0.99 | |
| Handgreepdeksel | ||||
| 050 | JM23000097 | Handgreepdeksel | € 3.64 | |
| Parker 3X8 Mls100 * | ||||
| 051 | JM23000113 | Parker 3X8 Mls100 * | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 052 | JM23000112 | Nicht mehr lieferbar | ||
| Schakelknop Mls100 * | ||||
| 053 | JM23000114 | Schakelknop Mls100 * | € 1.43 | |
| Nicht mehr lieferbar | ||||
| 054 | JM23000115 | Nicht mehr lieferbar | ||
| Veldaansluiting Mls100 * | ||||
| 055 | JM23000116 | Veldaansluiting Mls100 * | € 2.43 | |
| Klem Mls100 * | ||||
| 056 | JM23000111 | Klem Mls100 * | € 1.00 | |
| Parker 4,2X12Mm Mls100 * | ||||
| 057 | JM23000106 | Parker 4,2X12Mm Mls100 * | € 0.99 | |
| Trekontlaster Mls100 * | ||||
| 058 | JM23000107 | Trekontlaster Mls100 * | € 0.99 | |
| Kabeltule Mls100 * | ||||
| 059 | JM23000109 | Kabeltule Mls100 * | € 1.43 | |
| Netsnoer 2x1.00 2.2mtr | ||||
| 060 | 665383-1 | Netsnoer 2x1.00 2.2mtr | € 10.78 | |
| Condensator Mls100 * | ||||
| 061 | JM23000110 | Condensator Mls100 * | € 0.99 | |
| Motorhuis Compleet M2300 | ||||
| 062 | JM23000212 | Motorhuis Compleet M2300 | € 13.71 | |
| Metaalschroef M4X30 Mls100 * | ||||
| 063 | JM23000118 | Metaalschroef M4X30 Mls100 * | € 0.99 | |
| Parker Mls100 * | ||||
| 064 | JM23000119 | Parker Mls100 * | € 0.99 | |
| Metaalschroef M4X30 Mls100 * | ||||
| 065 | JM23000118 | Metaalschroef M4X30 Mls100 * | € 0.99 | |
| Parker 5,2X12 Mls100 * | ||||
| 066 | JM23000124 | Parker 5,2X12 Mls100 * | € 0.99 | |
| Motorhuisdeksel Mls100 * | ||||
| 067 | JM23000125 | Motorhuisdeksel Mls100 * | € 2.78 | |
| Koolborstel set Cb-153 | ||||
| 068 | 181044-0 | Koolborstel set Cb-153 | € 4.07 | |
| Metaalschroef M5X8 Mls100 * | ||||
| 069 | JM23000122 | Metaalschroef M5X8 Mls100 * | € 0.99 | |
| Koolborstelhouder Mls100 * | ||||
| 070 | JM23000121 | Koolborstelhouder Mls100 * | € 1.71 | |
| Koolborsteldop Mls100 * | ||||
| 071 | JM23000120 | Koolborsteldop Mls100 * | € 1.00 | |
| Gelenkwelle (a) | ||||
| 072 | JM23000084 | Gelenkwelle (a) | € 3.64 | |
| Metaalschroef M6 | ||||
| 073 | JM23000090 | Metaalschroef M6 | € 0.99 | |
| Borgspie | ||||
| 074 | JM23000085 | Borgspie | € 0.99 | |
| Kogellager 6304llu | ||||
| 075 | 211327-5 | Kogellager 6304llu | € 10.78 | |
| Afstandring | ||||
| 076 | JM23000087 | Afstandring | € 0.99 | |
| Tandwile Mls100 | ||||
| 077 | JM23000088 | Tandwile Mls100 | € 8.43 | |
| Afstandring 16Mm Mls100 * | ||||
| 078 | JM23000089 | Afstandring 16Mm Mls100 * | € 0.99 | |
| Metaalschroef M5X20 Mls100 * | ||||
| 079 | JM23000092 | Metaalschroef M5X20 Mls100 * | € 1.00 | |
| Precisieplaat Mls100 * | ||||
| 080 | JM23000093 | Precisieplaat Mls100 * | € 0.99 | |
| Precisiepad Mls100 * | ||||
| 081 | JM23000094 | Precisiepad Mls100 * | € 0.99 | |
| Verstelpad Mls100 * | ||||
| 082 | JM23000095 | Verstelpad Mls100 * | € 0.99 | |
| Tandwielhuis Mls100 * | ||||
| 083 | JM23000091 | Tandwielhuis Mls100 * | € 49.74 | |
| Luchtgeleider Mls100 * | ||||
| 084 | JM23000098 | Luchtgeleider Mls100 * | € 1.71 | |
| Kogellager 6201 | ||||
| 085 | 211109-5 | Kogellager 6201 | € 4.57 | |
| Anker | ||||
| 086 | JM23000100 | Anker | € 74.61 | |
| Parker 4,8X70Mm Mls100 * | ||||
| 087 | JM23000101 | Parker 4,8X70Mm Mls100 * | € 0.99 | |
| Kogellager 6001 | ||||
| 088 | 211104-5 | Kogellager 6001 | € 4.57 | |
| Rubber Ring Mls100 * | ||||
| 089 | JM23000103 | Rubber Ring Mls100 * | € 0.99 | |
| Feld | ||||
| 090 | JM23000104 | Feld | € 65.45 | |
| Nicht mehr lieferbar | ||||
| 091 | JM23000130 | Nicht mehr lieferbar | ||
| Metaalschroef M6X16Mm Mls100 * | ||||
| 092 | JM23000039 | Metaalschroef M6X16Mm Mls100 * | € 0.99 | |
| Veerring 6Mm Mls100 * | ||||
| 093 | JM23000040 | Veerring 6Mm Mls100 * | € 0.99 | |
| Sluitring 6mm | ||||
| 094 | JM23000041 | Sluitring 6mm | € 0.99 | |
| Halteplatte | ||||
| 095 | JM23000038 | Halteplatte | € 2.78 | |
| Metaalschroef M5X10Mm Mls100 * | ||||
| 096 | JM23000032 | Metaalschroef M5X10Mm Mls100 * | € 0.99 | |
| Veerring 5Mm Mls100 * | ||||
| 097 | JM23000031 | Veerring 5Mm Mls100 * | € 0.99 | |
| Sluitring 5Mm Mls100 * | ||||
| 098 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Klem Mls100 * | ||||
| 099 | JM23000042 | Klem Mls100 * | € 1.21 | |
| As Mls100 * | ||||
| 100 | JM23000037 | As Mls100 * | € 4.07 | |
| Borgpen Mls100 * | ||||
| 101 | JM23000049 | Borgpen Mls100 * | € 1.00 | |
| Borgmoer M12 Mls100 * | ||||
| 102 | JM23000044 | Borgmoer M12 Mls100 * | € 0.99 | |
| Sluitring 12Mm Mls100 * | ||||
| 103 | JM23000045 | Sluitring 12Mm Mls100 * | € 0.99 | |
| Arm | ||||
| 104 | JM23000036 | Arm | € 34.30 | |
| Kap Mls100 * | ||||
| 105 | JM23000046 | Kap Mls100 * | € 1.00 | |
| O-Ring Mls100 * | ||||
| 106 | JM23000047 | O-Ring Mls100 * | € 1.00 | |
| Pin Mls100 * | ||||
| 107 | JM23000048 | Pin Mls100 * | € 1.00 | |
| Revet Mls100 * | ||||
| 108 | JM23000051 | Revet Mls100 * | € 1.00 | |
| Metaalschroef M4x15mm | ||||
| 109 | JM23100014 | Metaalschroef M4x15mm | € 0.99 | |
| Spiraalveer Mls100 * | ||||
| 110 | JM23000050 | Spiraalveer Mls100 * | € 8.43 | |
| Label Gradenaand Mls100 * | ||||
| 111 | JM23000035 | Label Gradenaand Mls100 * | € 2.78 | |
| Nagel Mls100 * | ||||
| 112 | JM23000034 | Nagel Mls100 * | € 0.99 | |
| Inbusbout M8x16mm | ||||
| 113 | JM23000033 | Inbusbout M8x16mm | € 0.99 | |
| Moer M8 Mls100 * | ||||
| 114 | JM23000028 | Moer M8 Mls100 * | € 0.99 | |
| Aanslag M2300 | ||||
| 115 | JM23000203 | Aanslag M2300 | € 8.43 | |
| Borgmoer M6 | ||||
| 116 | JM21000033 | Borgmoer M6 | € 0.99 | |
| Metaalschroef M4x15mm | ||||
| 117 | JM23100014 | Metaalschroef M4x15mm | € 0.99 | |
| Veerring 4Mm Mls100 * | ||||
| 118 | JM23000137 | Veerring 4Mm Mls100 * | € 0.99 | |
| Montageblech | ||||
| 119 | JM23000202 | Montageblech | € 0.99 | |
| Druckplatte | ||||
| 120 | JM23300239 | Druckplatte | € 1.43 | |
| Verzonken schroef 6x25 | ||||
| 121 | JM23000201 | Verzonken schroef 6x25 | € 0.99 | |
| Vleugelbout Mls100 * | ||||
| 122 | JM23000126 | Vleugelbout Mls100 * | € 0.99 | |
| Inbusbout M8X30 Mls100 * | ||||
| 123 | JM23000024 | Inbusbout M8X30 Mls100 * | € 0.99 | |
| Veerring 8 | ||||
| 124 | JM23000025 | Veerring 8 | € 0.99 | |
| Sluitring 8mm | ||||
| 125 | JM23000026 | Sluitring 8mm | € 0.99 | |
| Anschlag | ||||
| 126 | JM23000204 | Anschlag | € 26.05 | |
| Inbusbout M8X20 Mls100 * | ||||
| 127 | JM23000027 | Inbusbout M8X20 Mls100 * | € 1.00 | |
| Moer M8 Mls100 * | ||||
| 128 | JM23000028 | Moer M8 Mls100 * | € 0.99 | |
| Metaalschroef M5X10Mm Mls100 * | ||||
| 129 | JM23000032 | Metaalschroef M5X10Mm Mls100 * | € 0.99 | |
| Veerring 5Mm Mls100 * | ||||
| 130 | JM23000031 | Veerring 5Mm Mls100 * | € 0.99 | |
| Sluitring 5Mm Mls100 * | ||||
| 131 | JM23000030 | Sluitring 5Mm Mls100 * | € 0.99 | |
| Gradenaanduider Vert. Mls100 * | ||||
| 132 | JM23000029 | Gradenaanduider Vert. Mls100 * | € 1.00 | |
| Borgpen Mls100 * | ||||
| 133 | JM23000019 | Borgpen Mls100 * | € 2.43 | |
| Inzaagplaat | ||||
| 134 | JM23000020 | Inzaagplaat | € 1.71 | |
| Metaalschroef M4X10 Mls100 * | ||||
| 135 | JM23000018 | Metaalschroef M4X10 Mls100 * | € 0.99 | |
| Vangnet Mls100 * | ||||
| 136 | JM23000022 | Vangnet Mls100 * | € 2.43 | |
| Metaalschroef M4X10 Mls100 * | ||||
| 137 | JM23000018 | Metaalschroef M4X10 Mls100 * | € 0.99 | |
| Gradenaanduider Hor Mls100 * | ||||
| 138 | JM23000017 | Gradenaanduider Hor Mls100 * | € 0.99 | |
| Draaiplateau | ||||
| 139 | JM23000021 | Draaiplateau | € 74.61 | |
| Draairing Mls100 * | ||||
| 140 | JM23000016 | Draairing Mls100 * | € 1.43 | |
| Schroef Mls100 * | ||||
| 141 | JM23000012 | Schroef Mls100 * | € 0.99 | |
| Antikantelbeugel | ||||
| 142 | JM23000011 | Antikantelbeugel | € 4.16 | |
| Sterknop Mls100 * | ||||
| 143 | JM23000006 | Sterknop Mls100 * | € 1.21 | |
| Tafelverbreder | ||||
| 144 | JM23000127 | Tafelverbreder | € 13.39 | |
| Sluitring 10Mm Mls100 * | ||||
| 145 | JM23000013 | Sluitring 10Mm Mls100 * | € 0.99 | |
| Pasring Mls100 * | ||||
| 146 | JM23000014 | Pasring Mls100 * | € 0.99 | |
| Borgmoer M10 Mls100 * | ||||
| 147 | JM23000015 | Borgmoer M10 Mls100 * | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 148 | JM23000200 | Nicht mehr lieferbar | ||
| Greepbeugel | ||||
| 149 | JM23000002 | Greepbeugel | € 3.64 | |
| Drehknopf | ||||
| 150 | JM23000001 | Drehknopf | € 2.78 | |
| Veerring 8Mm Mls100 * | ||||
| 151 | JM23000003 | Veerring 8Mm Mls100 * | € 0.99 | |
| Inbusbout M8X20Mm Mls100 * | ||||
| 152 | JM23000004 | Inbusbout M8X20Mm Mls100 * | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 153 | JM23000128 | Nicht mehr lieferbar | ||
| Aanduidingsplaat Ls800Dw * | ||||
| 154 | 810965-6 | Aanduidingsplaat Ls800Dw * | € 1.00 | |
| Grundplatte | ||||
| 155 | JM23000009 | Grundplatte | € 65.45 | |
| Nagel | ||||
| 156 | JM23000008 | Nagel | € 0.99 | |
| Label Gradenaand Mls100 * | ||||
| 157 | JM23000007 | Label Gradenaand Mls100 * | € 2.78 | |
| Knop M2300 | ||||
| 158 | JM23000043 | Knop M2300 | € 4.57 | |
| Sluitring 10Mm Mls100 * | ||||
| 159 | JM23000013 | Sluitring 10Mm Mls100 * | € 0.99 | |
| Warnschild | ||||
| 160 | 810964-8 | Warnschild | € 1.43 | |
| Label, Logo | ||||
| 161 | JM23080143 | Label, Logo | € 2.78 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
