Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita LS1040F'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

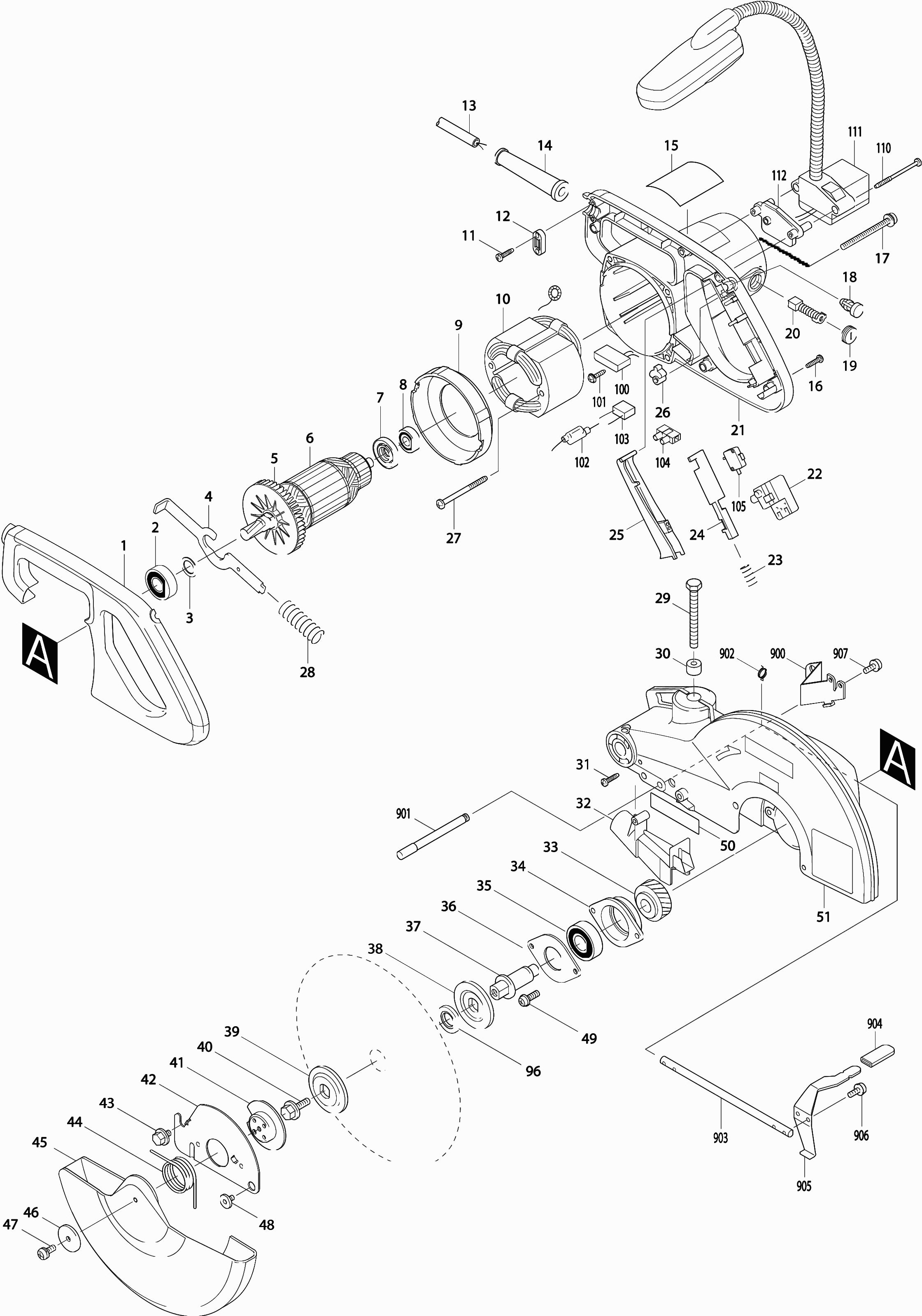

Zeichnungen der Makita LS1040F
Teileliste der Makita LS1040F
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Handgreepdeksel Ls1040 A | ||||
| 001 | 458787-2 | 3.65 | 4.34 | |
| Kogellager 6202llb | ||||
| 002 | 211228-7 | 7.44 | 8.85 | |
| Sluitring 15 | ||||
| 003 | 253853-8 | 0.83 | 0.99 | |
| Achsblockierung | ||||
| 004 | 343641-2 | 2.08 | 2.48 | |
| Waaier 80 | ||||
| 005 | 241909-9 | 2.93 | 3.49 | |
| Anker | ||||
| 006 | 516718-8 | 70.18 | 83.51 | |
| Isolatiering | ||||
| 007 | 681640-9 | 0.83 | 0.99 | |
| Kogellager 6000llb | ||||
| 008 | 211061-7 | 7.44 | 8.85 | |
| Zwischenplatte | ||||
| 009 | 416442-2 | 0.83 | 0.99 | |
| Feld | ||||
| 010 | 526068-3 | 46.85 | 55.75 | |
| Statorveertje Cb5 | ||||
| 010A | 654020-2 | 0.83 | 0.99 | |
| Klembus tbv statorv. 2mm | ||||
| 010B | 654502-4 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 011 | 265995-6 | 0.83 | 0.99 | |
| Klemstrip | ||||
| 012 | 687124-5 | 0.83 | 0.99 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 013 | 695123-3 | 21.70 | 25.82 | |
| Kabeltule 10-90 | ||||
| 014 | 682505-8 | 1.72 | 2.05 | |
| Typenschild | ||||
| 015 | 850407-8 | 2.93 | 3.49 | |
| Tapschroef 4x18 | ||||
| 016 | 265995-6 | 0.83 | 0.99 | |
| Schroef 6x60 | ||||
| 017 | 911383-2 | 0.83 | 0.99 | |
| Deblokkeerknop | ||||
| 018 | 411478-6 | 1.01 | 1.20 | |
| Koolborstelhouderdop | ||||
| 019 | 643650-4 | 0.83 | 0.99 | |
| Koolborstel set Cb-153 | ||||
| 020 | 181044-0 | 4.08 | 4.86 | |
| Motorgehäuse | ||||
| 021 | 154562-1 | 21.70 | 25.82 | |
| Koolborstelhouder A | ||||
| 021B | 643536-2 | 1.54 | 1.83 | |
| Warnschild | ||||
| 021A | 817881-3 | 2.80 | 3.33 | |
| Schakelaar Sw-127 | ||||
| 022 | 651923-1 | 12.58 | 14.97 | |
| Drukveer 3 | ||||
| 023 | 231457-6 | 0.83 | 0.99 | |
| Deblokkeer handel | ||||
| 024 | 416000-4 | 1.21 | 1.44 | |
| Nicht mehr lieferbar | ||||
| 025 | 415999-0 | |||
| Kamm | ||||
| 026 | 414546-4 | 1.01 | 1.20 | |
| Tapschroef Pt 5x65 | ||||
| 027 | 266029-8 | 1.72 | 2.05 | |
| Drukveer 9 | ||||
| 028 | 231297-2 | 0.83 | 0.99 | |
| Zeskant bout 8x75 | ||||
| 029 | 251667-9 | 1.06 | 1.26 | |
| Rubber bus 6 | ||||
| 030 | 262511-5 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 031 | 265995-6 | 0.83 | 0.99 | |
| Führungsplatte | ||||
| 032 | 453695-2 | 0.83 | 0.99 | |
| Tandwiel 42 | ||||
| 033 | 226465-0 | 9.52 | 11.33 | |
| Lagerhuis | ||||
| 034 | 316821-3 | 5.88 | 7.00 | |
| Kogellager 6203zz | ||||
| 035 | 211290-2 | 6.58 | 7.83 | |
| Lagerplaat 64 | ||||
| 036 | 285685-5 | 1.43 | 1.70 | |
| Stoessel | ||||
| 037 | 322865-3 | 12.58 | 14.97 | |
| Binnen/buitenflens | ||||
| 038 | 224333-1 | 3.55 | 4.22 | |
| Binnen/buitenflens | ||||
| 039 | 224333-1 | 3.55 | 4.22 | |
| Inbusbout M8x22 | ||||
| 040 | 266762-2 | 1.43 | 1.70 | |
| Centreerplaat | ||||
| 041 | 343639-9 | 5.22 | 6.21 | |
| Schutzschild | ||||
| 042 | 346516-4 | 2.08 | 2.48 | |
| Flensbout M8x12 | ||||
| 043 | 265324-3 | 1.21 | 1.44 | |
| Torsieveer 36 | ||||
| 044 | 231593-8 | 0.83 | 0.99 | |
| Verende beschermkap | ||||
| 045 | 416003-8 | 11.16 | 13.28 | |
| Ring 5 | ||||
| 046 | 267136-0 | 1.01 | 1.20 | |
| Inbusbout 5x12 | ||||
| 047 | 922211-6 | 0.83 | 0.99 | |
| Zeskant bout M6 | ||||
| 048 | 265985-9 | 1.43 | 1.70 | |
| Schroef 5x16 | ||||
| 049 | 911224-2 | 0.83 | 0.99 | |
| Label "makita" | ||||
| 050 | 819064-1 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 051 | 140655-0 | |||
| Rubber pen 6 | ||||
| 051C | 263005-3 | 0.83 | 0.99 | |
| Warnschild | ||||
| 051A | 817667-5 | 0.83 | 0.99 | |
| Warnschild | ||||
| 051B | 817874-0 | 0.83 | 0.99 | |
| Zeskantbout M8X30 A | ||||
| 052 | 265488-3 | 2.05 | 2.44 | |
| Achterlineaal | ||||
| 053 | 318847-1 | 34.36 | 40.89 | |
| Verzonken schroef 6x25 | ||||
| 054 | 912342-9 | 0.83 | 0.99 | |
| Sluitring 6 | ||||
| 055 | 253715-0 | 0.83 | 0.99 | |
| Hulpaanslag | ||||
| 056 | 142816-8 | 9.54 | 11.35 | |
| Waarschuwingslabel Ls1040 * | ||||
| 056A | 810858-7 | 0.83 | 0.99 | |
| Hulpaanslagplaat | ||||
| 057 | 344476-4 | 0.83 | 0.99 | |
| Borgmoer 6-10 | ||||
| 058 | 252014-7 | 0.83 | 0.99 | |
| Zeskant bout 6x10 | ||||
| 059 | 251961-9 | 0.83 | 0.99 | |
| Ring 7 | ||||
| 060 | 257162-7 | 1.72 | 2.05 | |
| Sluitring 7 | ||||
| 061 | 253823-7 | 0.83 | 0.99 | |
| Zeskant knopbout M6 | ||||
| 062 | 265984-1 | 1.43 | 1.70 | |
| Verbindingsplaat | ||||
| 063 | 344377-6 | 6.60 | 7.85 | |
| Zeskant knopbout M6 | ||||
| 064 | 265984-1 | 1.43 | 1.70 | |
| Sluitring 7 | ||||
| 065 | 253823-7 | 0.83 | 0.99 | |
| Ring 7 | ||||
| 066 | 257162-7 | 1.72 | 2.05 | |
| Griff | ||||
| 067 | 416006-2 | 4.08 | 4.86 | |
| Schroef 4x10 | ||||
| 068 | 911113-1 | 0.83 | 0.99 | |
| Zeskant bout M10 | ||||
| 069 | 265437-0 | 3.37 | 4.01 | |
| Ring 10 | ||||
| 070 | 253024-7 | 0.83 | 0.99 | |
| Stang 16 | ||||
| 071 | 256836-7 | 2.44 | 2.90 | |
| Arm | ||||
| 072 | 141139-1 | 21.87 | 26.03 | |
| Schaalverdeling | ||||
| 072A | 816310-3 | 0.83 | 0.99 | |
| Knop 20 | ||||
| 073A | 271601-3 | 0.83 | 0.99 | |
| Sperrbolzen | ||||
| 073 | 324183-5 | 1.01 | 1.20 | |
| O-ring 5 | ||||
| 074 | 213021-5 | 0.83 | 0.99 | |
| Drukveer 28 Ls1040 | ||||
| 075 | 233152-4 | 2.80 | 3.33 | |
| Veerhouder Ls1013 | ||||
| 076 | 344464-1 | 1.06 | 1.26 | |
| Pen 8 Ls1040 A | ||||
| 077 | 256280-8 | 1.43 | 1.70 | |
| Schroef 4x10 | ||||
| 079 | 911113-1 | 0.83 | 0.99 | |
| Markeerpunt | ||||
| 080 | 344385-7 | 0.83 | 0.99 | |
| Führungsplatte | ||||
| 081 | 343799-7 | 1.51 | 1.80 | |
| Zeskant bout 8x30 | ||||
| 082 | 921452-1 | 0.83 | 0.99 | |
| Schroef 5x12 | ||||
| 083 | 911213-7 | 0.83 | 0.99 | |
| Verstelgreep | ||||
| 084 | 273495-2 | 4.08 | 4.86 | |
| Blokkeerveerplaat | ||||
| 085 | 344381-5 | 3.22 | 3.83 | |
| Pedal | ||||
| 086 | 150648-9 | 78.32 | 93.20 | |
| Pedal | ||||
| 086D | 286212-1 | 0.83 | 0.99 | |
| Schaalverdeling | ||||
| 086A | 816311-1 | 4.08 | 4.86 | |
| Warnschild | ||||
| 086B | 817283-3 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 086C | 817838-4 | |||
| Draaischijf | ||||
| 087 | 318800-7 | 45.06 | 53.62 | |
| Inzaagplaat | ||||
| 088 | 416001-2 | 1.01 | 1.20 | |
| Inzaagplaat | ||||
| 089 | 416001-2 | 1.01 | 1.20 | |
| Zeskant bout 8x30 | ||||
| 090 | 921452-1 | 0.83 | 0.99 | |
| Moer M8 | ||||
| 091 | 931402-8 | 0.83 | 0.99 | |
| Borgmoer M8x13 hoog | ||||
| 092 | 252105-4 | 0.83 | 0.99 | |
| Ring 8 | ||||
| 093 | 253762-1 | 1.01 | 1.20 | |
| Moer M8 | ||||
| 094 | 931402-8 | 0.83 | 0.99 | |
| Zeskant bout 8x30 | ||||
| 095 | 921452-1 | 0.83 | 0.99 | |
| Verloopring 30x15,88x4mm | ||||
| 096 | 257295-8 | 0.91 | 1.08 | |
| Vleugelbout 6x10 | ||||
| 097 | 924306-1 | 0.83 | 0.99 | |
| Knopbout M6x18mm | ||||
| 098 | 265783-1 | 1.21 | 1.44 | |
| Soft start circuit | ||||
| 100 | 631588-5 | 31.62 | 37.63 | |
| Tapschroef 4x18 | ||||
| 101 | 266300-0 | 0.83 | 0.99 | |
| Kondensator | ||||
| 102 | 646073-5 | 2.80 | 3.33 | |
| Condensator 0,1uf | ||||
| 103 | 645105-5 | 2.80 | 3.33 | |
| Kroonsteen | ||||
| 104 | 654575-7 | 2.93 | 3.49 | |
| Micro schakelaar | ||||
| 105 | 651941-9 | 3.22 | 3.83 | |
| Tapschroef 4x50 | ||||
| 110 | 266091-3 | 0.83 | 0.99 | |
| Licht Set Cpl Ls1040F | ||||
| 111 | 125180-2 | 43.02 | 51.19 | |
| Lampbox incl glas+lens | ||||
| 111A | 152923-9 | 1.72 | 2.05 | |
| TL buis 5W LS0714FLB | ||||
| 111B | 193730-1 | 3.95 | 4.70 | |
| Montageblech | ||||
| 112 | 418072-5 | 1.06 | 1.26 | |
| Blokkeerplaat | ||||
| 900 | 344572-8 | 2.93 | 3.49 | |
| Nicht mehr lieferbar | ||||
| 901 | 323720-2 | |||
| Trekveer 8 | ||||
| 902 | 231633-2 | 0.83 | 0.99 | |
| Pen 8 | ||||
| 903 | 323721-0 | 5.22 | 6.21 | |
| Kappe | ||||
| 904 | 421589-9 | 0.83 | 0.99 | |
| Blokkeerhandel | ||||
| 905 | 345803-8 | 1.80 | 2.14 | |
| Schroef 4x10 | ||||
| 906 | 911113-1 | 0.83 | 0.99 | |
| Schroef 4x10 | ||||
| 907 | 911113-1 | 0.83 | 0.99 | |
