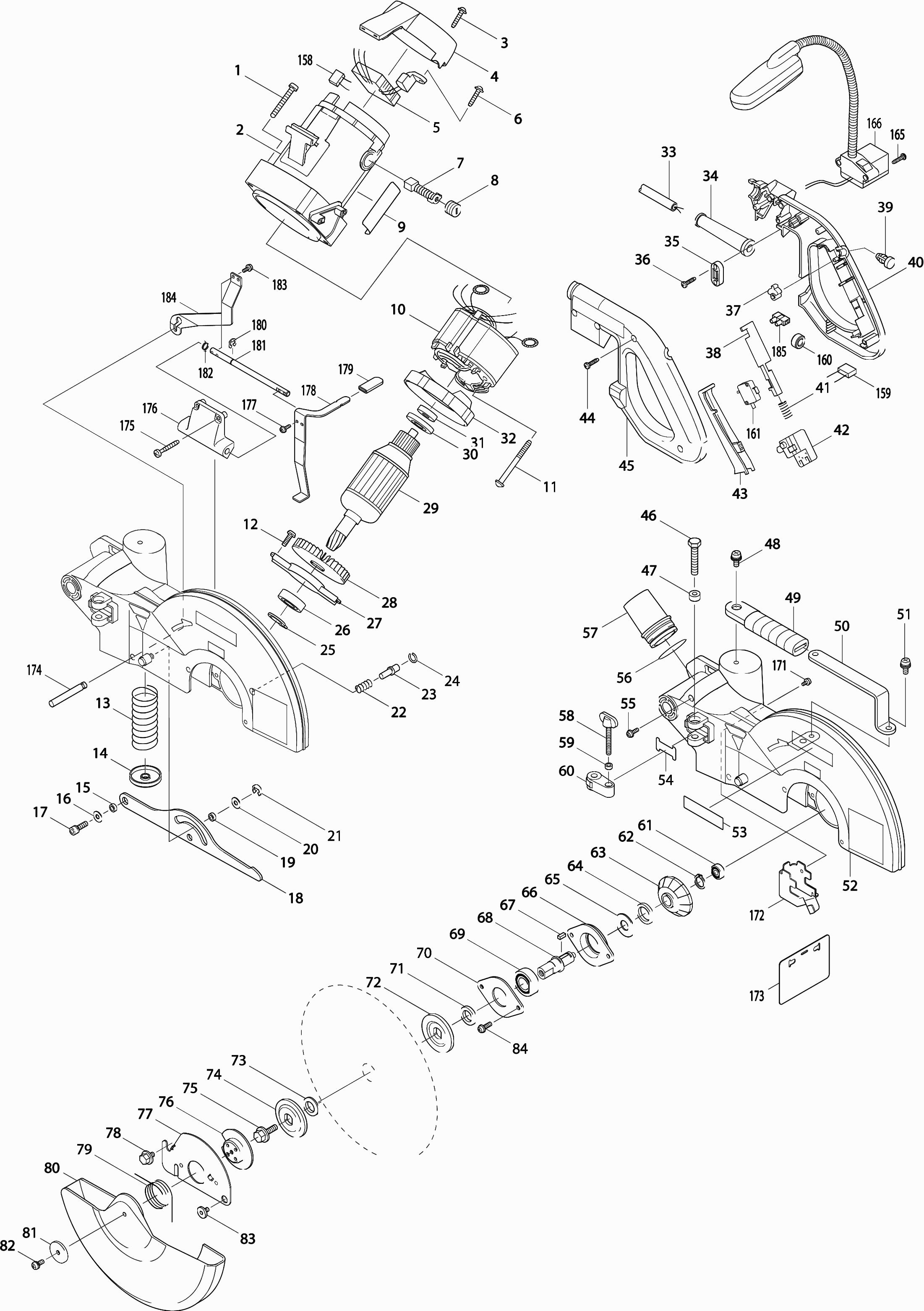

Zeichnungen der Makita LS1013F
Teileliste der Makita LS1013F
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Kruiskopschroef M6X50 * | ||||
| 001 | 911373-5 | 0.83 | 0.99 | |
| Motorhuis Ls1013 A | ||||
| 002 | 154568-9 | 18.20 | 21.66 | |
| 002A | 643536-2 | 1.42 | 1.69 | |
| Tapschroef 4x18 | ||||
| 003 | 265995-6 | 0.83 | 0.99 | |
| Afdek deksel | ||||
| 004 | 416075-3 | 4.24 | 5.05 | |
| Controle circuit | ||||
| 005 | 631219-6 | 48.28 | 57.45 | |
| Tapschroef 4x18 | ||||
| 006 | 265995-6 | 0.83 | 0.99 | |
| Koolborstel set Cb-153 | ||||
| 007 | 181044-0 | 3.77 | 4.49 | |
| Koolborstelhouderdop | ||||
| 008 | 643650-4 | 0.83 | 0.99 | |
| Feld | ||||
| 010 | 599506-8 | 69.12 | 82.25 | |
| Statorveertje Cb5 | ||||
| 010A | 654020-2 | 0.83 | 0.99 | |
| Klembus tbv statorv. 2mm | ||||
| 010B | 654502-4 | 0.83 | 0.99 | |
| Tapschroef Pt 5x65 | ||||
| 011 | 266029-8 | 1.58 | 1.88 | |
| Schroef 5x16 | ||||
| 012 | 911224-2 | 0.83 | 0.99 | |
| Drukveer 28 | ||||
| 013 | 233165-5 | 3.95 | 4.70 | |
| Veerhouder Ls1013 | ||||
| 014 | 344464-1 | 0.97 | 1.15 | |
| Ring 16 | ||||
| 015 | 257163-5 | 1.14 | 1.36 | |
| Sluitring 6 | ||||
| 016 | 253804-1 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 017 | 922331-6 | |||
| Verbindingsplaat | ||||
| 018 | 344415-4 | 13.17 | 15.67 | |
| Ring 16 | ||||
| 019 | 257163-5 | 1.14 | 1.36 | |
| Sluitring 6 | ||||
| 020 | 253804-1 | 0.83 | 0.99 | |
| Stopring E-5 | ||||
| 021 | 961018-5 | 0.83 | 0.99 | |
| Drukveer 7 | ||||
| 022 | 231240-1 | 0.83 | 0.99 | |
| Blokkeer Pen 6 4110C | ||||
| 023 | 256633-1 | 0.83 | 0.99 | |
| Borgring 8 | ||||
| 024 | 231928-3 | 0.83 | 0.99 | |
| Borgring S-17 | ||||
| 025 | 961057-5 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 026 | 211275-8 | |||
| Lagerplaat 94 | ||||
| 027 | 285686-3 | 3.54 | 4.21 | |
| Waaier 80 | ||||
| 028 | 240001-8 | 3.12 | 3.71 | |
| Anker | ||||
| 029 | 516723-5 | 105.46 | 125.50 | |
| Isolatiering | ||||
| 030 | 681642-5 | 7.81 | 9.29 | |
| Kogellager 6000llb | ||||
| 031 | 211061-7 | 6.88 | 8.19 | |
| Zwischenplatte | ||||
| 032 | 416107-6 | 1.18 | 1.40 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 033 | 695123-3 | 20.08 | 23.90 | |
| Kabeltule 10-90 | ||||
| 034 | 682505-8 | 1.58 | 1.88 | |
| Klemstrip | ||||
| 035 | 687124-5 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 036 | 265995-6 | 0.83 | 0.99 | |
| Kamm | ||||
| 037 | 414546-4 | 0.94 | 1.12 | |
| Deblokkeer handel | ||||
| 038 | 416000-4 | 1.12 | 1.33 | |
| Deblokkeerknop | ||||
| 039 | 411478-6 | 0.94 | 1.12 | |
| Handgreep set | ||||
| 040 | 183840-2 | 13.78 | 16.40 | |
| Drukveer 3 | ||||
| 041 | 231457-6 | 0.83 | 0.99 | |
| Schakelaar Sw-127 | ||||
| 042 | 651923-1 | 11.64 | 13.85 | |
| Nicht mehr lieferbar | ||||
| 043 | 415999-0 | |||
| Tapschroef 4x18 | ||||
| 044 | 265995-6 | 0.83 | 0.99 | |
| Handgreep set | ||||
| 045 | 183840-2 | 13.78 | 16.40 | |
| Zeskantbout M8X45 * | ||||
| 046 | 921467-8 | 0.83 | 0.99 | |
| Rubber koolborstelring | ||||
| 047 | 262003-4 | 0.83 | 0.99 | |
| Zeskant bout 6x16 | ||||
| 048 | 911323-0 | 0.83 | 0.99 | |
| Greep | ||||
| 049 | 421562-9 | 2.27 | 2.70 | |
| Greephouder | ||||
| 050 | 344420-1 | 2.58 | 3.07 | |
| Zeskant bout 6x16 | ||||
| 051 | 911323-0 | 0.83 | 0.99 | |
| Zaagkap | ||||
| 052 | 188386-3 | 111.80 | 133.04 | |
| Rubber pen 6 | ||||
| 052C | 263005-3 | 0.83 | 0.99 | |
| Pen voor verbinding | ||||
| 052D | 322316-6 | 1.92 | 2.28 | |
| Warnschild | ||||
| 052A | 817667-5 | 0.83 | 0.99 | |
| Warnschild | ||||
| 052B | 817874-0 | 0.83 | 0.99 | |
| Label "makita" | ||||
| 053 | 819064-1 | 0.83 | 0.99 | |
| Halteblech | ||||
| 054 | 344045-1 | 0.83 | 0.99 | |
| Schroef 4x10 | ||||
| 055 | 911113-1 | 0.83 | 0.99 | |
| O-ring 35 | ||||
| 056 | 213460-9 | 1.12 | 1.33 | |
| Stofafzuigadapter afkortzaag | ||||
| 057 | 419277-0 | 3.25 | 3.87 | |
| Vleugelbout m6x43 | ||||
| 058 | 265717-4 | 1.90 | 2.26 | |
| Kunststof Ring 5 | ||||
| 059 | 262001-8 | 1.32 | 1.57 | |
| Blokkeerarm | ||||
| 060 | 317176-9 | 7.21 | 8.58 | |
| Kogellager 607llb | ||||
| 061 | 211021-9 | 4.24 | 5.05 | |
| Borgring S-14 | ||||
| 062 | 961054-1 | 0.83 | 0.99 | |
| Tandwiel 33 | ||||
| 063 | 226742-0 | 21.03 | 25.03 | |
| Rubber ring 20 | ||||
| 064 | 262074-1 | 0.83 | 0.99 | |
| Sluitring 14 | ||||
| 065 | 267035-6 | 1.12 | 1.33 | |
| Lagerhuis | ||||
| 066 | 316836-0 | 6.88 | 8.19 | |
| Inlegspie 4 | ||||
| 067 | 254202-2 | 0.83 | 0.99 | |
| Stoessel | ||||
| 068 | 322899-6 | 3.95 | 4.70 | |
| Nicht mehr lieferbar | ||||
| 069 | 211275-8 | |||
| Lagerhouder 66 | ||||
| 070 | 285828-9 | 1.32 | 1.57 | |
| Reduceerring 25x15,88x4,0mm | ||||
| 071 | 257022-3 | 2.50 | 2.98 | |
| Binnen/buitenflens | ||||
| 072 | 224333-1 | 3.28 | 3.90 | |
| Verloopring 30x15,88x4mm | ||||
| 073 | 257295-8 | 1.10 | 1.31 | |
| Binnen/buitenflens | ||||
| 074 | 224333-1 | 3.28 | 3.90 | |
| Inbusbout M8x22 | ||||
| 075 | 266762-2 | 1.32 | 1.57 | |
| Centreerplaat | ||||
| 076 | 343639-9 | 4.82 | 5.74 | |
| Schutzschild | ||||
| 077 | 346516-4 | 1.92 | 2.28 | |
| Flensbout M8x12 | ||||
| 078 | 265324-3 | 1.12 | 1.33 | |
| Torsieveer 36 | ||||
| 079 | 231593-8 | 0.83 | 0.99 | |
| Zaagbeschermkap | ||||
| 080 | 450047-8 | 11.26 | 13.40 | |
| Ring 5 | ||||
| 081 | 267136-0 | 0.94 | 1.12 | |
| Schroef 5x12 | ||||
| 082 | 911213-7 | 0.83 | 0.99 | |
| Platkop schroef M5 | ||||
| 083 | 265008-3 | 1.12 | 1.33 | |
| Schroef 5x16 | ||||
| 084 | 911224-2 | 0.83 | 0.99 | |
| Zeskant bout 10x130 | ||||
| 085 | 265406-1 | 4.24 | 5.05 | |
| Ring 10 | ||||
| 086 | 253024-7 | 0.83 | 0.99 | |
| Bus 16-113 | ||||
| 087 | 331428-4 | 5.44 | 6.47 | |
| Borgmoer M8x13 hoog | ||||
| 088 | 252105-4 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 089 | 941201-0 | |||
| Arm | ||||
| 090 | 317983-0 | 59.08 | 70.31 | |
| Knop 20 | ||||
| 091A | 271601-3 | 0.83 | 0.99 | |
| Sperrbolzen | ||||
| 091 | 324183-5 | 0.94 | 1.12 | |
| O-ring 5 | ||||
| 092 | 213021-5 | 0.83 | 0.99 | |
| Trekontlaster | ||||
| 093 | 687042-7 | 0.83 | 0.99 | |
| Tapschroef M4x12mm Ck | ||||
| 094 | 266026-4 | 0.83 | 0.99 | |
| Moer M10-17 | ||||
| 095 | 264005-6 | 1.32 | 1.57 | |
| Ring 10 | ||||
| 096 | 253024-7 | 0.83 | 0.99 | |
| Zeskant bout 8x30 | ||||
| 097 | 265371-4 | 0.94 | 1.12 | |
| Zeskant bout 8x20 | ||||
| 098 | 265412-6 | 0.83 | 0.99 | |
| Stalen kogel 10 | ||||
| 099 | 216003-6 | 0.83 | 0.99 | |
| Geleidingsplaat | ||||
| 100 | 345418-1 | 6.88 | 8.19 | |
| Torsieveer 28 | ||||
| 101 | 231626-9 | 1.92 | 2.28 | |
| Indicatieplaat | ||||
| 102 | 413067-3 | 0.97 | 1.15 | |
| Schroef 4x10 | ||||
| 103 | 911114-9 | 0.83 | 0.99 | |
| Drukveer 5 | ||||
| 104 | 233168-9 | 0.83 | 0.99 | |
| Inbusbout M2x12 | ||||
| 105 | 266131-7 | 0.83 | 0.99 | |
| Ring 8 | ||||
| 106 | 253852-0 | 1.12 | 1.33 | |
| Zeskant bout 8x40 | ||||
| 107 | 265442-7 | 0.83 | 0.99 | |
| Inzaagplaat | ||||
| 108 | 415209-5 | 2.58 | 3.07 | |
| Tapschroef M4x12mm Ck | ||||
| 109 | 266026-4 | 0.83 | 0.99 | |
| Borgmoer 6-10 | ||||
| 110 | 252014-7 | 0.83 | 0.99 | |
| Steun voor aanslag | ||||
| 111 | 344463-3 | 0.83 | 0.99 | |
| Anschlag | ||||
| 112 | 154564-7 | 13.17 | 15.67 | |
| Sluitring 6 | ||||
| 113 | 253715-0 | 0.83 | 0.99 | |
| Verzonken schroef 6x35 | ||||
| 114 | 912357-6 | 0.83 | 0.99 | |
| Vleugelbout 6x10 | ||||
| 115 | 924306-1 | 0.83 | 0.99 | |
| Zeskantbout M8X30 A | ||||
| 116 | 265488-3 | 1.90 | 2.26 | |
| Achteraanslag | ||||
| 117 | 316840-9 | 46.09 | 54.85 | |
| Schroef 8x320 | ||||
| 118 | 266132-5 | 3.77 | 4.49 | |
| Sluitring 8 | ||||
| 119A | 253731-2 | 0.83 | 0.99 | |
| Moer M8 | ||||
| 119 | 931402-8 | 0.83 | 0.99 | |
| Griff | ||||
| 120 | 273444-9 | 10.02 | 11.92 | |
| Nicht mehr lieferbar | ||||
| 121 | 331491-7 | |||
| Drehknopf | ||||
| 122 | 152541-3 | 6.86 | 8.16 | |
| Kap 10 | ||||
| 123 | 421563-7 | 0.94 | 1.12 | |
| Feder | ||||
| 124 | 322924-3 | 0.83 | 0.99 | |
| Blokkeerpin | ||||
| 125 | 322909-9 | 6.08 | 7.24 | |
| Tapschroef Ct4x16 | ||||
| 126 | 266034-5 | 0.83 | 0.99 | |
| Blattfeder | ||||
| 127 | 232075-3 | 0.94 | 1.12 | |
| Stopring E-5 | ||||
| 128 | 961018-5 | 0.83 | 0.99 | |
| Drukveer 6 | ||||
| 129 | 231307-5 | 0.83 | 0.99 | |
| Pinhouder | ||||
| 130 | 316899-6 | 8.18 | 9.73 | |
| Geleiderstopper | ||||
| 131 | 344411-2 | 1.58 | 1.88 | |
| Schroef M6 | ||||
| 132 | 251267-5 | 0.83 | 0.99 | |
| Pen 5 | ||||
| 133 | 256196-7 | 0.83 | 0.99 | |
| Tapschroef Ct4x16 | ||||
| 134 | 266034-5 | 0.83 | 0.99 | |
| Stopperhouder | ||||
| 135 | 344412-0 | 10.02 | 11.92 | |
| Draaistopper | ||||
| 136 | 331493-3 | 73.92 | 87.96 | |
| Tapschroef Ct4x16 | ||||
| 137 | 266034-5 | 0.83 | 0.99 | |
| Tapschroef M4x12mm Ck | ||||
| 138 | 266026-4 | 0.83 | 0.99 | |
| Indicatieplaat | ||||
| 139 | 816128-2 | 0.83 | 0.99 | |
| Draaiplateau | ||||
| 140 | 151468-4 | 224.07 | 266.64 | |
| Lineair kogell 3064 | ||||
| 140A | 211444-1 | 27.95 | 33.26 | |
| Lager 30 | ||||
| 140B | 219002-7 | 14.85 | 17.67 | |
| Vilten ring 30 | ||||
| 140C | 262048-2 | 1.32 | 1.57 | |
| Rubber pen 6 | ||||
| 140D | 263005-3 | 0.83 | 0.99 | |
| Kappe | ||||
| 140E | 343676-3 | 1.18 | 1.40 | |
| Warnschild | ||||
| 140F | 817283-3 | 0.83 | 0.99 | |
| Zeskant bout 6x35 | ||||
| 141 | 921356-7 | 0.83 | 0.99 | |
| Vierkant Pen Ls1013 * | ||||
| 142 | 152542-1 | 13.17 | 15.67 | |
| Rubber pen 6 | ||||
| 142A | 263005-3 | 0.83 | 0.99 | |
| Armhouder | ||||
| 143 | 151459-5 | 77.51 | 92.24 | |
| Nicht mehr lieferbar | ||||
| 143A | 816313-7 | |||
| Zeskantbout 10X90 Ls1013 | ||||
| 144 | 251668-7 | 1.32 | 1.57 | |
| Schroef 4x10 | ||||
| 145 | 911113-1 | 0.83 | 0.99 | |
| Griff | ||||
| 146 | 416006-2 | 3.77 | 4.49 | |
| Zeskant moer 10x17 | ||||
| 147 | 252144-4 | 2.58 | 3.07 | |
| Ring 10 | ||||
| 148 | 253024-7 | 0.83 | 0.99 | |
| Lagerhuis B | ||||
| 149 | 152540-5 | 44.86 | 53.38 | |
| Lineair kogell 3064 | ||||
| 149A | 211444-1 | 27.95 | 33.26 | |
| Vilten ring 30 | ||||
| 149B | 262048-2 | 1.32 | 1.57 | |
| Lagerhuis B | ||||
| 149D | 316837-8 | 20.08 | 23.90 | |
| Kappe | ||||
| 149C | 343676-3 | 1.18 | 1.40 | |
| Inbusbout M8x30 | ||||
| 150 | 922451-6 | 0.95 | 1.13 | |
| Tapschroef M4x12mm Ck | ||||
| 151 | 266026-4 | 0.83 | 0.99 | |
| Schaalverdeling | ||||
| 152 | 816326-8 | 16.58 | 19.73 | |
| Führungsplatte | ||||
| 153 | 344477-2 | 1.58 | 1.88 | |
| Vleugelbout 6x10 | ||||
| 154 | 924306-1 | 0.83 | 0.99 | |
| Abdeckhaube | ||||
| 155 | 416972-3 | 0.95 | 1.13 | |
| Voetzool | ||||
| 156 | 153889-6 | 83.68 | 99.58 | |
| Schroef 4x8 | ||||
| 157 | 911109-2 | 0.83 | 0.99 | |
| Condensator 0,47uf | ||||
| 158 | 645006-7 | 1.58 | 1.88 | |
| Condensator 0,1uf | ||||
| 159 | 645105-5 | 2.58 | 3.07 | |
| Lijn filter | ||||
| 160 | 688131-1 | 0.83 | 0.99 | |
| Micro schakelaar | ||||
| 161 | 651941-9 | 2.98 | 3.55 | |
| Sluitring 6 | ||||
| 162 | 253804-1 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 163 | 941201-0 | |||
| Veer 5 voor lever 100 | ||||
| 164 | 231266-3 | 0.83 | 0.99 | |
| Knop 20 | ||||
| 165 | 271601-3 | 0.83 | 0.99 | |
| Licht Set Cpl Ls1040F | ||||
| 166 | 125180-2 | 39.78 | 47.34 | |
| TL buis 5W LS0714FLB | ||||
| 166A | 193730-1 | 5.00 | 5.95 | |
| Knop 20 | ||||
| 167 | 271601-3 | 0.83 | 0.99 | |
| Zeskant bout 6x10 | ||||
| 168 | 251961-9 | 0.83 | 0.99 | |
| Sicherungsring | ||||
| 169 | 345494-5 | 0.83 | 0.99 | |
| Abdeckhaube | ||||
| 170 | 421863-5 | 1.32 | 1.57 | |
| Schroef 4x10 | ||||
| 171 | 911114-9 | 0.83 | 0.99 | |
| Schutzblech | ||||
| 172 | 345610-9 | 1.58 | 1.88 | |
| Anschlag | ||||
| 173 | 421916-0 | 1.14 | 1.36 | |
| Blokkeerpin 8 | ||||
| 174 | 324654-2 | 1.67 | 1.99 | |
| Tapschroef Pt4x30 | ||||
| 175 | 266050-7 | 0.83 | 0.99 | |
| Ashouder | ||||
| 176 | 419075-2 | 3.54 | 4.21 | |
| Nicht mehr lieferbar | ||||
| 177 | 922107-1 | |||
| Blokkeerhandel | ||||
| 178 | 345829-0 | 3.54 | 4.21 | |
| Kappe | ||||
| 179 | 421589-9 | 0.83 | 0.99 | |
| Stopring E-6 | ||||
| 180 | 259053-8 | 0.83 | 0.99 | |
| Gelenkwelle (a) | ||||
| 181 | 324640-3 | 8.80 | 10.47 | |
| Trekveer 8 | ||||
| 182 | 231633-2 | 0.83 | 0.99 | |
| Schroef 4x10 | ||||
| 183 | 911113-1 | 0.83 | 0.99 | |
| Blokkeerplaat | ||||
| 184 | 345616-7 | 1.32 | 1.57 | |
| Kroonsteen | ||||
| 185 | 654575-7 | 2.71 | 3.22 | |
| Aanslag boven rechts | ||||
| 186 | 153896-9 | 41.00 | 48.79 | |
| Sluitring 4 | ||||
| 187 | 253874-0 | 0.83 | 0.99 | |
| Bus 4 | ||||
| 188 | 257648-1 | 0.95 | 1.13 | |
| Draagplateauhouder | ||||
| 189 | 419302-7 | 3.54 | 4.21 | |
| Draag plateau | ||||
| 190 | 168424-7 | 10.46 | 12.45 | |
| Sluitring 4 | ||||
| 191 | 941051-3 | 0.83 | 0.99 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 192 | 266385-6 | 0.83 | 0.99 | |
