Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita LC1230'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

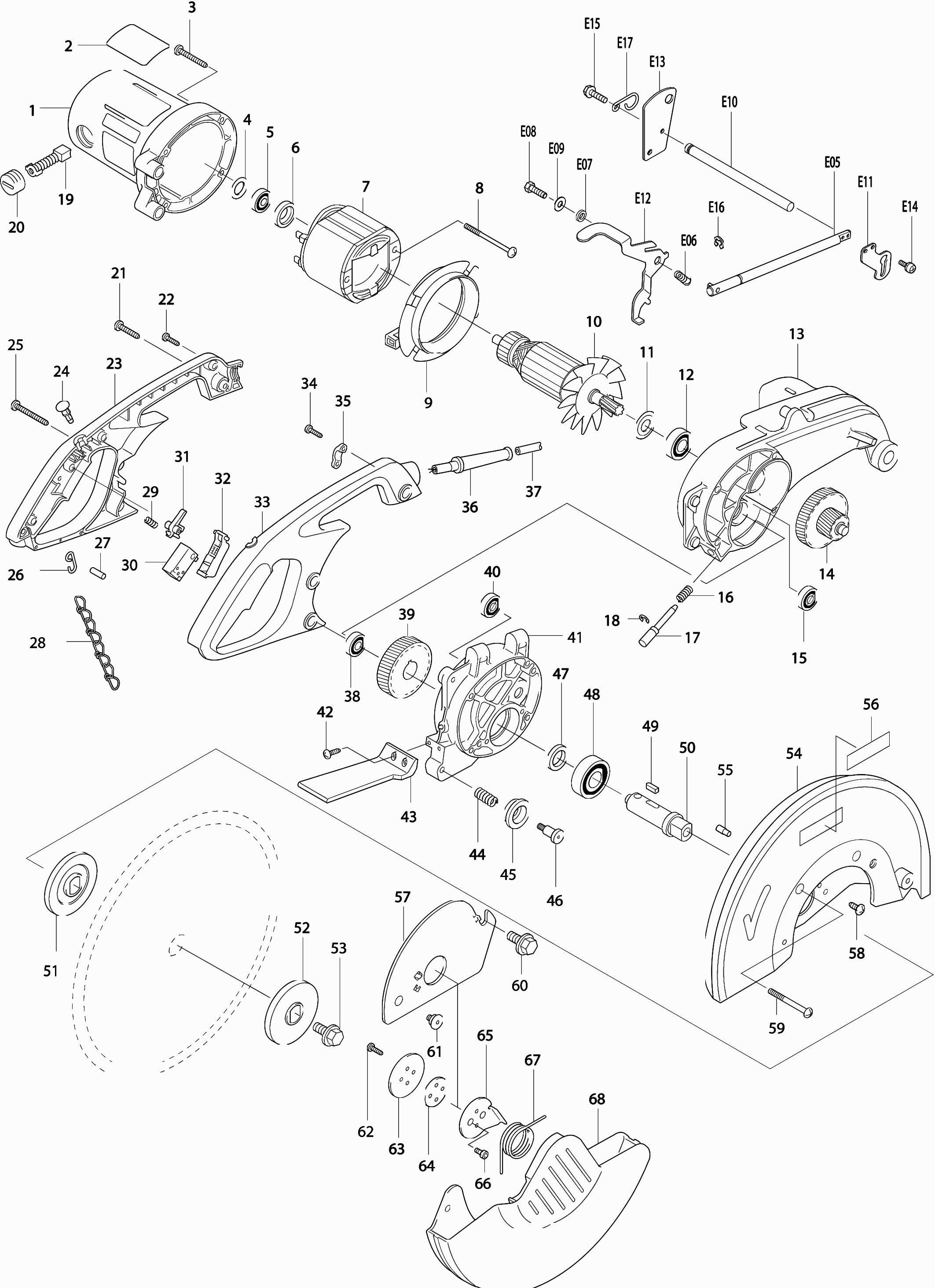

Zeichnungen der Makita LC1230
Teileliste der Makita LC1230
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Motorgehäuse | ||||
| 001 | 151641-6 | 55.92 | 66.54 | |
| Tapschroef 5X40 * | ||||
| 003 | 266028-0 | 0.83 | 0.99 | |
| Sluitring 16 * | ||||
| 004 | 253749-3 | 0.83 | 0.99 | |
| Kogellager 629ddw | ||||
| 005 | 211092-6 | 4.58 | 5.45 | |
| Isolatiering | ||||
| 006 | 681633-6 | 1.72 | 2.05 | |
| Feld | ||||
| 007 | 636168-2 | 24.88 | 29.61 | |
| Zelftapper Pt 5x75 | ||||
| 008 | 266059-9 | 1.27 | 1.51 | |
| Zwischenplatte | ||||
| 009 | 415475-4 | 1.72 | 2.05 | |
| Anker | ||||
| 010 | 510283-9 | 41.78 | 49.72 | |
| Sluitring 15 | ||||
| 011 | 267714-6 | 1.21 | 1.44 | |
| Kogellager 6202llb | ||||
| 012 | 211228-7 | 7.44 | 8.85 | |
| Getriebegehaeuse | ||||
| 013 | 317147-6 | 41.78 | 49.72 | |
| Tandwiel 16-44 | ||||
| 014 | 226122-0 | 14.90 | 17.73 | |
| Kogellager 6000ddw | ||||
| 015 | 211088-7 | 5.22 | 6.21 | |
| Drukveer 9 | ||||
| 016 | 231418-6 | 0.83 | 0.99 | |
| Achsblockierung | ||||
| 017 | 322678-2 | 3.83 | 4.56 | |
| Nicht mehr lieferbar | ||||
| 018 | 961014-3 | |||
| Koolborstel set Cb-203 | ||||
| 019 | 191953-5 | 6.58 | 7.83 | |
| Koolborstelhouderdop | ||||
| 020 | 643700-5 | 1.01 | 1.20 | |
| Tap Schroef Ct 5X30 * | ||||
| 021 | 266032-9 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 022 | 265995-6 | 0.83 | 0.99 | |
| Handgreep set | ||||
| 023 | 182628-7 | 20.76 | 24.70 | |
| Deblokkeerknop | ||||
| 024 | 411478-6 | 1.01 | 1.20 | |
| Tapschroef Ct 5x50 | ||||
| 025 | 266033-7 | 0.83 | 0.99 | |
| Hanger | ||||
| 026 | 281216-8 | 0.83 | 0.99 | |
| Pen 6 | ||||
| 027 | 256012-3 | 0.83 | 0.99 | |
| Kette | ||||
| 028 | 282016-9 | 1.51 | 1.80 | |
| Drukveer 4 | ||||
| 029 | 231397-8 | 0.83 | 0.99 | |
| Schakelaar Sw-131 | ||||
| 030 | 651922-3 | 11.16 | 13.28 | |
| Blokkeerknop 2414B | ||||
| 031 | 415366-9 | 1.21 | 1.44 | |
| Schalterknopf | ||||
| 032 | 152463-7 | 3.22 | 3.83 | |
| Handgreep set | ||||
| 033 | 182628-7 | 20.76 | 24.70 | |
| Tapschroef 4x18 | ||||
| 034 | 265995-6 | 0.83 | 0.99 | |
| Klemstrip | ||||
| 035 | 687124-5 | 0.83 | 0.99 | |
| Kabeltule 10-90 | ||||
| 036 | 682505-8 | 1.72 | 2.05 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 037 | 695123-3 | 21.70 | 25.82 | |
| Kogellager 6000ddw | ||||
| 038 | 211088-7 | 5.22 | 6.21 | |
| Tandwiel 38 | ||||
| 039 | 226427-8 | 9.52 | 11.33 | |
| Kogellager 6000ddw | ||||
| 040 | 211088-7 | 5.22 | 6.21 | |
| Getriebegehaeuse | ||||
| 041 | 317226-0 | 39.92 | 47.50 | |
| Schroef 4x14 | ||||
| 042 | 911121-2 | 0.83 | 0.99 | |
| Schutzschild | ||||
| 043 | 416869-6 | 7.80 | 9.28 | |
| Drukveer 11 | ||||
| 044 | 231226-5 | 0.83 | 0.99 | |
| Bladgeleider | ||||
| 045 | 415474-6 | 2.08 | 2.48 | |
| Nicht mehr lieferbar | ||||
| 046 | 266030-3 | |||
| Ring 20 Lc1230 * | ||||
| 047 | 257139-2 | 2.16 | 2.57 | |
| Kogellager 6204ddw | ||||
| 048 | 211329-1 | 8.46 | 10.07 | |
| Krukasspie | ||||
| 049 | 254229-2 | 0.83 | 0.99 | |
| Stoessel | ||||
| 050 | 323828-2 | 9.02 | 10.73 | |
| Binnenflens 70 | ||||
| 051 | 224308-0 | 14.23 | 16.93 | |
| Buitenflens 70 | ||||
| 052 | 224379-7 | 14.24 | 16.95 | |
| Zeskant bout 10x120 | ||||
| 053 | 265414-2 | 4.08 | 4.86 | |
| Vaste beschermkap | ||||
| 054 | 183089-4 | 16.07 | 19.12 | |
| Pen 6-7 | ||||
| 055 | 256405-4 | 5.87 | 6.99 | |
| Abdeckplatte | ||||
| 057 | 344737-2 | 6.58 | 7.83 | |
| Tapschroef 5x12 | ||||
| 058 | 266035-3 | 0.83 | 0.99 | |
| Schroef 6x60 | ||||
| 059 | 911383-2 | 0.83 | 0.99 | |
| Zeskant bout 10x120 | ||||
| 060 | 265414-2 | 4.08 | 4.86 | |
| Nicht mehr lieferbar | ||||
| 061 | 265020-3 | |||
| Schroef 4x14 | ||||
| 062 | 911121-2 | 0.83 | 0.99 | |
| Centreerplaatbasis | ||||
| 063 | 344735-6 | 1.01 | 1.20 | |
| Centreerplaatring | ||||
| 064 | 344734-8 | 0.83 | 0.99 | |
| Centreerplaat | ||||
| 065 | 344736-4 | 2.44 | 2.90 | |
| Inbusbout 4x8 | ||||
| 066 | 922106-3 | 0.83 | 0.99 | |
| Torsieveer 38 | ||||
| 067 | 231643-9 | 1.01 | 1.20 | |
| Verende beschermkap | ||||
| 068 | 317152-3 | 28.73 | 34.19 | |
| Pen 5 | ||||
| 069 | 256098-7 | 0.83 | 0.99 | |
| Asbout | ||||
| 070 | 323882-6 | 5.22 | 6.21 | |
| Sluitring 12 | ||||
| 071 | 253843-1 | 1.06 | 1.26 | |
| Schroef 4x6 | ||||
| 072 | 911103-4 | 0.83 | 0.99 | |
| Indicatieplaat | ||||
| 073 | 816128-2 | 0.83 | 0.99 | |
| Materiaalsteun | ||||
| 074 | 310086-9 | 28.85 | 34.33 | |
| Pen 12 | ||||
| 075 | 256453-3 | 1.43 | 1.70 | |
| Drukveer 45 | ||||
| 076 | 233103-7 | 8.46 | 10.07 | |
| Veerhouder | ||||
| 077 | 165066-8 | 6.90 | 8.21 | |
| Zeskant bout 8x20 | ||||
| 078 | 265412-6 | 0.83 | 0.99 | |
| Schroef 4x14 | ||||
| 079 | 911121-2 | 0.83 | 0.99 | |
| Blattfeder | ||||
| 080 | 232075-3 | 1.01 | 1.20 | |
| Zeskantbout M16 * | ||||
| 081 | 265413-4 | 10.81 | 12.86 | |
| Sluitring 16 * | ||||
| 082 | 253771-0 | 0.83 | 0.99 | |
| Zeskantmoer M16X24 * | ||||
| 083 | 252044-8 | 2.45 | 2.92 | |
| Stofdoos | ||||
| 084 | 344740-3 | 9.96 | 11.85 | |
| Rubber plaat | ||||
| 085 | 421671-4 | 2.80 | 3.33 | |
| Vibratieplaat | ||||
| 086 | 421670-6 | 1.43 | 1.70 | |
| Ring 8 | ||||
| 087 | 257222-5 | 1.43 | 1.70 | |
| Sluitring 8 | ||||
| 088 | 253731-2 | 0.83 | 0.99 | |
| Pen 16 * | ||||
| 089 | 268040-6 | 5.46 | 6.50 | |
| Klemmplatte | ||||
| 090 | 344118-0 | 6.58 | 7.83 | |
| Verbindingsplaat | ||||
| 091 | 344738-0 | 5.24 | 6.24 | |
| Sluitring 8x0,5mm | ||||
| 092 | 253139-0 | 0.83 | 0.99 | |
| Schroef M6 | ||||
| 093 | 251331-2 | 1.21 | 1.44 | |
| Verzonken schroef 5x12 | ||||
| 094 | 912212-2 | 0.83 | 0.99 | |
| Geleidingsplaat | ||||
| 095 | 344119-8 | 5.88 | 7.00 | |
| Onderplaat | ||||
| 096 | 344739-8 | 5.88 | 7.00 | |
| Tapschroef M4x12mm Ck | ||||
| 097 | 266026-4 | 0.83 | 0.99 | |
| Abdeckhaube | ||||
| 098 | 416972-3 | 1.02 | 1.21 | |
| Voetzool | ||||
| 099 | 151624-6 | 131.15 | 156.07 | |
| Kap 16 | ||||
| 100 | 286236-7 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 101 | 961014-3 | |||
| Handgreeppen | ||||
| 102 | 323883-4 | 4.08 | 4.86 | |
| Ring 10 | ||||
| 103 | 253024-7 | 0.83 | 0.99 | |
| Zeskant moer 10x27 | ||||
| 104 | 252161-4 | 2.44 | 2.90 | |
| Handgreephouder | ||||
| 105 | 151622-0 | 4.58 | 5.45 | |
| Sluitring 6Mm A | ||||
| 106 | 267214-6 | 0.83 | 0.99 | |
| Zeskant bout 6x16 | ||||
| 107 | 265251-4 | 0.83 | 0.99 | |
| Spanstift 3-16 | ||||
| 108 | 951063-8 | 0.83 | 0.99 | |
| Klemmschraube | ||||
| 109 | 322679-0 | 6.16 | 7.33 | |
| Snelspan moer | ||||
| 110 | 322209-7 | 11.16 | 13.28 | |
| Schroef 8x30 | ||||
| 111 | 911451-1 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 112 | 311949-2 | |||
| Handel 100 | ||||
| 113 | 271072-4 | 11.68 | 13.90 | |
| Spanstift 5-24 | ||||
| 114 | 951166-8 | 0.83 | 0.99 | |
| Ring 8 | ||||
| 115 | 257157-0 | 1.43 | 1.70 | |
