Makita HR4013C Zeichnungen und Teile
Genaue Typennummer:
HR4013C
HR4013C

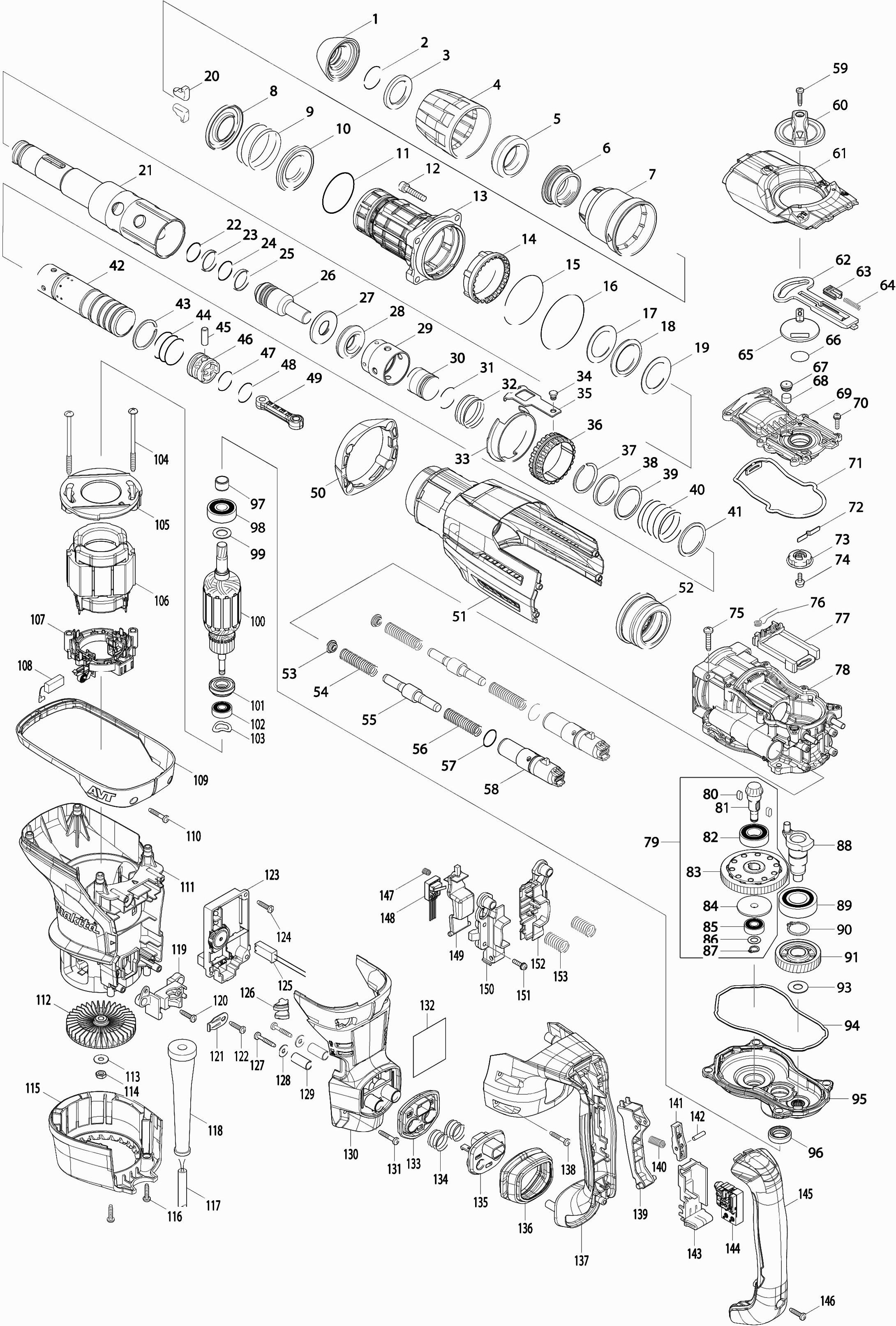

Zeichnungen der MAKITA HR4013C
Teileliste der MAKITA HR4013C
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Beitelhouderkap | ||||
| 001 | 286292-7 | Beitelhouderkap | € 1.71 | |
| Borgring 25 | ||||
| 002 | 233948-3 | Borgring 25 | € 0.99 | |
| Ring 28 | ||||
| 003 | 257308-5 | Ring 28 | € 1.71 | |
| Beitelblokkeerkap | ||||
| 004 | 454330-5 | Beitelblokkeerkap | € 1.71 | |
| Rubber ring 30 | ||||
| 005 | 262167-4 | Rubber ring 30 | € 4.57 | |
| Vergrendelring | ||||
| 006 | 326272-2 | Vergrendelring | € 5.21 | |
| Ontgrendelkap | ||||
| 007 | 454331-3 | Ontgrendelkap | € 2.43 | |
| Federfuhrung | ||||
| 008 | 346670-4 | Federfuhrung | € 0.99 | |
| Drukveer 46mm | ||||
| 009 | 234288-2 | Drukveer 46mm | € 0.99 | |
| Federfuhrung | ||||
| 010 | 346670-4 | Federfuhrung | € 0.99 | |
| O-ring 46 | ||||
| 011 | 213615-6 | O-ring 46 | € 0.99 | |
| Zeskant bout 6x30 | ||||
| 012 | 922351-0 | Zeskant bout 6x30 | € 0.99 | |
| Cilinder compleet | ||||
| 013 | 141956-9 | Cilinder compleet | € 42.94 | |
| O-Ring Sa1004 | ||||
| 013A | 213246-1 | O-Ring Sa1004 | € 0.99 | |
| Keerring Hr4013 | ||||
| 013B | 213490-0 | Keerring Hr4013 | € 2.78 | |
| O-ring 32 | ||||
| 013C | 213492-6 | O-ring 32 | € 1.71 | |
| Blokkeerbus | ||||
| 014 | 454337-1 | Blokkeerbus | € 1.21 | |
| Veerring 59 | ||||
| 015 | 234290-5 | Veerring 59 | € 0.99 | |
| O-ring 65 | ||||
| 016 | 213707-1 | O-ring 65 | € 1.43 | |
| Sluitring 32 | ||||
| 017 | 267469-3 | Sluitring 32 | € 0.99 | |
| Rubber ring 32 | ||||
| 018 | 262168-2 | Rubber ring 32 | € 2.07 | |
| Sluitring 32 | ||||
| 019 | 267469-3 | Sluitring 32 | € 0.99 | |
| Gereedschapklem | ||||
| 020 | 310257-8 | Gereedschapklem | € 6.57 | |
| Beitelhouder | ||||
| 021 | 326268-3 | Beitelhouder | € 142.68 | |
| O-ring 20 | ||||
| 022 | 213317-4 | O-ring 20 | € 0.99 | |
| Fluoride ring 25 | ||||
| 023 | 213392-0 | Fluoride ring 25 | € 9.50 | |
| O-ring 20 | ||||
| 024 | 213317-4 | O-ring 20 | € 0.99 | |
| Fluoride ring 25 | ||||
| 025 | 213392-0 | Fluoride ring 25 | € 9.50 | |
| Schlagbolzen | ||||
| 026 | 326269-1 | Schlagbolzen | € 5.21 | |
| Ring 17 | ||||
| 027 | 326274-8 | Ring 17 | € 2.43 | |
| Rubber ring 18 | ||||
| 028 | 262166-6 | Rubber ring 18 | € 4.57 | |
| Fuehrungshuelse | ||||
| 029 | 454347-8 | Fuehrungshuelse | € 1.43 | |
| Slaghamer | ||||
| 030 | 326270-6 | Slaghamer | € 3.21 | |
| O-ring 22 | ||||
| 031 | 213695-2 | O-ring 22 | € 3.64 | |
| Drukveer 33mm | ||||
| 032 | 234289-0 | Drukveer 33mm | € 0.99 | |
| Geleidering | ||||
| 033 | 346673-8 | Geleidering | € 4.57 | |
| Platkoppin 6mm . | ||||
| 034 | 256548-2 | Platkoppin 6mm . | € 0.99 | |
| Verbindingsplaat | ||||
| 035 | 346671-2 | Verbindingsplaat | € 1.00 | |
| Fuehrungshuelse | ||||
| 036 | 313255-1 | Fuehrungshuelse | € 10.78 | |
| Sicherungsring | ||||
| 037 | 257991-8 | Sicherungsring | € 0.99 | |
| Ring 33 | ||||
| 038 | 257340-9 | Ring 33 | € 1.00 | |
| Sluitring 33 | ||||
| 039 | 267470-8 | Sluitring 33 | € 1.21 | |
| Drukveer 34mm | ||||
| 040 | 234287-4 | Drukveer 34mm | € 0.99 | |
| Sluitring 33 | ||||
| 041 | 267470-8 | Sluitring 33 | € 1.21 | |
| Cilinder 28.5 | ||||
| 042 | 332063-1 | Cilinder 28.5 | € 26.05 | |
| Sicherungsring | ||||
| 043 | 257991-8 | Sicherungsring | € 0.99 | |
| O-ring 30 | ||||
| 044 | 213406-5 | O-ring 30 | € 1.21 | |
| Pen 7 | ||||
| 045 | 256197-5 | Pen 7 | € 1.21 | |
| Kolben | ||||
| 046 | 419004-5 | Kolben | € 1.71 | |
| O-ring 21 | ||||
| 047 | 213379-2 | O-ring 21 | € 0.99 | |
| O-ring 22 | ||||
| 048 | 213695-2 | O-ring 22 | € 3.64 | |
| Stange | ||||
| 049 | 454317-7 | Stange | € 5.21 | |
| Abdeckhaube | ||||
| 050 | 424560-2 | Abdeckhaube | € 1.71 | |
| Huis deksel | ||||
| 051 | 141957-7 | Huis deksel | € 17.87 | |
| Tandwiel 26 | ||||
| 052 | 227613-4 | Tandwiel 26 | € 16.04 | |
| Plaat tbv veer | ||||
| 053 | 454342-8 | Plaat tbv veer | € 0.99 | |
| Drukveer 11mm | ||||
| 054 | 234286-6 | Drukveer 11mm | € 0.99 | |
| Balansgewicht | ||||
| 055 | 326273-0 | Balansgewicht | € 2.78 | |
| Drukveer 11mm | ||||
| 056 | 234286-6 | Drukveer 11mm | € 0.99 | |
| O-ring 19 | ||||
| 057 | 213325-5 | O-ring 19 | € 0.99 | |
| Halter | ||||
| 058 | 142289-5 | Halter | € 6.57 | |
| Tapschroef 4x18 | ||||
| 059 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Verstelknop | ||||
| 060 | 454326-6 | Verstelknop | € 1.71 | |
| Krukashuiskap | ||||
| 061 | 318988-3 | Krukashuiskap | € 7.43 | |
| Controlle plaat | ||||
| 062 | 454339-7 | Controlle plaat | € 1.71 | |
| Gleitplatte | ||||
| 063 | 454340-2 | Gleitplatte | € 0.99 | |
| Drukveer 4mm | ||||
| 064 | 234284-0 | Drukveer 4mm | € 0.99 | |
| Krukasgeleider | ||||
| 065 | 454345-2 | Krukasgeleider | € 1.43 | |
| O-ring 18 | ||||
| 066 | 213262-3 | O-ring 18 | € 1.00 | |
| Filterkap | ||||
| 067 | 424556-3 | Filterkap | € 0.99 | |
| Filter | ||||
| 068 | 443182-9 | Filter | € 0.99 | |
| Tandwielhuiskap | ||||
| 069 | 454319-3 | Tandwielhuiskap | € 3.21 | |
| Schroef 4X16 A | ||||
| 070 | 911526-6 | Schroef 4X16 A | € 0.99 | |
| Afdichtring B | ||||
| 071 | 424559-7 | Afdichtring B | € 1.00 | |
| Blattfeder | ||||
| 072 | 232280-2 | Blattfeder | € 0.99 | |
| Verbindingsring | ||||
| 073 | 454318-5 | Verbindingsring | € 1.00 | |
| Schroef 4x10 | ||||
| 074 | 911511-9 | Schroef 4x10 | € 0.99 | |
| Tapschroef 5x25 | ||||
| 075 | 266041-8 | Tapschroef 5x25 | € 0.99 | |
| Torsieveer 7 | ||||
| 076 | 233603-7 | Torsieveer 7 | € 0.99 | |
| Verbindingsring | ||||
| 077 | 454338-9 | Verbindingsring | € 2.07 | |
| Krukashuis | ||||
| 078 | 141953-5 | Krukashuis | € 79.85 | |
| Koppelbegrenzer | ||||
| 079 | 126290-8 | Koppelbegrenzer | € 90.32 | |
| Inlegspie 4 | ||||
| 080 | 254239-9 | Inlegspie 4 | € 1.00 | |
| Tandwiel 7 Hr4013C | ||||
| 081 | 227612-6 | Tandwiel 7 Hr4013C | € 7.43 | |
| Kogellager 6002llu | ||||
| 082 | 211232-6 | Kogellager 6002llu | € 7.43 | |
| Koppelbegrenzer Hr4013C | ||||
| 083 | 141959-3 | Koppelbegrenzer Hr4013C | € 60.87 | |
| Kraagrevet 8Mm | ||||
| 084 | 324727-1 | Kraagrevet 8Mm | € 4.57 | |
| Kogellager 608ddw | ||||
| 085 | 210005-4 | Kogellager 608ddw | € 4.57 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 086 | 253215-0 | Sluitring 8 x 14 X 0,5mm | € 0.99 | |
| Borgring S-8 | ||||
| 087 | 961004-6 | Borgring S-8 | € 0.99 | |
| Kurbelwelle | ||||
| 088 | 326271-4 | Kurbelwelle | € 10.78 | |
| Kogellager 6004llu | ||||
| 089 | 211332-2 | Kogellager 6004llu | € 6.57 | |
| Borgring S-20 | ||||
| 090 | 961060-6 | Borgring S-20 | € 0.99 | |
| Tandwiel 37 | ||||
| 091 | 227772-4 | Tandwiel 37 | € 7.43 | |
| Sluitring 10 | ||||
| 093 | 253180-3 | Sluitring 10 | € 1.00 | |
| Afdichtring A | ||||
| 094 | 424558-9 | Afdichtring A | € 1.00 | |
| Getriebegehaeuse | ||||
| 095 | 141955-1 | Getriebegehaeuse | € 42.94 | |
| Keerring 10 | ||||
| 096 | 213231-4 | Keerring 10 | € 5.85 | |
| Bus 12 | ||||
| 097 | 331596-3 | Bus 12 | € 5.21 | |
| Kogellager 6201llu | ||||
| 098 | 211137-0 | Kogellager 6201llu | € 5.21 | |
| Sluitring 12 | ||||
| 099 | 253744-3 | Sluitring 12 | € 0.99 | |
| Anker 220-240v | ||||
| 100 | 513888-4 | Anker 220-240v | € 90.32 | |
| Isolatiering | ||||
| 101 | 681650-6 | Isolatiering | € 5.21 | |
| Kogellager 608ddw | ||||
| 102 | 210005-4 | Kogellager 608ddw | € 4.57 | |
| Veerring 15 | ||||
| 103 | 267721-9 | Veerring 15 | € 0.99 | |
| Met.schroef Ck 5x80mm | ||||
| 104 | 266568-8 | Met.schroef Ck 5x80mm | € 1.00 | |
| Keerplaat | ||||
| 105 | 454329-0 | Keerplaat | € 1.71 | |
| Feld | ||||
| 106 | 625758-6 | Feld | € 23.69 | |
| Nicht mehr lieferbar | ||||
| 107 | 632A84-2 | Nicht mehr lieferbar | ||
| Koolborstelset Cb350 | ||||
| 108 | 194160-9 | Koolborstelset Cb350 | € 5.85 | |
| Beschermring | ||||
| 109 | 454348-6 | Beschermring | € 8.43 | |
| Tapschroef 4x25 | ||||
| 110 | 265999-8 | Tapschroef 4x25 | € 0.99 | |
| Motorgehäuse | ||||
| 111 | 454316-9 | Motorgehäuse | € 17.87 | |
| Waaier 76 | ||||
| 112 | 240146-2 | Waaier 76 | € 6.57 | |
| Nicht mehr lieferbar | ||||
| 113 | 253047-5 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 114 | 931303-0 | Nicht mehr lieferbar | ||
| Waaierdeksel | ||||
| 115 | 454328-2 | Waaierdeksel | € 7.43 | |
| Tapschroef 4x18 | ||||
| 116 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 117 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.66 | |
| Kabeltule 10 | ||||
| 118 | 682560-0 | Kabeltule 10 | € 1.71 | |
| Klemstripbasis | ||||
| 119 | 419024-9 | Klemstripbasis | € 1.21 | |
| Tapschroef 4x18 | ||||
| 120 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Trekontlaster | ||||
| 121 | 687169-3 | Trekontlaster | € 0.99 | |
| Tapschroef 4x18 | ||||
| 122 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Toerenregelcircuit | ||||
| 123 | 620200-2 | Toerenregelcircuit | € 85.08 | |
| Tapschroef 4x18 | ||||
| 124 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Draadboom | ||||
| 125 | 632B52-1 | Draadboom | € 2.07 | |
| Linse | ||||
| 126 | 454346-0 | Linse | € 0.99 | |
| Tapschroef 4x25 | ||||
| 127 | 265999-8 | Tapschroef 4x25 | € 0.99 | |
| Sluitring 5 | ||||
| 128 | 253194-2 | Sluitring 5 | € 0.99 | |
| Bus 9 | ||||
| 129 | 257813-2 | Bus 9 | € 0.99 | |
| Handgreepbasis | ||||
| 130 | 454320-8 | Handgreepbasis | € 8.43 | |
| Tapschroef 5x25 | ||||
| 131 | 266041-8 | Tapschroef 5x25 | € 0.99 | |
| Stofafzuig aansluiting | ||||
| 133 | 454343-6 | Stofafzuig aansluiting | € 1.21 | |
| Drukveer 18,5mm | ||||
| 134 | 234283-2 | Drukveer 18,5mm | € 0.99 | |
| Stofafzuig aansluiting | ||||
| 135 | 454344-4 | Stofafzuig aansluiting | € 1.43 | |
| Stofkap | ||||
| 136 | 424557-1 | Stofkap | € 1.21 | |
| Griff | ||||
| 137 | 454321-6 | Griff | € 12.14 | |
| Tapschroef 4x25 | ||||
| 138 | 265999-8 | Tapschroef 4x25 | € 0.99 | |
| Schakelknop | ||||
| 139 | 454332-1 | Schakelknop | € 1.71 | |
| Drukveer 7mm | ||||
| 140 | 234285-8 | Drukveer 7mm | € 0.99 | |
| Schakelaarhandel | ||||
| 141 | 454327-4 | Schakelaarhandel | € 1.00 | |
| Stift | ||||
| 142 | 268309-8 | Stift | € 1.21 | |
| Schakelaarhouder | ||||
| 143 | 154626-1 | Schakelaarhouder | € 2.43 | |
| Schalter | ||||
| 144 | 650678-5 | Schalter | € 8.43 | |
| Handgreepdeksel | ||||
| 145 | 454323-2 | Handgreepdeksel | € 10.78 | |
| Tapschroef 4x18 | ||||
| 146 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Drukveer 6mm | ||||
| 147 | 234281-6 | Drukveer 6mm | € 0.99 | |
| Schalter | ||||
| 148 | 632A83-4 | Schalter | € 19.77 | |
| Schakelknop | ||||
| 149 | 454336-3 | Schakelknop | € 1.71 | |
| Schakelaar huis | ||||
| 150 | 187692-3 | Schakelaar huis | € 2.43 | |
| Schroef 4X16 A | ||||
| 151 | 911526-6 | Schroef 4X16 A | € 0.99 | |
| Schakelaar huis | ||||
| 152 | 187692-3 | Schakelaar huis | € 2.43 | |
| Drukveer 12mm | ||||
| 153 | 234282-4 | Drukveer 12mm | € 0.99 | |
