Makita HR3210C Zeichnungen und Teile
Genaue Typennummer:
HR3210C
HR3210C

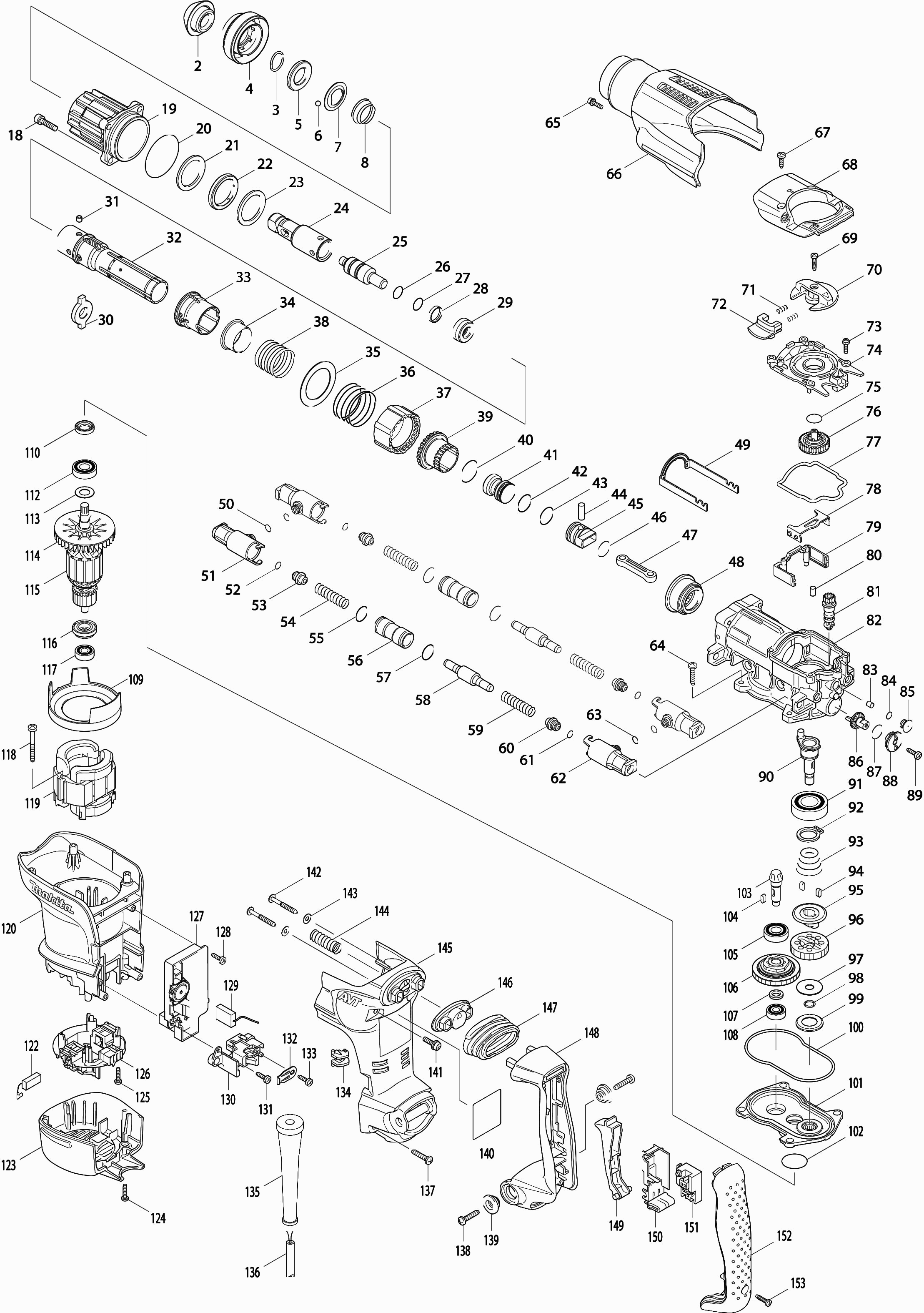

Zeichnungen der MAKITA HR3210C
Teileliste der MAKITA HR3210C
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Beitelhouderkap | ||||
| 002* | 286282-0 | Beitelhouderkap | € 1.43 | |
| Borgring 19 | ||||
| 003* | 233940-9 | Borgring 19 | € 1.00 | |
| Beitelblokkeerkap | ||||
| 004 | 450245-4 | Beitelblokkeerkap | € 2.43 | |
| Ring 21 | ||||
| 005 | 257288-5 | Ring 21 | € 8.43 | |
| Stalen kogel 7.0 | ||||
| 006* | 216022-2 | Stalen kogel 7.0 | € 0.99 | |
| Geleidering | ||||
| 007* | 345873-7 | Geleidering | € 1.71 | |
| Drukveer 22-32 | ||||
| 008 | 234049-0 | Drukveer 22-32 | € 0.99 | |
| Zeskant bout 6x25 | ||||
| 018 | 922341-3 | Zeskant bout 6x25 | € 0.99 | |
| Zylinder | ||||
| 019 | 158533-0 | Zylinder | € 31.55 | |
| O-ring 53 | ||||
| 020 | 213656-2 | O-ring 53 | € 1.21 | |
| Revet 34 | ||||
| 021 | 267810-0 | Revet 34 | € 5.21 | |
| Urethaan ring 34 | ||||
| 022 | 262138-1 | Urethaan ring 34 | € 1.43 | |
| Revet 34 | ||||
| 023 | 267810-0 | Revet 34 | € 5.21 | |
| Beitelhouder | ||||
| 024 | 324840-5 | Beitelhouder | € 37.04 | |
| Schlagbolzen | ||||
| 025 | 324849-7 | Schlagbolzen | € 7.43 | |
| O-ring 15 | ||||
| 026* | 213228-3 | O-ring 15 | € 0.99 | |
| O-ring 15 | ||||
| 027* | 213228-3 | O-ring 15 | € 0.99 | |
| Fluoride ring 20 | ||||
| 028* | 213321-3 | Fluoride ring 20 | € 7.43 | |
| Rubber ring 13mm | ||||
| 029 | 424062-8 | Rubber ring 13mm | € 5.85 | |
| Gleitplatte | ||||
| 030 | 324838-2 | Gleitplatte | € 2.07 | |
| Pen 6 | ||||
| 031 | 268226-2 | Pen 6 | € 0.99 | |
| Zylinder | ||||
| 032 | 331794-9 | Zylinder | € 150.54 | |
| Fuehrungshuelse | ||||
| 033 | 450243-8 | Fuehrungshuelse | € 2.07 | |
| Ring 29 | ||||
| 034 | 331805-0 | Ring 29 | € 9.50 | |
| Sluitring 40 | ||||
| 035 | 267360-5 | Sluitring 40 | € 1.71 | |
| Drukveer 42 | ||||
| 036 | 234052-1 | Drukveer 42 | € 2.07 | |
| Blokkeerbus | ||||
| 037 | 450236-5 | Blokkeerbus | € 2.07 | |
| Drukveer 34 | ||||
| 038 | 234050-5 | Drukveer 34 | € 1.21 | |
| Hülse | ||||
| 039 | 331795-7 | Hülse | € 23.69 | |
| O-ring 26 | ||||
| 040 | 213434-0 | O-ring 26 | € 0.99 | |
| Schlagbolzen | ||||
| 041 | 324858-6 | Schlagbolzen | € 4.57 | |
| O-ring 20 | ||||
| 042* | 213283-5 | O-ring 20 | € 1.71 | |
| O-ring 20 | ||||
| 043* | 213283-5 | O-ring 20 | € 1.71 | |
| Pen 7 | ||||
| 044 | 256087-2 | Pen 7 | € 0.99 | |
| Kolben | ||||
| 045 | 324918-4 | Kolben | € 16.04 | |
| O-ring 18 | ||||
| 046* | 213262-3 | O-ring 18 | € 1.00 | |
| Stange | ||||
| 047 | 450235-7 | Stange | € 3.21 | |
| Tandwiel 37 | ||||
| 048 | 227531-6 | Tandwiel 37 | € 31.55 | |
| Verbindingsarm | ||||
| 049 | 345867-2 | Verbindingsarm | € 5.85 | |
| O-ring 8 | ||||
| 050 | 213030-4 | O-ring 8 | € 0.99 | |
| Pijphouder | ||||
| 051 | 450248-8 | Pijphouder | € 2.07 | |
| O-ring 8 | ||||
| 052 | 213030-4 | O-ring 8 | € 0.99 | |
| Federfuhrung | ||||
| 053 | 450239-9 | Federfuhrung | € 0.99 | |
| Drukveer 10 | ||||
| 054 | 234048-2 | Drukveer 10 | € 1.00 | |
| O-ring 18 | ||||
| 055 | 213275-4 | O-ring 18 | € 0.99 | |
| Hülse | ||||
| 056 | 331800-0 | Hülse | € 5.85 | |
| O-ring 18 | ||||
| 057 | 213275-4 | O-ring 18 | € 0.99 | |
| Balansgewicht | ||||
| 058 | 324862-5 | Balansgewicht | € 12.14 | |
| Drukveer 10 | ||||
| 059 | 234048-2 | Drukveer 10 | € 1.00 | |
| Federfuhrung | ||||
| 060 | 450239-9 | Federfuhrung | € 0.99 | |
| O-ring 8 | ||||
| 061 | 213030-4 | O-ring 8 | € 0.99 | |
| Pijphouder | ||||
| 062 | 450248-8 | Pijphouder | € 2.07 | |
| O-ring 8 | ||||
| 063 | 213030-4 | O-ring 8 | € 0.99 | |
| Tapschroef 5x25 | ||||
| 064 | 266041-8 | Tapschroef 5x25 | € 0.99 | |
| Zeskant bout | ||||
| 065 | 922123-3 | Zeskant bout | € 0.99 | |
| Krukashuisbedekking | ||||
| 066 | 450254-3 | Krukashuisbedekking | € 10.78 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 067 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.99 | |
| Krukashuis Kap Hr3210Fct | ||||
| 068 | 318201-9 | Krukashuis Kap Hr3210Fct | € 10.78 | |
| Tapschroef 4x18 | ||||
| 069 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Verstelknop | ||||
| 070 | 450249-6 | Verstelknop | € 3.21 | |
| Drukveer 3 | ||||
| 071 | 233436-0 | Drukveer 3 | € 0.99 | |
| Blokkeerknop | ||||
| 072 | 450250-1 | Blokkeerknop | € 2.07 | |
| Schroef 4X16 A | ||||
| 073 | 911526-6 | Schroef 4X16 A | € 0.99 | |
| Oliedeksel | ||||
| 074 | 450241-2 | Oliedeksel | € 3.64 | |
| O-ring 16 | ||||
| 075 | 213223-3 | O-ring 16 | € 0.99 | |
| Tandwiel 33 | ||||
| 076 | 158437-6 | Tandwiel 33 | € 2.07 | |
| Pakkingring B | ||||
| 077 | 424064-4 | Pakkingring B | € 0.99 | |
| Verbindingsplaat | ||||
| 078 | 345868-0 | Verbindingsplaat | € 1.43 | |
| Luchtpijp | ||||
| 079 | 453866-1 | Luchtpijp | € 2.07 | |
| Rubber pen 6 | ||||
| 080 | 263005-3 | Rubber pen 6 | € 0.99 | |
| Getriebewelle | ||||
| 081 | 452126-8 | Getriebewelle | € 2.43 | |
| Krukashuis | ||||
| 082 | 158712-0 | Krukashuis | € 53.28 | |
| Filter | ||||
| 083 | 443138-2 | Filter | € 0.99 | |
| O-ring 8 | ||||
| 084 | 213030-4 | O-ring 8 | € 0.99 | |
| Filterkap | ||||
| 085 | 450238-1 | Filterkap | € 1.00 | |
| Getriebe | ||||
| 086 | 450244-6 | Getriebe | € 1.71 | |
| O-ring 16 | ||||
| 087A | 213223-3 | O-ring 16 | € 0.99 | |
| O-ring 14 | ||||
| 087B | 213176-6 | O-ring 14 | € 0.99 | |
| Kaphouder | ||||
| 088 | 450237-3 | Kaphouder | € 1.43 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 089 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.99 | |
| Kurbelwelle | ||||
| 090 | 324839-0 | Kurbelwelle | € 10.78 | |
| Kogellager 6004llu | ||||
| 091 | 211332-2 | Kogellager 6004llu | € 6.57 | |
| Borgring S-20 | ||||
| 092 | 961060-6 | Borgring S-20 | € 0.99 | |
| Conische drukveer 21-31 | ||||
| 093 | 231991-6 | Conische drukveer 21-31 | € 0.99 | |
| Inlegspie 4 | ||||
| 094 | 254239-9 | Inlegspie 4 | € 1.00 | |
| Kupplung | ||||
| 095 | 324848-9 | Kupplung | € 5.21 | |
| Tandwiel 33 | ||||
| 096 | 227188-3 | Tandwiel 33 | € 13.71 | |
| Sluitring 10 | ||||
| 097 | 253197-6 | Sluitring 10 | € 0.99 | |
| Borgring Wr10 | ||||
| 098 | 961036-3 | Borgring Wr10 | € 0.99 | |
| Komring | ||||
| 099 | 345869-8 | Komring | € 1.43 | |
| Pakkingring A Hr3210Fct | ||||
| 100 | 424063-6 | Pakkingring A Hr3210Fct | € 0.99 | |
| Tandwielhuis Hr3210Fct | ||||
| 101 | 158534-8 | Tandwielhuis Hr3210Fct | € 14.21 | |
| O-ring 28 | ||||
| 102 | 213415-4 | O-ring 28 | € 0.99 | |
| Tandwiel 9 | ||||
| 103 | 227533-2 | Tandwiel 9 | € 14.21 | |
| Inlegspie 4 | ||||
| 104 | 254239-9 | Inlegspie 4 | € 1.00 | |
| Kogellager 6001llu | ||||
| 105 | 211138-8 | Kogellager 6001llu | € 4.57 | |
| Koppelbegrenzer | ||||
| 106 | 125421-6 | Koppelbegrenzer | € 53.28 | |
| Ring 10 | ||||
| 107 | 257291-6 | Ring 10 | € 1.21 | |
| Kogellager 608ddw | ||||
| 108 | 210005-4 | Kogellager 608ddw | € 4.57 | |
| Opvulplaat | ||||
| 109 | 450251-9 | Opvulplaat | € 2.43 | |
| Nicht mehr lieferbar | ||||
| 110 | 213133-4 | Nicht mehr lieferbar | ||
| Kogellager 6001llu | ||||
| 112 | 211138-8 | Kogellager 6001llu | € 4.57 | |
| Sluitring 12 | ||||
| 113 | 253084-9 | Sluitring 12 | € 0.99 | |
| Waaier 70 | ||||
| 114 | 241863-7 | Waaier 70 | € 7.43 | |
| Anker | ||||
| 115 | 513748-0 | Anker | € 65.45 | |
| Isolatiering | ||||
| 116 | 681650-6 | Isolatiering | € 5.21 | |
| Kogellager 608ddw | ||||
| 117 | 210005-4 | Kogellager 608ddw | € 4.57 | |
| Met.schroef M5x45mm | ||||
| 118 | 266037-9 | Met.schroef M5x45mm | € 0.99 | |
| Feld | ||||
| 119 | 625813-4 | Feld | € 42.94 | |
| Motorgehäuse | ||||
| 120 | 450252-7 | Motorgehäuse | € 17.87 | |
| Koolborstelset Cb350 | ||||
| 122* | 194160-9 | Koolborstelset Cb350 | € 5.85 | |
| Motordeksel Hr3210Fct | ||||
| 123 | 450253-5 | Motordeksel Hr3210Fct | € 5.85 | |
| Tapschroef 4x18 | ||||
| 124 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Tapschroef 4x18 | ||||
| 125 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Kohlekasten Zsb | ||||
| 126 | 638519-5 | Kohlekasten Zsb | € 8.43 | |
| Geschw.regulierer | ||||
| 127 | 631784-5 | Geschw.regulierer | € 53.28 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 128 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.99 | |
| Draadboom Hr4011C | ||||
| 129 | 638406-8 | Draadboom Hr4011C | € 1.71 | |
| Kabelklemme | ||||
| 130 | 450246-2 | Kabelklemme | € 2.07 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 131 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.99 | |
| Trekontlaster | ||||
| 132 | 687169-3 | Trekontlaster | € 0.99 | |
| Tapschroef 4X14 Ga7020 A | ||||
| 133 | 266385-6 | Tapschroef 4X14 Ga7020 A | € 0.99 | |
| Linse | ||||
| 134 | 450240-4 | Linse | € 1.43 | |
| Kabeltule 10 | ||||
| 135 | 682560-0 | Kabeltule 10 | € 1.71 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 136 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.66 | |
| Tapschroef 5x25 | ||||
| 137 | 266041-8 | Tapschroef 5x25 | € 0.99 | |
| Tapschroef 5x25 | ||||
| 138 | 266041-8 | Tapschroef 5x25 | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 139 | 450352-3 | Nicht mehr lieferbar | ||
| Naamplaat Hr3210c | ||||
| 140 | 864538-7 | Naamplaat Hr3210c | € 2.78 | |
| Schroef Vk 20mm | ||||
| 141 | 911233-1 | Schroef Vk 20mm | € 0.99 | |
| Tapschroef 5x40 | ||||
| 142 | 266211-9 | Tapschroef 5x40 | € 0.99 | |
| Sluitring 5 | ||||
| 143 | 267066-5 | Sluitring 5 | € 0.99 | |
| Drukveer 11 | ||||
| 144 | 234051-3 | Drukveer 11 | € 1.00 | |
| Handgreepbasis | ||||
| 145 | 450255-1 | Handgreepbasis | € 14.21 | |
| Stofafdichtingplaat | ||||
| 146 | 419014-2 | Stofafdichtingplaat | € 2.43 | |
| Stofafdichting | ||||
| 147 | 421912-8 | Stofafdichting | € 4.57 | |
| Griff | ||||
| 148 | 450256-9 | Griff | € 8.43 | |
| Schakelknop | ||||
| 149 | 419025-7 | Schakelknop | € 3.64 | |
| Schakelaarhouder | ||||
| 150 | 154626-1 | Schakelaarhouder | € 2.43 | |
| Nicht mehr lieferbar | ||||
| 151 | 650567-4 | Nicht mehr lieferbar | ||
| Handgreepdeksel | ||||
| 152 | 450257-7 | Handgreepdeksel | € 13.71 | |
| Tapschroef 4x18 | ||||
| 153 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| O-ring 9 | ||||
| 156 | 213083-3 | O-ring 9 | € 1.71 | |
