Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita HM1400'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

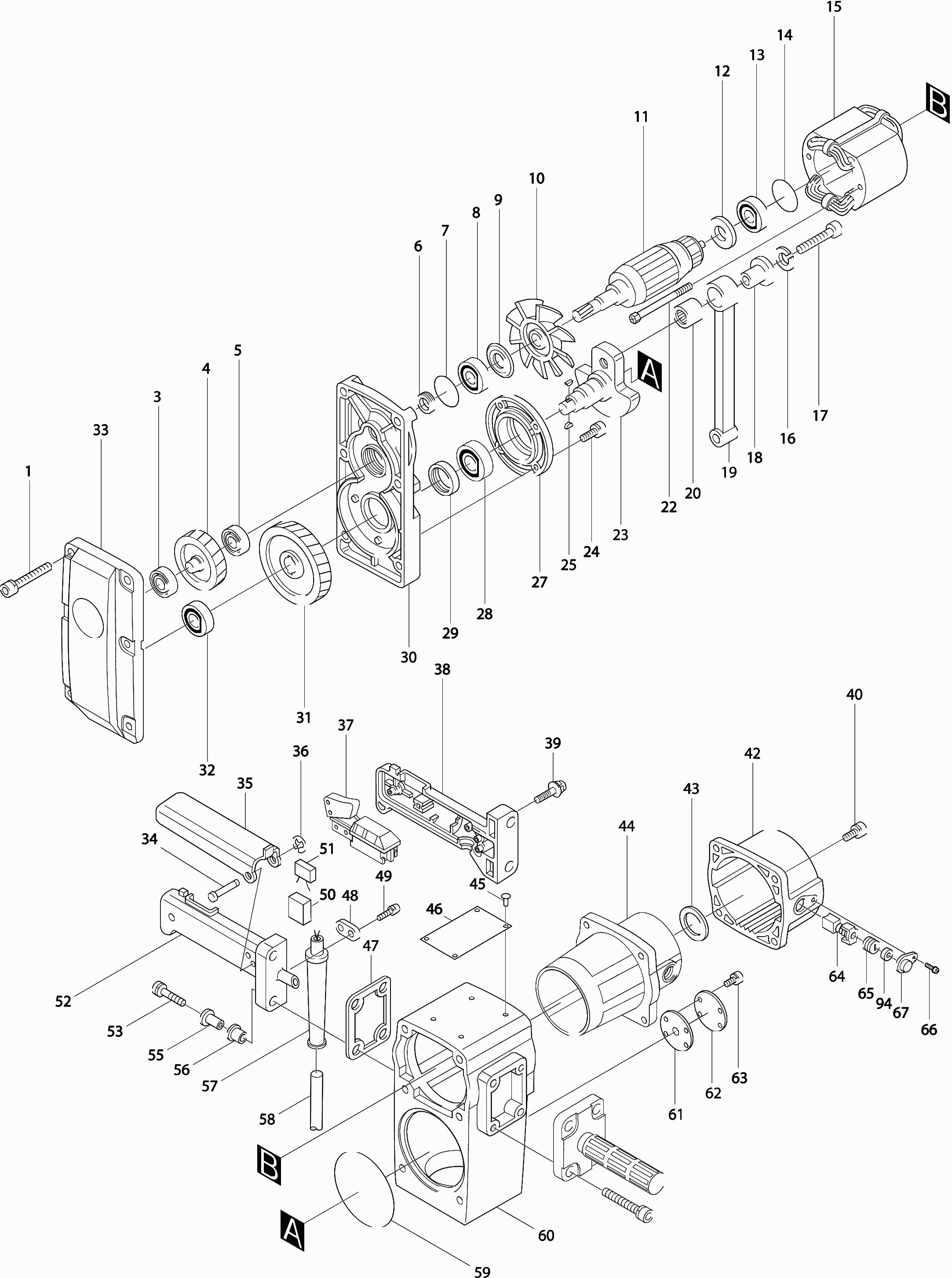

Zeichnungen der Makita HM1400
Teileliste der Makita HM1400
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Inbusbout M8x50 | ||||
| 001 | 922471-0 | 1.32 | 1.57 | |
| Kogellager 6201dw1 | ||||
| 003 | 211129-9 | 6.88 | 8.19 | |
| Tandwiel 36 | ||||
| 004 | 221713-2 | 73.98 | 88.04 | |
| Kogellager 6201dw1 | ||||
| 005 | 211129-9 | 6.88 | 8.19 | |
| Keerring | ||||
| 006 | 331212-7 | 3.37 | 4.01 | |
| O-ring 35 | ||||
| 007 | 213460-9 | 1.12 | 1.33 | |
| Kogellager 6202llb | ||||
| 008 | 211228-7 | 6.88 | 8.19 | |
| Stofafdichting 15 | ||||
| 009 | 213202-1 | 1.12 | 1.33 | |
| Waaier 104 | ||||
| 010 | 241648-1 | 13.16 | 15.66 | |
| Anker | ||||
| 011 | 514843-9 | 132.19 | 157.31 | |
| Isolatiering | ||||
| 012 | 681635-2 | 0.83 | 0.99 | |
| Kogellager 6200llb | ||||
| 013 | 211066-7 | 4.24 | 5.05 | |
| O-ring 30 | ||||
| 014 | 213406-5 | 1.12 | 1.33 | |
| Feld | ||||
| 015 | 524793-0 | 73.98 | 88.04 | |
| Statorveer | ||||
| 015A | 654084-6 | 1.58 | 1.88 | |
| Klembus tbv statorv. 2mm | ||||
| 015B | 654502-4 | 0.83 | 0.99 | |
| Veerring M12 | ||||
| 016 | 942301-9 | 0.83 | 0.99 | |
| Inbusbout 12x45 | ||||
| 017 | 922667-3 | 1.92 | 2.28 | |
| Krukashuls | ||||
| 018 | 321560-2 | 12.20 | 14.52 | |
| Verbindingsstang | ||||
| 019 | 321557-1 | 41.67 | 49.59 | |
| Naaldlager 1820 | ||||
| 020 | 212307-4 | 11.64 | 13.85 | |
| Nicht mehr lieferbar | ||||
| 021 | 253928-3 | |||
| Zeskant bout 5x80 | ||||
| 022 | 265343-9 | 1.58 | 1.88 | |
| Kurbelwelle | ||||
| 023 | 321556-3 | 59.08 | 70.31 | |
| Inbusbout M6x18 | ||||
| 024 | 922326-9 | 0.83 | 0.99 | |
| Inbusbout M6x22 | ||||
| 024 | 922336-6 | 0.83 | 0.99 | |
| Inlegspie 4 | ||||
| 025 | 254001-2 | 0.83 | 0.99 | |
| Lagerhuis | ||||
| 027 | 315525-4 | 33.29 | 39.62 | |
| Kogellager 6205 | ||||
| 028 | 211359-2 | 7.81 | 9.29 | |
| Keerring 25 | ||||
| 029 | 213354-8 | 4.82 | 5.74 | |
| Getriebegehaeuse | ||||
| 030 | 157648-0 | 146.74 | 174.62 | |
| Tandwiel 53 | ||||
| 031 | 221714-0 | 73.98 | 88.04 | |
| Kogellager 6302 | ||||
| 032 | 211214-8 | 8.80 | 10.47 | |
| Tandwielhuisdeksel | ||||
| 033 | 315908-8 | 82.59 | 98.28 | |
| Schakelaarpen | ||||
| 034 | 323147-6 | 2.98 | 3.55 | |
| Wisselhandel | ||||
| 035 | 342531-6 | 6.88 | 8.19 | |
| Stopring E-4 | ||||
| 036 | 961011-9 | 0.83 | 0.99 | |
| Schakelaar Sw-51 | ||||
| 037 | 651131-4 | 20.08 | 23.90 | |
| Schroef 4x8 | ||||
| 037A | 652014-1 | 0.83 | 0.99 | |
| Schakelaar handvat-set- | ||||
| 038 | 181906-2 | 21.96 | 26.13 | |
| Schroef 5x30 | ||||
| 039 | 911253-5 | 0.83 | 0.99 | |
| Inbusbout M6x35 | ||||
| 040 | 922356-0 | 0.83 | 0.99 | |
| Abdeckkappe | ||||
| 042 | 316385-7 | 42.81 | 50.94 | |
| Sluitring 24 | ||||
| 043 | 253751-6 | 0.83 | 0.99 | |
| Motorgehäuse | ||||
| 044 | 159420-6 | 87.78 | 104.46 | |
| Ring | ||||
| 044B | 414964-6 | 1.32 | 1.57 | |
| Stootring | ||||
| 044C | 421406-3 | 3.37 | 4.01 | |
| Kohlekasten Zsb | ||||
| 044A | 643659-6 | 13.17 | 15.67 | |
| Klinknagel 0,5 | ||||
| 045 | 953106-2 | 0.83 | 0.99 | |
| Typenschild | ||||
| 046 | 855573-6 | 12.20 | 14.52 | |
| Dichtung | ||||
| 047 | 423137-0 | 2.36 | 2.81 | |
| Klemstrip | ||||
| 048 | 687031-2 | 0.83 | 0.99 | |
| Schroef 4x18 | ||||
| 049 | 911133-5 | 0.83 | 0.99 | |
| Spons | ||||
| 050 | 685725-3 | 0.83 | 0.99 | |
| Schakelaar handvat-set- | ||||
| 052 | 181906-2 | 21.96 | 26.13 | |
| Inbusbout M8x40 | ||||
| 053 | 922462-1 | 0.83 | 0.99 | |
| Handelhuls | ||||
| 055 | 321956-7 | 5.44 | 6.47 | |
| Huelse | ||||
| 056 | 421308-3 | 0.94 | 1.12 | |
| Kabeltule 10-85 | ||||
| 057 | 682504-0 | 1.58 | 1.88 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 058 | 695123-3 | 20.08 | 23.90 | |
| O-ring 95 | ||||
| 059 | 213855-6 | 2.58 | 3.07 | |
| Krukashuis | ||||
| 060 | 157649-8 | 296.84 | 353.24 | |
| Motorhuispakking | ||||
| 061 | 442009-0 | 0.83 | 0.99 | |
| Motorhuisdeksel | ||||
| 062 | 341397-1 | 0.97 | 1.15 | |
| Schroef 5x12 | ||||
| 063 | 911213-7 | 0.83 | 0.99 | |
| Koolborstel set Cb-155 | ||||
| 064* | 181048-2 | 8.80 | 10.47 | |
| Koolborstelhouderdop | ||||
| 065 | 643650-4 | 0.83 | 0.99 | |
| Met.schroef Ph M5x14mm Ck | ||||
| 066 | 266809-2 | 0.83 | 0.99 | |
| Koolborstel afdekkap | ||||
| 067 | 343891-9 | 2.26 | 2.69 | |
| O-ring 75 | ||||
| 068 | 213755-0 | 2.58 | 3.07 | |
| Neusstuk | ||||
| 069 | 315524-6 | 184.23 | 219.23 | |
| Inbusbout M8x40 | ||||
| 071 | 922462-1 | 0.83 | 0.99 | |
| Kunststof ring 63 | ||||
| 072 | 262034-3 | 3.37 | 4.01 | |
| Sluitring 63 | ||||
| 073 | 253861-9 | 3.37 | 4.01 | |
| Vangring | ||||
| 074 | 331299-9 | 31.78 | 37.82 | |
| Ringhouder | ||||
| 075 | 322208-9 | 19.20 | 22.85 | |
| Slagstuk Hm1400 | ||||
| 076 | 321563-6 | 36.87 | 43.88 | |
| Kunststof ring 42 | ||||
| 077 | 262039-3 | 3.77 | 4.49 | |
| X-ring 40 | ||||
| 078* | 213517-6 | 21.96 | 26.13 | |
| O-ring 40 | ||||
| 079* | 213504-5 | 1.32 | 1.57 | |
| O-ring 71 | ||||
| 080 | 213754-2 | 1.92 | 2.28 | |
| Inbusbout M8x30 | ||||
| 082 | 266010-9 | 1.58 | 1.88 | |
| Beitelhouder | ||||
| 083 | 321961-4 | 187.98 | 223.70 | |
| Vastzetpen | ||||
| 084 | 321788-2 | 36.90 | 43.91 | |
| Drukveer 5 | ||||
| 085 | 231032-8 | 0.83 | 0.99 | |
| Stalen kogel 7.9 | ||||
| 086 | 216004-4 | 0.83 | 0.99 | |
| Hamerstuk | ||||
| 087 | 322059-0 | 139.47 | 165.97 | |
| Zuigerring 50 | ||||
| 088* | 412055-7 | 16.56 | 19.71 | |
| Innenring | ||||
| 089* | 341993-5 | 3.77 | 4.49 | |
| Zuigerring 50 | ||||
| 090* | 412055-7 | 16.56 | 19.71 | |
| Innenring | ||||
| 091* | 341993-5 | 3.77 | 4.49 | |
| Kolben | ||||
| 092 | 321562-8 | 63.72 | 75.83 | |
| Pen 10 | ||||
| 093 | 256128-4 | 2.71 | 3.22 | |
| Rubber koolborstelring | ||||
| 094 | 262003-4 | 0.83 | 0.99 | |
| Rubber voor handgreep | ||||
| 400A | 273009-7 | 5.44 | 6.47 | |
| Handgreep 40 | ||||
| 400 | 273423-7 | 56.40 | 67.12 | |
| Inbusbout M8x30 | ||||
| 402 | 922451-6 | 0.95 | 1.13 | |
