Makita HM1303 Zeichnungen und Teile
Genaue Typennummer:
HM1303
HM1303

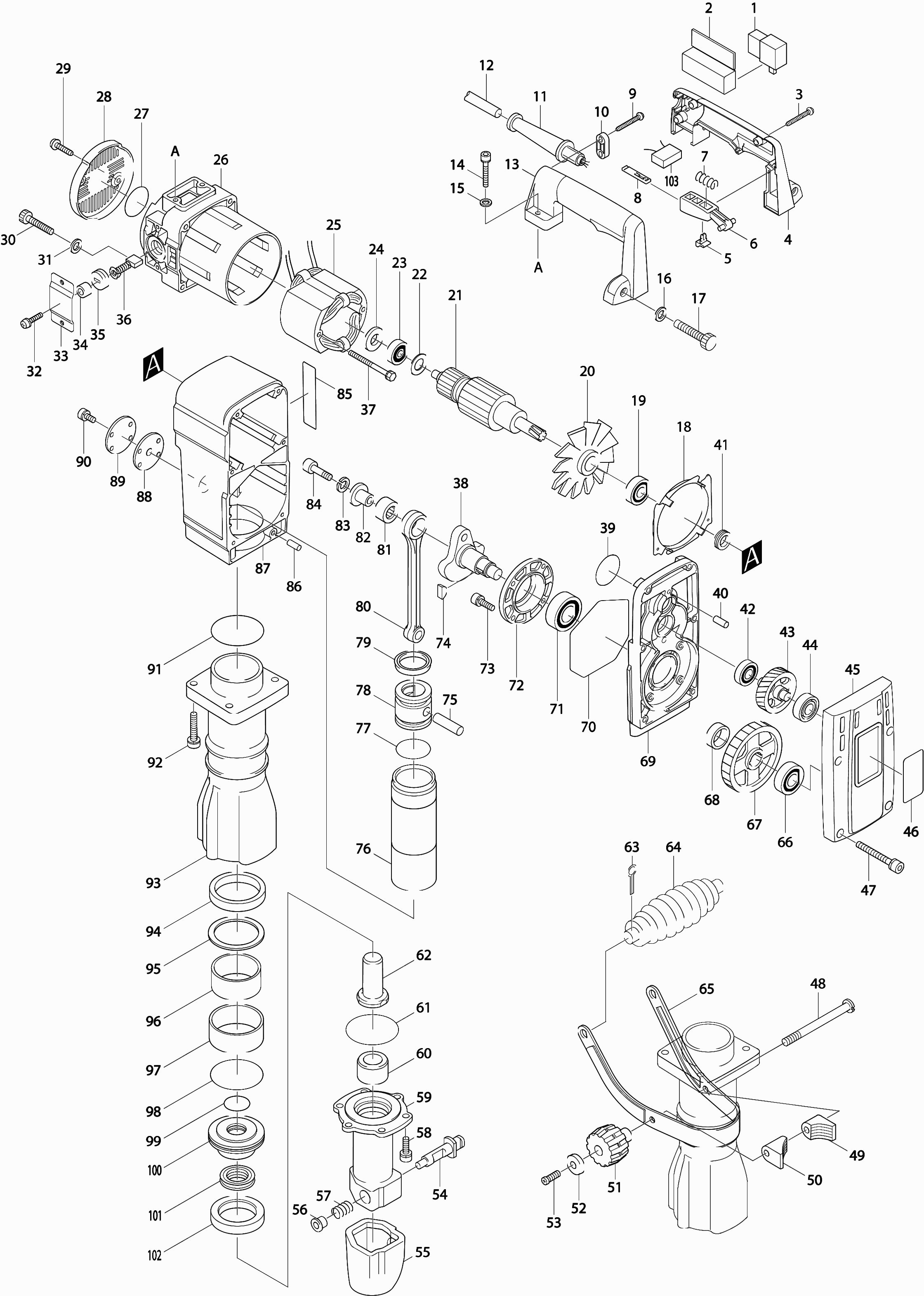

Zeichnungen der MAKITA HM1303
Teileliste der MAKITA HM1303
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Schakelaar Sw-131 | ||||
| 001 | 651922-3 | Schakelaar Sw-131 | € 12.14 | |
| Schakelaarhuis Hm1303 * | ||||
| 002 | 421529-7 | Schakelaarhuis Hm1303 * | € 3.21 | |
| Tapschroef 4x18 | ||||
| 003 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Handgreep set | ||||
| 004 | 182844-1 | Handgreep set | € 39.79 | |
| Blokkeerknop | ||||
| 005 | 415805-9 | Blokkeerknop | € 0.99 | |
| Schakelaarhandel | ||||
| 006 | 415120-1 | Schakelaarhandel | € 2.07 | |
| Drukveer 3 | ||||
| 007 | 231457-6 | Drukveer 3 | € 0.99 | |
| Vergrendelplaat | ||||
| 008 | 415806-7 | Vergrendelplaat | € 0.99 | |
| Tapschroef 4x18 | ||||
| 009 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Klemstrip | ||||
| 010 | 687053-2 | Klemstrip | € 0.99 | |
| Kabeltule 10-90 | ||||
| 011 | 682505-8 | Kabeltule 10-90 | € 1.71 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 012 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.66 | |
| Handgreep set | ||||
| 013 | 182844-1 | Handgreep set | € 39.79 | |
| Imbusbout M6x40 | ||||
| 014 | 922361-7 | Imbusbout M6x40 | € 0.99 | |
| Sluitring 6Mm A | ||||
| 015 | 267214-6 | Sluitring 6Mm A | € 0.99 | |
| Sluitring 6Mm A | ||||
| 016 | 267214-6 | Sluitring 6Mm A | € 0.99 | |
| Inbusbout M6x55 | ||||
| 017 | 922376-4 | Inbusbout M6x55 | € 1.21 | |
| Zwischenplatte | ||||
| 018 | 344273-8 | Zwischenplatte | € 2.78 | |
| Kogellager 6202llb | ||||
| 019 | 211228-7 | Kogellager 6202llb | € 7.43 | |
| Waaier 92 | ||||
| 020 | 241128-7 | Waaier 92 | € 7.43 | |
| Anker | ||||
| 021 | 516703-1 | Anker | € 174.10 | |
| Isolatiering | ||||
| 022 | 681635-2 | Isolatiering | € 0.99 | |
| Kogellager 6200llb | ||||
| 023 | 211066-7 | Kogellager 6200llb | € 4.57 | |
| Sluitring 18 | ||||
| 024 | 253794-8 | Sluitring 18 | € 0.99 | |
| Feld | ||||
| 025 | 626043-0 | Feld | € 53.28 | |
| Draadboom 9027+9029 Oranje * | ||||
| 025A | 536011-4 | Draadboom 9027+9029 Oranje * | € 1.43 | |
| Draadboom 9027+9029 Paars * | ||||
| 025B | 536012-2 | Draadboom 9027+9029 Paars * | € 1.43 | |
| Motorgehäuse | ||||
| 026 | 159904-4 | Motorgehäuse | € 70.03 | |
| Kohlekasten Zsb | ||||
| 026A | 643711-0 | Kohlekasten Zsb | € 10.78 | |
| Koolborstel klemring | ||||
| 026B | 414665-6 | Koolborstel klemring | € 1.21 | |
| O-ring 30 | ||||
| 027 | 213406-5 | O-ring 30 | € 1.21 | |
| Achterdeksel Hm1303 * | ||||
| 028 | 284069-4 | Achterdeksel Hm1303 * | € 5.85 | |
| Tapschroef 5x20 | ||||
| 029 | 266021-4 | Tapschroef 5x20 | € 0.99 | |
| Inbusbout M6x55 | ||||
| 030 | 922376-4 | Inbusbout M6x55 | € 1.21 | |
| Sluitring 6x12mm | ||||
| 031 | 941151-9 | Sluitring 6x12mm | € 0.99 | |
| Schroef 5x16 | ||||
| 032 | 911221-8 | Schroef 5x16 | € 0.99 | |
| Koolborstelafdekplaat Hm1303 * | ||||
| 033 | 344384-9 | Koolborstelafdekplaat Hm1303 * | € 1.71 | |
| Rubber bus 6 | ||||
| 034 | 262049-0 | Rubber bus 6 | € 0.99 | |
| Koolborstelhouderdop | ||||
| 035 | 643700-5 | Koolborstelhouderdop | € 1.00 | |
| Koolborstel set Cb-204 | ||||
| 036* | 191957-7 | Koolborstel set Cb-204 | € 12.14 | |
| Zeskant bout 5x65 | ||||
| 037 | 265428-1 | Zeskant bout 5x65 | € 1.21 | |
| Krukas Hm1303 * | ||||
| 038 | 322894-6 | Krukas Hm1303 * | € 37.04 | |
| O-ring 35 | ||||
| 039 | 213460-9 | O-ring 35 | € 1.21 | |
| Stift | ||||
| 040 | 256111-1 | Stift | € 1.43 | |
| Keerring | ||||
| 041 | 331212-7 | Keerring | € 3.64 | |
| Kogellager 6001dw | ||||
| 042 | 211131-2 | Kogellager 6001dw | € 9.50 | |
| Tandwiel 34 | ||||
| 043 | 226449-8 | Tandwiel 34 | € 56.94 | |
| Kogellager 6201dw1 | ||||
| 044 | 211129-9 | Kogellager 6201dw1 | € 7.43 | |
| Tandwielhuisdeksel | ||||
| 045 | 316732-2 | Tandwielhuisdeksel | € 42.94 | |
| Naamplaat Hm1303 * | ||||
| 046 | 858309-2 | Naamplaat Hm1303 * | € 2.78 | |
| Inbusbout M6x50 | ||||
| 047 | 922371-4 | Inbusbout M6x50 | € 0.99 | |
| Handgreepbout 10x113 | ||||
| 048 | 266140-6 | Handgreepbout 10x113 | € 6.57 | |
| Handgreepbasis | ||||
| 049 | 416228-4 | Handgreepbasis | € 1.71 | |
| Handgreepbasis | ||||
| 050 | 416228-4 | Handgreepbasis | € 1.71 | |
| Draaiknop M10 | ||||
| 051 | 252633-9 | Draaiknop M10 | € 7.43 | |
| Sluitring 5 | ||||
| 052 | 253194-2 | Sluitring 5 | € 0.99 | |
| Inbusbout 5x16 | ||||
| 053 | 922221-3 | Inbusbout 5x16 | € 0.99 | |
| Beitelblokkeerpen | ||||
| 054 | 322986-1 | Beitelblokkeerpen | € 21.66 | |
| Stofkap | ||||
| 055 | 421567-9 | Stofkap | € 12.14 | |
| Bus voor blokkeerpen | ||||
| 056 | 322987-9 | Bus voor blokkeerpen | € 4.57 | |
| Drukveer 14 | ||||
| 057 | 233142-7 | Drukveer 14 | € 0.99 | |
| Inbusbout M8x30 | ||||
| 058 | 266010-9 | Inbusbout M8x30 | € 1.71 | |
| Beitelhouder Hm1303 * | ||||
| 059 | 322875-0 | Beitelhouder Hm1303 * | € 128.28 | |
| Führungsbuchse | ||||
| 060 | 322874-2 | Führungsbuchse | € 10.78 | |
| O-ring 65 | ||||
| 061 | 213707-1 | O-ring 65 | € 1.43 | |
| Slagstuk | ||||
| 062 | 322873-4 | Slagstuk | € 17.87 | |
| Splitpen 3-20 | ||||
| 063 | 952257-8 | Splitpen 3-20 | € 0.99 | |
| Handgreep 38 | ||||
| 064 | 273492-8 | Handgreep 38 | € 10.78 | |
| Seitengriff | ||||
| 065 | 345233-3 | Seitengriff | € 21.66 | |
| Kogellager 6302 | ||||
| 066 | 211214-8 | Kogellager 6302 | € 9.50 | |
| Tandwiel 57 | ||||
| 067 | 226450-3 | Tandwiel 57 | € 56.94 | |
| Ring 25 * | ||||
| 068 | 257196-0 | Ring 25 * | € 2.43 | |
| Getriebegehaeuse | ||||
| 069 | 159806-4 | Getriebegehaeuse | € 70.03 | |
| Dichtring | ||||
| 070 | 421731-2 | Dichtring | € 1.43 | |
| Kogellager 6205 | ||||
| 071 | 211359-2 | Kogellager 6205 | € 8.43 | |
| Lagerhuis Hm1303 | ||||
| 072 | 316730-6 | Lagerhuis Hm1303 | € 9.50 | |
| Nicht mehr lieferbar | ||||
| 073 | 265366-7 | Nicht mehr lieferbar | ||
| Inlegspie 4 | ||||
| 074 | 254001-2 | Inlegspie 4 | € 0.99 | |
| Pen 12 | ||||
| 075 | 256238-7 | Pen 12 | € 2.43 | |
| Slagstuk | ||||
| 076 | 322919-6 | Slagstuk | € 108.65 | |
| O-ring 36 | ||||
| 077* | 213519-2 | O-ring 36 | € 4.57 | |
| Zuiger Hm1303 * | ||||
| 078 | 322871-8 | Zuiger Hm1303 * | € 65.45 | |
| Y-ring 36 | ||||
| 079* | 213520-7 | Y-ring 36 | € 6.57 | |
| Verbindingsstang Hm1303 * | ||||
| 080 | 322812-4 | Verbindingsstang Hm1303 * | € 21.66 | |
| Naaldlager 1716 | ||||
| 081 | 212260-4 | Naaldlager 1716 | € 19.77 | |
| Krukaslager Hm1300 * | ||||
| 082 | 321825-2 | Krukaslager Hm1300 * | € 7.43 | |
| Veerring M10 | ||||
| 083 | 942251-8 | Veerring M10 | € 0.99 | |
| Inbusbout 10x35 | ||||
| 084 | 922557-0 | Inbusbout 10x35 | € 0.99 | |
| Stift | ||||
| 086 | 256111-1 | Stift | € 1.43 | |
| Krukashuis nieuw | ||||
| 087 | 316832-8 | Krukashuis nieuw | € 102.10 | |
| Motorhuispakking | ||||
| 088 | 442009-0 | Motorhuispakking | € 0.99 | |
| Motorhuisdeksel | ||||
| 089 | 341397-1 | Motorhuisdeksel | € 1.00 | |
| Schroef 5x12 | ||||
| 090 | 911211-1 | Schroef 5x12 | € 0.99 | |
| O-ring 65 | ||||
| 091 | 213707-1 | O-ring 65 | € 1.43 | |
| Inbusbout M8x40 | ||||
| 092 | 265367-5 | Inbusbout M8x40 | € 1.71 | |
| Slaghuis | ||||
| 093 | 316831-0 | Slaghuis | € 166.24 | |
| Kunststof ring 59 | ||||
| 094 | 262068-6 | Kunststof ring 59 | € 7.43 | |
| Platte ring 58 | ||||
| 095 | 267146-7 | Platte ring 58 | € 3.64 | |
| Vangring | ||||
| 096 | 322815-8 | Vangring | € 42.94 | |
| Rubber bus 64 | ||||
| 097 | 262536-9 | Rubber bus 64 | € 2.78 | |
| O-ring 65 | ||||
| 098 | 213707-1 | O-ring 65 | € 1.43 | |
| O-ring 25 | ||||
| 099* | 213390-4 | O-ring 25 | € 2.78 | |
| Ringhouder | ||||
| 100 | 322872-6 | Ringhouder | € 28.80 | |
| X-ring 25 | ||||
| 101* | 213383-1 | X-ring 25 | € 16.04 | |
| Kunststof ring 49 | ||||
| 102 | 262072-5 | Kunststof ring 49 | € 9.50 | |
| Condensator 0,1uf | ||||
| 103 | 645105-5 | Condensator 0,1uf | € 2.78 | |
