Makita HM1130C Zeichnungen und Teile
Genaue Typennummer:
HM1130C
HM1130C

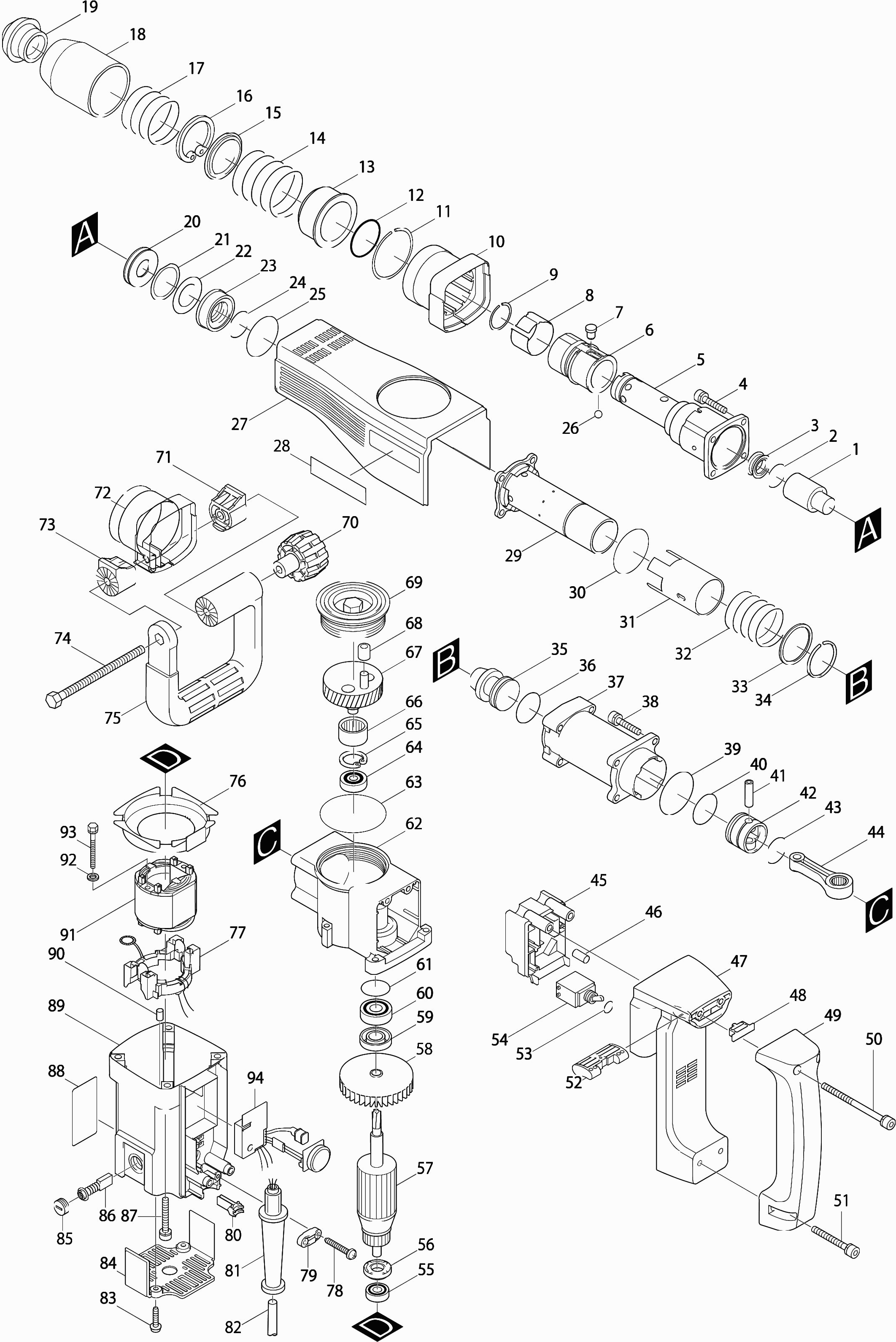

Zeichnungen der MAKITA HM1130C
Teileliste der MAKITA HM1130C
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Slagstuk | ||||
| 001 | 323752-9 | Slagstuk | € 12.14 | |
| O-ring 27 | ||||
| 002* | 213411-2 | O-ring 27 | € 3.64 | |
| X-ring 28 | ||||
| 003* | 213428-5 | X-ring 28 | € 17.87 | |
| Zeskant bout 6x30 | ||||
| 004 | 922351-0 | Zeskant bout 6x30 | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 005 | 323755-3 | Nicht mehr lieferbar | ||
| Ontgrendelring Hm1130C * | ||||
| 006 | 323754-5 | Ontgrendelring Hm1130C * | € 34.30 | |
| Pen 8 | ||||
| 007 | 256450-9 | Pen 8 | € 2.78 | |
| Bladveer 37 Hm1130C * | ||||
| 008 | 232178-3 | Bladveer 37 Hm1130C * | € 3.21 | |
| Borgring 27 Hm1130C * | ||||
| 009 | 231983-5 | Borgring 27 Hm1130C * | € 0.99 | |
| Steun Voor Zijhandgr Hm1100C | ||||
| 010 | 416086-8 | Steun Voor Zijhandgr Hm1100C | € 5.85 | |
| Borgring 52 | ||||
| 011 | 231972-0 | Borgring 52 | € 0.99 | |
| O-ring 44 | ||||
| 012 | 213554-0 | O-ring 44 | € 1.43 | |
| Veergeleider Hm1130C * | ||||
| 013 | 416491-9 | Veergeleider Hm1130C * | € 5.21 | |
| Drukveer 47 Hm1130C * | ||||
| 014 | 233208-3 | Drukveer 47 Hm1130C * | € 1.21 | |
| Ring 40 Hm1130C * | ||||
| 015 | 344618-0 | Ring 40 Hm1130C * | € 2.43 | |
| Borgring S-40 | ||||
| 016 | 961176-7 | Borgring S-40 | € 1.43 | |
| Drukveer 46 Hm1130C * | ||||
| 017 | 233207-5 | Drukveer 46 Hm1130C * | € 1.00 | |
| Beitelhouderhoes | ||||
| 018 | 416490-1 | Beitelhouderhoes | € 5.21 | |
| Beitelhouderkap Hm1130C * | ||||
| 019* | 286249-8 | Beitelhouderkap Hm1130C * | € 2.43 | |
| Slagboutgeleider Hm1130C * | ||||
| 020 | 331525-6 | Slagboutgeleider Hm1130C * | € 7.43 | |
| Ring 36 | ||||
| 021* | 421570-0 | Ring 36 | € 0.99 | |
| O-ring 25 | ||||
| 022* | 213391-2 | O-ring 25 | € 5.85 | |
| Fuehrungshuelse | ||||
| 023 | 331526-4 | Fuehrungshuelse | € 9.50 | |
| O-Ring 22mm | ||||
| 024* | 213370-0 | O-Ring 22mm | € 0.48 | |
| O-ring 44 | ||||
| 025 | 213554-0 | O-ring 44 | € 1.43 | |
| Stalen kogel 7.9 | ||||
| 026 | 216004-4 | Stalen kogel 7.9 | € 0.99 | |
| Huisdeksel Hm1100C * | ||||
| 027 | 415698-4 | Huisdeksel Hm1100C * | € 14.21 | |
| Label "makita" | ||||
| 028 | 819064-1 | Label "makita" | € 0.99 | |
| Zylinder | ||||
| 029 | 134820-1 | Zylinder | € 202.90 | |
| O-ring 50 | ||||
| 030 | 213614-8 | O-ring 50 | € 0.99 | |
| Bus 39 | ||||
| 031 | 331527-2 | Bus 39 | € 28.80 | |
| Drukveer 39 Hm1130C * | ||||
| 032 | 233206-7 | Drukveer 39 Hm1130C * | € 1.43 | |
| Platte ring 39 | ||||
| 033 | 267156-4 | Platte ring 39 | € 0.99 | |
| Borgring 36 | ||||
| 034 | 231971-2 | Borgring 36 | € 0.99 | |
| Zwevende Zuiger Hm1130C * | ||||
| 035 | 323753-7 | Zwevende Zuiger Hm1130C * | € 13.71 | |
| O-ring 27 | ||||
| 036* | 213429-3 | O-ring 27 | € 1.00 | |
| Slaghuis Hm1100C * | ||||
| 037 | 316672-4 | Slaghuis Hm1100C * | € 34.30 | |
| Zeskant bout 6x30 | ||||
| 038 | 922351-0 | Zeskant bout 6x30 | € 0.99 | |
| O-ring 48 | ||||
| 039 | 213606-7 | O-ring 48 | € 1.71 | |
| O-ring 27 | ||||
| 040* | 213429-3 | O-ring 27 | € 1.00 | |
| Bus 6 * | ||||
| 041 | 257676-6 | Bus 6 * | € 4.07 | |
| Kolben | ||||
| 042 | 415773-6 | Kolben | € 4.57 | |
| O-ring 28 | ||||
| 043 | 213415-4 | O-ring 28 | € 0.99 | |
| Stange | ||||
| 044 | 415689-5 | Stange | € 13.71 | |
| Schakelaar Doos Hm1100C * | ||||
| 045 | 415699-2 | Schakelaar Doos Hm1100C * | € 5.21 | |
| Rubber pen 4 | ||||
| 046 | 263002-9 | Rubber pen 4 | € 0.99 | |
| Controledeksel | ||||
| 047 | 417447-5 | Controledeksel | € 13.71 | |
| Stopper Hm1100C | ||||
| 048 | 415692-6 | Stopper Hm1100C | € 1.43 | |
| Griff | ||||
| 049 | 421507-7 | Griff | € 26.05 | |
| Zeskantbout 6X90 * | ||||
| 050 | 266135-9 | Zeskantbout 6X90 * | € 2.07 | |
| Inbusbout M6x50 | ||||
| 051 | 922371-4 | Inbusbout M6x50 | € 0.99 | |
| Schakelaarhandel | ||||
| 052 | 415691-8 | Schakelaarhandel | € 1.71 | |
| O-ring 12 | ||||
| 053 | 213107-5 | O-ring 12 | € 0.99 | |
| Schakelaar Sw-124 | ||||
| 054 | 651481-7 | Schakelaar Sw-124 | € 19.77 | |
| Kogellager 608llb | ||||
| 055 | 210043-6 | Kogellager 608llb | € 1.71 | |
| Isolatiering | ||||
| 056 | 681650-6 | Isolatiering | € 5.21 | |
| Anker | ||||
| 057 | 516288-7 | Anker | € 95.56 | |
| Waaier 76 | ||||
| 058 | 241876-8 | Waaier 76 | € 4.07 | |
| Keerring 14 | ||||
| 059 | 213160-1 | Keerring 14 | € 3.21 | |
| Nicht mehr lieferbar | ||||
| 060 | 211143-5 | Nicht mehr lieferbar | ||
| O-ring 32 | ||||
| 061 | 213459-4 | O-ring 32 | € 1.00 | |
| Krukashuis | ||||
| 062 | 134875-6 | Krukashuis | € 79.85 | |
| O-ring 65 | ||||
| 063 | 213707-1 | O-ring 65 | € 1.43 | |
| Kogellager 6000llu | ||||
| 064 | 210054-1 | Kogellager 6000llu | € 5.21 | |
| Borgring R-26 A | ||||
| 065 | 962105-3 | Borgring R-26 A | € 0.99 | |
| Naaldlager 2116 | ||||
| 066 | 212259-9 | Naaldlager 2116 | € 13.71 | |
| Kurbelwelle | ||||
| 067 | 153249-2 | Kurbelwelle | € 28.80 | |
| Binnenbus 812 | ||||
| 068 | 216116-3 | Binnenbus 812 | € 6.57 | |
| Vuldop | ||||
| 069 | 415690-0 | Vuldop | € 6.57 | |
| Knop M8 | ||||
| 070 | 252640-2 | Knop M8 | € 5.85 | |
| Handgreep basis | ||||
| 071 | 152620-7 | Handgreep basis | € 16.04 | |
| Handgreep basis | ||||
| 072 | 152620-7 | Handgreep basis | € 16.04 | |
| Handgreep basis | ||||
| 073 | 152620-7 | Handgreep basis | € 16.04 | |
| Zeskant bout 8x150 | ||||
| 074 | 265439-6 | Zeskant bout 8x150 | € 2.43 | |
| Nicht mehr lieferbar | ||||
| 075 | 416009-6 | Nicht mehr lieferbar | ||
| Tussenplaat Hm1100C * | ||||
| 076 | 415693-4 | Tussenplaat Hm1100C * | € 2.78 | |
| Halterung | ||||
| 077 | 632678-7 | Halterung | € 4.57 | |
| Tapschroef 4x18 | ||||
| 078 | 265995-6 | Tapschroef 4x18 | € 0.99 | |
| Klemstrip | ||||
| 079 | 687124-5 | Klemstrip | € 0.99 | |
| Bevestigingsstang Hm1130C * | ||||
| 080 | 416167-8 | Bevestigingsstang Hm1130C * | € 2.43 | |
| Kabeltule 10-90 | ||||
| 081 | 682505-8 | Kabeltule 10-90 | € 1.71 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 082 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.66 | |
| Tapschroef 5x20 | ||||
| 083 | 266021-4 | Tapschroef 5x20 | € 0.99 | |
| Hintere Abdeckung | ||||
| 084 | 415700-3 | Hintere Abdeckung | € 3.64 | |
| Koolborstelhouderdop | ||||
| 085 | 643750-0 | Koolborstelhouderdop | € 0.99 | |
| Koolborstel set Cb-327 | ||||
| 086* | 194285-9 | Koolborstel set Cb-327 | € 8.43 | |
| Zeskant bout 6x40 | ||||
| 087 | 922364-1 | Zeskant bout 6x40 | € 1.00 | |
| Typenschild | ||||
| 088 | 859371-0 | Typenschild | € 2.78 | |
| Motorhuis Hm1100C * | ||||
| 089 | 152662-1 | Motorhuis Hm1100C * | € 26.05 | |
| Koolborstelhouder 5X11 A | ||||
| 089A | 644501-4 | Koolborstelhouder 5X11 A | € 2.07 | |
| Rubber pen 4 | ||||
| 090 | 263014-2 | Rubber pen 4 | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 091 | 639007-5 | Nicht mehr lieferbar | ||
| Sluitring 5 | ||||
| 092 | 941102-2 | Sluitring 5 | € 0.99 | |
| Zeskantbout M5X60 * | ||||
| 093 | 265345-5 | Zeskantbout M5X60 * | € 1.43 | |
| Toerenregelingsunit | ||||
| 094 | 631204-9 | Toerenregelingsunit | € 74.61 | |
