Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita GN420C'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

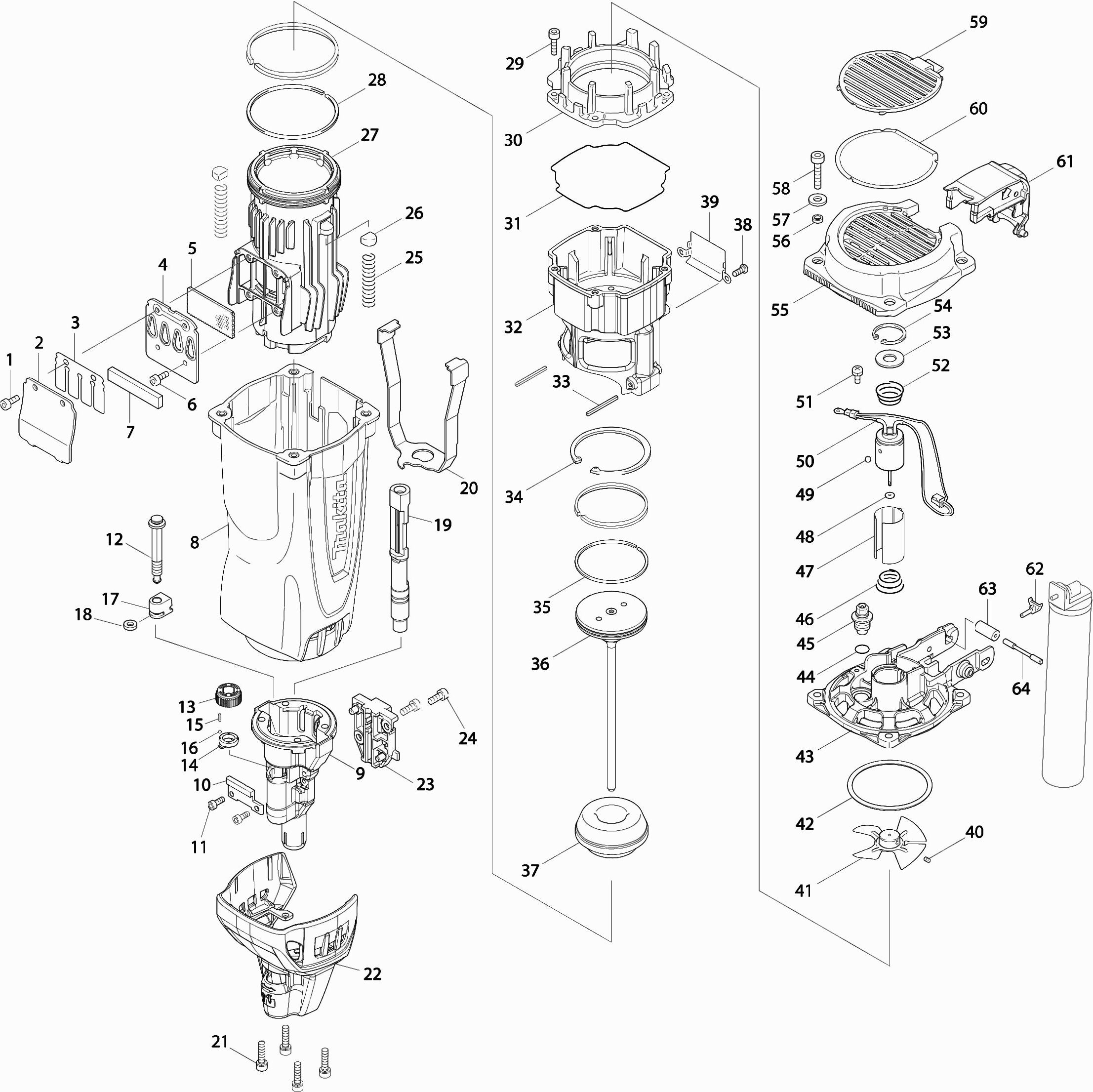

Zeichnungen der Makita GN420C
Teileliste der Makita GN420C
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Inbusbout M4x10 | ||||
| 001 | 922112-8 | 0.83 | 0.99 | |
| Uitlaatkap | ||||
| 002 | 345984-8 | 6.08 | 7.24 | |
| Uitlaatklep | ||||
| 003 | 345982-2 | 2.00 | 2.38 | |
| Uitlaat | ||||
| 004 | 345983-0 | 3.77 | 4.49 | |
| Geperforeerd plaat | ||||
| 005 | 352008-3 | 1.92 | 2.28 | |
| Inbusbout M4x10 | ||||
| 006 | 922112-8 | 0.83 | 0.99 | |
| Dämpfungsring | ||||
| 007 | 352009-1 | 3.37 | 4.01 | |
| Nicht mehr lieferbar | ||||
| 008 | 450729-2 | |||
| Slagpengeleider | ||||
| 009 | 310517-8 | 175.56 | 208.92 | |
| Nagelplaat | ||||
| 010 | 310524-1 | 10.00 | 11.90 | |
| Zeskantbout M5x10 | ||||
| 011 | 266167-6 | 0.83 | 0.99 | |
| Gelenkwelle (a) | ||||
| 012 | 326246-3 | 5.42 | 6.45 | |
| Einsteller | ||||
| 013 | 453806-9 | 4.24 | 5.05 | |
| Afstelgeleider | ||||
| 014 | 453807-7 | 3.54 | 4.21 | |
| Drukveer 2 | ||||
| 015 | 234254-9 | 1.12 | 1.33 | |
| Stalen kogel 2.3 | ||||
| 016 | 216031-1 | 0.83 | 0.99 | |
| Afstelblok | ||||
| 017 | 310519-4 | 6.88 | 8.19 | |
| Rubberbus 5 | ||||
| 018 | 262164-0 | 0.94 | 1.12 | |
| Contactpunt | ||||
| 019 | 331996-7 | 42.81 | 50.94 | |
| Arm | ||||
| 020 | 346613-6 | 6.11 | 7.27 | |
| Inbusbout M5X20 | ||||
| 021 | 266464-0 | 0.83 | 0.99 | |
| Stofkap | ||||
| 022 | 141611-3 | 14.85 | 17.67 | |
| Nicht mehr lieferbar | ||||
| 023 | 141608-2 | |||
| Inbusbout M5X12 | ||||
| 024 | 922212-4 | 0.83 | 0.99 | |
| Drukveer 8 | ||||
| 025 | 234255-7 | 0.83 | 0.99 | |
| Rubber dop | ||||
| 026 | 424138-1 | 3.54 | 4.21 | |
| Zylinder | ||||
| 027 | 318902-9 | 112.78 | 134.21 | |
| Tussenpakking | ||||
| 028 | 324973-6 | 9.22 | 10.97 | |
| Inbusbout 4x16 | ||||
| 029 | 922127-5 | 0.83 | 0.99 | |
| Bovenkamer | ||||
| 030 | 318322-7 | 5.42 | 6.45 | |
| Pakkingring | ||||
| 031 | 424139-9 | 3.28 | 3.90 | |
| Kamer | ||||
| 032 | 318320-1 | 11.28 | 13.42 | |
| Spannstift | ||||
| 033 | 951078-5 | 0.83 | 0.99 | |
| Borgring R-58 | ||||
| 034 | 962254-6 | 2.58 | 3.07 | |
| Zuigerring | ||||
| 035 | 324972-8 | 7.81 | 9.29 | |
| Slagpen | ||||
| 036 | 141606-6 | 118.86 | 141.44 | |
| Stootkussen | ||||
| 037 | 424137-3 | 3.37 | 4.01 | |
| Schroef 4X10 1050Dw * | ||||
| 038 | 265069-3 | 0.83 | 0.99 | |
| Blokkeerplaat | ||||
| 039 | 345985-6 | 2.98 | 3.55 | |
| Stelschroef M3x4 | ||||
| 040 | 913904-6 | 0.97 | 1.15 | |
| Waaier 60 | ||||
| 041 | 241674-0 | 10.00 | 11.90 | |
| O-ring 60 | ||||
| 042 | 213679-0 | 12.20 | 14.52 | |
| Zylinderkopf | ||||
| 043 | 318321-9 | 42.81 | 50.94 | |
| O-ring 10 | ||||
| 044 | 213070-2 | 0.83 | 0.99 | |
| Bougie | ||||
| 045 | 162269-5 | 10.46 | 12.45 | |
| Drukveer 12-18 | ||||
| 046 | 233969-5 | 0.83 | 0.99 | |
| Motor Huls | ||||
| 047 | 454002-2 | 1.92 | 2.28 | |
| Epoxy Sluitring | ||||
| 048 | 261141-9 | 0.83 | 0.99 | |
| Stalen kogel 3 | ||||
| 049 | 216019-1 | 0.83 | 0.99 | |
| Dc Motor | ||||
| 050 | 629860-7 | 118.16 | 140.61 | |
| Schroef 4x8 | ||||
| 051 | 652014-1 | 0.83 | 0.99 | |
| Drukveer 12-18 | ||||
| 052 | 233969-5 | 0.83 | 0.99 | |
| Ring 10 | ||||
| 053 | 253024-7 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 054 | 962103-7 | |||
| Bovendeksel | ||||
| 055 | 450730-7 | 6.88 | 8.19 | |
| Bus 5 | ||||
| 056 | 257672-4 | 0.83 | 0.99 | |
| Sluitring 5mm DSP601 A | ||||
| 057 | 253414-4 | 0.83 | 0.99 | |
| Sechskantschraube | ||||
| 058 | 922242-5 | 0.83 | 0.99 | |
| Filterdeckel | ||||
| 059 | 450733-1 | 2.58 | 3.07 | |
| Filter | ||||
| 060 | 162270-0 | 7.81 | 9.29 | |
| Ontgrendelknop | ||||
| 061 | 454202-4 | 4.82 | 5.74 | |
| Adapter | ||||
| 062 | 454003-0 | 1.12 | 1.33 | |
| Rubber bus 9 | ||||
| 063 | 422044-4 | 0.83 | 0.99 | |
| Kraagpin 4 | ||||
| 064 | 324976-0 | 1.32 | 1.57 | |
| Handgreep set | ||||
| 065 | 187560-0 | 75.93 | 90.36 | |
| Nicht mehr lieferbar | ||||
| 065A | 898794-7 | |||
| Tapschroef 5x25 | ||||
| 066 | 266041-8 | 0.83 | 0.99 | |
| Inbusbout 5x10 | ||||
| 067 | 265907-9 | 0.83 | 0.99 | |
| Sluitring 5 | ||||
| 068 | 941102-2 | 0.83 | 0.99 | |
| Inbusbout M6x20mm | ||||
| 069 | 266780-0 | 4.24 | 5.05 | |
| Batterijhouder set Gn900 | ||||
| 070 | 188598-8 | 4.82 | 5.74 | |
| Aansluitunit | ||||
| 071 | 643817-4 | 1.18 | 1.40 | |
| Gummiring (1) | ||||
| 072 | 424152-7 | 0.83 | 0.99 | |
| Batterijhouder set Gn900 | ||||
| 073 | 188598-8 | 4.82 | 5.74 | |
| Montageblech | ||||
| 074 | 345749-8 | 0.83 | 0.99 | |
| Draaghaak | ||||
| 075 | 324953-2 | 4.25 | 5.06 | |
| Houder tbv draaghaak | ||||
| 076 | 318338-2 | 6.08 | 7.24 | |
| Moer M6 4-k | ||||
| 077 | 252185-0 | 1.32 | 1.57 | |
| Draaddeksel | ||||
| 078 | 450740-4 | 2.58 | 3.07 | |
| Nicht mehr lieferbar | ||||
| 079 | 234113-7 | |||
| Schakelunit | ||||
| 080 | 638642-6 | 11.26 | 13.40 | |
| Schakelknop | ||||
| 081 | 450736-5 | 2.58 | 3.07 | |
| Schaltblech | ||||
| 082 | 141610-5 | 11.26 | 13.40 | |
| Kamerblokkeerpen | ||||
| 083 | 324974-4 | 3.37 | 4.01 | |
| Tapschroef 4x18 | ||||
| 084 | 265995-6 | 0.83 | 0.99 | |
| Lijn filter | ||||
| 085 | 688131-1 | 0.83 | 0.99 | |
| Licht circuit | ||||
| 086 | 620160-8 | 13.16 | 15.66 | |
| Ontstekingsunit | ||||
| 087 | 620159-3 | 112.78 | 134.21 | |
| Handgreep set | ||||
| 088 | 187560-0 | 75.93 | 90.36 | |
| Sluitring 5 | ||||
| 089 | 941102-2 | 0.83 | 0.99 | |
| Inbusbout 5x10 | ||||
| 090 | 265907-9 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 091 | 814A21-0 | |||
| Schakelunit | ||||
| 092 | 638642-6 | 11.26 | 13.40 | |
| Magazijn 40n assy | ||||
| 093 | 126252-6 | 161.29 | 191.94 | |
| Pen 4 | ||||
| 094 | 268280-6 | 2.58 | 3.07 | |
| Pen 5 | ||||
| 095 | 268225-4 | 0.83 | 0.99 | |
| Drukplaathouder | ||||
| 096 | 453808-5 | 7.81 | 9.29 | |
| Terugloopveer | ||||
| 097 | 141609-0 | 14.85 | 17.67 | |
| Druckplatte | ||||
| 098 | 310520-9 | 11.26 | 13.40 | |
| Urethaan ring 3 | ||||
| 099 | 262120-0 | 0.83 | 0.99 | |
| Blokkeerplaat | ||||
| 100 | 310521-7 | 7.81 | 9.29 | |
| Drukveer 5 | ||||
| 101 | 233037-4 | 0.83 | 0.99 | |
| Moer 4-k M5 | ||||
| 102 | 264050-1 | 0.83 | 0.99 | |
| Inbusbout M5x8 | ||||
| 103 | 265480-9 | 0.83 | 0.99 | |
| Magazin Zsb | ||||
| 104 | 331998-3 | 68.14 | 81.09 | |
| Magazijnkap | ||||
| 105 | 453809-3 | 37.86 | 45.05 | |
| Nicht mehr lieferbar | ||||
| 106 | 922217-4 | |||
| Nagelafslag | ||||
| 107 | 346615-2 | 1.32 | 1.57 | |
| O-ring 4 | ||||
| 108 | 213009-5 | 0.83 | 0.99 | |
| Spanstift 3-12 | ||||
| 109 | 951057-3 | 0.83 | 0.99 | |
| Drukveer 6 | ||||
| 110 | 234012-3 | 1.32 | 1.57 | |
| Sluitring 6x12mm | ||||
| 111 | 941151-9 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 112 | 942151-2 | |||
| Vleugelbout M6x29mm | ||||
| 113 | 265796-2 | 1.12 | 1.33 | |
