Makita EG241A Zeichnungen und Teile
Genaue Typennummer:
EG241A
EG241A

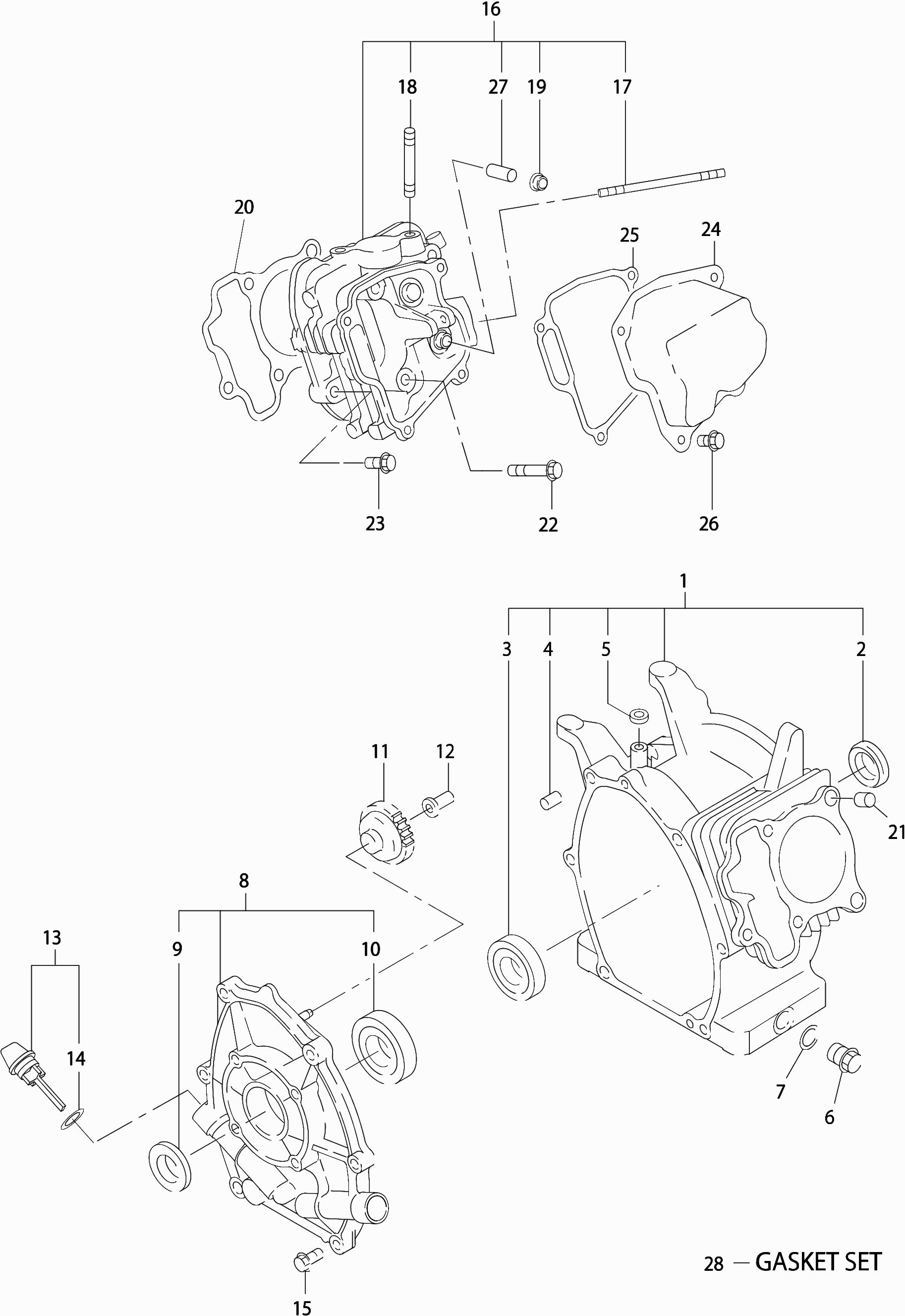

Zeichnungen der MAKITA EG241A
Teileliste der MAKITA EG241A
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Krukashuis G2800L/Eg241A * | ||||
| 001 | 2771010251 | Krukashuis G2800L/Eg241A * | € 373.06 | |
| Oliekeerring 25X38X7 G2800L | ||||
| 002 | 0440250200 | Oliekeerring 25X38X7 G2800L | € 9.50 | |
| Kogellager 62/28 G2800L | ||||
| 003 | 0600280021 | Kogellager 62/28 G2800L | € 17.87 | |
| Pasbus 10 10.3X8.5X14 Eg241 * | ||||
| 004 | 2771501103 | Pasbus 10 10.3X8.5X14 Eg241 * | € 0.99 | |
| Oliekeerring 6X10X2,5 G4300L | ||||
| 005 | 0440060020 | Oliekeerring 6X10X2,5 G4300L | € 4.57 | |
| Carterplug Eg-Series | ||||
| 006 | 0401140030 | Carterplug Eg-Series | € 2.43 | |
| Pakking G2400-3500-550 | ||||
| 007 | 0211140020 | Pakking G2400-3500-550 | € 0.99 | |
| Krukashuisdeksel | ||||
| 008 | 2771100131 | Krukashuisdeksel | € 95.56 | |
| Oliekeerring 25X41X6 G2800L | ||||
| 009 | 0440250210 | Oliekeerring 25X41X6 G2800L | € 10.78 | |
| Nicht mehr lieferbar | ||||
| 010 | 0600250140 | Nicht mehr lieferbar | ||
| Regulateurtandwiel | ||||
| 011 | 27745004J1 | Regulateurtandwiel | € 13.71 | |
| Nicht mehr lieferbar | ||||
| 012 | 2774190103 | Nicht mehr lieferbar | ||
| Oliepeilstok | ||||
| 013 | 2776360130 | Oliepeilstok | € 6.57 | |
| O-Ring Tbv Oliepeilstok A | ||||
| 014 | 424100-6 | O-Ring Tbv Oliepeilstok A | € 0.99 | |
| Flensbout G4300L * | ||||
| 015 | 0010408350 | Flensbout G4300L * | € 1.43 | |
| Zylinderkopf | ||||
| 016 | 2771300211 | Zylinderkopf | € 189.80 | |
| Tapeind M6X980Mm G2800L | ||||
| 017 | 0105060351 | Tapeind M6X980Mm G2800L | € 5.85 | |
| Tapeind Uitlaat * | ||||
| 018 | 0105080290 | Tapeind Uitlaat * | € 1.21 | |
| Kleppakking | ||||
| 019 | 2771601001 | Kleppakking | € 4.57 | |
| Cilinderkoppakking | ||||
| 020 | 2771500133 | Cilinderkoppakking | € 4.57 | |
| Pasbus 10 10.3X8.5X14 Eg241 * | ||||
| 021 | 2771501103 | Pasbus 10 10.3X8.5X14 Eg241 * | € 0.99 | |
| Flensbout M8X68 G4300L * | ||||
| 022 | 0110080240 | Flensbout M8X68 G4300L * | € 3.64 | |
| Flensbout M8X33 G4300L * | ||||
| 023 | 0110080310 | Flensbout M8X33 G4300L * | € 2.07 | |
| Kleppendeksel | ||||
| 024 | 2771550301 | Kleppendeksel | € 31.55 | |
| Kleppendekselpakking | ||||
| 025 | 2771600113 | Kleppendekselpakking | € 3.64 | |
| Flensbout G24/35/5500 | ||||
| 026 | 0110060020 | Flensbout G24/35/5500 | € 1.71 | |
| Klepgeleider | ||||
| 027 | 2371420203 | Klepgeleider | € 31.55 | |
| Membraamset Ew2050H P | ||||
| 028 | 2779900167 | Membraamset Ew2050H P | € 13.71 | |
| Kurbelwelle | ||||
| 029 | 2772070121 | Kurbelwelle | € 255.26 | |
| Inleg Spie G2400-3500-1R | ||||
| 030 | 0323030010 | Inleg Spie G2400-3500-1R | € 2.78 | |
| Stange | ||||
| 031 | 2772250110 | Stange | € 74.61 | |
| Drijfstangbout | ||||
| 032 | 2772300103 | Drijfstangbout | € 3.21 | |
| Kolbenbolzen | ||||
| 033 | 2772330113 | Kolbenbolzen | € 9.50 | |
| Borgring Eg241/321A | ||||
| 034 | 0565160010 | Borgring Eg241/321A | € 1.00 | |
| Zuiger 67 | ||||
| 035 | 27723401J3 | Zuiger 67 | € 37.04 | |
| Zuiger ov.siz.0.25mm | ||||
| 035A | 27723403J3 | Zuiger ov.siz.0.25mm | € 37.04 | |
| Zuiger ov.siz.0.50mm | ||||
| 035B | 27723404J3 | Zuiger ov.siz.0.50mm | € 37.04 | |
| Zuigerveerset tbv oliepomp | ||||
| 036 | 2772353107 | Zuigerveerset tbv oliepomp | € 39.79 | |
| Zuigerveerset 0,25mm | ||||
| 036A | 2772353207 | Zuigerveerset 0,25mm | € 42.94 | |
| Zuigerveerset 0,50mm | ||||
| 036A | 2772353307 | Zuigerveerset 0,50mm | € 42.94 | |
| Nokkenas cpl | ||||
| 037 | 2783160131 | Nokkenas cpl | € 79.85 | |
| Vrijloophaak G2800L * | ||||
| 038 | 2773640103 | Vrijloophaak G2800L * | € 10.78 | |
| Retourveer | ||||
| 039 | 2793870113 | Retourveer | € 1.71 | |
| Pen 4Mm G4300L * | ||||
| 040 | 2773860103 | Pen 4Mm G4300L * | € 0.99 | |
| Borgring 13,8Mm G4300L * | ||||
| 041 | 2773650103 | Borgring 13,8Mm G4300L * | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 042 | 2773510101 | Nicht mehr lieferbar | ||
| Nokkenaspen | ||||
| 043 | 2773510103 | Nokkenaspen | € 7.43 | |
| Nicht mehr lieferbar | ||||
| 044 | 0240060030 | Nicht mehr lieferbar | ||
| Bout G2400-3500-550 * | ||||
| 045 | 0110060010 | Bout G2400-3500-550 * | € 1.43 | |
| Inlaatklep | ||||
| 046 | 27733401H3 | Inlaatklep | € 17.87 | |
| Uitlaatklep | ||||
| 047 | 27733501H3 | Uitlaatklep | € 26.05 | |
| Klepveer | ||||
| 048 | 2793360103 | Klepveer | € 3.21 | |
| Retourveer | ||||
| 049 | 2693370103 | Retourveer | € 4.57 | |
| Tegenklep | ||||
| 050 | 13210KA031 | Tegenklep | € 1.43 | |
| Kleppentuimelaar | ||||
| 051 | 2773620100 | Kleppentuimelaar | € 26.05 | |
| Stelschroef M5 G28/4300L * | ||||
| 052 | 0149050020 | Stelschroef M5 G28/4300L * | € 2.43 | |
| Moer M5 G28/4300L * | ||||
| 053 | 0170050030 | Moer M5 G28/4300L * | € 0.99 | |
| Tuimelaar | ||||
| 054 | 2773620200 | Tuimelaar | € 21.66 | |
| Stelschroef M5 G28/4300L * | ||||
| 055 | 0149050020 | Stelschroef M5 G28/4300L * | € 2.43 | |
| Moer M5 G28/4300L * | ||||
| 056 | 0170050030 | Moer M5 G28/4300L * | € 0.99 | |
| Tuimelaarpen | ||||
| 057 | 2773500401 | Tuimelaarpen | € 3.64 | |
| Borgring G28/4300L * | ||||
| 058 | 0031305000 | Borgring G28/4300L * | € 0.99 | |
| Nokkenasketting Eg241A A | ||||
| 059 | 27735602H1 | Nokkenasketting Eg241A A | € 28.80 | |
| Nokkenasketting | ||||
| 060 | 2773691103 | Nokkenasketting | € 3.21 | |
| Zugfeder | ||||
| 061 | 2773710103 | Zugfeder | € 3.21 | |
| Pen 6x13x34mm | ||||
| 062 | 2773690203 | Pen 6x13x34mm | € 3.21 | |
| Kettinggeleider | ||||
| 063 | 2773691313 | Kettinggeleider | € 2.78 | |
| Uitlaatpijp | ||||
| 064 | 2773400101 | Uitlaatpijp | € 37.04 | |
| Tapeind Uitlaat * | ||||
| 065 | 0105080290 | Tapeind Uitlaat * | € 1.21 | |
| Uitlaatpakking | ||||
| 066 | 2773520113 | Uitlaatpakking | € 2.43 | |
| Nicht mehr lieferbar | ||||
| 067 | 0023808000 | Nicht mehr lieferbar | ||
| Uitlaat | ||||
| 068 | 2773051101 | Uitlaat | € 121.74 | |
| Uitlaatkap | ||||
| 069 | 2773470101 | Uitlaatkap | € 53.28 | |
| Uitlaatsteun | ||||
| 070 | 2773910101 | Uitlaatsteun | € 10.78 | |
| Uitlaatsteun | ||||
| 071 | 2773910201 | Uitlaatsteun | € 8.43 | |
| Uitlaatpakking T=16 28dx52p | ||||
| 072 | 2773520101 | Uitlaatpakking T=16 28dx52p | € 7.43 | |
| Nicht mehr lieferbar | ||||
| 073 | 0023808000 | Nicht mehr lieferbar | ||
| Bout G2400-3500-550 * | ||||
| 074 | 0110060010 | Bout G2400-3500-550 * | € 1.43 | |
| Flensbout Eg241A A | ||||
| 075 | 0010406140 | Flensbout Eg241A A | € 0.99 | |
| Sponsbeschermer | ||||
| 076 | 2776900203 | Sponsbeschermer | € 4.57 | |
| Moer M/Revet G28/6100R | ||||
| 077 | 0023806000 | Moer M/Revet G28/6100R | € 1.00 | |
| Ontluchtingspijp | ||||
| 078 | 2773276208 | Ontluchtingspijp | € 13.71 | |
| Luftfilter | ||||
| 079 | 2773262220 | Luftfilter | € 70.03 | |
| Luchtfilterkap G2900Lx A | ||||
| 080 | 2773264328 | Luchtfilterkap G2900Lx A | € 39.79 | |
| Label, Choke- Eg241A A | ||||
| 081 | 0732004430 | Label, Choke- Eg241A A | € 5.85 | |
| Luchtfilterhuis | ||||
| 082 | 2773263208 | Luchtfilterhuis | € 46.21 | |
| Luchtfilterpakking | ||||
| 083 | 2773260408 | Luchtfilterpakking | € 4.57 | |
| Luchtfilterelement | ||||
| 084 | 2773266117 | Luchtfilterelement | € 37.04 | |
| Luchtfiltersteun | ||||
| 085 | 2773900101 | Luchtfiltersteun | € 6.57 | |
| Bout Eg241A A | ||||
| 086 | 0010406200 | Bout Eg241A A | € 0.99 | |
| Regulateurhefboom | ||||
| 087 | 2774230140 | Regulateurhefboom | € 13.71 | |
| Regulateurhefboom | ||||
| 088 | 2774230140 | Regulateurhefboom | € 13.71 | |
| Bout Eg241A A | ||||
| 089 | 0010406200 | Bout Eg241A A | € 0.99 | |
| Moer G2400-3500-550 | ||||
| 090 | 0186060020 | Moer G2400-3500-550 | € 1.00 | |
| Regulateuras | ||||
| 091 | 2774220133 | Regulateuras | € 12.14 | |
| Borgring G28/4300L * | ||||
| 092 | 0031305000 | Borgring G28/4300L * | € 0.99 | |
| Regulateurstang | ||||
| 093 | 2774270123 | Regulateurstang | € 2.78 | |
| Regulateurstangveer | ||||
| 094 | 2774280123 | Regulateurstangveer | € 2.07 | |
| Regulateurveer | ||||
| 095 | 2794250543 | Regulateurveer | € 3.64 | |
| Toerenregeling | ||||
| 096 | 2774650111 | Toerenregeling | € 14.21 | |
| Moer G2400R-Etc A | ||||
| 097 | 0021706000 | Moer G2400R-Etc A | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 098 | 0043106400 | Nicht mehr lieferbar | ||
| Flensbout G24/35/5500 | ||||
| 099 | 0110060020 | Flensbout G24/35/5500 | € 1.71 | |
| Vliegwielhuis | ||||
| 100 | 2775120501 | Vliegwielhuis | € 56.94 | |
| Circuit vlotter | ||||
| 101 | KU31107001 | Circuit vlotter | € 70.03 | |
| Tapschroef G2400-3500-550 | ||||
| 102 | 0150040010 | Tapschroef G2400-3500-550 | € 0.99 | |
| Bout M6X1.0X14Dx14L | ||||
| 103 | 0110060030 | Bout M6X1.0X14Dx14L | € 1.43 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 104 | 0732005820 | Label (Trade Mark)Eg241/601A A | € 3.64 | |
| Bout M/Revet Eg441A | ||||
| 105 | 0130060281 | Bout M/Revet Eg441A | € 0.99 | |
| Zwischenplatte | ||||
| 106 | 2775271121 | Zwischenplatte | € 8.43 | |
| Flensbout Eg241A A | ||||
| 107 | 0010406140 | Flensbout Eg241A A | € 0.99 | |
| Zwischenplatte | ||||
| 108 | 2775270203 | Zwischenplatte | € 17.87 | |
| Flensbout G24/35/5500 | ||||
| 109 | 0110060020 | Flensbout G24/35/5500 | € 1.71 | |
| Abdeckhaube | ||||
| 110 | 2775500121 | Abdeckhaube | € 13.71 | |
| Flensbout G24/35/5500 | ||||
| 111 | 0110060020 | Flensbout G24/35/5500 | € 1.71 | |
| Nicht mehr lieferbar | ||||
| 112 | 2775030120 | Nicht mehr lieferbar | ||
| Startveer | ||||
| 113 | 2265071608 | Startveer | € 31.55 | |
| Koordhaspel | ||||
| 114 | 2775012108 | Koordhaspel | € 37.04 | |
| Sperrklinke | ||||
| 115 | 2815032508 | Sperrklinke | € 6.57 | |
| Frictieveer | ||||
| 116 | 2815033008 | Frictieveer | € 5.85 | |
| Centreerschroef | ||||
| 117 | 2815035108 | Centreerschroef | € 5.85 | |
| Frictieplaat | ||||
| 118 | 2815034008 | Frictieplaat | € 5.85 | |
| Starterkoord | ||||
| 119 | 2775011008 | Starterkoord | € 14.21 | |
| Starter Knop Eg241A A | ||||
| 120 | 2815030018 | Starter Knop Eg241A A | € 8.43 | |
| Startpulley | ||||
| 121 | 2775014508 | Startpulley | € 21.66 | |
| Spruitstuk | ||||
| 122 | 20A3290201 | Spruitstuk | € 10.78 | |
| Pakking 1 Spruitst. Eg241A A | ||||
| 123 | 20A3590203 | Pakking 1 Spruitst. Eg241A A | € 1.21 | |
| Nicht mehr lieferbar | ||||
| 124 | 27735903J3 | Nicht mehr lieferbar | ||
| Carburateur | ||||
| 125 | 2776230440 | Carburateur | € 108.65 | |
| Gasklep | ||||
| 126 | 2776253508 | Gasklep | € 14.21 | |
| Luchtsproeier (inlaat) | ||||
| 127 | 1066241008 | Luchtsproeier (inlaat) | € 14.21 | |
| Chokeklep | ||||
| 128 | 2776252708 | Chokeklep | € 10.78 | |
| Luchtsproeier | ||||
| 129 | 2486241008 | Luchtsproeier | € 14.21 | |
| Gasnaald | ||||
| 130 | 2466242008 | Gasnaald | € 12.14 | |
| Gasstang | ||||
| 131 | 2776253118 | Gasstang | € 31.55 | |
| Chokehandel | ||||
| 132 | 2776252208 | Chokehandel | € 26.05 | |
| Hoofdsproeier | ||||
| 133 | 2776244008 | Hoofdsproeier | € 26.05 | |
| Schwimmer | ||||
| 134 | 2266250608 | Schwimmer | € 31.55 | |
| Vlotterkamer | ||||
| 135 | 2776250608 | Vlotterkamer | € 39.79 | |
| Hoofdgasnaald | ||||
| 136 | 2776240208 | Hoofdgasnaald | € 14.21 | |
| Dichtung | ||||
| 137 | 2146245008 | Dichtung | € 1.00 | |
| Bout G2400R * | ||||
| 138 | 2276245108 | Bout G2400R * | € 9.50 | |
| Clip | ||||
| 139 | 2266270118 | Clip | € 4.07 | |
| Stift | ||||
| 140 | 2776251508 | Stift | € 3.64 | |
| Dichtung | ||||
| 141 | 2146254008 | Dichtung | € 5.21 | |
| Zeiger | ||||
| 142 | 2776250008 | Zeiger | € 34.30 | |
| Dichtung | ||||
| 143 | 2466239008 | Dichtung | € 3.21 | |
| Dichtung | ||||
| 144 | 2366268008 | Dichtung | € 5.21 | |
| Bolzen | ||||
| 145 | 2776236008 | Bolzen | € 8.43 | |
| Dichtung | ||||
| 146 | 2366254108 | Dichtung | € 4.57 | |
| Ring | ||||
| 147 | 2776257028 | Ring | € 6.57 | |
| Ring | ||||
| 148 | 2776257108 | Ring | € 6.57 | |
| Schraube | ||||
| 149 | 2096235108 | Schraube | € 1.00 | |
| Schraube | ||||
| 150 | 2376245108 | Schraube | € 1.00 | |
| Feder | ||||
| 151 | 2836235708 | Feder | € 5.85 | |
| Schraube | ||||
| 152 | 1066255608 | Schraube | € 1.43 | |
| Mutter | ||||
| 153 | 2776255308 | Mutter | € 6.57 | |
| Vliegwiel | ||||
| 154 | 2777923011 | Vliegwiel | € 181.95 | |
| Ontsteking | ||||
| 155 | 2777943111 | Ontsteking | € 108.65 | |
| Bougiedop | ||||
| 156 | X655000270 | Bougiedop | € 4.57 | |
| Bout Eg241A A | ||||
| 157 | 0010406200 | Bout Eg241A A | € 0.99 | |
| Flensmoer M14 G2800L * | ||||
| 158 | 0180140020 | Flensmoer M14 G2800L * | € 2.07 | |
| Bougie Br6Hs | ||||
| 159 | 0650140150 | Bougie Br6Hs | € 10.78 | |
| Stopkabel | ||||
| 160 | 27773102H1 | Stopkabel | € 6.57 | |
| Knipsluitring G1700I | ||||
| 161 | 0569000020 | Knipsluitring G1700I | € 0.99 | |
| Oliesensor | ||||
| 162 | 2777630121 | Oliesensor | € 39.79 | |
| Flensbout Eg241A A | ||||
| 163 | 0010406140 | Flensbout Eg241A A | € 0.99 | |
| Veldwikkeling | ||||
| 164 | 36A2000108 | Veldwikkeling | € 733.04 | |
| Anker | ||||
| 165 | 36A2010108 | Anker | € 569.42 | |
| Nicht mehr lieferbar | ||||
| 166 | 36A2020108 | Nicht mehr lieferbar | ||
| Kohlebürste | ||||
| 167 | 36A2030008 | Kohlebürste | € 17.87 | |
| Halterung | ||||
| 168 | 36A2200008 | Halterung | € 74.61 | |
| Halterung | ||||
| 169 | 36A2210008 | Halterung | € 42.94 | |
| Halterung | ||||
| 170 | 36A2220008 | Halterung | € 90.32 | |
| Montageblech | ||||
| 171 | 36A2300008 | Montageblech | € 21.66 | |
| Hülse | ||||
| 172 | 36A2500008 | Hülse | € 6.57 | |
| Bolzen | ||||
| 173 | 36A2100008 | Bolzen | € 13.71 | |
| Bolzen | ||||
| 174 | 36A8000008 | Bolzen | € 2.07 | |
| Flens bout | ||||
| 175 | 36A8000108 | Flens bout | € 1.71 | |
| Schroef en ring | ||||
| 176 | 36A8010008 | Schroef en ring | € 0.99 | |
| Flens bout | ||||
| 177 | 36A8000208 | Flens bout | € 1.71 | |
| Diode | ||||
| 178 | 36A2500108 | Diode | € 26.05 | |
| Schroef en ring | ||||
| 179 | 36A8010108 | Schroef en ring | € 1.21 | |
| Schlauch | ||||
| 180 | 36A2500208 | Schlauch | € 8.43 | |
| Bushing | ||||
| 181 | 36A2500308 | Bushing | € 8.43 | |
| Verbindungsstueck (1) | ||||
| 182 | 36A7000008 | Verbindungsstueck (1) | € 5.21 | |
| Verbindungsstueck (1) | ||||
| 183 | 36A7000208 | Verbindungsstueck (1) | € 2.07 | |
| Sicherungsring | ||||
| 184 | 36A7010108 | Sicherungsring | € 1.43 | |
| Sicherungsring | ||||
| 185 | 36A7010008 | Sicherungsring | € 2.07 | |
| Draad (groen) | ||||
| 186 | 36A7100008 | Draad (groen) | € 12.14 | |
| Draad (wit) | ||||
| 187 | 36A7100108 | Draad (wit) | € 13.71 | |
| Schraube | ||||
| 188 | 36A8020008 | Schraube | € 4.57 | |
| Bolzen | ||||
| 189 | 36A2110008 | Bolzen | € 16.04 | |
| Filterspons | ||||
| 190 | 36A2500408 | Filterspons | € 14.21 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 191 | 0732005820 | Label (Trade Mark)Eg241/601A A | € 3.64 | |
| Buizenframe | ||||
| 192 | 36A3000008 | Buizenframe | € 569.42 | |
| Controlekast | ||||
| 193 | 36A4000108 | Controlekast | € 373.06 | |
| Schroef en ring | ||||
| 194 | 36A8010408 | Schroef en ring | € 1.71 | |
| Schroef en ring | ||||
| 195 | 36A8010508 | Schroef en ring | € 1.00 | |
| Bolzen | ||||
| 196 | 36A8100208 | Bolzen | € 1.71 | |
| Bolzen | ||||
| 197 | 36A8000308 | Bolzen | € 4.57 | |
| Haltebügel | ||||
| 198 | 36A3100008 | Haltebügel | € 13.71 | |
| Flens bout | ||||
| 199 | 36A8000408 | Flens bout | € 1.21 | |
| Borgring filter | ||||
| 200 | 36A8200108 | Borgring filter | € 0.99 | |
| Spons | ||||
| 201 | 36A2500508 | Spons | € 2.78 | |
| Spons | ||||
| 202 | 36A3500008 | Spons | € 13.71 | |
| Spons | ||||
| 203 | 36A3500108 | Spons | € 4.57 | |
| Draad (groen/geel) | ||||
| 204 | 36A7100708 | Draad (groen/geel) | € 14.21 | |
| Label (spec) Eg241a | ||||
| 205 | 36A9100918 | Label (spec) Eg241a | € 10.78 | |
| Benzinekraanlabel | ||||
| 206 | 36A9800308 | Benzinekraanlabel | € 14.21 | |
| Nicht mehr lieferbar | ||||
| 207 | 36B4100708 | Nicht mehr lieferbar | ||
| Motorschakelaar | ||||
| 208 | 36A4900008 | Motorschakelaar | € 19.77 | |
| Steckdose | ||||
| 209 | 36A4700108 | Steckdose | € 26.05 | |
| Circuit onderbreker Dc 10a | ||||
| 210 | 36A4800008 | Circuit onderbreker Dc 10a | € 53.28 | |
| Voltmeter | ||||
| 211 | 36A4900108 | Voltmeter | € 79.85 | |
| Dc-geheugen | ||||
| 212 | 36A4710108 | Dc-geheugen | € 10.78 | |
| Circuit onderbreker Dc 10a | ||||
| 213 | 36A4800108 | Circuit onderbreker Dc 10a | € 28.80 | |
| Schroef en ring | ||||
| 214 | 36A8010208 | Schroef en ring | € 1.21 | |
| Borgring filter | ||||
| 215 | 36A8200008 | Borgring filter | € 0.99 | |
| Bolzen | ||||
| 216 | 36A8100008 | Bolzen | € 1.00 | |
| Dop revet Eg241/321a | ||||
| 217 | 36A8210008 | Dop revet Eg241/321a | € 1.71 | |
| Ring | ||||
| 218 | 36A8220008 | Ring | € 0.99 | |
| Federscheibe | ||||
| 219 | 36A8230008 | Federscheibe | € 0.99 | |
| Fluegelmutter | ||||
| 220 | 36A8110008 | Fluegelmutter | € 2.43 | |
| Verbindungsstueck (1) | ||||
| 221 | 36A7000308 | Verbindungsstueck (1) | € 3.21 | |
| Verbindungsstueck (1) | ||||
| 222 | 36A7000108 | Verbindungsstueck (1) | € 6.57 | |
| Sicherungsring | ||||
| 223 | 36A7010108 | Sicherungsring | € 1.43 | |
| Sicherungsring | ||||
| 224 | 36A7010008 | Sicherungsring | € 2.07 | |
| Schroef en ring | ||||
| 225 | 36A8010308 | Schroef en ring | € 1.00 | |
| Schraube | ||||
| 226 | 36A8020108 | Schraube | € 0.99 | |
| Bolzen | ||||
| 227 | 36A8100108 | Bolzen | € 1.00 | |
| Bushing | ||||
| 228 | 36A4990008 | Bushing | € 12.14 | |
| Draad (wit) | ||||
| 229 | 36A7100208 | Draad (wit) | € 16.04 | |
| Draad (wit) | ||||
| 230 | 36A7100308 | Draad (wit) | € 16.04 | |
| Draad (zwart) | ||||
| 231 | 36A7100408 | Draad (zwart) | € 14.21 | |
| Draad (groen) | ||||
| 232 | 36A7100508 | Draad (groen) | € 9.50 | |
| Draad (zwart) | ||||
| 233 | 36A7100608 | Draad (zwart) | € 16.04 | |
| Draad (grijs) | ||||
| 234 | 36A7100808 | Draad (grijs) | € 8.43 | |
| Draad (rood) | ||||
| 235 | 36A7100908 | Draad (rood) | € 16.04 | |
| Draad (rood) | ||||
| 236 | 36A7101008 | Draad (rood) | € 26.05 | |
| Draad (groen) | ||||
| 237 | 36A7101108 | Draad (groen) | € 28.80 | |
| Draad (blauw) | ||||
| 238 | 36A7101208 | Draad (blauw) | € 37.04 | |
| Label (trade mark) Eg241a | ||||
| 239 | 36A9000208 | Label (trade mark) Eg241a | € 23.69 | |
| Chokelabel | ||||
| 240 | 36A9800408 | Chokelabel | € 3.21 | |
| Benzinetank | ||||
| 241 | 2706172201 | Benzinetank | € 189.80 | |
| Tank Dop G2800R | ||||
| 242 | 0430590011 | Tank Dop G2800R | € 37.04 | |
| Benzinefilter Eg-Series | ||||
| 243 | 0641540011 | Benzinefilter Eg-Series | € 10.78 | |
| Benzinemeter Eg241/321A | ||||
| 244 | 0648001800 | Benzinemeter Eg241/321A | € 39.79 | |
| Schroef G2400-3500-550 | ||||
| 245 | 0145050040 | Schroef G2400-3500-550 | € 1.21 | |
| Bout Eg241A | ||||
| 246 | 0110060220 | Bout Eg241A | € 2.07 | |
| Rubber ring (tank) | ||||
| 247 | 3913900013 | Rubber ring (tank) | € 3.64 | |
| Bezinekraan G4100R | ||||
| 248 | 0642010001 | Bezinekraan G4100R | € 19.77 | |
| Benzinefilter Eg241A A | ||||
| 249 | 0642001420 | Benzinefilter Eg241A A | € 1.43 | |
| Pakkingring Eg441A | ||||
| 250 | 0642001430 | Pakkingring Eg441A | € 1.43 | |
| Kijkglas Eg241A | ||||
| 251 | 0642001410 | Kijkglas Eg241A | € 3.21 | |
| Borgmoer Eg241A | ||||
| 252 | 0642010030 | Borgmoer Eg241A | € 3.64 | |
| O-Ring Eg241A | ||||
| 253 | 0642000330 | O-Ring Eg241A | € 1.43 | |
| Bout Eg241/321/441A | ||||
| 254 | 0642002790 | Bout Eg241/321/441A | € 0.99 | |
| Drukveer Eg241A | ||||
| 255 | 0642003230 | Drukveer Eg241A | € 1.21 | |
| Benzineslangset | ||||
| 256 | 2696261301 | Benzineslangset | € 23.69 | |
| Slangklem 11Mm P | ||||
| 257 | 0561110020 | Slangklem 11Mm P | € 1.00 | |
| Slang 100mm | ||||
| 258 | 36A6000108 | Slang 100mm | € 12.14 | |
| Benzinekraanlabel | ||||
| 259 | 36A9800108 | Benzinekraanlabel | € 5.85 | |
| Label (symbooltank) Eg241/601a | ||||
| 260 | 36A9800208 | Label (symbooltank) Eg241/601a | € 14.21 | |
| Rubber slang | ||||
| 261 | 2696801203 | Rubber slang | € 21.66 | |
| Ring | ||||
| 262 | 36A8220108 | Ring | € 1.43 | |
| Nicht mehr lieferbar | ||||
| 263 | 36A7500008 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 264 | 36A8030108 | Nicht mehr lieferbar | ||
| Schroef + Ring | ||||
| 265 | 36A8010708 | Schroef + Ring | € 1.21 | |
| Label "gevaar" | ||||
| 266 | 36A9802108 | Label "gevaar" | € 9.50 | |
| Nicht mehr lieferbar | ||||
| 267 | 36A9802208 | Nicht mehr lieferbar | ||
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
