Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita DRV250'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

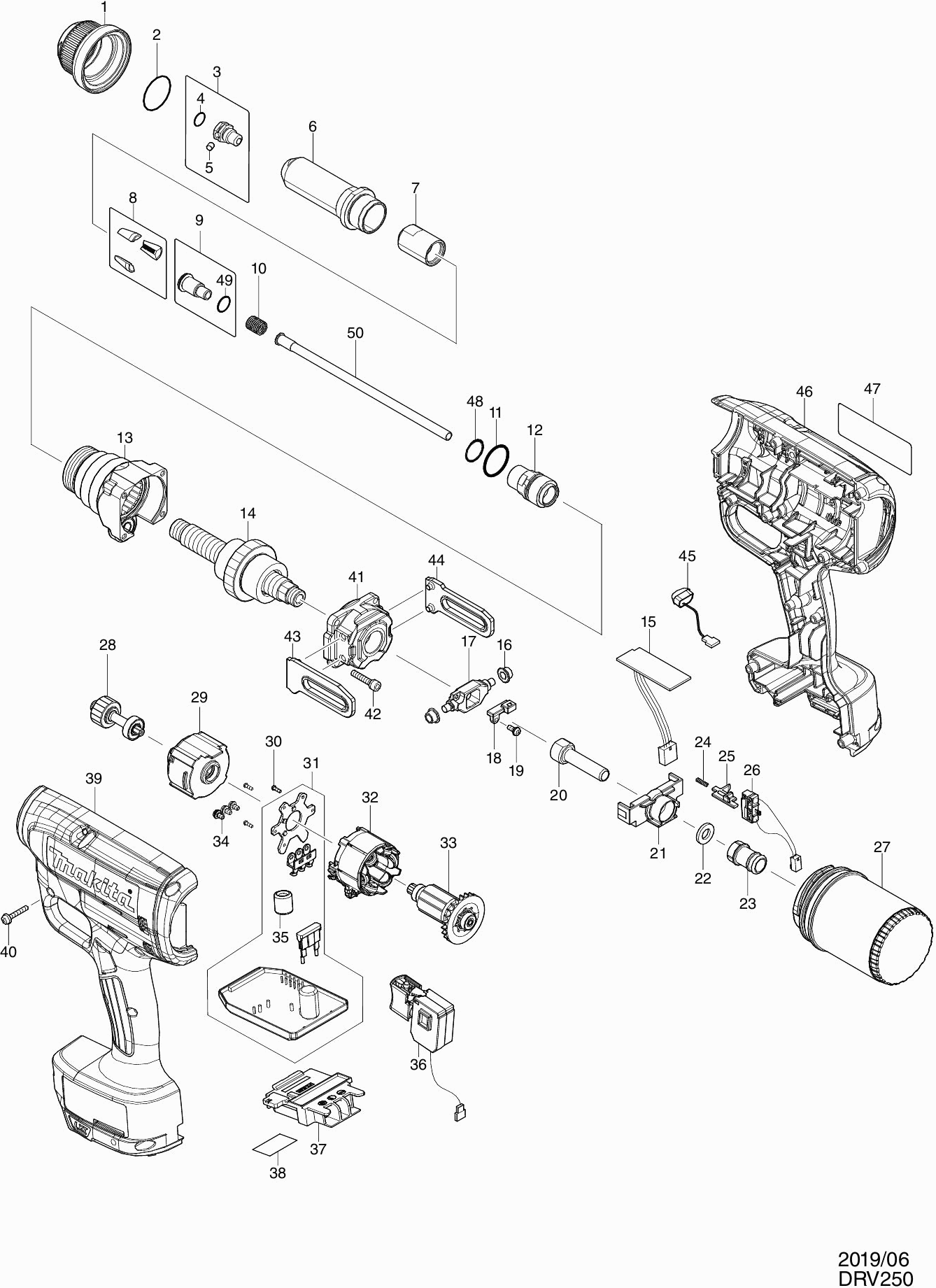

Zeichnungen der Makita DRV250
Teileliste der Makita DRV250
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Moer 6.4 cpl DRV150 | ||||
| 001 | 319774-5 | 14.85 | 17.67 | |
| O-ring 24 | ||||
| 002 | 213380-7 | 0.83 | 0.99 | |
| Neusstuk 6.4 DRV250 | ||||
| 003 | 127223-6 | 14.85 | 17.67 | |
| O-ring 7 | ||||
| 004 | 213011-8 | 0.83 | 0.99 | |
| Pen 4 | ||||
| 005 | 256217-5 | 0.83 | 0.99 | |
| Kop 6,4mm DRV150/250 | ||||
| 006 | 327279-1 | 52.76 | 62.78 | |
| Neusstukkap DRV150/250 | ||||
| 006 | 327281-4 | 16.56 | 19.71 | |
| Kop 6,4mm DRV150/250 | ||||
| 007 | 327279-1 | 52.76 | 62.78 | |
| Neusstukkap DRV150/250 | ||||
| 007 | 327281-4 | 16.56 | 19.71 | |
| Tand 6.4 DRV250 SET | ||||
| 008 | 199730-9 | 14.00 | 16.66 | |
| Drukpen 4.5 cpl DRV150/250 | ||||
| 009 | 127473-3 | 6.88 | 8.19 | |
| Drukveer 7 DRV150/250 | ||||
| 010 | 232586-8 | 0.83 | 0.99 | |
| O-ring 17 | ||||
| 011 | 213265-7 | 0.83 | 0.99 | |
| Verbindingsring 6.4 DRV250 | ||||
| 012 | 327280-6 | 5.42 | 6.45 | |
| Voorhuis DRV250 | ||||
| 013 | 140E32-6 | 52.76 | 62.78 | |
| Aandrijving DVR250 | ||||
| 014 | 127050-1 | 770.10 | 916.42 | |
| Circuit 18V DRV250 | ||||
| 015 | 620958-3 | 11.64 | 13.85 | |
| Ring 5 DRV150/250 | ||||
| 016 | 257457-8 | 0.83 | 0.99 | |
| Rolas 6,4mm DRV150 | ||||
| 017 | 310907-5 | 11.64 | 13.85 | |
| Magneethouder DRV150/250 | ||||
| 018 | 140E40-7 | 4.24 | 5.05 | |
| Schroef 3x8 | ||||
| 019 | 911008-8 | 0.83 | 0.99 | |
| Slang DRV250 | ||||
| 020 | 327202-6 | 11.26 | 13.40 | |
| Slanggeleider A DRV150/250 | ||||
| 021 | 458772-5 | 1.12 | 1.33 | |
| Viltring 8 DRV150/250 | ||||
| 022 | 261161-3 | 0.83 | 0.99 | |
| Slanggeleider B DRV150/250 | ||||
| 023 | 458773-3 | 0.94 | 1.12 | |
| Drukveer 2 | ||||
| 024 | 233025-1 | 0.83 | 0.99 | |
| Schakelaarhandel DRV150/250 | ||||
| 025 | 458774-1 | 0.94 | 1.12 | |
| Schakelunit DRV150/250 | ||||
| 026 | 632M90-9 | 8.80 | 10.47 | |
| Container DRV150/250 | ||||
| 027 | 162500-9 | 11.26 | 13.40 | |
| Tandwiel 10 cpl DRV250 | ||||
| 028 | 140E31-8 | 31.77 | 37.81 | |
| Aandriving DRV250 | ||||
| 029 | 127051-9 | 24.14 | 28.73 | |
| Parker Ck 2x6mm | ||||
| 030 | 266490-9 | 0.83 | 0.99 | |
| Controller DRV150 | ||||
| 031 | 632P81-8 | 161.29 | 191.94 | |
| Anker 18V DRV150/250 | ||||
| 032 | 629373-8 | 11.64 | 13.85 | |
| Anker 18V DRV150/250 | ||||
| 033 | 619535-6 | 33.46 | 39.82 | |
| Kruiskop Schroef M3X6 | ||||
| 034 | 652069-6 | 0.83 | 0.99 | |
| Lijn filter | ||||
| 035 | 688164-6 | 0.83 | 0.99 | |
| Schakelaar DRV150/250 | ||||
| 036 | 651379-8 | 20.08 | 23.90 | |
| Aansluitunit | ||||
| 037 | 643874-2 | 3.37 | 4.01 | |
| Label serienr DRV250 | ||||
| 038 | 855M30-2 | 0.83 | 0.99 | |
| Motorhuis DRV150 | ||||
| 039 | 183L30-9 | 21.96 | 26.13 | |
| Borgmoer M4x7mm | ||||
| 039C20 | 252126-6 | 0.83 | 0.99 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 0.83 | 0.99 | |
| Zeskant moer M3 | ||||
| 039C30 | 931002-4 | 0.83 | 0.99 | |
| Kruiskopschroef 3x20 | ||||
| 040 | 265095-2 | 0.83 | 0.99 | |
| Achterhuis DRV250 | ||||
| 041 | 140E33-4 | 34.33 | 40.85 | |
| Inbusbout 4x16 | ||||
| 042 | 266437-3 | 0.83 | 0.99 | |
| Geleideplaat L DRV150/250 | ||||
| 043 | 310908-3 | 8.80 | 10.47 | |
| Geleideplaat R DRV150/250 | ||||
| 044 | 310909-1 | 8.80 | 10.47 | |
| Licht Circuit Dhp483 | ||||
| 045 | 620549-0 | 3.37 | 4.01 | |
| Motorhuis DRV150 | ||||
| 046 | 183L30-9 | 21.96 | 26.13 | |
| Borgmoer M4x7mm | ||||
| 046C20 | 252126-6 | 0.83 | 0.99 | |
| Rubber pen 6 | ||||
| 046C10 | 263005-3 | 0.83 | 0.99 | |
| Zeskant moer M3 | ||||
| 046C30 | 931002-4 | 0.83 | 0.99 | |
| Naamplaat DRV250 | ||||
| 047 | 855M22-1 | 0.83 | 0.99 | |
| O-Ring 14,5mm DRV150/250 | ||||
| 048 | 213891-2 | 0.83 | 0.99 | |
| O-ring 9 | ||||
| 049 | 213054-0 | 0.83 | 0.99 | |
| Glijbuis 4,6mm DRV150 | ||||
| 050 | 162743-3 | 13.16 | 15.66 | |
