Makita DMR112 Zeichnungen und Teile
Genaue Typennummer:
DMR112
DMR112

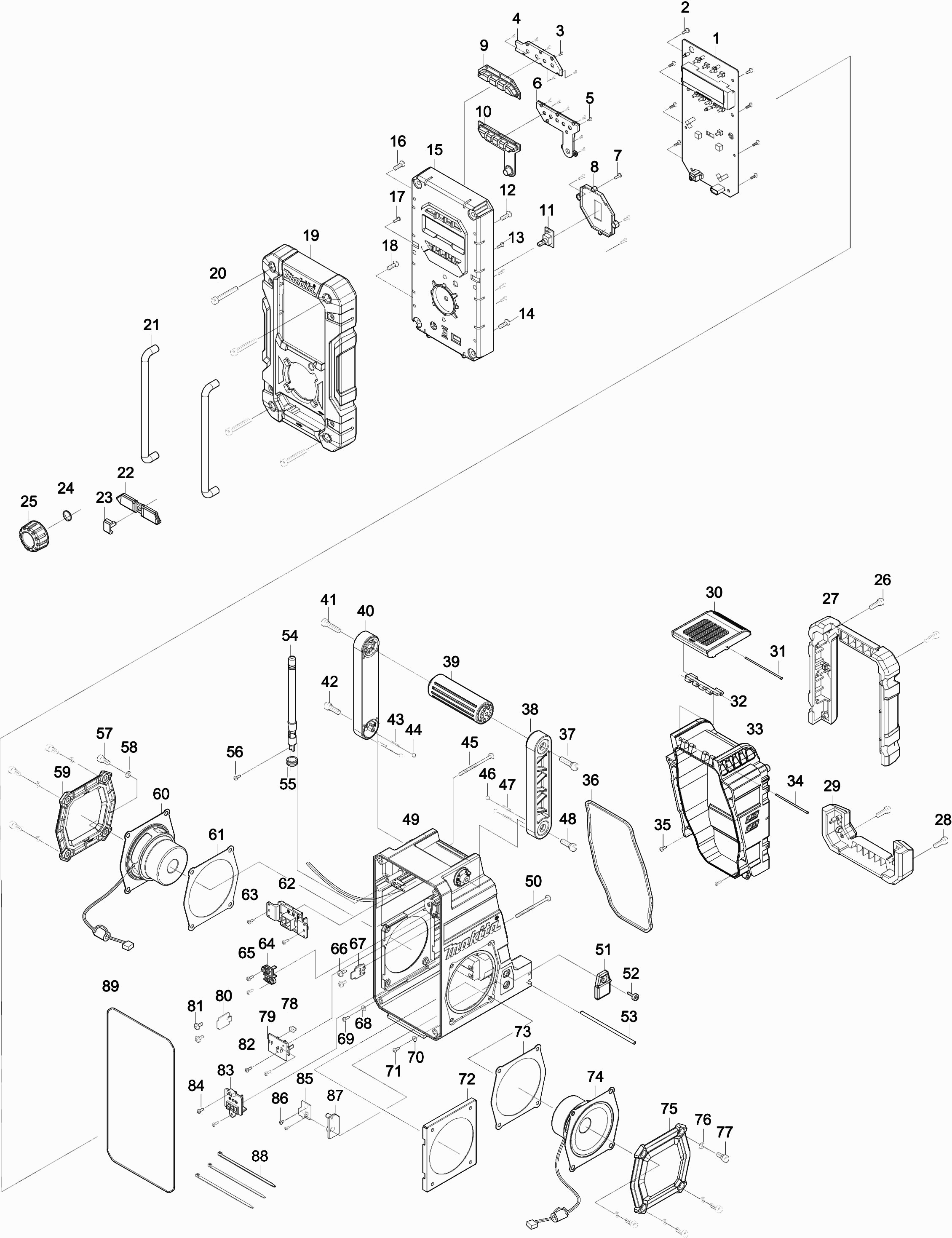

Zeichnungen der MAKITA DMR112
Teileliste der MAKITA DMR112
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Display circuit A DMR112 | ||||
| 001 | SE00000658 | Display circuit A DMR112 | € 166.24 | |
| Schroef 3 x 8mm | ||||
| 002 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Tapschroef 1.7 | ||||
| 003 | SE09090011 | Tapschroef 1.7 | € 0.99 | |
| Aan/Uit knop houder DMR112 | ||||
| 004 | SE00000659 | Aan/Uit knop houder DMR112 | € 1.21 | |
| Tapschroef 1.7 | ||||
| 005 | SE09090011 | Tapschroef 1.7 | € 0.99 | |
| Preset knop houder DMR112 | ||||
| 006 | SE00000660 | Preset knop houder DMR112 | € 1.43 | |
| Schroef 3 x 8mm | ||||
| 007 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Schakelknophouder MR103 A | ||||
| 008 | SE00000656 | Schakelknophouder MR103 A | € 1.00 | |
| Aan/Uit knop DMR112 | ||||
| 009 | SE00000661 | Aan/Uit knop DMR112 | € 2.07 | |
| Preset knop DMR112 | ||||
| 010 | SE00000662 | Preset knop DMR112 | € 2.07 | |
| Encoder circuit DMR112 | ||||
| 011 | SE00000663 | Encoder circuit DMR112 | € 7.43 | |
| Schroef M4x16 | ||||
| 012 | SE09064161 | Schroef M4x16 | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 013 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Schroef M4x16 | ||||
| 014 | SE09064161 | Schroef M4x16 | € 0.99 | |
| Voorpaneel DMR112 | ||||
| 015 | SE00000664 | Voorpaneel DMR112 | € 17.87 | |
| Schroef M4x16 | ||||
| 016 | SE09064161 | Schroef M4x16 | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 017 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Schroef M4x16 | ||||
| 018 | SE09064161 | Schroef M4x16 | € 0.99 | |
| Stootrubber DMR112 | ||||
| 019 | SE00000666 | Stootrubber DMR112 | € 21.66 | |
| Tapschroef 6x47mm | ||||
| 020 | SE00000160 | Tapschroef 6x47mm | € 0.99 | |
| Stootgreep | ||||
| 021 | SE0338PC5Z | Stootgreep | € 8.43 | |
| Afdekkap rubber | ||||
| 022 | SE00000355 | Afdekkap rubber | € 2.07 | |
| Abdeckhaube | ||||
| 023 | SE00000356 | Abdeckhaube | € 1.21 | |
| Volumeknopring | ||||
| 024 | SE21B1110A | Volumeknopring | € 0.99 | |
| Volumeknop | ||||
| 025 | SE00000482 | Volumeknop | € 1.71 | |
| Schroef M6x16 | ||||
| 026 | SE09176166 | Schroef M6x16 | € 0.99 | |
| Stootrubber achter | ||||
| 027 | SE00000357 | Stootrubber achter | € 17.87 | |
| Schroef M6x16 | ||||
| 028 | SE09176166 | Schroef M6x16 | € 0.99 | |
| Stootrubber achter | ||||
| 029 | SE00000359 | Stootrubber achter | € 10.78 | |
| Verschluss | ||||
| 030 | SE00000362 | Verschluss | € 5.21 | |
| Pen 73,5mm | ||||
| 031 | SE00000364 | Pen 73,5mm | € 0.99 | |
| Sluitplaat | ||||
| 032 | SE00000365 | Sluitplaat | € 0.99 | |
| Accu afdekkap | ||||
| 033 | SE00000483 | Accu afdekkap | € 14.21 | |
| Pen 64,5mm | ||||
| 034 | SE00000369 | Pen 64,5mm | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 035 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Dichtung | ||||
| 036 | SE00000371 | Dichtung | € 7.43 | |
| Tapschroef 6x20mm | ||||
| 037 | SE00000176 | Tapschroef 6x20mm | € 0.99 | |
| Handgreephouder "r" | ||||
| 038 | SE00000177 | Handgreephouder "r" | € 2.43 | |
| Griff | ||||
| 039 | SE00000179 | Griff | € 4.57 | |
| Handgreephouder "l" | ||||
| 040 | SE00000180 | Handgreephouder "l" | € 2.43 | |
| Tapschroef 6x20mm | ||||
| 041 | SE00000176 | Tapschroef 6x20mm | € 0.99 | |
| Schroef M6x16 | ||||
| 042 | SE09176166 | Schroef M6x16 | € 0.99 | |
| Druckfeder | ||||
| 043 | SE00000184 | Druckfeder | € 0.99 | |
| Kugel | ||||
| 044 | SE09994007 | Kugel | € 0.99 | |
| Verzonken schroef 3x45 (ni) | ||||
| 045 | SE00000445 | Verzonken schroef 3x45 (ni) | € 0.99 | |
| Kugel | ||||
| 046 | SE09994007 | Kugel | € 0.99 | |
| Druckfeder | ||||
| 047 | SE00000184 | Druckfeder | € 0.99 | |
| Schroef M6x16 | ||||
| 048 | SE09176166 | Schroef M6x16 | € 0.99 | |
| Achterpaneel DMR112 | ||||
| 049 | SE00000667 | Achterpaneel DMR112 | € 42.94 | |
| Verzonken schroef 3x45 (ni) | ||||
| 050 | SE00000445 | Verzonken schroef 3x45 (ni) | € 0.99 | |
| Abdeckhaube | ||||
| 051 | SE00000403 | Abdeckhaube | € 2.07 | |
| Schroef 3x14mm | ||||
| 052 | SE00000404 | Schroef 3x14mm | € 0.99 | |
| Scharnierpen batt.deksel | ||||
| 053 | SE021PC030 | Scharnierpen batt.deksel | € 0.99 | |
| Antenne 88-108 DMR112 | ||||
| 054 | SE00000669 | Antenne 88-108 DMR112 | € 7.43 | |
| Antennepakking | ||||
| 055 | SE00000398 | Antennepakking | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 056 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Schroef M6x14 | ||||
| 057 | SE9076146A | Schroef M6x14 | € 0.99 | |
| Dichtung | ||||
| 058 | SE024J9040 | Dichtung | € 0.99 | |
| Speakerpaneel | ||||
| 059 | SE00000408 | Speakerpaneel | € 7.43 | |
| Luidspreker L+R DMR112 | ||||
| 060 | SE00000670 | Luidspreker L+R DMR112 | € 17.87 | |
| Speakerpakking | ||||
| 061 | SE00000406 | Speakerpakking | € 1.43 | |
| Aanluitunit E | ||||
| 062 | SE00000416 | Aanluitunit E | € 4.57 | |
| Schroef 3 x 8mm | ||||
| 063 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Aansluitunit "c" | ||||
| 064 | SE00000200 | Aansluitunit "c" | € 2.78 | |
| Schroef 3 x 8mm | ||||
| 065 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Tapschroef 3x10mm | ||||
| 066 | SE00000193 | Tapschroef 3x10mm | € 0.99 | |
| Circuit B Aux DMR112 | ||||
| 067 | SE00000671 | Circuit B Aux DMR112 | € 7.43 | |
| Revet | ||||
| 068 | SE00000199 | Revet | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 069 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Revet | ||||
| 070 | SE00000199 | Revet | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 071 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Speakerhouder | ||||
| 072 | SE00000422 | Speakerhouder | € 2.43 | |
| Speakerpakking | ||||
| 073 | SE00000406 | Speakerpakking | € 1.43 | |
| Nicht mehr lieferbar | ||||
| 074 | SE00000672 | Nicht mehr lieferbar | ||
| Speakerpaneel | ||||
| 075 | SE00000408 | Speakerpaneel | € 7.43 | |
| Dichtung | ||||
| 076 | SE024J9040 | Dichtung | € 0.99 | |
| Schroef M6x14 | ||||
| 077 | SE9076146A | Schroef M6x14 | € 0.99 | |
| Schakelknop | ||||
| 078 | SE00000430 | Schakelknop | € 0.99 | |
| Circuit D bat-switch DMR112 | ||||
| 079 | SE00000673 | Circuit D bat-switch DMR112 | € 12.14 | |
| Circuit G USB DMR112 | ||||
| 080 | SE00000674 | Circuit G USB DMR112 | € 7.43 | |
| Tapschroef 3x10mm | ||||
| 081 | SE00000193 | Tapschroef 3x10mm | € 0.99 | |
| Schroef 3 x 8mm | ||||
| 082 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Aansluitunit Dmr107 | ||||
| 083 | SE00000473 | Aansluitunit Dmr107 | € 4.07 | |
| Schroef 3 x 8mm | ||||
| 084 | SE00000325 | Schroef 3 x 8mm | € 0.99 | |
| Circuit F DC jack DMR112 | ||||
| 085 | SE00000675 | Circuit F DC jack DMR112 | € 6.57 | |
| Tapschroef 1.7 | ||||
| 086 | SE09090011 | Tapschroef 1.7 | € 0.99 | |
| Houder "dc-jack" | ||||
| 087 | SE00000435 | Houder "dc-jack" | € 0.99 | |
| W/ties 100mm | ||||
| 088 | SE00000195 | W/ties 100mm | € 0.99 | |
| Dichtung | ||||
| 089 | SE024PC040 | Dichtung | € 1.43 | |
