Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita DLM432'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

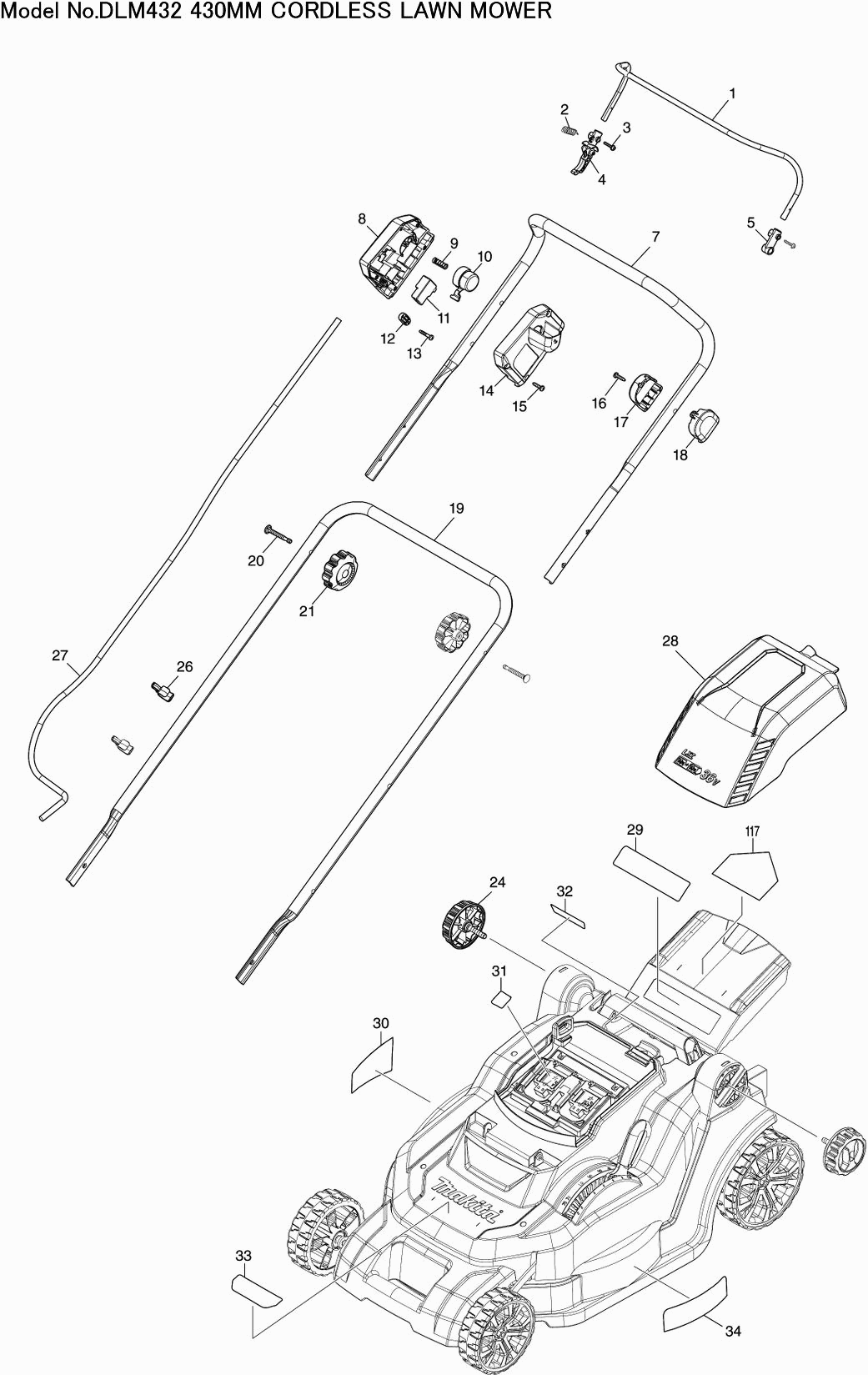

Zeichnungen der Makita DLM432
Teileliste der Makita DLM432
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Schakelaarhandel | ||||
| 001 | 326636-0 | 4.82 | 5.74 | |
| Trekveer 9mm | ||||
| 002 | 231876-6 | 0.83 | 0.99 | |
| Schroef 4x20 | ||||
| 003 | 911138-5 | 0.83 | 0.99 | |
| Hefboom Dlm380 | ||||
| 004 | 455075-8 | 0.83 | 0.99 | |
| Schakelarm | ||||
| 005 | 455078-2 | 0.83 | 0.99 | |
| Duwboom (boven) | ||||
| 007 | 143510-5 | 11.64 | 13.85 | |
| Schakelaarhuis DLM382 | ||||
| 008 | 459804-1 | 2.58 | 3.07 | |
| Drukveer 6mm | ||||
| 009 | 233068-3 | 0.83 | 0.99 | |
| Schakelknop | ||||
| 010 | 455074-0 | 0.95 | 1.13 | |
| Schalter | ||||
| 011 | 650730-9 | 11.26 | 13.40 | |
| Klemstrip | ||||
| 012 | 687124-5 | 0.83 | 0.99 | |
| Tapschroef 4x25 | ||||
| 013 | 265999-8 | 0.83 | 0.99 | |
| Schakelaarkap DLM382/432 | ||||
| 014 | 140N15-0 | 2.96 | 3.52 | |
| Waarschhuwingslabel | ||||
| 014C10 | 890374-5 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 015 | 266326-2 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 016 | 266326-2 | 0.83 | 0.99 | |
| Schakelhendelkap | ||||
| 017 | 456352-1 | 1.92 | 2.28 | |
| Schakelhendelhuis | ||||
| 018 | 456351-3 | 1.58 | 1.88 | |
| Duwboom (onder) | ||||
| 019 | 326635-2 | 11.64 | 13.85 | |
| Moerbout M6x50mm | ||||
| 020 | 265A14-4 | 0.83 | 0.99 | |
| Sterknop M6 | ||||
| 021 | 264070-5 | 1.58 | 1.88 | |
| Sterknop M8X35Mm Am/Blm | ||||
| 024 | 266729-0 | 1.58 | 1.88 | |
| Kabelhouder DLM382/432 | ||||
| 026 | 459809-1 | 0.83 | 0.99 | |
| Draadboom DLM382/432 | ||||
| 027 | 660393-3 | 3.37 | 4.01 | |
| Batterijkap DLM382/432 | ||||
| 028 | 140N21-5 | 10.00 | 11.90 | |
| Label waarschuw DLM382 | ||||
| 028C10 | 8005W1-7 | 0.83 | 0.99 | |
| Waarschhuwingslabel | ||||
| 029 | 890375-3 | 2.58 | 3.07 | |
| Naamplaat DLM432 | ||||
| 030 | 856L50-3 | 2.58 | 3.07 | |
| Label serienr DLM432 | ||||
| 031 | 856L57-9 | 0.83 | 0.99 | |
| Label indic A DLM382 | ||||
| 032 | 8005W9-1 | 0.95 | 1.13 | |
| Label indicatie A DLM432 | ||||
| 033 | 8005W4-1 | 0.83 | 0.99 | |
| Label indicatie B DLM432 | ||||
| 034 | 8005W5-9 | 0.83 | 0.99 | |
| Tapschroef Pf 5x25 | ||||
| 035 | 266459-3 | 0.83 | 0.99 | |
| Griff | ||||
| 036 | 273675-0 | 3.37 | 4.01 | |
| Nicht mehr lieferbar | ||||
| 037 | 643890-4 | |||
| Tapschroef 4x18 | ||||
| 038 | 266326-2 | 0.83 | 0.99 | |
| Batterijhuis DLM382/432 | ||||
| 039 | 183N35-1 | 4.24 | 5.05 | |
| Rubber pen 6 | ||||
| 039C10 | 263005-3 | 0.83 | 0.99 | |
| Aansluitunit (3 contacten) | ||||
| 040 | 644809-6 | 3.77 | 4.49 | |
| Batterijhuis DLM382/432 | ||||
| 041 | 183N35-1 | 4.24 | 5.05 | |
| Rubber pen 6 | ||||
| 041C10 | 263005-3 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 042 | 266326-2 | 0.83 | 0.99 | |
| Maaidekkap DLM432 | ||||
| 043 | 127387-6 | 26.56 | 31.61 | |
| Tapschroef 4x18 | ||||
| 044 | 266326-2 | 0.83 | 0.99 | |
| Deblokkeerknop | ||||
| 045 | 453250-0 | 1.32 | 1.57 | |
| Drukveer 4 | ||||
| 046 | 233173-6 | 0.83 | 0.99 | |
| Deblokkeerknopbasis | ||||
| 047 | 453251-8 | 1.12 | 1.33 | |
| Tapschroef 4x18 | ||||
| 048 | 266326-2 | 0.83 | 0.99 | |
| Lichtcircuit DLM382/432 | ||||
| 049 | 620B91-3 | 4.82 | 5.74 | |
| Lichtafdekplaat | ||||
| 050 | 455070-8 | 0.95 | 1.13 | |
| Tapschroef 4x18 | ||||
| 051 | 266326-2 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 053 | 266774-5 | |||
| Tapschroef 4x25 | ||||
| 054 | 265999-8 | 0.83 | 0.99 | |
| Klemstrip | ||||
| 055 | 687124-5 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 056 | 266326-2 | 0.83 | 0.99 | |
| Draadboom | ||||
| 057 | 638946-6 | 2.98 | 3.55 | |
| Lijn filter | ||||
| 058 | 688162-0 | 1.90 | 2.26 | |
| Lijn filter | ||||
| 059 | 688165-4 | 0.83 | 0.99 | |
| Controller DLM432 | ||||
| 060 | 632P19-3 | 69.12 | 82.25 | |
| Nicht mehr lieferbar | ||||
| 060C10 | 654208-4 | |||
| Lijn filter | ||||
| 061 | 688162-0 | 1.90 | 2.26 | |
| Binnenflens 40 | ||||
| 062 | 224444-2 | 2.58 | 3.07 | |
| Maaimes 43cm | ||||
| 063 | 191D43-8 | 12.25 | 14.58 | |
| Inbusbout M10X25Mm Am/Blm | ||||
| 064 | 266731-3 | 0.83 | 0.99 | |
| Uitwerpdeksel DLM382/432 | ||||
| 065 | 140S15-0 | 4.24 | 5.05 | |
| Stopring E-5 | ||||
| 066 | 961018-5 | 0.83 | 0.99 | |
| Uitwerpdekselpen DLM432 | ||||
| 067 | 259067-7 | 1.92 | 2.28 | |
| Torsieveer 6mm | ||||
| 068 | 233597-6 | 0.83 | 0.99 | |
| Moer M8 DLM382 | ||||
| 070C10 | 346544-9 | 0.83 | 0.99 | |
| Maaidek DLM432 | ||||
| 070 | 459780-9 | 46.09 | 54.85 | |
| Zeskant moer M6 | ||||
| 070C20 | 931302-2 | 0.83 | 0.99 | |
| Onderplaat DLM382/432 | ||||
| 071 | 412272-9 | 3.37 | 4.01 | |
| Tapschroef 4x18 | ||||
| 072 | 266326-2 | 0.83 | 0.99 | |
| Trekveer 16mm | ||||
| 073 | 231875-8 | 1.57 | 1.87 | |
| Tapschroef 4x18 | ||||
| 074 | 266326-2 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 075 | 267102-7 | |||
| Drukveer 9 | ||||
| 076 | 231297-2 | 0.83 | 0.99 | |
| Sluitring 5 | ||||
| 077 | 253808-3 | 0.94 | 1.12 | |
| Tapschroef 4x18 | ||||
| 078 | 266326-2 | 0.83 | 0.99 | |
| Zeskant moer M6 | ||||
| 079 | 931302-2 | 0.83 | 0.99 | |
| Bus 6 Am/Blm | ||||
| 080 | 257670-8 | 0.83 | 0.99 | |
| Stelplaat | ||||
| 081 | 453255-0 | 4.82 | 5.74 | |
| Wisselhendel DLM382 | ||||
| 082 | 459099-6 | 2.58 | 3.07 | |
| Inbusbout M6X30Mm Am/Blm | ||||
| 083 | 921352-5 | 0.83 | 0.99 | |
| Koppelstang | ||||
| 084 | 346543-1 | 13.16 | 15.66 | |
| Sluitring 5mm DSP601 A | ||||
| 085 | 253414-4 | 0.83 | 0.99 | |
| Zeskant borgmoer 5x8 | ||||
| 086 | 252103-8 | 0.83 | 0.99 | |
| Borgmoer M8 Dcs230T A | ||||
| 087 | 252145-2 | 0.83 | 0.99 | |
| Achterwiel DLM382 | ||||
| 088 | 459101-5 | 13.16 | 15.66 | |
| Nicht mehr lieferbar | ||||
| 089 | 210070-3 | |||
| Achteras | ||||
| 090 | 165669-8 | 16.56 | 19.71 | |
| Montageplaat Blm/Am | ||||
| 091 | 346545-7 | 1.20 | 1.43 | |
| Tapschroef 4x18 | ||||
| 092 | 266326-2 | 0.83 | 0.99 | |
| Borgmoer M8 Dcs230T A | ||||
| 093 | 252145-2 | 0.83 | 0.99 | |
| Voorwiel DLM382 | ||||
| 094 | 459100-7 | 11.60 | 13.80 | |
| Nicht mehr lieferbar | ||||
| 095 | 210070-3 | |||
| Vooras | ||||
| 096 | 165668-0 | 14.85 | 17.67 | |
| Abdeckhaube | ||||
| 097 | 456353-9 | 4.82 | 5.74 | |
| Tapschroef 4x18 | ||||
| 098 | 266326-2 | 0.83 | 0.99 | |
| Grasvangzakframe DLM432 | ||||
| 099 | 327409-4 | 10.00 | 11.90 | |
| Sluitring 5 | ||||
| 100 | 267438-4 | 0.83 | 0.99 | |
| Tapschroef 4x18 | ||||
| 101 | 266326-2 | 0.83 | 0.99 | |
| Grasvangzak assy DLM432 | ||||
| 102 | 127386-8 | 26.20 | 31.18 | |
| Handgreep DLM382 | ||||
| 104 | 273676-8 | 2.27 | 2.70 | |
| Deksel DLM432 | ||||
| 105 | 459807-5 | 10.00 | 11.90 | |
| Tapschroef 4x18 | ||||
| 106 | 266326-2 | 0.83 | 0.99 | |
| Grasvangzak DLM432 | ||||
| 107 | 162680-1 | 12.50 | 14.88 | |
| Grasindicator DLM382 | ||||
| 108 | 459806-7 | 0.83 | 0.99 | |
| Buitenflens 40 | ||||
| 109 | 224445-0 | 2.98 | 3.55 | |
| Lijnfilter DLM382/432 | ||||
| 110 | 688238-3 | 2.26 | 2.69 | |
