Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Makita DLM380'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

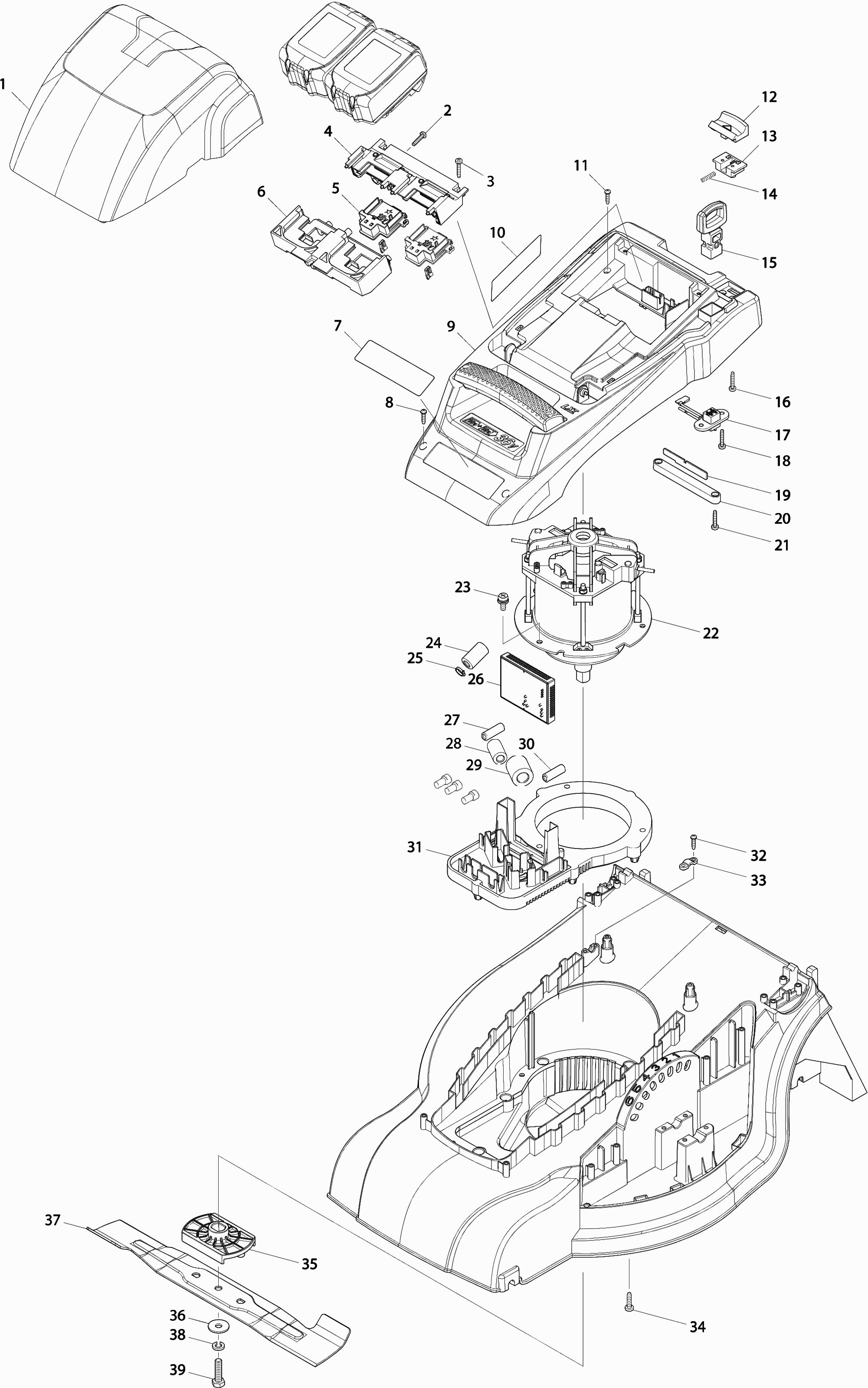

Zeichnungen der Makita DLM380
Teileliste der Makita DLM380
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Batterijdeksel | ||||
| 001 | 142585-1 | 10.81 | 12.86 | |
| Rubber pen 6 | ||||
| 001A | 263005-3 | 0.83 | 0.99 | |
| Label "waarsch" | ||||
| 001B | 890380-0 | 2.80 | 3.33 | |
| Rubber pen 6 | ||||
| 001C10 | 263005-3 | 0.83 | 0.99 | |
| Label "waarsch" | ||||
| 001C20 | 890380-0 | 2.80 | 3.33 | |
| Tapschroef 4x20 | ||||
| 002 | 266424-2 | 0.83 | 0.99 | |
| Tapschroef 4x20 | ||||
| 003 | 266424-2 | 0.83 | 0.99 | |
| Terminalhuis | ||||
| 004 | 187926-4 | 10.81 | 12.86 | |
| Rubber pen 6 | ||||
| 004A | 263005-3 | 0.83 | 0.99 | |
| Rubber pen 6 | ||||
| 004C10 | 263005-3 | 0.83 | 0.99 | |
| Aansluitunit (3 contacten) | ||||
| 005 | 644808-8 | 3.65 | 4.34 | |
| Terminalhuis | ||||
| 006 | 187926-4 | 10.81 | 12.86 | |
| Rubber pen 6 | ||||
| 006A | 263005-3 | 0.83 | 0.99 | |
| Rubber pen 6 | ||||
| 006C10 | 263005-3 | 0.83 | 0.99 | |
| Label "makita" | ||||
| 007 | 803J08-1 | 2.80 | 3.33 | |
| Tapschroef 4x16mm | ||||
| 008 | 266890-3 | 0.83 | 0.99 | |
| Bovenkap | ||||
| 009 | 142591-6 | 14.23 | 16.93 | |
| Naamplaat Dtm380 | ||||
| 010 | 815M03-7 | 2.80 | 3.33 | |
| Tapschroef 4x16mm | ||||
| 011 | 266890-3 | 0.83 | 0.99 | |
| Deblokkeerknop | ||||
| 012 | 453250-0 | 1.43 | 1.70 | |
| Deblokkeerknopbasis | ||||
| 013 | 453251-8 | 1.21 | 1.44 | |
| Drukveer 4 | ||||
| 014 | 233173-6 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 015 | 643890-4 | |||
| Tapschroef 4x20 | ||||
| 016 | 266424-2 | 0.83 | 0.99 | |
| Draadboom | ||||
| 017 | 638946-6 | 3.22 | 3.83 | |
| Tapschroef 4x20 | ||||
| 018 | 266424-2 | 0.83 | 0.99 | |
| Toerenregelcircuit Lm380D | ||||
| 019 | 620278-5 | 6.60 | 7.85 | |
| Lichtafdekplaat | ||||
| 020 | 455070-8 | 1.02 | 1.21 | |
| Tapschroef 4x20 | ||||
| 021 | 266424-2 | 0.83 | 0.99 | |
| Anker | ||||
| 022 | 629118-4 | 121.16 | 144.18 | |
| Met.schroef M16x16mm Ck | ||||
| 023 | 266892-9 | 0.83 | 0.99 | |
| Lijn filter | ||||
| 024 | 688162-0 | 2.05 | 2.44 | |
| Klemband | ||||
| 025 | 687010-0 | 0.83 | 0.99 | |
| Toerenregelcircuit | ||||
| 026 | 620277-7 | 85.25 | 101.45 | |
| Toerenregelcircuit Lm380D | ||||
| 026 | 620278-5 | 6.60 | 7.85 | |
| Lijn filter | ||||
| 027 | 688165-4 | 0.83 | 0.99 | |
| Lijn filter | ||||
| 028 | 688162-0 | 2.05 | 2.44 | |
| Lijn filter | ||||
| 029 | 688140-0 | 4.58 | 5.45 | |
| Lijn filter | ||||
| 030 | 688165-4 | 0.83 | 0.99 | |
| Motorsteun | ||||
| 031 | 455064-3 | 10.81 | 12.86 | |
| Tapschroef 4x16mm | ||||
| 032 | 266890-3 | 0.83 | 0.99 | |
| Kabelklem Dlm380 | ||||
| 033 | 687A88-9 | 1.88 | 2.24 | |
| Schroef 4x20 | ||||
| 034 | 266420-0 | 0.83 | 0.99 | |
| Cirkelmeshouder | ||||
| 035 | 455130-6 | 2.44 | 2.90 | |
| Ring 8 | ||||
| 036 | 253852-0 | 1.21 | 1.44 | |
| Nicht mehr lieferbar | ||||
| 037 | 196863-1 | |||
| Veerring M8 | ||||
| 038 | 942201-3 | 0.83 | 0.99 | |
| Bout M6X30 | ||||
| 039 | 266889-8 | 1.01 | 1.20 | |
| Schakelaarhandel | ||||
| 040 | 332106-9 | 8.52 | 10.14 | |
| Schakelaarhandel | ||||
| 041 | 455076-6 | 1.02 | 1.21 | |
| Schakelarm | ||||
| 042 | 455078-2 | 0.83 | 0.99 | |
| Schakelaarhuisdeksel | ||||
| 043 | 455077-4 | 1.02 | 1.21 | |
| Tapschroef 4x20 | ||||
| 044 | 266424-2 | 0.83 | 0.99 | |
| Schroef 4x20 | ||||
| 045 | 911138-5 | 0.83 | 0.99 | |
| Tapschroef 4x20 | ||||
| 046 | 266424-2 | 0.83 | 0.99 | |
| Schakelhuisdeksel | ||||
| 047 | 455073-2 | 2.08 | 2.48 | |
| Schroef 4x20 | ||||
| 048 | 911138-5 | 0.83 | 0.99 | |
| Schakelknop | ||||
| 049 | 455074-0 | 1.02 | 1.21 | |
| Drukveer 6mm | ||||
| 050 | 233068-3 | 0.83 | 0.99 | |
| Hefboom Dlm380 | ||||
| 051 | 455075-8 | 0.83 | 0.99 | |
| Tapschroef 4x20 | ||||
| 052 | 266424-2 | 0.83 | 0.99 | |
| Klemstrip | ||||
| 053 | 687124-5 | 0.83 | 0.99 | |
| Schalter | ||||
| 054 | 650730-9 | 11.16 | 13.28 | |
| Trekveer 9mm | ||||
| 055 | 231876-6 | 0.83 | 0.99 | |
| Schakelhuis | ||||
| 056 | 455072-4 | 2.08 | 2.48 | |
| Duwboom "boven" | ||||
| 057 | 332109-3 | 21.70 | 25.82 | |
| Bekabbeling Dlm380 | ||||
| 058 | 660480-8 | 7.44 | 8.85 | |
| Kabelhalter | ||||
| 059 | 455071-6 | 0.83 | 0.99 | |
| Sterknop M8 | ||||
| 060 | 252657-5 | 1.01 | 1.20 | |
| Vulbus 8mm | ||||
| 061 | 455131-4 | 0.83 | 0.99 | |
| Slotbout M8x45mm | ||||
| 062 | 266893-7 | 1.01 | 1.20 | |
| Slotbout M8x45mm | ||||
| 063 | 266893-7 | 1.01 | 1.20 | |
| Vulbus 8mm | ||||
| 064 | 455131-4 | 0.83 | 0.99 | |
| Sterknop M8 | ||||
| 065 | 252657-5 | 1.01 | 1.20 | |
| Graszak | ||||
| 066 | 126429-3 | 43.02 | 51.19 | |
| Grasvangdeksel | ||||
| 070 | DA00000348 | 7.80 | 9.28 | |
| Scharnierpen M8 | ||||
| 071 | DA00000332 | 2.08 | 2.48 | |
| Feder | ||||
| 072 | DA00000352 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 073 | DA00000326 | |||
| Nicht mehr lieferbar | ||||
| 074 | DA00000327 | |||
| Montageplaat R | ||||
| 075 | DA00000350 | 4.08 | 4.86 | |
| Moer M8 Dlm380 | ||||
| 076 | DA00000343 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 077 | DA00000326 | |||
| Moer M8 Dlm380 | ||||
| 078 | DA00000343 | 0.83 | 0.99 | |
| Montageplaat L | ||||
| 079 | DA00000344 | 4.08 | 4.86 | |
| Nicht mehr lieferbar | ||||
| 080 | DA00000327 | |||
| Duwboom onderdeel | ||||
| 081 | DA00000345 | 7.44 | 8.85 | |
| Inslagdop | ||||
| 082 | DA00000346 | 0.83 | 0.99 | |
| Stootrand | ||||
| 083 | DA00000354 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 084 | DA00000334 | |||
| Hoogteverstelgreep | ||||
| 085 | DA00000339 | 7.44 | 8.85 | |
| Tapschroef 4x16mm | ||||
| 086 | 266890-3 | 0.83 | 0.99 | |
| Montageblech | ||||
| 087 | DA00000338 | 0.83 | 0.99 | |
| Platte | ||||
| 088 | DA00000337 | 1.02 | 1.21 | |
| Tapschroef 4x16mm | ||||
| 089 | 266890-3 | 0.83 | 0.99 | |
| Zugfeder | ||||
| 090 | DA00000353 | 1.24 | 1.48 | |
| Sluitring Dlm380 | ||||
| 091 | DA00000347 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 092 | DA00000326 | |||
| Verstelstang 2 | ||||
| 093 | DA00000341 | 3.65 | 4.34 | |
| Verstelstang 1 | ||||
| 094 | DA00000340 | 3.65 | 4.34 | |
| Borgpin | ||||
| 095 | DA00000333 | 0.83 | 0.99 | |
| Tapschroef 4x16mm | ||||
| 096 | 266890-3 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 097 | DA00000326 | |||
| Abdeckhaube | ||||
| 098 | DA00000351 | 4.08 | 4.86 | |
| Achterwielkap 150mm | ||||
| 099 | DA00000331 | 2.80 | 3.33 | |
| Befestigungsmutter | ||||
| 100 | DA00000342 | 0.83 | 0.99 | |
| Hinterrad | ||||
| 101 | DA00000330 | 5.22 | 6.21 | |
| Tunnelplaat | ||||
| 102 | 161373-7 | 15.51 | 18.46 | |
| Asplaat Dlm380 A | ||||
| 102 | DA00000335 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 103 | DA00000326 | |||
| Achteras | ||||
| 104 | DA00000349 | 12.58 | 14.97 | |
| Voorwielkap 150mm | ||||
| 105 | DA00000329 | 2.80 | 3.33 | |
| Befestigungsmutter | ||||
| 106 | DA00000342 | 0.83 | 0.99 | |
| Voorwiel 150mm | ||||
| 107 | DA00000328 | 3.65 | 4.34 | |
| Asplaat Dlm380 A | ||||
| 108 | DA00000335 | 0.83 | 0.99 | |
| Nicht mehr lieferbar | ||||
| 109 | DA00000326 | |||
| Vooras | ||||
| 110 | DA00000336 | 12.58 | 14.97 | |
| Indicatielamel | ||||
| 111 | DA00000360 | 0.83 | 0.99 | |
| Griff | ||||
| 112 | DA00000359 | 2.80 | 3.33 | |
| Grasopvangzakdeksel | ||||
| 113 | DA00000362 | 16.13 | 19.19 | |
| Nicht mehr lieferbar | ||||
| 114 | DA00000326 | |||
| Druckplatte | ||||
| 115 | DA00000361 | 0.83 | 0.99 | |
| Tapschroef 4x16mm | ||||
| 116 | 266890-3 | 0.83 | 0.99 | |
| Grasopvangbakbeugel | ||||
| 117 | DA00000358 | 9.52 | 11.33 | |
| Grasvangzak | ||||
| 118 | DA00000357 | 17.90 | 21.30 | |
