Makita AF550H Zeichnungen und Teile
Genaue Typennummer:
AF550H
AF550H

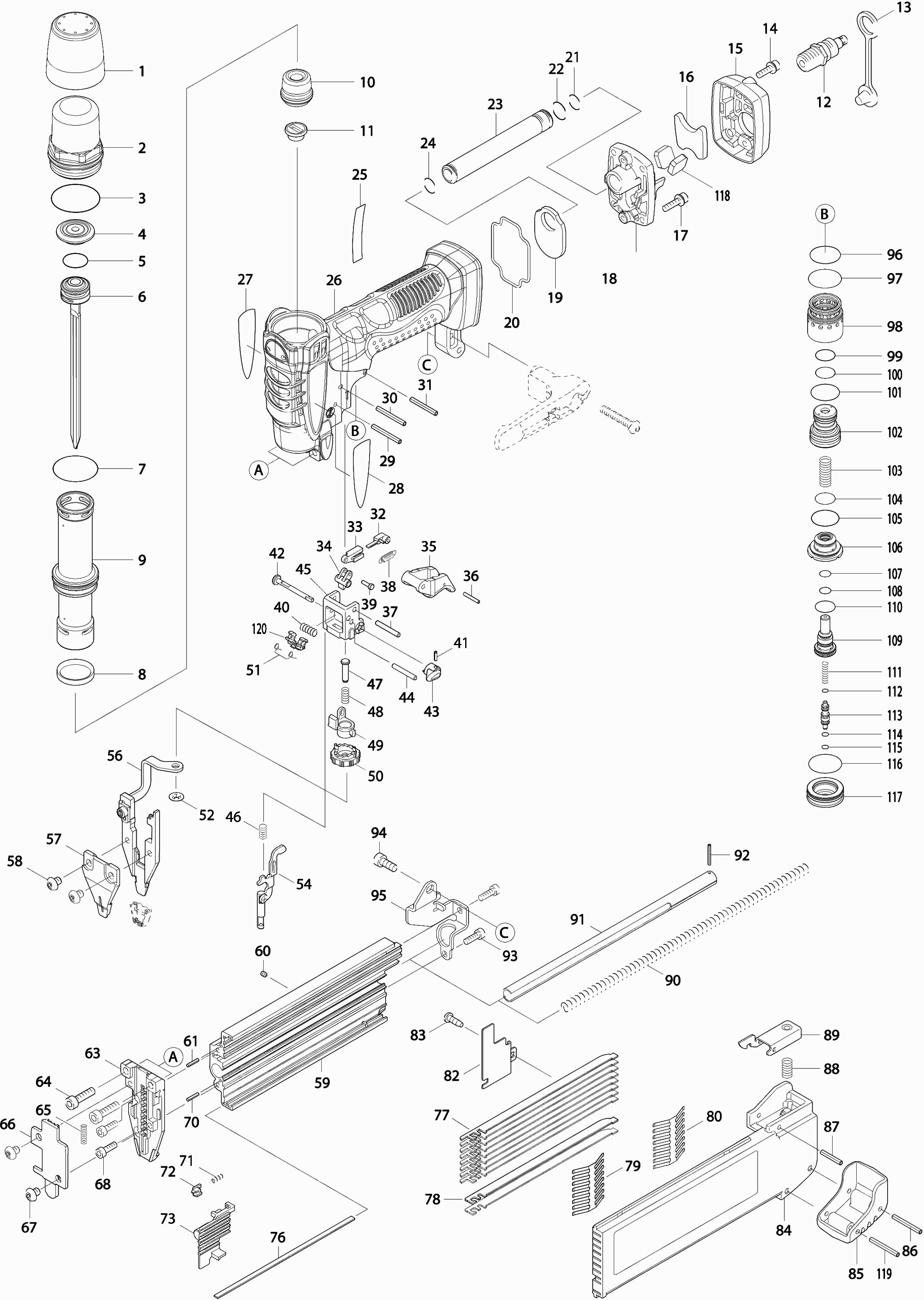

Zeichnungen der MAKITA AF550H
Teileliste der MAKITA AF550H
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Abdeckhaube | ||||
| 001 | 450630-1 | Abdeckhaube | € 5.21 | |
| Bovendeksel | ||||
| 002 | 318286-5 | Bovendeksel | € 6.57 | |
| O-ring 31 | ||||
| 003 | 213487-9 | O-ring 31 | € 1.00 | |
| Stootkussen achter | ||||
| 004 | 424120-0 | Stootkussen achter | € 12.14 | |
| O-ring 14 | ||||
| 005 | 213189-7 | O-ring 14 | € 5.21 | |
| Slagpen | ||||
| 006 | 158686-5 | Slagpen | € 60.87 | |
| O-Ring 29 Af500Hp/Sr2600 | ||||
| 007 | 213412-0 | O-Ring 29 Af500Hp/Sr2600 | € 0.99 | |
| D-ring | ||||
| 008 | 424116-1 | D-ring | € 1.71 | |
| Zylinder | ||||
| 009 | 331830-1 | Zylinder | € 23.69 | |
| Stootkussen voor | ||||
| 010 | 424119-5 | Stootkussen voor | € 12.14 | |
| Afdichtplug A | ||||
| 011 | 424233-7 | Afdichtplug A | € 3.21 | |
| Insteeknippel Orion | ||||
| 012 | 243105-5 | Insteeknippel Orion | € 16.04 | |
| Kappe | ||||
| 013 | 286280-4 | Kappe | € 1.00 | |
| Inbusbout 4x12 | ||||
| 014 | 265353-6 | Inbusbout 4x12 | € 0.99 | |
| Uitlaatkap | ||||
| 015 | 450632-7 | Uitlaatkap | € 4.07 | |
| Filter | ||||
| 016 | 413123-9 | Filter | € 3.21 | |
| Inbusbout 4x16 | ||||
| 017 | 922127-5 | Inbusbout 4x16 | € 0.99 | |
| Inlaatdeksel Af500Hp | ||||
| 018 | 318287-3 | Inlaatdeksel Af500Hp | € 5.85 | |
| Inlaatfilter | ||||
| 019 | 413122-1 | Inlaatfilter | € 3.64 | |
| Pakkingring | ||||
| 020 | 424117-9 | Pakkingring | € 1.43 | |
| O-ring 9,5 | ||||
| 021 | 213194-4 | O-ring 9,5 | € 1.21 | |
| O-ring 11 | ||||
| 022 | 213105-9 | O-ring 11 | € 0.99 | |
| Rohr | ||||
| 023 | 331832-7 | Rohr | € 6.57 | |
| O-ring 9,5 | ||||
| 024 | 213194-4 | O-ring 9,5 | € 1.21 | |
| Naamplaat "af550h" | ||||
| 025 | 865254-4 | Naamplaat "af550h" | € 2.78 | |
| Gehäuse | ||||
| 026 | 188601-5 | Gehäuse | € 79.85 | |
| Makita logo label r | ||||
| 027 | 819313-6 | Makita logo label r | € 2.78 | |
| Makita logo label l | ||||
| 028 | 819314-4 | Makita logo label l | € 2.78 | |
| Borgpen 3-28 | ||||
| 029 | 951075-1 | Borgpen 3-28 | € 0.99 | |
| Borgpen 3-28 | ||||
| 030 | 951075-1 | Borgpen 3-28 | € 0.99 | |
| Spanstift 3-26 | ||||
| 031 | 258037-3 | Spanstift 3-26 | € 0.99 | |
| Sperrbolzen | ||||
| 032 | 310263-3 | Sperrbolzen | € 3.21 | |
| Blokkeerpengeleiding | ||||
| 033 | 310296-8 | Blokkeerpengeleiding | € 2.78 | |
| Verbindingblok | ||||
| 034 | 310312-6 | Verbindingblok | € 2.43 | |
| Schakelknop | ||||
| 035 | 450633-5 | Schakelknop | € 4.07 | |
| Spanstift 2-14 | ||||
| 036 | 951010-9 | Spanstift 2-14 | € 0.99 | |
| Pen 3 | ||||
| 037 | 256221-4 | Pen 3 | € 0.99 | |
| Trekveer 4 | ||||
| 038 | 231856-2 | Trekveer 4 | € 1.00 | |
| Pen 2 | ||||
| 039 | 268218-1 | Pen 2 | € 4.07 | |
| Drukveer 5 | ||||
| 040 | 231309-1 | Drukveer 5 | € 0.99 | |
| Spanstift 2-8 | ||||
| 041 | 951001-0 | Spanstift 2-8 | € 0.99 | |
| Blokkeerpin | ||||
| 042 | 324948-5 | Blokkeerpin | € 4.07 | |
| Knopf | ||||
| 043 | 450786-0 | Knopf | € 4.07 | |
| Pen 3 | ||||
| 044 | 256221-4 | Pen 3 | € 0.99 | |
| Schakel montageplaat | ||||
| 045 | 451332-2 | Schakel montageplaat | € 2.07 | |
| Drukveer 5 | ||||
| 046 | 234067-8 | Drukveer 5 | € 0.99 | |
| Pen 4 | ||||
| 047 | 268243-2 | Pen 4 | € 1.00 | |
| Drukveer 5 | ||||
| 048 | 234069-4 | Drukveer 5 | € 4.07 | |
| Nicht mehr lieferbar | ||||
| 049 | 310313-4 | Nicht mehr lieferbar | ||
| Einsteller | ||||
| 050 | 310266-7 | Einsteller | € 17.87 | |
| Drehfeder | ||||
| 051 | 233533-2 | Drehfeder | € 10.78 | |
| Drukmoer M3 | ||||
| 052 | 259009-1 | Drukmoer M3 | € 0.99 | |
| Arm | ||||
| 054 | 165568-4 | Arm | € 10.78 | |
| Contactarm, compleet | ||||
| 056 | 158687-3 | Contactarm, compleet | € 42.94 | |
| Slagpengeleider voor | ||||
| 057 | 310268-3 | Slagpengeleider voor | € 26.05 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 058 | 266577-7 | Met.schroef Ck Inb M5x6mm | € 0.99 | |
| Magazin Zsb | ||||
| 059 | 331833-5 | Magazin Zsb | € 28.80 | |
| Stelschroef M3x4mm | ||||
| 060 | 266999-1 | Stelschroef M3x4mm | € 0.99 | |
| Spanstift 2-10 | ||||
| 061 | 951004-4 | Spanstift 2-10 | € 0.99 | |
| Neusplaat | ||||
| 063 | 310270-6 | Neusplaat | € 60.87 | |
| Inbusbout 5x20 | ||||
| 064 | 266369-4 | Inbusbout 5x20 | € 0.99 | |
| Drukveer 3 | ||||
| 065 | 234099-5 | Drukveer 3 | € 0.99 | |
| Slagpengeleider achter | ||||
| 066 | 310271-4 | Slagpengeleider achter | € 28.80 | |
| Met.schroef Ck Inb M5x6mm | ||||
| 067 | 266577-7 | Met.schroef Ck Inb M5x6mm | € 0.99 | |
| Inbusbout 4x12 | ||||
| 068 | 265353-6 | Inbusbout 4x12 | € 0.99 | |
| Spanstift 2-10 | ||||
| 070 | 951004-4 | Spanstift 2-10 | € 0.99 | |
| Drukveer 3 | ||||
| 071 | 233018-8 | Drukveer 3 | € 0.99 | |
| Afslag Bpt350 | ||||
| 072 | 310176-8 | Afslag Bpt350 | € 3.21 | |
| Druckplatte | ||||
| 073 | 310269-1 | Druckplatte | € 31.55 | |
| Nagelplaat | ||||
| 076 | 345955-5 | Nagelplaat | € 4.07 | |
| Nagelgeleidingsplaat A | ||||
| 077 | 345951-3 | Nagelgeleidingsplaat A | € 4.07 | |
| Nagelgeleidingsplaat B | ||||
| 078 | 345956-3 | Nagelgeleidingsplaat B | € 4.07 | |
| Blattfeder | ||||
| 079 | 232244-6 | Blattfeder | € 4.07 | |
| Blattfeder | ||||
| 080 | 232244-6 | Blattfeder | € 4.07 | |
| Abdeckplatte | ||||
| 082 | 345952-1 | Abdeckplatte | € 4.07 | |
| Tapschroef 4x12 | ||||
| 083 | 266451-9 | Tapschroef 4x12 | € 0.99 | |
| Schuifdeksel compleet | ||||
| 084 | 158750-2 | Schuifdeksel compleet | € 23.69 | |
| Magazijnbumper | ||||
| 085 | 424122-6 | Magazijnbumper | € 4.07 | |
| Borgpen 3-28 | ||||
| 086 | 951075-1 | Borgpen 3-28 | € 0.99 | |
| Nicht mehr lieferbar | ||||
| 087 | 258033-1 | Nicht mehr lieferbar | ||
| Drukveer 7 | ||||
| 088 | 233097-6 | Drukveer 7 | € 0.99 | |
| Blokkeerhandel | ||||
| 089 | 345954-7 | Blokkeerhandel | € 4.07 | |
| Drukveer 6 | ||||
| 090 | 234071-7 | Drukveer 6 | € 4.07 | |
| Führungsbuchse | ||||
| 091 | 345957-1 | Führungsbuchse | € 12.14 | |
| Borgpen 2-16 | ||||
| 092 | 951013-3 | Borgpen 2-16 | € 0.99 | |
| Inbusbout 4x12 | ||||
| 093 | 265353-6 | Inbusbout 4x12 | € 0.99 | |
| Inbusbout m5x14 | ||||
| 094 | 265909-5 | Inbusbout m5x14 | € 0.99 | |
| Koppelplaat | ||||
| 095 | 345953-9 | Koppelplaat | € 4.07 | |
| O-ring 20 | ||||
| 096 | 213310-8 | O-ring 20 | € 0.99 | |
| O-ring 22 | ||||
| 097 | 213373-4 | O-ring 22 | € 1.21 | |
| Schakelklepgeleiding | ||||
| 098 | 331831-9 | Schakelklepgeleiding | € 8.43 | |
| O-ring 11,2 | ||||
| 099 | 213137-6 | O-ring 11,2 | € 1.71 | |
| O-ring 12,5 | ||||
| 100 | 213191-0 | O-ring 12,5 | € 1.71 | |
| O-ring 18 | ||||
| 101 | 213262-3 | O-ring 18 | € 1.00 | |
| Hoofdklep | ||||
| 102 | 412091-3 | Hoofdklep | € 34.30 | |
| Drukveer 7 | ||||
| 103 | 234070-9 | Drukveer 7 | € 1.00 | |
| O-ring 14 | ||||
| 104 | 213162-7 | O-ring 14 | € 0.99 | |
| O-ring 18 | ||||
| 105 | 213275-4 | O-ring 18 | € 0.99 | |
| Schakelklepgeleiding | ||||
| 106 | 324912-6 | Schakelklepgeleiding | € 9.50 | |
| O-ring 6 | ||||
| 107 | 213998-4 | O-ring 6 | € 2.43 | |
| O-ring 6 | ||||
| 108 | 213998-4 | O-ring 6 | € 2.43 | |
| Regelklep | ||||
| 109 | 451026-9 | Regelklep | € 34.30 | |
| O-ring 14 | ||||
| 110 | 213162-7 | O-ring 14 | € 0.99 | |
| Drukveer 3 | ||||
| 111 | 234068-6 | Drukveer 3 | € 0.99 | |
| O-ring 3 | ||||
| 112 | 213034-6 | O-ring 3 | € 0.99 | |
| Schakelklepsteel | ||||
| 113 | 325634-1 | Schakelklepsteel | € 5.85 | |
| O-ring 3 | ||||
| 114 | 213979-8 | O-ring 3 | € 1.43 | |
| O-ring 3 | ||||
| 115 | 213979-8 | O-ring 3 | € 1.43 | |
| O-ring 22 | ||||
| 116 | 213373-4 | O-ring 22 | € 1.21 | |
| Schakelklephuis | ||||
| 117 | 325633-3 | Schakelklephuis | € 16.04 | |
| Filter | ||||
| 118 | 413125-5 | Filter | € 2.07 | |
| Borgpen 3-28 | ||||
| 119 | 951075-1 | Borgpen 3-28 | € 0.99 | |
| Verbindingsschakel | ||||
| 120 | 310284-5 | Verbindingsschakel | € 21.66 | |
