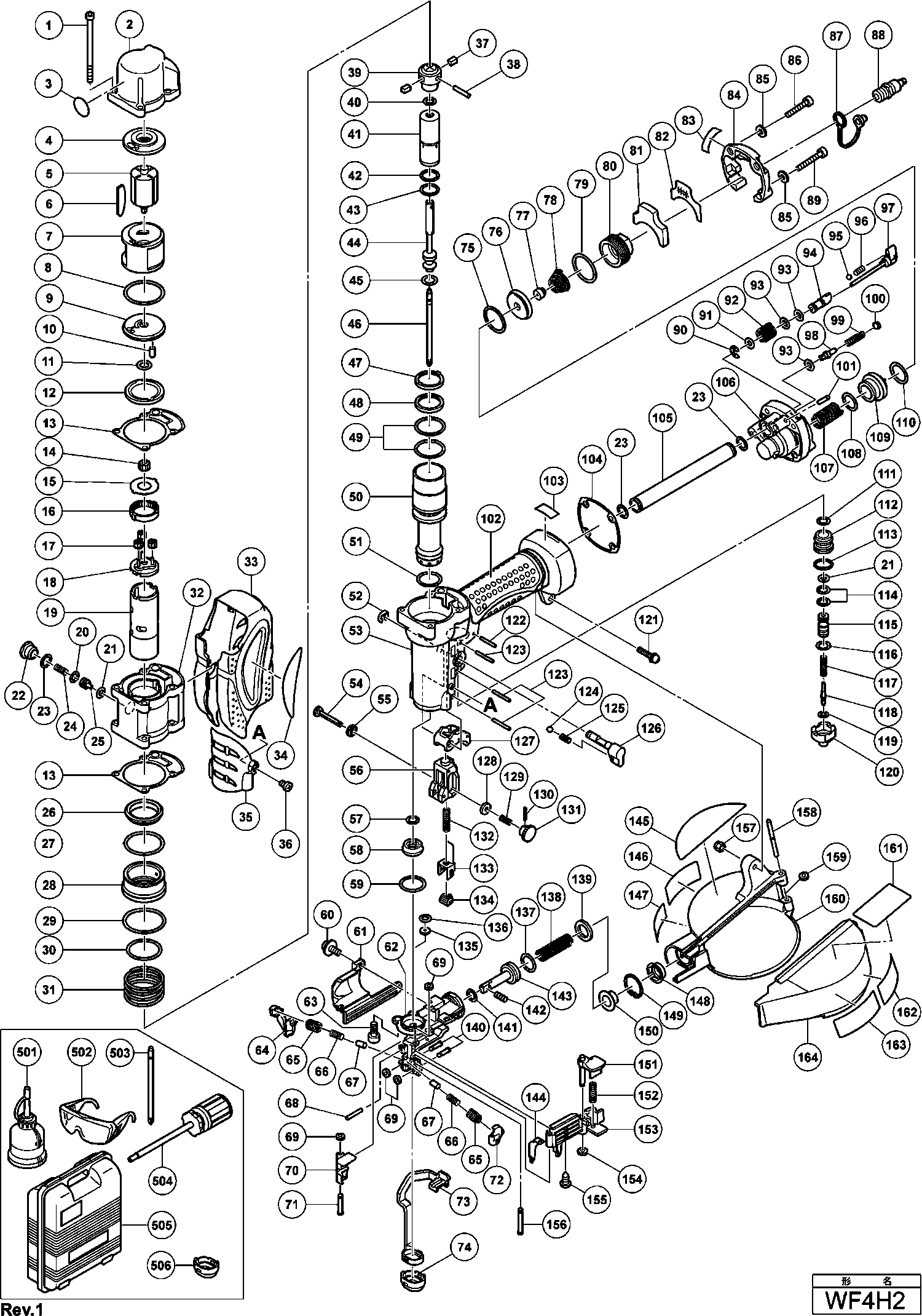

Zeichnungen der HIKOKI WF4H2
Teileliste der HIKOKI WF4H2
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Hex. Socket Hd. Bolt M5x80 | ||||
| 1 | 305481 | Hex. Socket Hd. Bolt M5x80 | € 1.71 | |
| Casing (a) Gold | ||||
| 2 | 886560 | Casing (a) Gold | € 63.88 | |
| Warnschild Nv50af3, Nr90aa | ||||
| 3 | 883513 | Warnschild Nv50af3, Nr90aa | € 1.57 | |
| Side Cover (a) | ||||
| 4 | 886097 | Side Cover (a) | € 52.36 | |
| Anker | ||||
| 5 | 886095 | Anker | € 92.94 | |
| Motor Cylinder | ||||
| 6 | 886096 | Motor Cylinder | € 6.43 | |
| Motor Cylinder | ||||
| 7 | 886094 | Motor Cylinder | € 113.23 | |
| O-ring (s-40) H41sa/h45ma/dh40mr | ||||
| 8 | 996363 | O-ring (s-40) H41sa/h45ma/dh40mr | € 1.57 | |
| Side Cover (b) | ||||
| 9 | 886098 | Side Cover (b) | € 55.24 | |
| Pin (b) | ||||
| 10 | 886092 | Pin (b) | € 3.28 | |
| O-ring (p-8) | ||||
| 11 | 315382 | O-ring (p-8) | € 1.71 | |
| Packing (c) | ||||
| 12 | 316390 | Packing (c) | € 6.71 | |
| Packing (c) | ||||
| 13 | 884504 | Packing (c) | € 1.71 | |
| Ritzel (1) | ||||
| 14 | 886091 | Ritzel (1) | € 20.68 | |
| Ring (a) | ||||
| 15 | 884515 | Ring (a) | € 1.71 | |
| Ring Gear | ||||
| 16 | 886089 | Ring Gear | € 1.71 | |
| Idle Gear | ||||
| 17 | 886090 | Idle Gear | € 3.28 | |
| Spindle Head | ||||
| 18 | 886088 | Spindle Head | € 17.80 | |
| Spindel (1) | ||||
| 19 | 886087 | Spindel (1) | € 4.86 | |
| O-ring (s-8)dh20v/dh24pb/pd/ Dh20pb | ||||
| 20 | 992912 | O-ring (s-8)dh20v/dh24pb/pd/ Dh20pb | € 1.00 | |
| O-RING (S-4) | ||||
| 21 | 981317 | O-RING (S-4) | € 1.00 | |
| Bushing | ||||
| 22 | 884521 | Bushing | € 13.42 | |
| O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | ||||
| 23 | 875638 | O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | € 1.57 | |
| Veer D4.2 | ||||
| 24 | 884520 | Veer D4.2 | € 1.71 | |
| Lock Pin | ||||
| 25 | 884519 | Lock Pin | € 3.28 | |
| Rubberen Klep | ||||
| 26 | 884503 | Rubberen Klep | € 10.85 | |
| O-ring (s-40) H41sa/h45ma/dh40mr | ||||
| 27 | 996363 | O-ring (s-40) H41sa/h45ma/dh40mr | € 1.57 | |
| Sleeve Valve | ||||
| 28 | 884502 | Sleeve Valve | € 31.94 | |
| O-ring (s-42) Cm6/h45ma/wh18dbdl/ Wh14dbdl/ Wr18d | ||||
| 29 | 983852 | O-ring (s-42) Cm6/h45ma/wh18dbdl/ Wh14dbdl/ Wr18d | € 1.86 | |
| O-ring(s-36) Dh50sa1 | ||||
| 30 | 984483 | O-ring(s-36) Dh50sa1 | € 1.57 | |
| Valve Spring | ||||
| 31 | 882221 | Valve Spring | € 4.86 | |
| Casing (b) Gold | ||||
| 32 | 886561 | Casing (b) Gold | € 81.29 | |
| Schutzschild | ||||
| 33 | 886117 | Schutzschild | € 13.42 | |
| Protector (a) | ||||
| 35 | 886235 | Protector (a) | € 8.28 | |
| Flat Fillister Hd. Screw M4 | ||||
| 36 | 886234 | Flat Fillister Hd. Screw M4 | € 1.71 | |
| Feather Key | ||||
| 37 | 884512 | Feather Key | € 1.71 | |
| Stift (1) | ||||
| 38 | 884511 | Stift (1) | € 1.71 | |
| Schieber (1) | ||||
| 39 | 884510 | Schieber (1) | € 13.42 | |
| O-ring (p-8) | ||||
| 40 | 315382 | O-ring (p-8) | € 1.71 | |
| Piston (b) | ||||
| 41 | 886086 | Piston (b) | € 31.94 | |
| O-ring (i.d. 16.8) | ||||
| 42 | 884509 | O-ring (i.d. 16.8) | € 1.71 | |
| O-ring | ||||
| 43 | 886227 | O-ring | € 4.86 | |
| Slagpen (a) | ||||
| 44 | 886085 | Slagpen (a) | € 58.12 | |
| O-ring (i.d. 10.8) | ||||
| 45 | 884507 | O-ring (i.d. 10.8) | € 1.71 | |
| Nicht mehr lieferbar | ||||
| 46 | 884480 | Nicht mehr lieferbar | ||
| Metalen Ring | ||||
| 47 | 884501 | Metalen Ring | € 3.28 | |
| Ring | ||||
| 48 | 884500 | Ring | € 3.28 | |
| O-ring (i.d. 31.2) | ||||
| 49 | 884498 | O-ring (i.d. 31.2) | € 1.71 | |
| Zylinder | ||||
| 50 | 886083 | Zylinder | € 78.41 | |
| O-ring (i.d. 24.7) | ||||
| 51 | 884499 | O-ring (i.d. 24.7) | € 1.71 | |
| Sicherungsring (e-typ) D6 C10fca/c10ra/nv65ad, Nr | ||||
| 52 | 955479 | Sicherungsring (e-typ) D6 C10fca/c10ra/nv65ad, Nr | € 1.00 | |
| Gehäuse | ||||
| 53 | 886562 | Gehäuse | € 168.34 | |
| Einstellstift Nv50af3 | ||||
| 54 | 881846 | Einstellstift Nv50af3 | € 7.28 | |
| Latch (oud 881847) | ||||
| 55 | 886101 | Latch (oud 881847) | € 4.86 | |
| Führung Nv50af3 | ||||
| 56 | 316389 | Führung Nv50af3 | € 3.14 | |
| O-ring | ||||
| 57 | 886229 | O-ring | € 1.71 | |
| Piston Bumper | ||||
| 58 | 886230 | Piston Bumper | € 13.09 | |
| O-ring (s-22) H30pv | ||||
| 59 | 306353 | O-ring (s-22) H30pv | € 0.99 | |
| Maschinenschraube M4x8 Selbsts. (schwarz) | ||||
| 60 | 315500 | Maschinenschraube M4x8 Selbsts. (schwarz) | € 1.29 | |
| Abdeckung (1) | ||||
| 61 | 887975 | Abdeckung (1) | € 6.43 | |
| Nicht mehr lieferbar | ||||
| 62 | 886104 | Nicht mehr lieferbar | ||
| Inbusschraube M6x16 (10st), Nr90aa | ||||
| 63 | 949755 | Inbusschraube M6x16 (10st), Nr90aa | € 2.86 | |
| VERTICAL GUIDE | ||||
| 64 | 886111 | VERTICAL GUIDE | € 17.80 | |
| Veer (a) | ||||
| 65 | 884533 | Veer (a) | € 1.71 | |
| Veer (b) | ||||
| 66 | 884534 | Veer (b) | € 1.71 | |
| Kunststofpin | ||||
| 67 | 886233 | Kunststofpin | € 3.28 | |
| Rollstift D3x18 (10st) Nv38ab2 | ||||
| 68 | 949518 | Rollstift D3x18 (10st) Nv38ab2 | € 2.28 | |
| Schiebehülsenring Nv83a/nv45ab | ||||
| 69 | 877826 | Schiebehülsenring Nv83a/nv45ab | € 2.43 | |
| Toevoermechanisme | ||||
| 70 | 884527 | Toevoermechanisme | € 29.06 | |
| As Voor Toevoermechanisme | ||||
| 71 | 882236 | As Voor Toevoermechanisme | € 6.43 | |
| Vertical Guide | ||||
| 72 | 886110 | Vertical Guide | € 17.80 | |
| Pushing Lever (a) | ||||
| 73 | 886109 | Pushing Lever (a) | € 37.83 | |
| Neuskap | ||||
| 74 | 886103 | Neuskap | € 4.86 | |
| O-RING (S-26) | ||||
| 75 | 872470 | O-RING (S-26) | € 1.57 | |
| Scheidingsplaatje | ||||
| 76 | 886119 | Scheidingsplaatje | € 34.95 | |
| Rubberen Klep (h) | ||||
| 77 | 884847 | Rubberen Klep (h) | € 6.43 | |
| Veer (i.d.d13) | ||||
| 78 | 884848 | Veer (i.d.d13) | € 1.71 | |
| O-ring (s-32) Dh25v/w6ve/w6vf | ||||
| 79 | 872767 | O-ring (s-32) Dh25v/w6ve/w6vf | € 1.57 | |
| Cap (r) | ||||
| 80 | 887983 | Cap (r) | € 24.48 | |
| Muffler | ||||
| 81 | 886079 | Muffler | € 3.28 | |
| Plaatgaas | ||||
| 82 | 886080 | Plaatgaas | € 4.86 | |
| Uitlaatkap | ||||
| 84 | 886081 | Uitlaatkap | € 3.28 | |
| RING | ||||
| 85 | 940178 | RING | € 1.00 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 86 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 3.57 | |
| Stofkapje | ||||
| 87 | 877914 | Stofkapje | € 1.86 | |
| Air Plug L-pt 1/4 | ||||
| 88 | 883135 | Air Plug L-pt 1/4 | € 14.27 | |
| Hex. Socket Hd. Bolt M5x40 | ||||
| 89 | 886082 | Hex. Socket Hd. Bolt M5x40 | € 1.71 | |
| C-type Ring D2,5 G12se/g13se | ||||
| 90 | 874759 | C-type Ring D2,5 G12se/g13se | € 0.99 | |
| O-ring (i.d. 1.8) | ||||
| 91 | 886078 | O-ring (i.d. 1.8) | € 1.71 | |
| Veer D8.4 | ||||
| 92 | 886077 | Veer D8.4 | € 1.71 | |
| O-ring (i.d. 4.8) | ||||
| 93 | 884861 | O-ring (i.d. 4.8) | € 1.71 | |
| Plunger (r) | ||||
| 94 | 886076 | Plunger (r) | € 1.71 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 95 | 959148 | Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | € 1.00 | |
| Arretierfeder Nv65aj | ||||
| 96 | 882923 | Arretierfeder Nv65aj | € 1.71 | |
| Knopf | ||||
| 97 | 886075 | Knopf | € 6.43 | |
| Relief Valve | ||||
| 98 | 886122 | Relief Valve | € 6.43 | |
| Veer D6.6 | ||||
| 99 | 884852 | Veer D6.6 | € 1.71 | |
| Distanzring (1) | ||||
| 100 | 886121 | Distanzring (1) | € 1.71 | |
| Rollstift D2x12 (10st) | ||||
| 101 | 949861 | Rollstift D2x12 (10st) | € 1.57 | |
| Packing (d) | ||||
| 104 | 884484 | Packing (d) | € 1.71 | |
| Uitlaatpijp | ||||
| 105 | 886240 | Uitlaatpijp | € 4.86 | |
| Cap (gold) | ||||
| 106 | 886563 | Cap (gold) | € 104.59 | |
| Feder | ||||
| 107 | 886071 | Feder | € 6.43 | |
| O-RING (P-18 | ||||
| 108 | 873570 | O-RING (P-18 | € 1.29 | |
| Piston (r) | ||||
| 109 | 886072 | Piston (r) | € 3.28 | |
| O-ring (ap-24) | ||||
| 110 | 997392 | O-ring (ap-24) | € 1.00 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 111 | 877699 | HEAD VALVE O-RING (I.D.16.8) | € 1.00 | |
| Ventilhülse (b) Nv65aj | ||||
| 112 | 882925 | Ventilhülse (b) Nv65aj | € 17.15 | |
| O-ring (s-18) Cr17y/nv65ad2, Nr90aa | ||||
| 113 | 878885 | O-ring (s-18) Cr17y/nv65ad2, Nr90aa | € 1.00 | |
| O-RING (I.D. 8.8) | ||||
| 114 | 878925 | O-RING (I.D. 8.8) | € 1.00 | |
| Ventilkolben (b) Nv65ad2, Nr90aa | ||||
| 115 | 880672 | Ventilkolben (b) Nv65ad2, Nr90aa | € 30.63 | |
| O-RING (I.D.11) | ||||
| 116 | 878887 | O-RING (I.D.11) | € 1.57 | |
| Tauchkolbenfeder Nv65ad2/nv50ag, Nr90aa | ||||
| 117 | 878884 | Tauchkolbenfeder Nv65ad2/nv50ag, Nr90aa | € 1.57 | |
| Tauchkolben (a) Nv65ad2, Nr90aa | ||||
| 118 | 880673 | Tauchkolben (a) Nv65ad2, Nr90aa | € 14.01 | |
| O-RING (I.D.1.8) | ||||
| 119 | 878888 | O-RING (I.D.1.8) | € 1.00 | |
| Ventilhülse (a) Nv65aj | ||||
| 120 | 882920 | Ventilhülse (a) Nv65aj | € 28.14 | |
| Maschinenschraube M5x25 G12se/u.a | ||||
| 121 | 880734 | Maschinenschraube M5x25 G12se/u.a | € 0.99 | |
| Rollstift D3x22 (10st), Nr90aa | ||||
| 122 | 949864 | Rollstift D3x22 (10st), Nr90aa | € 1.57 | |
| Rollstift D3x25 (10st) Nv38ab2 | ||||
| 123 | 949539 | Rollstift D3x25 (10st) Nv38ab2 | € 2.14 | |
| Stahlkugeln D3.97 (10st), Nr90aa | ||||
| 124 | 959155 | Stahlkugeln D3.97 (10st), Nr90aa | € 0.99 | |
| Feder (c) Cj65va2/v2/cr10v/cj120v, Nr90aa | ||||
| 125 | 982454 | Feder (c) Cj65va2/v2/cr10v/cj120v, Nr90aa | € 0.99 | |
| Wisselknop | ||||
| 126 | 886102 | Wisselknop | € 4.86 | |
| Drücker (a) Nv65ad2, Nr90aa | ||||
| 127 | 880674 | Drücker (a) Nv65ad2, Nr90aa | € 11.28 | |
| Unterlegschreibe M4 (10st), C8fshe, C8fse | ||||
| 128 | 949429 | Unterlegschreibe M4 (10st), C8fshe, C8fse | € 1.00 | |
| Adjuster Spring | ||||
| 129 | 887949 | Adjuster Spring | € 1.71 | |
| Roll Pin D1.6x10 | ||||
| 130 | 886228 | Roll Pin D1.6x10 | € 1.71 | |
| Adjuster Knob | ||||
| 131 | 887948 | Adjuster Knob | € 3.28 | |
| Feder (1) | ||||
| 132 | 881882 | Feder (1) | € 2.14 | |
| Pushing Lever (b) | ||||
| 133 | 886099 | Pushing Lever (b) | € 11.42 | |
| Justierung | ||||
| 134 | 886564 | Justierung | € 7.43 | |
| Ring | ||||
| 135 | 878279 | Ring | € 1.00 | |
| O-ring (p-4) Cs35b/nr83a | ||||
| 136 | 874436 | O-ring (p-4) Cs35b/nr83a | € 1.00 | |
| O-RING (P-18 | ||||
| 137 | 873570 | O-RING (P-18 | € 1.29 | |
| Feder (1) | ||||
| 138 | 880409 | Feder (1) | € 2.28 | |
| Dämpfer Nv38ab | ||||
| 139 | 877476 | Dämpfer Nv38ab | € 2.28 | |
| Guide Shaft | ||||
| 140 | 886112 | Guide Shaft | € 6.43 | |
| Y-packing | ||||
| 141 | 887196 | Y-packing | € 1.71 | |
| Veer D4.7 | ||||
| 142 | 882235 | Veer D4.7 | € 1.71 | |
| Feed Piston | ||||
| 143 | 886231 | Feed Piston | € 28.27 | |
| Schutz (1) | ||||
| 144 | 886106 | Schutz (1) | € 7.43 | |
| Waarschuwings Label | ||||
| 146 | 887174 | Waarschuwings Label | € 4.86 | |
| Waarschuwings Label | ||||
| 147 | 887175 | Waarschuwings Label | € 4.86 | |
| Magazinhülse Nv38ab | ||||
| 148 | 880177 | Magazinhülse Nv38ab | € 1.57 | |
| Sicherungsring D24 Nv38ab/dh30pc H30pv | ||||
| 149 | 983748 | Sicherungsring D24 Nv38ab/dh30pc H30pv | € 1.00 | |
| Schiebekolbenabdeckung Nv38ab | ||||
| 150 | 880170 | Schiebekolbenabdeckung Nv38ab | € 2.14 | |
| Führungsriegel Nv90ab | ||||
| 151 | 886107 | Führungsriegel Nv90ab | € 4.86 | |
| Veer D5.6 | ||||
| 152 | 883008 | Veer D5.6 | € 1.71 | |
| Screw Guide | ||||
| 153 | 886105 | Screw Guide | € 24.22 | |
| Sicherungsring Nv50ag | ||||
| 154 | 880319 | Sicherungsring Nv50ag | € 1.57 | |
| Schneidschraube D3x10 | ||||
| 155 | 306945 | Schneidschraube D3x10 | € 0.99 | |
| Screw Guide Shaft | ||||
| 156 | 886108 | Screw Guide Shaft | € 7.43 | |
| Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
| 157 | 877371 | Nylonmutter M5 Nv83a/nr83a, Nr90aa | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 158 | 882246 | Nicht mehr lieferbar | ||
| Schiebehülsenring Nv83a/nv45ab | ||||
| 159 | 877826 | Schiebehülsenring Nv83a/nv45ab | € 2.43 | |
| Magazin Zsb | ||||
| 160 | 886114 | Magazin Zsb | € 11.42 | |
| Magazijn Deksel | ||||
| 164 | 886115 | Magazijn Deksel | € 7.43 | |
| Nicht mehr lieferbar | ||||
| 501 | 883136 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 502 | 875769 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 503 | 884480 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 504 | 884538 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 505 | 884857 | Nicht mehr lieferbar | ||
| Neuskap | ||||
| 506 | 886103 | Neuskap | € 4.86 | |
| Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
| 601 | 881768 | Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | € 5.00 | |
| Nicht mehr lieferbar | ||||
| 602 | 880407 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 603 | 328428 | Nicht mehr lieferbar | ||
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
