Hikoki TCG27EASP Zeichnungen und Teile
Genaue Typennummer:
TCG27EASP
TCG27EASP

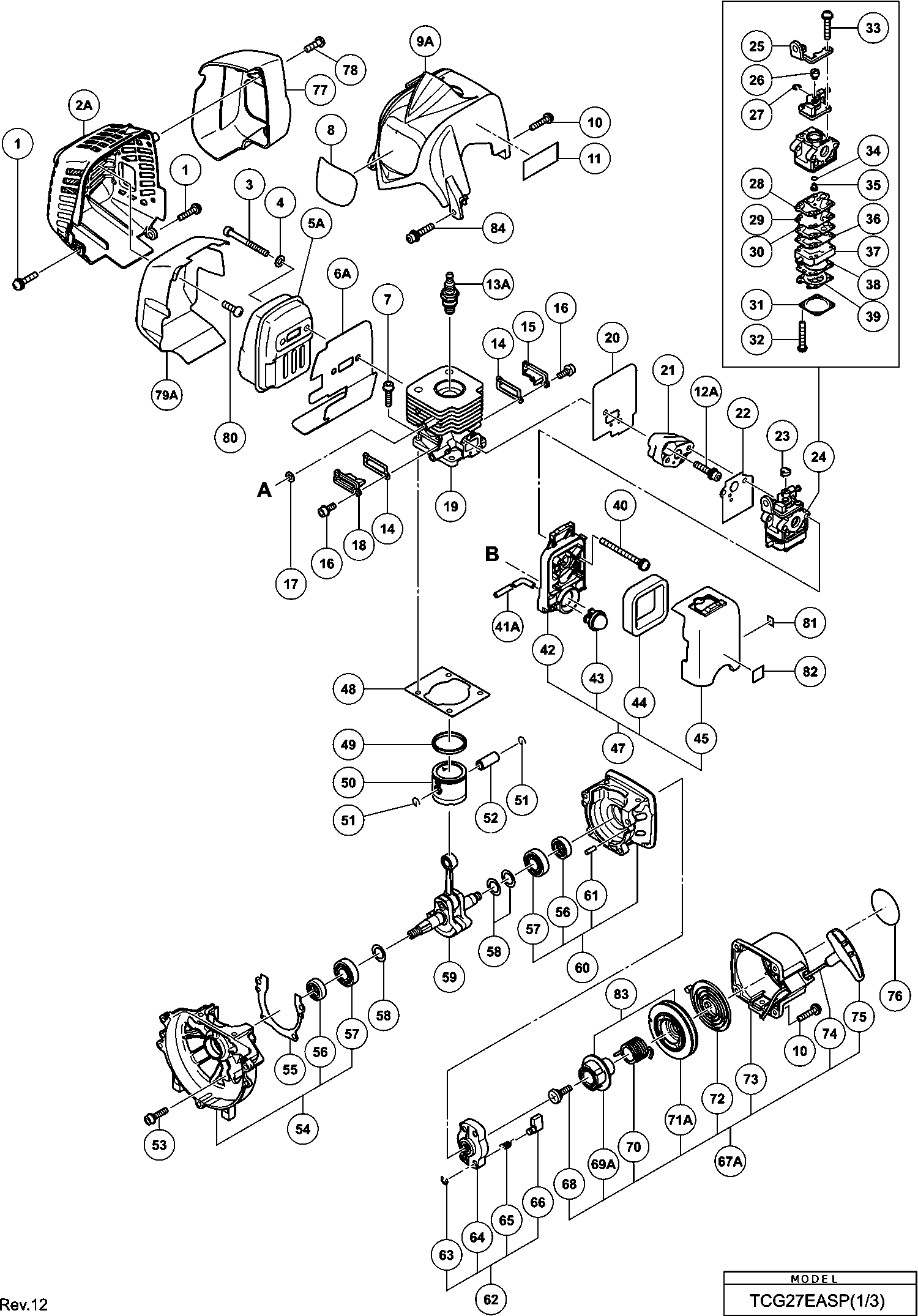

Zeichnungen der HIKOKI TCG27EASP
Teileliste der HIKOKI TCG27EASP
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Nicht mehr lieferbar | ||||
| 1 | 887021 | Nicht mehr lieferbar | ||
| Muffler Cover Since 11 2013 (old 6698494) | ||||
| 2A | 6600336 | Muffler Cover Since 11 2013 (old 6698494) | € 6.14 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 3 | 6698384 | Hex. Socket Hd Bolt M6x65 | € 1.00 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 4 | 949432 | Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | € 1.00 | |
| Muffler (b) | ||||
| 5A | 6600004 | Muffler (b) | € 24.61 | |
| Hitteschild | ||||
| 6A | 6600324 | Hitteschild | € 1.29 | |
| Hex. Socket Bolt M5 | ||||
| 7 | 6696958 | Hex. Socket Bolt M5 | € 2.00 | |
| Tanaka Schild | ||||
| 8 | 6696339 | Tanaka Schild | € 1.14 | |
| Cilinder Afdekkap | ||||
| 9A | 6697921 | Cilinder Afdekkap | € 5.81 | |
| Kopfschraube M4x20 M.u-scheibe | ||||
| 10 | 307606 | Kopfschraube M4x20 M.u-scheibe | € 1.00 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 12A | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.14 | |
| Bougie Bmr7a | ||||
| 13A | 6699316 | Bougie Bmr7a | € 8.48 | |
| Cover Packing | ||||
| 14 | 6698365 | Cover Packing | € 1.00 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698484 | Uitlaatgas Ventiel Deksel (a) | € 2.00 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385 | Hex. Socket Hd Bolt M4x12 | € 1.00 | |
| Unterlegscheibe Cg24ekb | ||||
| 17 | 6684600 | Unterlegscheibe Cg24ekb | € 2.05 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 18 | 6698485 | Uitlaatgas Ventiel Deksel (b) | € 2.00 | |
| Zylinder | ||||
| 19 | 6698480 | Zylinder | € 43.46 | |
| Dichtung | ||||
| 20 | 6698473 | Dichtung | € 1.00 | |
| Carburetor Insulator | ||||
| 21 | 6698387 | Carburetor Insulator | € 3.00 | |
| Carbureteur Pakking | ||||
| 22 | 6698405 | Carbureteur Pakking | € 2.00 | |
| Nicht mehr lieferbar | ||||
| 23 | 6684628 | Nicht mehr lieferbar | ||
| Carburator | ||||
| 24 | 6698489 | Carburator | € 56.10 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | Cable Adjust Stay | € 3.93 | |
| Swivel | ||||
| 26 | 6696830 | Swivel | € 4.24 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 27 | 6684696 | Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | € 2.05 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 28 | 6684692 | Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | € 27.79 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 29 | 6684693 | Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | € 8.16 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 30 | 6691242 | Pumpenplatte alte Art.nr.523-25100-20 | € 2.20 | |
| Membranabdeckung | ||||
| 31 | 6685222 | Membranabdeckung | € 4.24 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 32 | 6691312 | Schrauben Set alte Art.nr.548-25101-20 | € 1.09 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | Set Screw M3x12 | € 0.99 | |
| O-RING (OUD 550-25100-20) | ||||
| 34 | 6684695 | O-RING (OUD 550-25100-20) | € 4.08 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 36 | 6691234 | Schaltplatte alte Art.nr.522-25100-20 | € 3.14 | |
| Pump Body | ||||
| 37 | 6696828 | Pump Body | € 12.72 | |
| Membran Verpackung | ||||
| 38 | 6685220 | Membran Verpackung | € 2.20 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 39 | 6684690 | Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | € 17.14 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 40 | 307224 | Kopfschraube M5x60 M.u-scheibe (schwarz) | € 1.00 | |
| Brandstofleiding (oud 6696962) | ||||
| 41A | 6698720 | Brandstofleiding (oud 6696962) | € 3.28 | |
| Hauptpumpe | ||||
| 43 | 6685139 | Hauptpumpe | € 5.65 | |
| Filter Element | ||||
| 44 | 6690347 | Filter Element | € 4.24 | |
| Air Cleaner Ass'y | ||||
| 47 | 6696549 | Air Cleaner Ass'y | € 8.69 | |
| Cylinder Packing | ||||
| 48 | 6698366 | Cylinder Packing | € 1.00 | |
| Kolbenring alte Art.nr. 041-01700-20 | ||||
| 49 | 6686121 | Kolbenring alte Art.nr. 041-01700-20 | € 4.24 | |
| Kolben | ||||
| 50 | 6698483 | Kolben | € 8.28 | |
| Kolbenstift Cg24ekb | ||||
| 51 | 6684590 | Kolbenstift Cg24ekb | € 2.05 | |
| Kolbenstift Cg24ekb | ||||
| 52 | 6684591 | Kolbenstift Cg24ekb | € 4.08 | |
| Nicht mehr lieferbar | ||||
| 53 | 6698386 | Nicht mehr lieferbar | ||
| Crank Case Ass'y (b) | ||||
| 54 | 6698370 | Crank Case Ass'y (b) | € 14.92 | |
| Crank Case Packing | ||||
| 55 | 6698371 | Crank Case Packing | € 1.00 | |
| Öldichtung Cg24ekb | ||||
| 56 | 6684607 | Öldichtung Cg24ekb | € 4.08 | |
| Nicht mehr lieferbar | ||||
| 57 | 6695535 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 58 | 6698490 | Nicht mehr lieferbar | ||
| Kurbelwelle | ||||
| 59 | 6698488 | Kurbelwelle | € 52.49 | |
| Crank Case Ass'y (a) | ||||
| 60 | 6698369 | Crank Case Ass'y (a) | € 12.71 | |
| Knock Pin 4x12 | ||||
| 61 | 6696947 | Knock Pin 4x12 | € 1.00 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 62 | 6684681 | Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | € 12.57 | |
| D4eretainingringnew | ||||
| 63 | 6685101 | D4eretainingringnew | € 1.09 | |
| Feder f. Startersperre Cg24ekb | ||||
| 65 | 6684684 | Feder f. Startersperre Cg24ekb | € 4.08 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 66 | 6684685 | Startersperre Cg24ekb alte Art.nr.788-0651h-20 | € 4.08 | |
| Nicht mehr lieferbar | ||||
| 67A | 6699995 | Nicht mehr lieferbar | ||
| SET SCREW (OLD 839-03045-20) | ||||
| 68 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.05 | |
| Cam Plate | ||||
| 69A | 6699996 | Cam Plate | € 2.43 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 70 | 6684677 | Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | € 8.16 | |
| Starter Rope Reel | ||||
| 71A | 6699997 | Starter Rope Reel | € 8.01 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 72 | 6684675 | Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | € 11.00 | |
| Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | ||||
| 73 | 6684673 | Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | € 18.15 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 74 | 6684674 | Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | € 4.08 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 75 | 6684680 | Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | € 2.05 | |
| Muffler Rear Cover | ||||
| 77 | 6600335 | Muffler Rear Cover | € 8.14 | |
| Tapping Screw D4 Since 11 2013 | ||||
| 78 | 6600332 | Tapping Screw D4 Since 11 2013 | € 0.99 | |
| Muffler Heat Cover | ||||
| 79A | 6600422 | Muffler Heat Cover | € 5.43 | |
| Tapping Screw D4x10 | ||||
| 80 | 6600325 | Tapping Screw D4x10 | € 0.99 | |
| Mark Plate (t) | ||||
| 81 | 6600327 | Mark Plate (t) | € 0.99 | |
| Primer Label | ||||
| 82 | 6699000 | Primer Label | € 0.99 | |
| Cam Plate Ass'y | ||||
| 83 | 6699691 | Cam Plate Ass'y | € 5.81 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 84 | 6698950 | Seal Lock Hex. Socket Hd. Bolt M5x30 | € 1.14 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 91 | 305812 | Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | € 0.99 | |
| Ballengriff | ||||
| 92 | 6696487 | Ballengriff | € 3.28 | |
| Rasthebel | ||||
| 93 | 6696490 | Rasthebel | € 0.99 | |
| Hebel (1) | ||||
| 94 | 6696488 | Hebel (1) | € 0.99 | |
| Feder | ||||
| 95 | 6696489 | Feder | € 0.99 | |
| Stop Switch | ||||
| 96A | 6601275 | Stop Switch | € 1.29 | |
| Stoppschalterleine | ||||
| 97 | 6696491 | Stoppschalterleine | € 1.71 | |
| Stop Switch Cord | ||||
| 97 | 6696592 | Stop Switch Cord | € 2.00 | |
| Protection Tube | ||||
| 98 | 6696594 | Protection Tube | € 2.00 | |
| Protection Tube | ||||
| 98 | 6696967 | Protection Tube | € 1.00 | |
| Gaskabel | ||||
| 99 | 6696560 | Gaskabel | € 3.97 | |
| Gaskabel | ||||
| 99 | 6696593 | Gaskabel | € 4.86 | |
| Ballengriff | ||||
| 100 | 6696486 | Ballengriff | € 3.28 | |
| Sechskantbolzen Cg24ekb alte Art.nr. 994-61050-12 | ||||
| 101 | 6684667 | Sechskantbolzen Cg24ekb alte Art.nr. 994-61050-12 | € 2.05 | |
| Sechskantbolzen 5x22/s alte Art.nr. 994-61050-224 | ||||
| 102 | 6695492 | Sechskantbolzen 5x22/s alte Art.nr. 994-61050-224 | € 1.09 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963 | Anti Vibe Rubber (a) | € 3.17 | |
| Pipe Holder (a) | ||||
| 104 | 6698643 | Pipe Holder (a) | € 2.00 | |
| Pipe Holder (b) | ||||
| 106 | 6698644 | Pipe Holder (b) | € 2.00 | |
| Anti Vibe Rubber (b) | ||||
| 107 | 6696964 | Anti Vibe Rubber (b) | € 3.17 | |
| Sicherungsring D12 (10st), G23ss | ||||
| 108 | 939542 | Sicherungsring D12 (10st), G23ss | € 1.43 | |
| Ventilatorhuis (oud 6698486) | ||||
| 109A | 6697922 | Ventilatorhuis (oud 6698486) | € 11.15 | |
| Clutch Shaft | ||||
| 110B | 6699400 | Clutch Shaft | € 8.43 | |
| Abstandsbolzen | ||||
| 111 | 6696469 | Abstandsbolzen | € 0.99 | |
| Ring | ||||
| 112 | 6684648 | Ring | € 2.05 | |
| Clutch Plate (a) | ||||
| 113 | 6696546 | Clutch Plate (a) | € 1.00 | |
| Clutch | ||||
| 114 | 6696948 | Clutch | € 11.08 | |
| Ring (b) | ||||
| 115 | 6696547 | Ring (b) | € 1.00 | |
| Mutter | ||||
| 116 | 6685337 | Mutter | € 1.00 | |
| Bolzenscheibe H65sd2 | ||||
| 117 | 323212 | Bolzenscheibe H65sd2 | € 1.00 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.00 | |
| Bobine | ||||
| 119 | 6698492 | Bobine | € 21.73 | |
| Cord | ||||
| 120 | 6698495 | Cord | € 2.00 | |
| Earth Cord | ||||
| 123 | 6696545 | Earth Cord | € 1.00 | |
| Magneto Rotor | ||||
| 124 | 6698396 | Magneto Rotor | € 8.28 | |
| Distanzring (1) | ||||
| 125 | 6698496 | Distanzring (1) | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 126B | 6601525 | Nicht mehr lieferbar | ||
| Brandstofleiding L70 | ||||
| 127A | 6699014 | Brandstofleiding L70 | € 1.57 | |
| Tank Dop Compleet | ||||
| 129 | 6698402 | Tank Dop Compleet | € 4.00 | |
| Behalter | ||||
| 131A | 6600317 | Behalter | € 7.57 | |
| Tank (c) | ||||
| 131B | 6600354 | Tank (c) | € 3.28 | |
| Pomp Filter | ||||
| 132A | 6600351 | Pomp Filter | € 2.57 | |
| Clip | ||||
| 133 | 6696949 | Clip | € 1.59 | |
| Stand alte Art.nr.940-07350-20 | ||||
| 134 | 6694787 | Stand alte Art.nr.940-07350-20 | € 3.14 | |
| Flange Bolt | ||||
| 135 | 6696557 | Flange Bolt | € 1.00 | |
| Bout L27.8 | ||||
| 136A | 6698991 | Bout L27.8 | € 1.14 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 151 | 323837 | Tapping Screw (w/flange) D4x30 | € 1.59 | |
| Machine Screw M5x30 (black) | ||||
| 152 | 323041 | Machine Screw M5x30 (black) | € 1.00 | |
| Handle Right | ||||
| 153 | 6698637 | Handle Right | € 18.20 | |
| Handle (b) | ||||
| 154 | 6696590 | Handle (b) | € 2.98 | |
| Handle (a) | ||||
| 155 | 6696588 | Handle (a) | € 2.00 | |
| Mutter M5 (schwarz) C13u/m8v/m12v | ||||
| 156 | 302012 | Mutter M5 (schwarz) C13u/m8v/m12v | € 1.00 | |
| Barrier | ||||
| 161 | 6696973 | Barrier | € 3.17 | |
| Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 162 | 6684709 | Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | € 2.05 | |
| Handle Holder (a) (old 6696576) | ||||
| 163A | 6600500 | Handle Holder (a) (old 6696576) | € 4.00 | |
| Handle Left | ||||
| 164 | 6698638 | Handle Left | € 21.73 | |
| Handle Holder (b) (old 6696577) | ||||
| 165A | 6600501 | Handle Holder (b) (old 6696577) | € 6.85 | |
| Handle Holder (c) | ||||
| 166 | 6696578 | Handle Holder (c) | € 2.00 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 167 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.05 | |
| Getriebegehaeuse | ||||
| 168A | 6699402 | Getriebegehaeuse | € 47.91 | |
| Bolt (black) M6 | ||||
| 169 | 6696974 | Bolt (black) M6 | € 1.59 | |
| Cutter Holder (a) | ||||
| 176 | 6696977 | Cutter Holder (a) | € 12.69 | |
| Cutter Holder (b) | ||||
| 177 | 6698659 | Cutter Holder (b) | € 12.41 | |
| Nicht mehr lieferbar | ||||
| 178A | 6699188 | Nicht mehr lieferbar | ||
| Linksmoer M10 (oud 6698658) | ||||
| 179A | 335759 | Linksmoer M10 (oud 6698658) | € 0.99 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 180 | 6695414 | Schraube 5x12ws alte Art.nr. 994-16050-121 | € 1.09 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 181 | 949664 | Hex.socket Hd.bolt M5x30 (10 Pcs) | € 3.57 | |
| Abdeckhaube For Europe | ||||
| 186 | 6696494 | Abdeckhaube For Europe | € 1.71 | |
| Nicht mehr lieferbar | ||||
| 187 | 6696454 | Nicht mehr lieferbar | ||
| Cover Comp. W/ Shaft M10x.125 Left | ||||
| 188 | 6698794 | Cover Comp. W/ Shaft M10x.125 Left | € 8.85 | |
| Set Screw | ||||
| 190 | 6698795 | Set Screw | € 1.29 | |
| Reel | ||||
| 191 | 6698796 | Reel | € 2.28 | |
| Return Spring | ||||
| 192 | 6698797 | Return Spring | € 1.00 | |
| Knopf (1) | ||||
| 193 | 6698798 | Knopf (1) | € 1.14 | |
| Cord Guide | ||||
| 194 | 6698799 | Cord Guide | € 1.14 | |
| Case | ||||
| 195 | 6698800 | Case | € 6.28 | |
| Nicht mehr lieferbar | ||||
| 196 | 6696980 | Nicht mehr lieferbar | ||
| Safety Cover Holder | ||||
| 197 | 6696951 | Safety Cover Holder | € 3.17 | |
| Cover Guard | ||||
| 198 | 6696950 | Cover Guard | € 10.45 | |
| Schneidschraube Cg24ekd | ||||
| 199 | 6684751 | Schneidschraube Cg24ekd | € 2.05 | |
| Messer Cg24ekd For Irl | ||||
| 200 | 6684750 | Messer Cg24ekd For Irl | € 4.08 | |
| Vorsicht Markierung | ||||
| 205 | 6684959 | Vorsicht Markierung | € 2.00 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 207 | 6684851 | Füllstandsmarkierung Cg24ekb | € 2.05 | |
| Main Pipe Comp (old 6696483) | ||||
| 208 | 6696558 | Main Pipe Comp (old 6696483) | € 16.84 | |
| Drive Shaft (old 6696484) | ||||
| 209 | 6698514 | Drive Shaft (old 6696484) | € 14.85 | |
| Hanger | ||||
| 210A | 6600504 | Hanger | € 1.14 | |
| Cap (a) | ||||
| 211 | 6698515 | Cap (a) | € 2.00 | |
| Caution Label (hedge) | ||||
| 218 | 6600328 | Caution Label (hedge) | € 0.99 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 219 | 6600499 | Handle Holder Set (a+b) (old 6696576+6696577) | € 10.14 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 220 | 949236 | Kopfschraube M5x10 (10st), G23ss For Irl | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 501 | 6684764 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 502 | 6696596 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 503 | 944458 | Nicht mehr lieferbar | ||
| Messer Abdeckung For (s) | ||||
| 504B | 6684768 | Messer Abdeckung For (s) | € 2.05 | |
| Nicht mehr lieferbar | ||||
| 505 | 875769 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 506 | 6696184 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 506A | 6601420 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 507 | 6698711 | Nicht mehr lieferbar | ||
| Reperaturset | ||||
| 601 | 6600036 | Reperaturset | € 37.96 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
