Hikoki NV90HMC Zeichnungen und Teile
Genaue Typennummer:
NV90HMC
NV90HMC

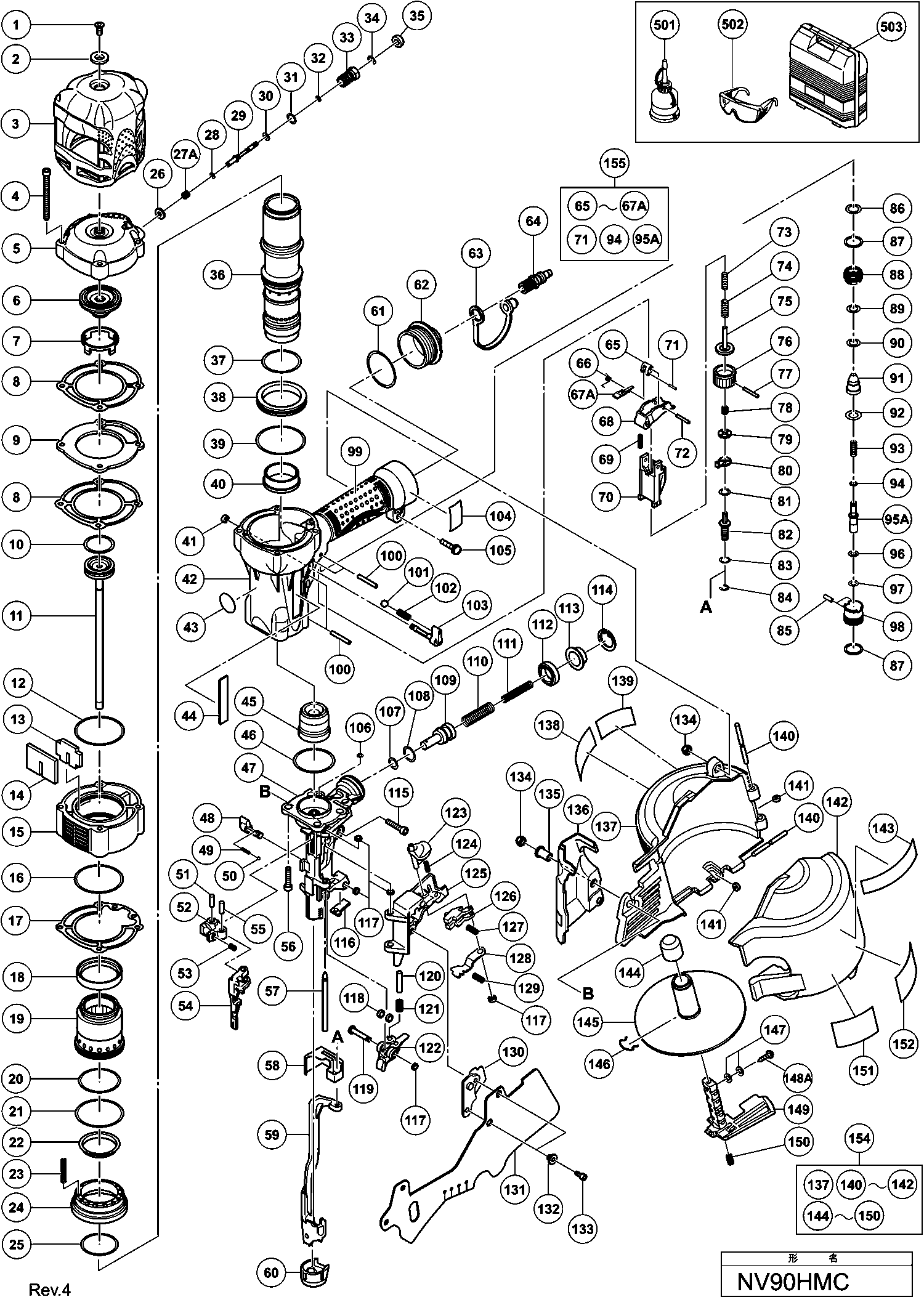

Zeichnungen der HIKOKI NV90HMC
Teileliste der HIKOKI NV90HMC
Auf dieser Seite können Sie Teile in den Einkaufswagen legen, indem Sie die Anzahl auswählen und dann auf die Schaltfläche dahinter klicken. Wenn Sie die Auswahl der richtigen Teile abgeschlossen haben, können Sie auf den Button ' Zum Einkaufswagen' unten auf der Seite klicken. Die folgenden Preise verstehen sich inklusive Mehrwertsteuer. Der genaue Mehrwertsteuerbetrag wird im Warenkorb berechnet, basierend auf dem Land in dem Sie das Paket erhalten möchten.
| Seal Lock Hex. Socket Flat Hd. Bolt M5x10 | ||||
| 1 | 887128 | Seal Lock Hex. Socket Flat Hd. Bolt M5x10 | € 1.71 | |
| Ring | ||||
| 2 | 885264 | Ring | € 4.86 | |
| Protector | ||||
| 3 | 886890 | Protector | € 9.28 | |
| Nylock Bout M5x65 | ||||
| 4 | 885854 | Nylock Bout M5x65 | € 3.28 | |
| Upper Cover | ||||
| 5 | 886901 | Upper Cover | € 49.35 | |
| Head Bumper | ||||
| 6 | 886898 | Head Bumper | € 7.71 | |
| Head Guide | ||||
| 7 | 886904 | Head Guide | € 37.83 | |
| Pakking (b) | ||||
| 8 | 886902 | Pakking (b) | € 4.86 | |
| Platte (1) | ||||
| 9 | 886903 | Platte (1) | € 8.57 | |
| O-ring | ||||
| 10 | 886881 | O-ring | € 4.86 | |
| Slagpen | ||||
| 11 | 886880 | Slagpen | € 121.87 | |
| O-ring (i.d. 48.5) | ||||
| 12 | 886900 | O-ring (i.d. 48.5) | € 6.43 | |
| Muffler (a) | ||||
| 13 | 885851 | Muffler (a) | € 4.86 | |
| Nicht mehr lieferbar | ||||
| 14 | 885850 | Nicht mehr lieferbar | ||
| Exhaust Cover | ||||
| 15 | 887127 | Exhaust Cover | € 150.93 | |
| O-ring | ||||
| 16 | 887129 | O-ring | € 3.28 | |
| Pakking (c) | ||||
| 17 | 885852 | Pakking (c) | € 9.57 | |
| Sleeve Valve Rubber | ||||
| 18 | 885839 | Sleeve Valve Rubber | € 14.92 | |
| Sleeve Valve | ||||
| 19 | 886896 | Sleeve Valve | € 46.47 | |
| O-ring | ||||
| 20 | 887126 | O-ring | € 6.43 | |
| O-ring | ||||
| 21 | 885841 | O-ring | € 17.15 | |
| Uitlaat Rubber | ||||
| 22 | 885844 | Uitlaat Rubber | € 8.00 | |
| Sleeve Valve Spring | ||||
| 23 | 885846 | Sleeve Valve Spring | € 1.71 | |
| Valve Plate | ||||
| 24 | 886899 | Valve Plate | € 40.71 | |
| O-ring (s-32) Dh25v/w6ve/w6vf | ||||
| 25 | 872767 | O-ring (s-32) Dh25v/w6ve/w6vf | € 1.57 | |
| Nicht mehr lieferbar | ||||
| 26 | 881711 | Nicht mehr lieferbar | ||
| Feder | ||||
| 27A | 887177 | Feder | € 1.14 | |
| O-RING | ||||
| 28 | 878607 | O-RING | € 1.00 | |
| Plunger | ||||
| 29 | 886044 | Plunger | € 17.41 | |
| O-ring (1ap-3) Nv32ab/nv45ab | ||||
| 30 | 873093 | O-ring (1ap-3) Nv32ab/nv45ab | € 1.00 | |
| O-ring (s-10) D6sh | ||||
| 31 | 987105 | O-ring (s-10) D6sh | € 1.00 | |
| O-ring Nt65ma3 | ||||
| 32 | 881715 | O-ring Nt65ma3 | € 1.00 | |
| Valve Bushing | ||||
| 33 | 885027 | Valve Bushing | € 19.24 | |
| Sicherungsring D4 (e-type) | ||||
| 34 | 968643 | Sicherungsring D4 (e-type) | € 1.86 | |
| Knopf Nt65ma3 | ||||
| 35 | 884334 | Knopf Nt65ma3 | € 1.57 | |
| Zylinder | ||||
| 36 | 886894 | Zylinder | € 127.76 | |
| O-ring(s-36) Dh50sa1 | ||||
| 37 | 984483 | O-ring(s-36) Dh50sa1 | € 1.57 | |
| Cylinder Plate | ||||
| 38 | 886895 | Cylinder Plate | € 10.57 | |
| O-ring (b) Dh50sa1/sb | ||||
| 39 | 985765 | O-ring (b) Dh50sa1/sb | € 1.86 | |
| Ring | ||||
| 40 | 881244 | Ring | € 9.57 | |
| Ring Voor Schacht | ||||
| 41 | 886669 | Ring Voor Schacht | € 1.71 | |
| Gehäuse | ||||
| 42 | 886893 | Gehäuse | € 95.82 | |
| Warnschild Nv50af3, Nr90aa | ||||
| 43 | 883513 | Warnschild Nv50af3, Nr90aa | € 1.57 | |
| Hitachi Label N 5024a2 | ||||
| 44 | 886342 | Hitachi Label N 5024a2 | € 1.71 | |
| Piston Bumper | ||||
| 45 | 886882 | Piston Bumper | € 14.27 | |
| O-ring (s-34) H90sa/vb13y/vrv16 H45mr | ||||
| 46 | 980879 | O-ring (s-34) H90sa/vb13y/vrv16 H45mr | € 1.00 | |
| Neusstuk | ||||
| 47 | 886883 | Neusstuk | € 255.39 | |
| Wisselknop | ||||
| 48 | 887124 | Wisselknop | € 3.28 | |
| Arretierfeder Nv65aj | ||||
| 49 | 882923 | Arretierfeder Nv65aj | € 1.71 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 50 | 959148 | Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | € 1.00 | |
| Nicht mehr lieferbar | ||||
| 51 | 949498 | Nicht mehr lieferbar | ||
| Schiebearm (b) Nv75ag | ||||
| 52 | 883144 | Schiebearm (b) Nv75ag | € 44.51 | |
| Schiebearm Nv75ag | ||||
| 53 | 883143 | Schiebearm Nv75ag | € 1.57 | |
| Toevoermechanisme | ||||
| 54 | 886886 | Toevoermechanisme | € 23.82 | |
| Spindel (b) | ||||
| 55 | 883093 | Spindel (b) | € 3.14 | |
| Inbusschraube M7x25 M.flansch Selbstsichernd | ||||
| 56 | 993040 | Inbusschraube M7x25 M.flansch Selbstsichernd | € 2.28 | |
| Nagelführungshülse Nv75ag | ||||
| 57 | 883091 | Nagelführungshülse Nv75ag | € 7.43 | |
| Pushing Lever Cover (b) | ||||
| 58 | 883113 | Pushing Lever Cover (b) | € 4.86 | |
| Pushing Lever (a) | ||||
| 59 | 886892 | Pushing Lever (a) | € 101.71 | |
| Neus Kap (a) | ||||
| 60 | 886889 | Neus Kap (a) | € 3.28 | |
| O-ring (i.d.37.2.) Nv38ab/nv65ad2 | ||||
| 61 | 880183 | O-ring (i.d.37.2.) Nv38ab/nv65ad2 | € 1.00 | |
| Cap (gold) | ||||
| 62 | 886426 | Cap (gold) | € 19.24 | |
| Stofkapje | ||||
| 63 | 877914 | Stofkapje | € 1.86 | |
| Air Plug L-pt 1/4 | ||||
| 64 | 883135 | Air Plug L-pt 1/4 | € 14.27 | |
| Trigger Piece (c) | ||||
| 65 | 886626 | Trigger Piece (c) | € 1.71 | |
| Trigger Spring | ||||
| 66 | 886627 | Trigger Spring | € 1.71 | |
| Schalter | ||||
| 68 | 886623 | Schalter | € 3.28 | |
| Druckfeder Nv65aj | ||||
| 69 | 883759 | Druckfeder Nv65aj | € 3.14 | |
| Pushing Lever Guide | ||||
| 70 | 886047 | Pushing Lever Guide | € 17.41 | |
| Roll Pin D1.6x10 | ||||
| 71 | 886228 | Roll Pin D1.6x10 | € 1.71 | |
| Rollstift D2,5x16 | ||||
| 72 | 881951 | Rollstift D2,5x16 | € 1.71 | |
| Schiebehebelfeder (b) Nv90ab2 | ||||
| 73 | 883302 | Schiebehebelfeder (b) Nv90ab2 | € 1.57 | |
| Schiebehebelfeder (a)) Nv90ab2 | ||||
| 74 | 883305 | Schiebehebelfeder (a)) Nv90ab2 | € 1.43 | |
| Druckhebel (c) Nv65aj | ||||
| 75 | 882891 | Druckhebel (c) Nv65aj | € 17.28 | |
| Justierung | ||||
| 76 | 882889 | Justierung | € 3.28 | |
| Rollstift D2x16 | ||||
| 77 | 880093 | Rollstift D2x16 | € 0.99 | |
| Justierfeder Nv65aj | ||||
| 78 | 882890 | Justierfeder Nv65aj | € 1.57 | |
| Justierungsplatte (c) Nr90ae | ||||
| 79 | 884973 | Justierungsplatte (c) Nr90ae | € 1.57 | |
| Justierungsplatte (a) Nv65aj | ||||
| 80 | 882886 | Justierungsplatte (a) Nv65aj | € 3.14 | |
| O-RING (S-4) | ||||
| 81 | 981317 | O-RING (S-4) | € 1.00 | |
| Pushing Lever (b) | ||||
| 82 | 886043 | Pushing Lever (b) | € 17.15 | |
| O-ring (s-5) Nc65a | ||||
| 83 | 872822 | O-ring (s-5) Nc65a | € 2.86 | |
| Sicherungsring (e-typ) D3 Till 6.1998 | ||||
| 84 | 872971 | Sicherungsring (e-typ) D3 Till 6.1998 | € 1.00 | |
| Pin D2x8 (10 Pcs) | ||||
| 85 | 949778 | Pin D2x8 (10 Pcs) | € 1.71 | |
| O-ring (s-14) Dh15dv/dh20dv/vtv16 | ||||
| 86 | 876319 | O-ring (s-14) Dh15dv/dh20dv/vtv16 | € 1.57 | |
| O-ring (s-16) Fcj55v | ||||
| 87 | 876031 | O-ring (s-16) Fcj55v | € 1.57 | |
| Valve Bushing (b) | ||||
| 88 | 886910 | Valve Bushing (b) | € 19.77 | |
| O-ring (p7-u) | ||||
| 89 | 883105 | O-ring (p7-u) | € 3.28 | |
| O-ring (p9-u) | ||||
| 90 | 883104 | O-ring (p9-u) | € 3.28 | |
| Valve Piston | ||||
| 91 | 883101 | Valve Piston | € 28.80 | |
| O-ring (1ap-11) Nc65ab | ||||
| 92 | 878764 | O-ring (1ap-11) Nc65ab | € 0.99 | |
| Plunger Spring | ||||
| 93 | 883103 | Plunger Spring | € 1.71 | |
| O-ring (i.d. 1.8) | ||||
| 94 | 883405 | O-ring (i.d. 1.8) | € 4.86 | |
| O-ring (1ap-5) | ||||
| 96 | 873407 | O-ring (1ap-5) | € 0.99 | |
| O-ring (s-6) C8fc | ||||
| 97 | 997218 | O-ring (s-6) C8fc | € 1.00 | |
| Valve Bushing (a) | ||||
| 98 | 883099 | Valve Bushing (a) | € 7.71 | |
| Rollstift D3x28 (10st), Nr90aa | ||||
| 100 | 949865 | Rollstift D3x28 (10st), Nr90aa | € 2.43 | |
| Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | ||||
| 101 | 959148 | Stahlkugel D3.175 (10st) (alte Art.nr.939270) Wh1 | € 1.00 | |
| Arretierfeder Nv65aj | ||||
| 102 | 882923 | Arretierfeder Nv65aj | € 1.71 | |
| Lock Knob | ||||
| 103 | 886727 | Lock Knob | € 3.28 | |
| Maschinenschraube M5x25 G12se/u.a | ||||
| 105 | 880734 | Maschinenschraube M5x25 G12se/u.a | € 0.99 | |
| O-ring (1ap-3) Nv32ab/nv45ab | ||||
| 106 | 873093 | O-ring (1ap-3) Nv32ab/nv45ab | € 1.00 | |
| O-ring (1p-9) Dh20v | ||||
| 107 | 872645 | O-ring (1p-9) Dh20v | € 1.57 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 108 | 877763 | FEED PISTON O-RING (I.D.14) | € 1.00 | |
| Feed Piston | ||||
| 109 | 883094 | Feed Piston | € 20.94 | |
| Veer (a) | ||||
| 110 | 883095 | Veer (a) | € 1.71 | |
| Veer (b) | ||||
| 111 | 883096 | Veer (b) | € 1.71 | |
| Bumper | ||||
| 112 | 885681 | Bumper | € 7.00 | |
| Feed Piston Cover | ||||
| 113 | 883098 | Feed Piston Cover | € 3.28 | |
| Sicherungsring D24 Nv38ab/dh30pc H30pv | ||||
| 114 | 983748 | Sicherungsring D24 Nv38ab/dh30pc H30pv | € 1.00 | |
| Hex. Socket Hd. Bolt M5x22 | ||||
| 115 | 883368 | Hex. Socket Hd. Bolt M5x22 | € 1.71 | |
| Nose Bumper | ||||
| 116 | 887131 | Nose Bumper | € 4.86 | |
| Sicherungsring Nv50ag | ||||
| 117 | 880319 | Sicherungsring Nv50ag | € 1.57 | |
| Nose Sleeve | ||||
| 118 | 887122 | Nose Sleeve | € 1.71 | |
| Nose Shaft | ||||
| 119 | 887125 | Nose Shaft | € 3.28 | |
| Urethane Shaft | ||||
| 120 | 887132 | Urethane Shaft | € 4.86 | |
| Feder | ||||
| 121 | 886888 | Feder | € 4.86 | |
| Nose Piece (a) | ||||
| 122 | 886887 | Nose Piece (a) | € 26.18 | |
| Urethane Shaft | ||||
| 123 | 887130 | Urethane Shaft | € 5.43 | |
| Feder Nv50ag u.a. | ||||
| 124 | 880446 | Feder Nv50ag u.a. | € 1.29 | |
| Führung | ||||
| 125 | 886884 | Führung | € 49.35 | |
| Nagelstopper Nv75ag | ||||
| 126 | 883085 | Nagelstopper Nv75ag | € 30.37 | |
| Stopperfeder (a) Nv75ag | ||||
| 127 | 883088 | Stopperfeder (a) Nv75ag | € 1.57 | |
| Nagelstopper (b) Nv75ag | ||||
| 128 | 883086 | Nagelstopper (b) Nv75ag | € 3.14 | |
| Stopperfeder (b) Nv75ag | ||||
| 129 | 883087 | Stopperfeder (b) Nv75ag | € 1.57 | |
| Nagelführungsabdeckung Nv75ag | ||||
| 130 | 883089 | Nagelführungsabdeckung Nv75ag | € 4.14 | |
| Abdeckung (1) | ||||
| 131 | 886885 | Abdeckung (1) | € 6.43 | |
| Hülse (b) Nv65aj | ||||
| 132 | 882881 | Hülse (b) Nv65aj | € 3.14 | |
| Inbusschraube M4x12 Dh40ma/mb/yb/ | ||||
| 133 | 880630 | Inbusschraube M4x12 Dh40ma/mb/yb/ | € 1.00 | |
| Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
| 134 | 877371 | Nylonmutter M5 Nv83a/nr83a, Nr90aa | € 1.00 | |
| Huelse (1) | ||||
| 135 | 882907 | Huelse (1) | € 3.14 | |
| Pushing Lever Cover (a) | ||||
| 136 | 886891 | Pushing Lever Cover (a) | € 4.86 | |
| Magazin | ||||
| 137 | 886906 | Magazin | € 13.99 | |
| Waarschuwings Label | ||||
| 139 | 887175 | Waarschuwings Label | € 4.86 | |
| Stift (1) | ||||
| 140 | 883111 | Stift (1) | € 9.28 | |
| Schiebehülsenring Nv83a/nv45ab | ||||
| 141 | 877826 | Schiebehülsenring Nv83a/nv45ab | € 2.43 | |
| Magazijn Deksel | ||||
| 142 | 886907 | Magazijn Deksel | € 10.57 | |
| Haltekappe (a) Nv90af | ||||
| 144 | 881003 | Haltekappe (a) Nv90af | € 2.28 | |
| Nagelhalter Nv65ad2 | ||||
| 145 | 880503 | Nagelhalter Nv65ad2 | € 8.85 | |
| Feder Nv50ae | ||||
| 146 | 880398 | Feder Nv50ae | € 7.28 | |
| Unterlegscheibe M4 (10st) | ||||
| 147 | 949423 | Unterlegscheibe M4 (10st) | € 1.00 | |
| Tapping Screw D3x10 (w/washer) | ||||
| 148A | 995481 | Tapping Screw D3x10 (w/washer) | € 0.99 | |
| Holder Shaft | ||||
| 149 | 887123 | Holder Shaft | € 9.85 | |
| Feder (1) | ||||
| 150 | 881826 | Feder (1) | € 1.00 | |
| Waarschuwings Label | ||||
| 152 | 887174 | Waarschuwings Label | € 4.86 | |
| Magazine Ass'y | ||||
| 154 | 887317 | Magazine Ass'y | € 69.77 | |
| Trigger Parts Set (old 886621+886624+886625) | ||||
| 155 | 888727 | Trigger Parts Set (old 886621+886624+886625) | € 16.49 | |
| Nicht mehr lieferbar | ||||
| 501 | 883136 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 502 | 875769 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 503 | 886432 | Nicht mehr lieferbar | ||
| Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | ||||
| 601 | 881768 | Griffband (a) Nv50ae u.a. Alte Art.nr.880349, Nr9 | € 5.00 | |
| Nicht mehr lieferbar | ||||
| 602A | 888213 | Nicht mehr lieferbar | ||
| Nicht mehr lieferbar | ||||
| 603 | 876212 | Nicht mehr lieferbar | ||
| Single Sequential Actuation Mechanism Kit | ||||
| 604 | 887951 | Single Sequential Actuation Mechanism Kit | € 345.31 | |
| Hanger Parts Set | ||||
| 605 | 888097 | Hanger Parts Set | € 469.28 | |
Es befinden sich 0 Artikel in Ihrem Einkaufswagen.
