Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki NT50GS'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

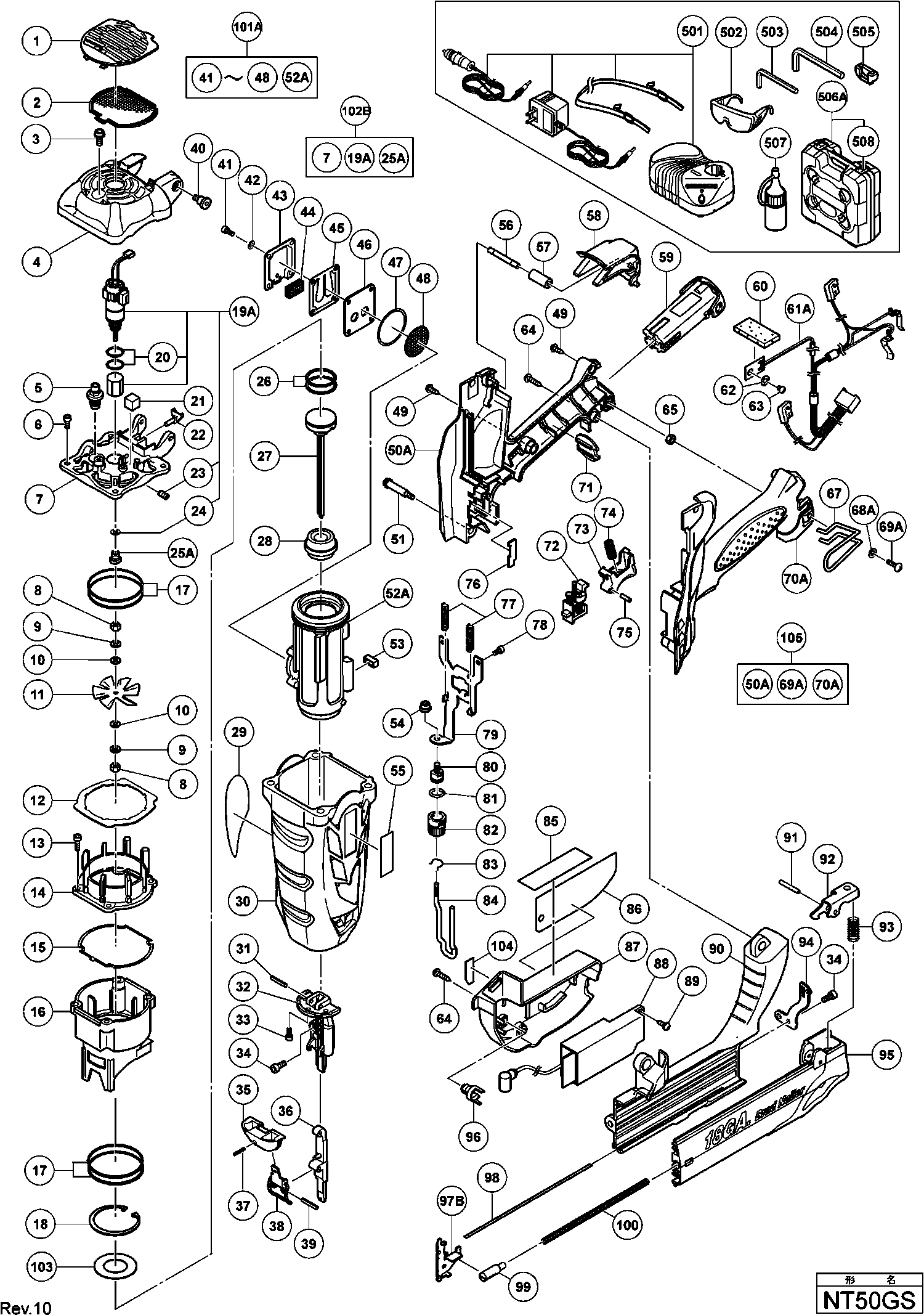

Zeichnungen der Hikoki NT50GS
Teileliste der Hikoki NT50GS
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Filterabdeckung Nt65gs B#9r192230 | ||||
| 1 | 886664 | 1.05 | 1.25 | |
| Filter | ||||
| 2 | 886344 | 10.20 | 12.14 | |
| Boutje M5x10 | ||||
| 3 | 886347 | 1.05 | 1.25 | |
| Top Cover | ||||
| 4 | 886335 | 3.15 | 3.75 | |
| Zündkerze (a) Nr90gc | ||||
| 5 | 885333 | 3.30 | 3.93 | |
| Inbusschraube M4x12 Dh40ma/mb/yb/ | ||||
| 6 | 880630 | 1.05 | 1.25 | |
| Cylinder Deksel | ||||
| 7 | 886661 | 20.90 | 24.87 | |
| Mutter M3 (10 Stück) | ||||
| 8 | 949553 | 1.04 | 1.23 | |
| Federscheibe M3 (10st) Cr 10dl Since 9.2012 For E | ||||
| 9 | 949451 | 1.05 | 1.25 | |
| Ring M3 (10 Stuks) | ||||
| 10 | 949422 | 1.04 | 1.23 | |
| Luefter | ||||
| 11 | 886309 | 2.10 | 2.50 | |
| Rubberen Pakking | ||||
| 12 | 886568 | 1.05 | 1.25 | |
| Inbusschraube M4x16 (10st) | ||||
| 13 | 949754 | 2.40 | 2.86 | |
| Abdeckung | ||||
| 14 | 886295 | 9.15 | 10.89 | |
| Pakkingpakking | ||||
| 15 | 886296 | 1.05 | 1.25 | |
| Kamer | ||||
| 16 | 886297 | 10.65 | 12.67 | |
| Zuigerring | ||||
| 17 | 886312 | 2.10 | 2.50 | |
| Veerring D40 | ||||
| 18 | 886298 | 1.05 | 1.25 | |
| Motor | ||||
| 19A | 887446 | 104.50 | 124.36 | |
| O-ring (s-12) Dv20v1/cs35b/u.a. Vb16y | ||||
| 20 | 875638 | 1.65 | 1.96 | |
| Dichtung | ||||
| 21 | 886315 | 1.05 | 1.25 | |
| Adapter | ||||
| 22 | 886313 | 1.05 | 1.25 | |
| Inbusstelschroef M4x5 | ||||
| 23 | 886314 | 1.05 | 1.25 | |
| Gummiring (1) | ||||
| 24 | 886567 | 1.05 | 1.25 | |
| Abdeckung | ||||
| 25A | 887890 | 2.10 | 2.50 | |
| Zuigerring | ||||
| 26 | 886848 | 5.63 | 6.69 | |
| Piston | ||||
| 27 | 886839 | 22.83 | 27.16 | |
| Piston Bumper | ||||
| 28 | 886851 | 2.10 | 2.50 | |
| Nicht mehr lieferbar | ||||
| 29 | 888752 | |||
| Gehäuse | ||||
| 30 | 886855 | 16.36 | 19.47 | |
| Stift (1) | ||||
| 31 | 886310 | 1.05 | 1.25 | |
| Führung | ||||
| 32 | 886840 | 24.68 | 29.36 | |
| Seal Lock Hd. Inbusbout M4x12 | ||||
| 33 | 886311 | 1.05 | 1.25 | |
| Inbusschraube M4x10 Selbstsich. | ||||
| 34 | 880413 | 1.05 | 1.25 | |
| Abdeckkappe | ||||
| 35 | 886570 | 2.10 | 2.50 | |
| Führungsplatte | ||||
| 36 | 886841 | 14.30 | 17.02 | |
| Rollstift D3x10 (10st) | ||||
| 37 | 949776 | 2.40 | 2.86 | |
| Arretierung | ||||
| 38 | 886843 | 3.15 | 3.75 | |
| Rollstift D3x16 (10st) | ||||
| 39 | 949496 | 1.65 | 1.96 | |
| Bout M5 | ||||
| 40 | 886566 | 1.05 | 1.25 | |
| Seal Lock Hd. Inbusbout M4x8 | ||||
| 41 | 886307 | 1.05 | 1.25 | |
| Veer H8 | ||||
| 42 | 886319 | 1.05 | 1.25 | |
| Buffer Cover | ||||
| 43 | 886287 | 4.20 | 5.00 | |
| Muffler | ||||
| 44 | 886288 | 2.10 | 2.50 | |
| Dichtung | ||||
| 45 | 886290 | 3.15 | 3.75 | |
| Buffer Plate | ||||
| 46 | 886293 | 2.10 | 2.50 | |
| O-RING | ||||
| 47 | 886294 | 1.05 | 1.25 | |
| Plaatgaas | ||||
| 48 | 886292 | 3.30 | 3.93 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 49 | 305812 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 50A | 886317 | |||
| Bout M4x32 | ||||
| 51 | 886565 | 1.05 | 1.25 | |
| Zylinder | ||||
| 52A | 887356 | 36.10 | 42.96 | |
| RUBBER | ||||
| 53 | 886285 | 1.05 | 1.25 | |
| Nylonmutter M5 Nv83a/nr83a, Nr90aa | ||||
| 54 | 877371 | 1.05 | 1.25 | |
| Hitachi Label N 5024a2 | ||||
| 55 | 886342 | 1.80 | 2.14 | |
| Stift (1) | ||||
| 56 | 886332 | 1.05 | 1.25 | |
| Gummibuchse | ||||
| 57 | 886333 | 1.05 | 1.25 | |
| Kapje | ||||
| 58 | 886326 | 2.10 | 2.50 | |
| Nicht mehr lieferbar | ||||
| 59 | 326263 | |||
| Nicht mehr lieferbar | ||||
| 59 | 326299 | |||
| Halter | ||||
| 60 | 886316 | 1.05 | 1.25 | |
| Verbinderkabel | ||||
| 61A | 887635 | 72.19 | 85.90 | |
| Unterlegscheibe M4 (10st) | ||||
| 62 | 949423 | 1.05 | 1.25 | |
| Schraube M4x10 Sv12sg | ||||
| 63 | 324082 | 1.65 | 1.96 | |
| Schneidschraubed4x20 M.flansch (schwarz) Cg18dal, | ||||
| 64 | 302086 | 1.05 | 1.25 | |
| Moer M4 ( Zwart) | ||||
| 65 | 886330 | 1.05 | 1.25 | |
| Haken | ||||
| 67 | 886345 | 3.15 | 3.75 | |
| Ring | ||||
| 68A | 887036 | 1.05 | 1.25 | |
| Schroef M4x25 Zwart | ||||
| 69A | 887034 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 70A | 886323 | |||
| Kontakthalter Db3dl B#9r192292 | ||||
| 71 | 326316 | 1.05 | 1.25 | |
| Trigger Stopper | ||||
| 72 | 886552 | 3.15 | 3.75 | |
| Schalter | ||||
| 73 | 886327 | 1.05 | 1.25 | |
| Trigger Spring | ||||
| 74 | 886328 | 1.05 | 1.25 | |
| Stift D3x20 (10st) | ||||
| 75 | 949890 | 1.80 | 2.14 | |
| Abdeckplatte | ||||
| 76 | 886324 | 1.05 | 1.25 | |
| VEER | ||||
| 77 | 886301 | 1.05 | 1.25 | |
| Seal Lock Hd. Inbusbout M4x10 | ||||
| 78 | 886308 | 1.05 | 1.25 | |
| Pushing Lever Arm | ||||
| 79 | 886856 | 8.33 | 9.91 | |
| Pushing Lever Piece | ||||
| 80 | 887035 | 3.15 | 3.75 | |
| O-ring (s-8)dh20v/dh24pb/pd/ Dh20pb | ||||
| 81 | 992912 | 1.05 | 1.25 | |
| Justierung | ||||
| 82 | 886338 | 2.10 | 2.50 | |
| Sperrfeder Nt65gs | ||||
| 83 | 886331 | 1.05 | 1.25 | |
| Pushing Lever | ||||
| 84 | 886852 | 4.65 | 5.53 | |
| WARNING LABEL | ||||
| 86 | 888774 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 87 | 886844 | |||
| Regler | ||||
| 88 | 886320 | 72.33 | 86.07 | |
| SCHROEF MET FLENS D4X12 (ZWART) | ||||
| 89 | 325083 | 1.65 | 1.96 | |
| Magazin Zsb | ||||
| 90 | 886845 | 22.83 | 27.16 | |
| Spannstift D3x20 (10st) Nv90af | ||||
| 91 | 949685 | 2.55 | 3.03 | |
| Anschlaghebel Neu Nt50ae2 B#9r192334 | ||||
| 92 | 885894 | 1.05 | 1.25 | |
| Feder Neu Nt50ae2 B#9r192341 | ||||
| 93 | 885895 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 94 | 886842 | |||
| Magazine Cover | ||||
| 95 | 886849 | 14.78 | 17.58 | |
| Prisma | ||||
| 96 | 886322 | 1.05 | 1.25 | |
| Spijkervoeding | ||||
| 97B | 887995 | 2.10 | 2.50 | |
| Nagelschiene Nt50ae2 B#9r192345 | ||||
| 98 | 885898 | 1.05 | 1.25 | |
| Schiebestück Neu Nt50ae2 B#9r192346 | ||||
| 99 | 885899 | 1.05 | 1.25 | |
| Schiebefeder (neu) Nt50ae2 B#9r192347 | ||||
| 100 | 885900 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 101A | 887387 | |||
| Cylinder Deksel Kompleet | ||||
| 102B | 887891 | 138.74 | 165.10 | |
| Cylinder Plate | ||||
| 103 | 887032 | 1.05 | 1.25 | |
| Caution Label | ||||
| 104 | 887415 | 1.20 | 1.43 | |
| Handgreep Set (oud 886317+886323) | ||||
| 105 | 331424 | 18.15 | 21.60 | |
| Nicht mehr lieferbar | ||||
| 502 | 875769 | |||
| Nicht mehr lieferbar | ||||
| 503 | 943277 | |||
| Nicht mehr lieferbar | ||||
| 504 | 944458 | |||
| Neuskap | ||||
| 505 | 886846 | 1.65 | 1.96 | |
| Nicht mehr lieferbar | ||||
| 506A | 886857 | |||
| Nicht mehr lieferbar | ||||
| 507 | 886036 | |||
| Hebel | ||||
| 508 | 887996 | 1.20 | 1.43 | |
