Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki H70SA'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

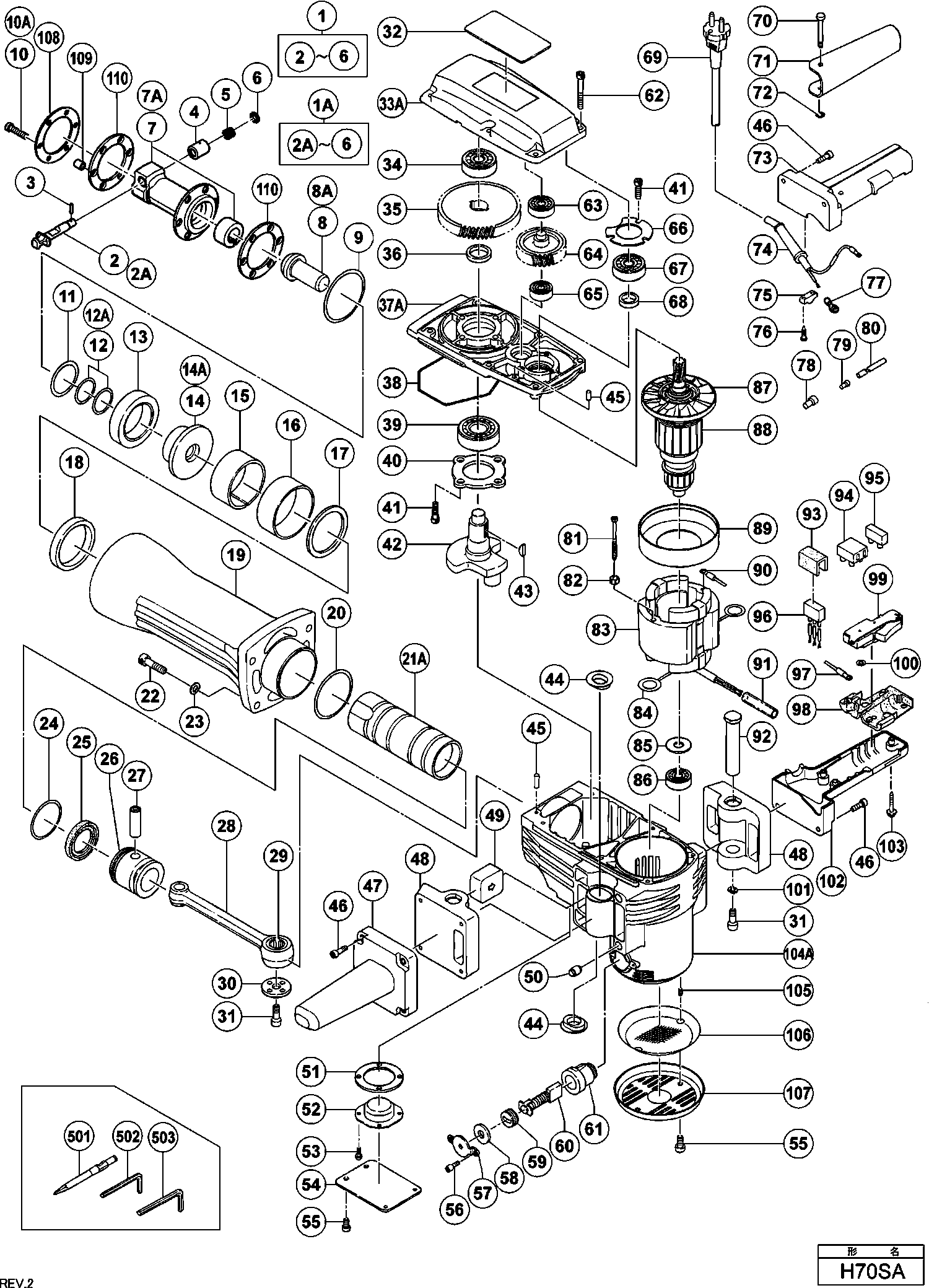

Zeichnungen der Hikoki H70SA
Teileliste der Hikoki H70SA
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Anschlaghebel Komplett H70sa Includ.73a,74,75a,77 | ||||
| 1 | 318656 | 73.01 | 86.88 | |
| Anschlaghebel H65sb2 Includ.2a-6 Since 7.2005 | ||||
| 1A | 323747 | 64.21 | 76.41 | |
| Anschlaghebel H65sb2 Since 7.2005 | ||||
| 2A | 323748 | 43.86 | 52.20 | |
| BEITELPAL | ||||
| 2 | 998423 | 40.84 | 48.60 | |
| Nadelrolle H65sb/h70sa Nzl) | ||||
| 3 | 998426 | 1.05 | 1.25 | |
| Federhülse H65sb/h70sa Since 11.1987 (since 10.19 | ||||
| 4 | 998424 | 13.05 | 15.53 | |
| Anschlagfeder H65sb/h70sa | ||||
| 5 | 956975 | 1.65 | 1.96 | |
| AFSLUITDOP | ||||
| 6 | 998425 | 4.50 | 5.36 | |
| Vordergehäuse kpl. H65sb2 Since 7.2005 | ||||
| 7A | 323733 | 335.36 | 399.08 | |
| Vorderdeckel H65sb/h70sa Till 6.2005 | ||||
| 7 | 998435 | 285.73 | 340.01 | |
| Zweithammer H65sb2 Since 7.2005 | ||||
| 8A | 323732 | 64.21 | 76.41 | |
| Zweithammer H65sb/h70sa Till 6.2005 | ||||
| 8 | 998420 | 35.06 | 41.72 | |
| O-ring (c) H65sb/sd/h70sa | ||||
| 9 | 998428 | 2.40 | 2.86 | |
| Inbusschraube M8x30 Selbstsich. Since 6.1981 | ||||
| 10 | 306437 | 1.35 | 1.61 | |
| Sechskantschraube M8x40 Since 7.2005 | ||||
| 10A | 323734 | 1.65 | 1.96 | |
| O-ring (b) H65sb/sd/h70sa | ||||
| 11 | 998427 | 1.65 | 1.96 | |
| O-RING (I.D.26.5) | ||||
| 12A | 323731 | 1.65 | 1.96 | |
| O-ring (e) H65sb/sd/h70sa (till 6.2005) | ||||
| 12 | 998419 | 1.05 | 1.25 | |
| Dämpfer (a) H65sb/sd/h70sa | ||||
| 13 | 998433 | 14.70 | 17.49 | |
| ASBUS | ||||
| 14A | 323730 | 35.06 | 41.72 | |
| Schaftbuchse H65sb/sd/h70sa (till 6.2005) | ||||
| 14 | 998418 | 29.29 | 34.85 | |
| MOND | ||||
| 15 | 956963 | 32.18 | 38.29 | |
| Ringabdeckung H65sb/sd/h70sa | ||||
| 16 | 956962 | 2.40 | 2.86 | |
| U-scheibe H65sb/sd/h70sa | ||||
| 17 | 956961 | 2.40 | 2.86 | |
| Urethanring H65sb/sd/h70sa | ||||
| 18 | 956960 | 9.30 | 11.07 | |
| Nicht mehr lieferbar | ||||
| 19 | 319359 | |||
| O-ring (1as-60) Div.typen, Nr90aa Since 9.1979 | ||||
| 20 | 956996 | 3.00 | 3.57 | |
| Anschläger H65sb2 | ||||
| 21A | 323724 | 151.66 | 180.48 | |
| Anschläger H65sb/sd/h70sa | ||||
| 21 | 956958 | 93.36 | 111.10 | |
| Inbusschraube M8x35 Selbstsich. Since 9.1979 | ||||
| 22 | 306163 | 1.35 | 1.61 | |
| Unterlegscheibe M8 (10st), C8fshe, C8fse | ||||
| 23 | 949433 | 1.05 | 1.25 | |
| O-RING (A) | ||||
| 24 | 998414 | 11.85 | 14.10 | |
| OLIE KEERRING | ||||
| 25 | 998415 | 7.35 | 8.75 | |
| Kolben | ||||
| 26 | 998413 | 67.10 | 79.85 | |
| Stift (1) | ||||
| 27 | 944928 | 13.80 | 16.42 | |
| Stange | ||||
| 28 | 998434 | 46.75 | 55.63 | |
| Nadellager(ntn8e-nk18/20rdo) | ||||
| 29 | 944921 | 19.39 | 23.07 | |
| U-scheibe Kurbelwelle H65sb/sd H70sa | ||||
| 30 | 956955 | 3.30 | 3.93 | |
| Inbusschraube M8x16 Selbstsich. | ||||
| 31 | 996364 | 1.05 | 1.25 | |
| Tandwielhuis (oud 319360) | ||||
| 33A | 336267 | 70.81 | 84.27 | |
| Kugellager 6302vv, Cm9uby, G23ss | ||||
| 34 | 6302VV | 9.30 | 11.07 | |
| Zahnrad H65sb/sd/h70sa | ||||
| 35 | 944916 | 49.64 | 59.07 | |
| Abstandscheibe (b) H65sb/sd/h70sa | ||||
| 36 | 944915 | 3.60 | 4.28 | |
| Tandwielhuisdeksel H65sc Metalliek Zilver Groen | ||||
| 37A | 332181 | 33.41 | 39.76 | |
| Dichtungsring (a) H65sb/sd/h70sa Since 4.1984 | ||||
| 38 | 957143 | 3.30 | 3.93 | |
| Kugellager 6205 Dd | ||||
| 39 | 6205DD | 10.35 | 12.32 | |
| Lagerdeckel H65sb/sd/h70sa | ||||
| 40 | 956949 | 1.65 | 1.96 | |
| Inbusschraube M5x16 Selbstsich. | ||||
| 41 | 990079 | 1.05 | 1.25 | |
| Kurbelwelle | ||||
| 42 | 998430 | 73.01 | 86.88 | |
| Halbmondkeil 4x16 H65sb/sd/h70sa Since 10.1981 | ||||
| 43 | 956850 | 1.05 | 1.25 | |
| Dämpfer (b) H90se/h70sa | ||||
| 44 | 318655 | 8.40 | 10.00 | |
| Rollstift D5x15,8 H65sb/sd/h70sa | ||||
| 45 | 944918 | 1.05 | 1.25 | |
| Inbusschraube M6x30 Selbstsich. | ||||
| 46 | 993496 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 47 | 305633 | |||
| Handgriffhalter H70sa | ||||
| 48 | 319365 | 69.99 | 83.29 | |
| Handgriffdämpfer (b) H70sa | ||||
| 49 | 319364 | 7.65 | 9.10 | |
| Handgriffdämpfer H41sa/h45ma u.a. H70sa/h45mr | ||||
| 50 | 310124 | 4.20 | 5.00 | |
| Dichtung | ||||
| 51 | 956969 | 1.05 | 1.25 | |
| Halter (1) | ||||
| 52 | 998416 | 3.00 | 3.57 | |
| Kopfschraube M4x12 M.federring Selbstsichernd | ||||
| 53 | 987203 | 1.05 | 1.25 | |
| Abdeckplatte | ||||
| 54 | 998417 | 3.30 | 3.93 | |
| Inbusschraube M5x12 Selbstsich. 2.1996 For Cover | ||||
| 55 | 991690 | 1.05 | 1.25 | |
| Inbusschraube M4x12 Selbsts. For Switch Holder (t | ||||
| 56 | 983162 | 1.05 | 1.25 | |
| Kappendeckel H65sb/sd/h70sa | ||||
| 57 | 956972 | 1.05 | 1.25 | |
| Kappengummi H65sb/sd/h70sa | ||||
| 58 | 944960 | 1.05 | 1.25 | |
| Kohlenkappe C13u/m12v/div.typen H70sa | ||||
| 59 | 940540 | 1.04 | 1.23 | |
| Abschaltkohlebürsten (paar) | ||||
| 60 | 999086 | 15.26 | 18.16 | |
| Kohlekasten Zsb | ||||
| 61 | 956984 | 9.60 | 11.42 | |
| Inbusschraube M6x45 Selbstsich. | ||||
| 62 | 986940 | 1.05 | 1.25 | |
| Kugellager 6201 Vv | ||||
| 63 | 6201VV | 6.45 | 7.68 | |
| Gegenzahnrad H65sb/sd/h70sa | ||||
| 64 | 956948 | 28.88 | 34.36 | |
| Kugellager 6001 Vv | ||||
| 65 | 6001VV | 6.60 | 7.85 | |
| Lagerdeckel (a) H65sb/sd/h70sa | ||||
| 66 | 944911 | 1.05 | 1.25 | |
| Kugellager 6203 Dd | ||||
| 67 | 6203DD | 7.65 | 9.10 | |
| Distanzring (a) H65sb/sd/h70sa | ||||
| 68 | 944907 | 2.40 | 2.86 | |
| Kabel G23ss (cord Armor D8.8) For Gbr (230v) | ||||
| 69 | 500450Z | 31.63 | 37.63 | |
| Cord 3m 2 X 1,5 H07rn-f W/plug 16a Cee Form 2p+e F | ||||
| 69 | 500466Z | 38.50 | 45.82 | |
| Stift (1) | ||||
| 70 | 992870 | 5.25 | 6.25 | |
| Schalterhebel H90sc/se/h70sa | ||||
| 71 | 992869 | 8.70 | 10.35 | |
| Sicherungsring D4 (e-type) | ||||
| 72 | 968643 | 1.95 | 2.32 | |
| Handgriff (a) H90sc/se/h70sa | ||||
| 73 | 305636 | 19.39 | 23.07 | |
| Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
| 74 | 940778 | 2.10 | 2.50 | |
| Kabelknickschutz D8.2 Div.typen H41mb, G23ss | ||||
| 74 | 958049 | 1.04 | 1.23 | |
| Kabelklemme Div.typen, Cm9uby, G23ss | ||||
| 75 | 960266 | 1.04 | 1.23 | |
| Cord Clip | ||||
| 75 | 981987Z | 1.05 | 1.25 | |
| Schneidschraube D4x20 M.u-scheibe | ||||
| 76 | 982095 | 1.04 | 1.23 | |
| Kabelschuh M4.0 (10st) G23ss | ||||
| 77 | 930804 | 3.00 | 3.57 | |
| Anschlussklemme | ||||
| 77 | 980063 | 1.04 | 1.23 | |
| Verbinder 50092 (10st) Div.typen (usa, Can), C8fs | ||||
| 78 | 959141 | 3.75 | 4.46 | |
| Verbinder 50091 (10st) Div.typen | ||||
| 79 | 959140 | 3.30 | 3.93 | |
| Schneidschraube D5x65 (div.typen) | ||||
| 81 | 960251 | 1.05 | 1.25 | |
| Unterlegscheibe | ||||
| 82 | 956764 | 1.04 | 1.23 | |
| Stator Komplett 230v H70sa Includ.84 | ||||
| 83 | 340488E | 81.68 | 97.19 | |
| Kohlenhalterklemme H60ma/mb u.a. H70sa | ||||
| 84 | 945932 | 1.05 | 1.25 | |
| Lagerscheibe F30a/h65sb/sd u.a. H70sa | ||||
| 85 | 944954 | 1.05 | 1.25 | |
| Kugellager 6201 Dd, Cm5sb | ||||
| 86 | 6201DD | 6.30 | 7.50 | |
| Luefter | ||||
| 87 | 996370 | 14.03 | 16.69 | |
| ANKER 110-115 VOLT | ||||
| 88 | 360286C | 212.03 | 252.31 | |
| Anker 230v | ||||
| 88 | 360286E | 196.90 | 234.31 | |
| Anker 240v | ||||
| 88 | 360286F | 233.34 | 277.67 | |
| Luftleitring | ||||
| 89 | 306098 | 5.85 | 6.96 | |
| Verbinderkabel Dh20v/dh25v u.a. H70sa For Sui,gbr | ||||
| 90 | 986277 | 1.04 | 1.23 | |
| Rohr | ||||
| 91 | 319363 | 1.65 | 1.96 | |
| Nicht mehr lieferbar | ||||
| 92 | 319366 | |||
| HANDLE PIN | ||||
| 92A | 371932 | 12.75 | 15.17 | |
| Gummi | ||||
| 93 | 930153 | 1.04 | 1.23 | |
| Schraubklemme 2-reihig Div.typen, C8fshe, C8fse | ||||
| 94 | 958308Z | 5.55 | 6.60 | |
| Schraubklemme 1-reihig Div.typen Till 10.1999 For | ||||
| 95 | 938307 | 2.13 | 2.53 | |
| Kondensator Div.typen | ||||
| 96 | 994273 | 4.29 | 5.10 | |
| BEDRADING | ||||
| 97 | 981974 | 1.65 | 1.96 | |
| Nicht mehr lieferbar | ||||
| 98 | 990082 | |||
| Schalter Div. Bohr-meisselhämmer For Usa | ||||
| 99 | 992891 | 22.83 | 27.16 | |
| Unterlegscheibe M4 (10st) | ||||
| 100 | 949423 | 1.05 | 1.25 | |
| Nicht mehr lieferbar | ||||
| 101 | 319367 | |||
| Handgriff (b) H90sc/se/h70sa | ||||
| 102 | 305631 | 18.15 | 21.60 | |
| Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
| 103 | 301653 | 1.04 | 1.23 | |
| Gehäuse | ||||
| 104A | 336268 | 231.91 | 275.98 | |
| Inbusstiftschraube M5x8, C8fshe, C8fse, H41mb,g23 | ||||
| 105 | 938477 | 1.05 | 1.25 | |
| Staubfilter für H70sa | ||||
| 106 | 319362 | 6.45 | 7.68 | |
| Gehäuseabdeckung H65sb/sd/h70sa | ||||
| 107 | 306099 | 11.55 | 13.74 | |
| Dämpferplatte H65sb2 Since 7.2005 | ||||
| 108 | 323736 | 17.88 | 21.27 | |
| Ring | ||||
| 109 | 323737 | 4.80 | 5.71 | |
| Frontdämpder H65sb2 Since 7.2005 | ||||
| 110 | 323735 | 9.60 | 11.42 | |
| Nicht mehr lieferbar | ||||
| 501 | 944961 | |||
| Nicht mehr lieferbar | ||||
| 502 | 943277 | |||
| Nicht mehr lieferbar | ||||
| 503 | 872422 | |||
| Nicht mehr lieferbar | ||||
| 601 | 944962 | |||
| Nicht mehr lieferbar | ||||
| 602 | 944964 | |||
| Nicht mehr lieferbar | ||||
| 603 | 944966 | |||
| Nicht mehr lieferbar | ||||
| 604 | 944965 | |||
| Nicht mehr lieferbar | ||||
| 605 | 319298 | |||
| Reparatur-satz H65sb/h70sa Includ.4,9,10,11,17,19 | ||||
| 606 | 306441 | 102.16 | 121.57 | |
| Service Kit H70sa | ||||
| 606A | 324728 | 113.99 | 135.65 | |
| Vet (tube 30 Gram) | ||||
| 607 | 981840 | 8.40 | 10.00 | |
| Vet Tube 70 Gram | ||||
| 608 | 308471 | 12.75 | 15.17 | |
| Nicht mehr lieferbar | ||||
| 609 | 930035 | |||
| Vet (pot 500 Gram) | ||||
| 610 | 980927 | 73.01 | 86.88 | |
