Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Hikoki H45MEY'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

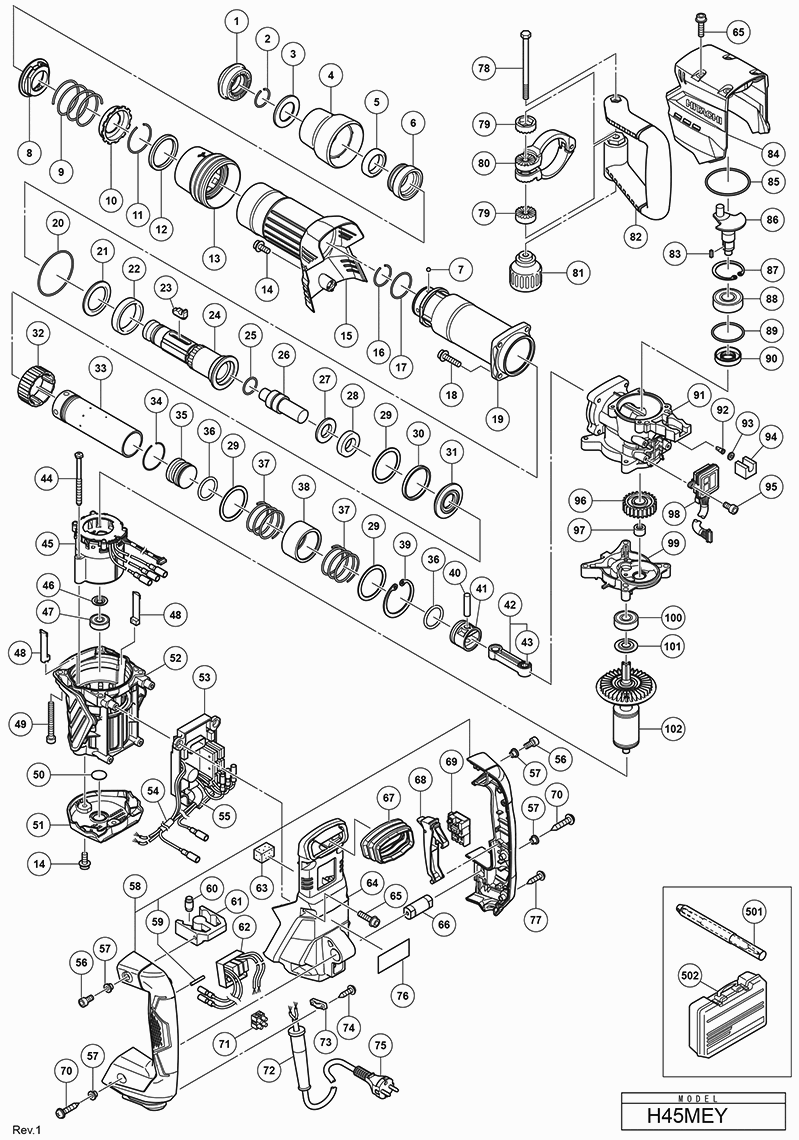

Zeichnungen der Hikoki H45MEY
Teileliste der Hikoki H45MEY
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Voorkap | ||||
| 1 | 337562 | 2.85 | 3.39 | |
| Stopring Dh50mb/dh40mr | ||||
| 2 | 318590 | 1.65 | 1.96 | |
| Retainer Washer | ||||
| 3 | 370172 | 1.95 | 2.32 | |
| Grip | ||||
| 4 | 370173 | 3.00 | 3.57 | |
| Retainer Damper (a) | ||||
| 5 | 339053 | 9.75 | 11.60 | |
| Bit Lock Holder | ||||
| 6 | 337558 | 7.35 | 8.75 | |
| Steel Ball D5 | ||||
| 7 | 370239 | 1.04 | 1.23 | |
| Spring Holder (a) | ||||
| 8 | 370242 | 10.35 | 12.32 | |
| Retainer Spring | ||||
| 9 | 370243 | 3.00 | 3.57 | |
| Spring Holder (b) | ||||
| 10 | 370244 | 1.95 | 2.32 | |
| Stop Ring H41mb | ||||
| 11 | 333255 | 1.04 | 1.23 | |
| Ball Holder | ||||
| 12 | 370240 | 3.00 | 3.57 | |
| Grip (b) | ||||
| 13 | 370241 | 2.40 | 2.86 | |
| Inbusschraube M5x12 | ||||
| 14 | 998471 | 1.05 | 1.25 | |
| Cylinder Case Cover | ||||
| 15 | 370238 | 7.80 | 9.28 | |
| Ring | ||||
| 16 | 320803 | 1.65 | 1.96 | |
| O-ring (s-35) | ||||
| 17 | 337664 | 1.04 | 1.23 | |
| Inbusschraube M6x25 M.flansch | ||||
| 18 | 991712 | 1.05 | 1.25 | |
| Cylinder Case | ||||
| 19 | 370226 | 34.24 | 40.74 | |
| O-ring (1as-60) Div.typen, Nr90aa Since 9.1979 | ||||
| 20 | 956996 | 3.00 | 3.57 | |
| Retainer Damper Holder | ||||
| 21 | 337549 | 3.90 | 4.64 | |
| Retainer Damper (b) | ||||
| 22 | 337548 | 1.80 | 2.14 | |
| Nicht mehr lieferbar | ||||
| 23 | 337554 | |||
| Bit Lock | ||||
| 23A | 370654 | 4.95 | 5.89 | |
| Retainer Sleeve | ||||
| 24 | 370227 | 43.45 | 51.71 | |
| O-ring (c) Dh45mr | ||||
| 25 | 324921 | 3.30 | 3.93 | |
| Second Hammer | ||||
| 26 | 370228 | 13.20 | 15.71 | |
| Damper Washer | ||||
| 27 | 370229 | 4.35 | 5.18 | |
| Damper | ||||
| 28 | 370259 | 9.15 | 10.89 | |
| Weight Washer | ||||
| 29 | 370230 | 1.20 | 1.43 | |
| Dämpfer (c) H45mry | ||||
| 30 | 326662 | 3.30 | 3.93 | |
| Damper Holder | ||||
| 31 | 370231 | 4.80 | 5.71 | |
| Cylinder Holder | ||||
| 32 | 370232 | 1.50 | 1.78 | |
| Zylinder | ||||
| 33 | 370233 | 16.50 | 19.64 | |
| Stopper Ring | ||||
| 34 | 370235 | 1.35 | 1.61 | |
| Striker | ||||
| 35 | 370234 | 6.15 | 7.32 | |
| O-ring Dh45mr | ||||
| 36 | 325297 | 3.30 | 3.93 | |
| Weight Spring | ||||
| 37 | 370236 | 2.70 | 3.21 | |
| Nicht mehr lieferbar | ||||
| 38 | 370237 | |||
| Retaining Ring For D52 Hole | ||||
| 39 | 967270 | 1.05 | 1.25 | |
| Kolbenpin Dh45mr | ||||
| 40 | 324917 | 4.80 | 5.71 | |
| Kolben | ||||
| 41 | 324915 | 6.45 | 7.68 | |
| Drijfstang (oud 338148) | ||||
| 42 | 339049 | 11.70 | 13.92 | |
| Nadellager | ||||
| 43 | 335303 | 4.35 | 5.18 | |
| Schneidschraube D5x55 | ||||
| 44 | 953174 | 1.04 | 1.23 | |
| Stator Sensor Pcb Set 220-240 Volt | ||||
| 45 | 340885E | 38.50 | 45.82 | |
| Stator Fet Pcb Set 100-127 Volt | ||||
| 45 | 340934 | 53.35 | 63.49 | |
| Lagerring | ||||
| 46 | 958915 | 1.04 | 1.23 | |
| Kugellager 629 Vvm | ||||
| 47 | 629VVM | 5.85 | 6.96 | |
| Distanzring (1) | ||||
| 48 | 339910 | 1.04 | 1.23 | |
| Inbusschraube M6x45 Selbstsich. | ||||
| 49 | 986940 | 1.05 | 1.25 | |
| Staubdichtung H41mb | ||||
| 50 | 333263 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 51 | 370002 | |||
| Gehaeuse (1) | ||||
| 52 | 370251 | 46.48 | 55.31 | |
| Controller 110-127 Volt | ||||
| 53 | 370249 | 101.20 | 120.43 | |
| Controller 220-240 Volt | ||||
| 53 | 370250 | 101.20 | 120.43 | |
| Vinyl Tube L50 | ||||
| 54 | 370074 | 1.04 | 1.23 | |
| Vinyl Tube L35 | ||||
| 55 | 370073 | 1.04 | 1.23 | |
| Inbusschraube M5x12 Selbstsich. 2.1996 For Cover | ||||
| 56 | 991690 | 1.05 | 1.25 | |
| Distanzbuchse | ||||
| 57 | 991711 | 1.05 | 1.25 | |
| Handle Set (a+b) | ||||
| 58 | 370258 | 21.18 | 25.20 | |
| Stift D3x20 (10st) | ||||
| 59 | 949890 | 1.80 | 2.14 | |
| Handgriffdämpfer H41sa/h45ma u.a. H70sa/h45mr | ||||
| 60 | 310124 | 4.20 | 5.00 | |
| Halter | ||||
| 61 | 310123 | 11.85 | 14.10 | |
| Filter Pcb Set 100-127 Volt | ||||
| 62 | 337585 | 10.35 | 12.32 | |
| Filter Pcb Set 220-240 Volt | ||||
| 62 | 337586 | 10.35 | 12.32 | |
| Sponge (b) New | ||||
| 63 | 338447 | 1.04 | 1.23 | |
| Back Cover | ||||
| 64 | 370246 | 8.70 | 10.35 | |
| Inbusschraube M5x16 M.flansch, Cm9uby, G23ss | ||||
| 65 | 994192 | 1.04 | 1.23 | |
| Handle Shaft | ||||
| 66 | 370253 | 1.04 | 1.23 | |
| Bellows | ||||
| 67 | 337591 | 3.00 | 3.57 | |
| Druecker (1) | ||||
| 68 | 370254 | 2.10 | 2.50 | |
| Schalter | ||||
| 69 | 337587 | 13.95 | 16.60 | |
| Schneidschraube D5x25 M.flansch (schwarz), C8fshe | ||||
| 70 | 305558 | 1.04 | 1.23 | |
| Schraubklemme 2-reihig Div.typen, C8fshe, C8fse | ||||
| 71 | 958308Z | 5.55 | 6.60 | |
| Kabelknickschutz D10.7 Div.typen, Cm9by, H41mb, G | ||||
| 72 | 940778 | 2.10 | 2.50 | |
| Kabelknickschutz D8.2 Div.typen H41mb, G23ss | ||||
| 72 | 958049 | 1.04 | 1.23 | |
| Kabelklemme Div.typen, Cm9uby, G23ss | ||||
| 73 | 960266 | 1.04 | 1.23 | |
| Nicht mehr lieferbar | ||||
| 74 | 984750 | |||
| AANSLUITSNOER 230 VOLT VOOR ENGELAND | ||||
| 75 | 500446Z | 40.84 | 48.60 | |
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 75 | 500465Z | 37.95 | 45.16 | |
| Schneidschraube D4x20 Mit Flansch (schwarz), C8fs | ||||
| 77 | 301653 | 1.04 | 1.23 | |
| Bout M8 | ||||
| 78 | 333228 | 4.35 | 5.18 | |
| Onderdeel Hangreep (b) | ||||
| 79 | 333202 | 1.05 | 1.25 | |
| Handle Holder | ||||
| 80 | 370247 | 14.16 | 16.85 | |
| Grip | ||||
| 81 | 333201 | 1.95 | 2.32 | |
| Seitengriff | ||||
| 82 | 333199 | 7.80 | 9.28 | |
| Keil 3x3x10 G13sc/g15sa u.a. | ||||
| 83 | 940533 | 1.20 | 1.43 | |
| Crank Cover | ||||
| 84 | 370256 | 9.45 | 11.25 | |
| Zylinder O-ring (b) I.d.55.9 Nv65 | ||||
| 85 | 876433 | 11.25 | 13.39 | |
| Crank Shaft | ||||
| 86 | 370225 | 22.69 | 27.00 | |
| Sicherungsring D40 Innen H41sa/h45ma/dh40mr | ||||
| 87 | 948391 | 1.65 | 1.96 | |
| Kugellager 6203 Dd | ||||
| 88 | 6203DD | 7.65 | 9.10 | |
| O-ring (s-40) H41sa/h45ma/dh40mr | ||||
| 89 | 996363 | 1.65 | 1.96 | |
| Öldichtung (b) Dh40mr | ||||
| 90 | 321274 | 4.80 | 5.71 | |
| Crank Case | ||||
| 91 | 370224 | 32.59 | 38.78 | |
| Valve | ||||
| 92 | 995396 | 1.80 | 2.14 | |
| Ring M3 (10 Stuks) | ||||
| 93 | 949422 | 1.04 | 1.23 | |
| Back Cover | ||||
| 94 | 370245 | 1.35 | 1.61 | |
| Inbusschraube M4x12 Selbsts. For Switch Holder (t | ||||
| 95 | 983162 | 1.05 | 1.25 | |
| First Gear | ||||
| 96 | 337532 | 13.05 | 15.53 | |
| Nadellager | ||||
| 97 | 939299 | 10.65 | 12.67 | |
| Panel | ||||
| 98 | 337581 | 8.85 | 10.53 | |
| Gear Cover | ||||
| 99 | 370252 | 17.33 | 20.62 | |
| Kugellager 6201 Dd, Cm5sb | ||||
| 100 | 6201DD | 6.30 | 7.50 | |
| Staubscheibe (b) H45mr/dh40mr | ||||
| 101 | 302429 | 1.05 | 1.25 | |
| Anker | ||||
| 102 | 337578 | 115.78 | 137.77 | |
| Nicht mehr lieferbar | ||||
| 501 | 313471 | |||
| Nicht mehr lieferbar | ||||
| 502 | 337594 | |||
| Klammer | ||||
| 503 | 372113 | 1.80 | 2.14 | |
| Vet (tube 30 Gram) | ||||
| 601 | 981840 | 8.40 | 10.00 | |
| Vet Tube 70 Gram | ||||
| 602 | 308471 | 12.75 | 15.17 | |
| Vet (pot 500 Gram) | ||||
| 603 | 980927 | 73.01 | 86.88 | |
| Nicht mehr lieferbar | ||||
| 604 | 313471 | |||
| Nicht mehr lieferbar | ||||
| 605 | 313472 | |||
| Nicht mehr lieferbar | ||||
| 606 | 313473 | |||
| Nicht mehr lieferbar | ||||
| 607 | 313474 | |||
| Nicht mehr lieferbar | ||||
| 608 | 313475 | |||
| Nicht mehr lieferbar | ||||
| 609 | 313476 | |||
| Nicht mehr lieferbar | ||||
| 610 | 313477 | |||
| Nicht mehr lieferbar | ||||
| 611 | 313478 | |||
| Nicht mehr lieferbar | ||||
| 612 | 313479 | |||
