Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki CS51EA'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

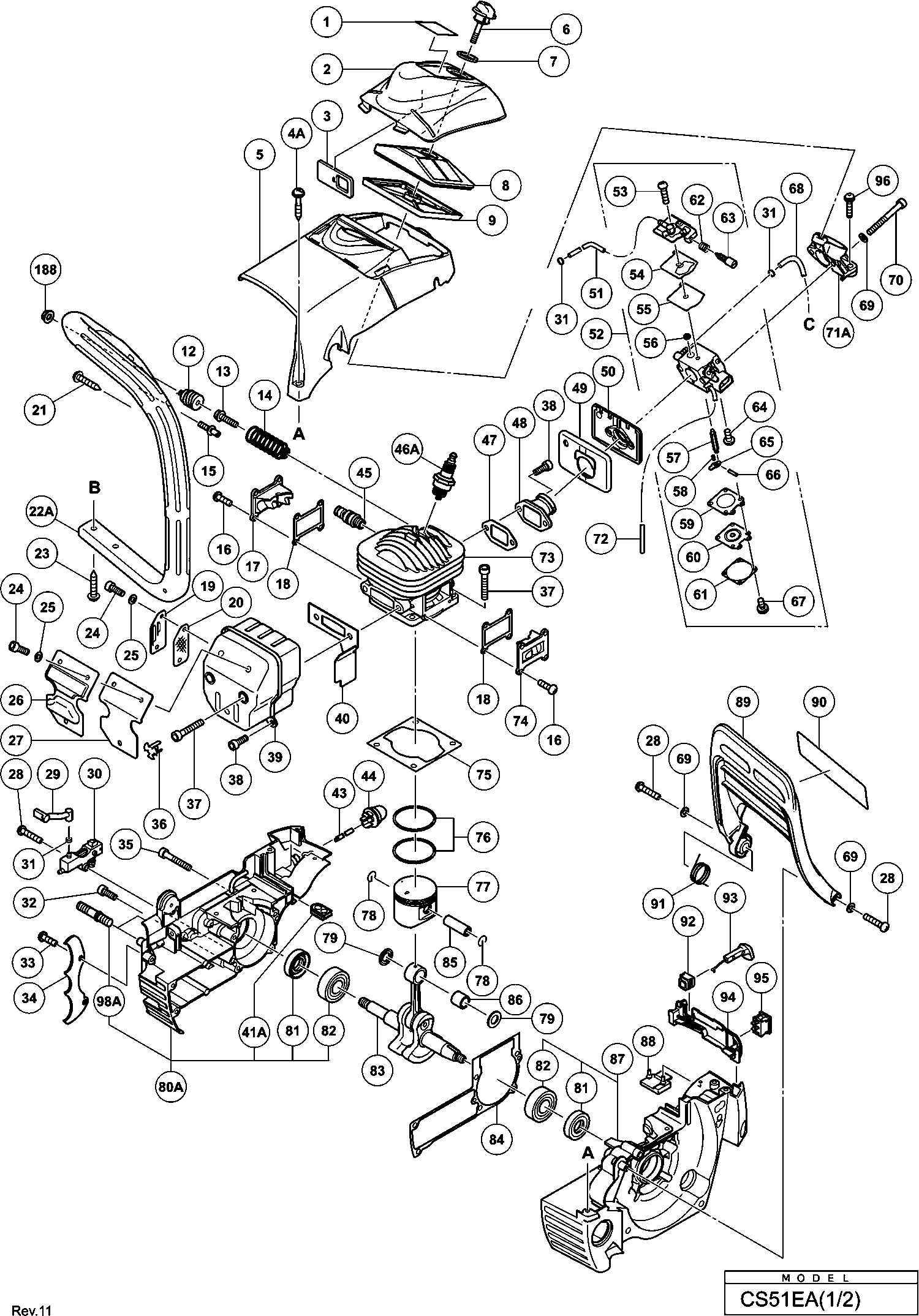

Zeichnungen der Hikoki CS51EA
Teileliste der Hikoki CS51EA
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Start Label (c51) (ex) | ||||
| 1 | 6698919@1417 | 1.20 | 1.43 | |
| Luchtfilterkap (c51) | ||||
| 2 | 6698568@1417 | 4.20 | 5.00 | |
| Shutter Plate | ||||
| 3 | 6698569@1417 | 1.20 | 1.43 | |
| Cover Set Bolt (old 6696903) | ||||
| 4A | 6699189@1417 | 1.04 | 1.23 | |
| Cilinder Afdekkap | ||||
| 5 | 6698708@1417 | 14.30 | 17.02 | |
| Cleaner Knob (vermilion) | ||||
| 6 | 6698595@1417 | 1.20 | 1.43 | |
| Knob Packing | ||||
| 7 | 6698570@1417 | 1.20 | 1.43 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 8 | 6698563@1417 | |||
| Luchtfilter Element (a) | ||||
| 9 | 6698562@1417 | 4.20 | 5.00 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 10 | 6698449@1417 | |||
| Ring | ||||
| 11 | 6696885@1417 | 1.05 | 1.25 | |
| Veerhouder | ||||
| 12 | 6698429@1417 | 2.10 | 2.50 | |
| Inbus Bout M6x20 | ||||
| 13 | 881722@1417 | 1.80 | 2.14 | |
| Anti-trilveer | ||||
| 14 | 6698428@1417 | 2.10 | 2.50 | |
| Dämpferset | ||||
| 15 | 6685413@1417 | 1.05 | 1.25 | |
| Seal Lock Screw M4x10 | ||||
| 16 | 6696835@1417 | 1.20 | 1.43 | |
| Schraube M4x10 Sv12sg | ||||
| 16A | 324082@1417 | 1.65 | 1.96 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 17 | 6698539@1417 | 2.10 | 2.50 | |
| Cover Packing (c51) | ||||
| 18 | 6698540@1417 | 1.20 | 1.43 | |
| Exhaust Pipe | ||||
| 19 | 6698903@1417 | 1.20 | 1.43 | |
| Uitlaatgaasje | ||||
| 20 | 6698575@1417 | 1.20 | 1.43 | |
| Schneidschraube D5x25 M.flansch (schwarz), C8fshe | ||||
| 21 | 305558@1417 | 1.04 | 1.23 | |
| Beugelhandgreep | ||||
| 22A | 6699026@1417 | 14.03 | 16.69 | |
| Schneidschraube D5x20 M.flansch H41mb | ||||
| 23 | 302089@1417 | 1.05 | 1.25 | |
| Inbusschraube M4x10 (10st) Till 12.2017 | ||||
| 24 | 949812@1417 | 2.40 | 2.86 | |
| Bolt Washer M4 (black) | ||||
| 25 | 323210@1417 | 1.05 | 1.25 | |
| Muffler Protector | ||||
| 26 | 6698904@1417 | 2.10 | 2.50 | |
| Muffler Protector Gauze | ||||
| 27 | 6698905@1417 | 1.20 | 1.43 | |
| Kopfschraube M4x16 (10st) | ||||
| 28 | 949219@1417 | 1.20 | 1.43 | |
| Olieleiding | ||||
| 29 | 6698900@1417 | 4.65 | 5.53 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 30 | 6698554@1417 | |||
| D6clipnew | ||||
| 31 | 6685311@1417 | 1.05 | 1.25 | |
| Imbussbolzen | ||||
| 32 | 6685412@1417 | 1.05 | 1.25 | |
| Seal Lock Screw M5x12 | ||||
| 33 | 6698901@1417 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 34 | 6685400@1417 | |||
| Seal Lock Hex. Socket Hd. Bolt M5x45 | ||||
| 35 | 6698902@1417 | 1.20 | 1.43 | |
| Muffler Cap | ||||
| 36 | 6698706@1417 | 1.20 | 1.43 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 37 | 6698899@1417 | 1.20 | 1.43 | |
| Hex. Socket Hd. Bolt M5x12 (precote) | ||||
| 38 | 6696836@1417 | 1.20 | 1.43 | |
| Uitlaat | ||||
| 39 | 6698574@1417 | 16.36 | 19.47 | |
| Muffler Packing (c51) | ||||
| 40 | 6698576@1417 | 6.60 | 7.85 | |
| Fuel Grommet | ||||
| 41A | 6699944@1417 | 1.04 | 1.23 | |
| Worm Set | ||||
| 42 | 6600928@1417 | 8.85 | 10.53 | |
| Benzinleitung | ||||
| 43 | 6685267@1417 | 1.15 | 1.37 | |
| Hauptpumpe | ||||
| 44 | 6685139@1417 | 5.94 | 7.07 | |
| Decomp. | ||||
| 45 | 6698541@1417 | 22.83 | 27.16 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 46A | 6699320@1417 | |||
| Dichtung | ||||
| 47 | 6698549@1417 | 1.20 | 1.43 | |
| Intake (cs51) | ||||
| 48 | 6698906@1417 | 13.35 | 15.89 | |
| Cab. Insulator Rubber | ||||
| 49 | 6698551@1417 | 2.10 | 2.50 | |
| Carburetor Insulator (c51) | ||||
| 50 | 6698552@1417 | 2.10 | 2.50 | |
| Brandstofleiding (fkm) | ||||
| 51 | 6698907@1417 | 7.95 | 9.46 | |
| Carburator Ass'y | ||||
| 52 | 6698705@1417 | 114.13 | 135.81 | |
| Schraube | ||||
| 53 | 6685210@1417 | 1.15 | 1.37 | |
| Pumpendichtung | ||||
| 54 | 6685212@1417 | 2.31 | 2.75 | |
| Pumpen Membrane | ||||
| 55 | 6685213@1417 | 4.45 | 5.30 | |
| Schutzsieb Cg24ekb | ||||
| 56 | 6684700@1417 | 4.29 | 5.10 | |
| Nadelventil alte Art.nr. 603-25012-20 | ||||
| 57 | 6685215@1417 | 5.28 | 6.28 | |
| Ventilfeder | ||||
| 58 | 6690873@1417 | 4.45 | 5.30 | |
| Membran Verpackung | ||||
| 59 | 6685220@1417 | 2.31 | 2.75 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 60 | 6684690@1417 | 18.00 | 21.42 | |
| Membranabdeckung | ||||
| 61 | 6685222@1417 | 4.45 | 5.30 | |
| Leerlauf Justierfede | ||||
| 62 | 6690766@1417 | 2.31 | 2.75 | |
| Justierschraube | ||||
| 63 | 6685298@1417 | 2.31 | 2.75 | |
| Gelenkwellenset | ||||
| 64 | 6685218@1417 | 2.31 | 2.75 | |
| Kontrollhebel | ||||
| 65 | 6685217@1417 | 3.30 | 3.93 | |
| Gelenkwelle | ||||
| 66 | 6685219@1417 | 1.15 | 1.37 | |
| Schraube | ||||
| 67 | 6685223@1417 | 1.15 | 1.37 | |
| Brandstofleiding | ||||
| 68 | 6698908@1417 | 4.65 | 5.53 | |
| Ring | ||||
| 69 | 6685408@1417 | 1.05 | 1.25 | |
| Ansatzbolzen M5x45 | ||||
| 70 | 6696317@1417 | 1.20 | 1.43 | |
| Cleaner Support (c51) | ||||
| 71A | 6698553@1417 | 2.10 | 2.50 | |
| Brandstofleiding | ||||
| 72 | 6698721@1417 | 9.75 | 11.60 | |
| Zylinder | ||||
| 73 | 6698537@1417 | 62.70 | 74.61 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 74 | 6698538@1417 | 2.10 | 2.50 | |
| Cylinder Packing | ||||
| 75 | 6698542@1417 | 1.20 | 1.43 | |
| Zuiger Ring | ||||
| 76 | 6698534@1417 | 9.15 | 10.89 | |
| Zuiger (44) (m) | ||||
| 77 | 6698909@1417 | 24.75 | 29.45 | |
| Cir Clip | ||||
| 78 | 6696854@1417 | 1.05 | 1.25 | |
| Zuigerpinring | ||||
| 79 | 6698910@1417 | 2.10 | 2.50 | |
| Engine Case (b) Ass'y (old 6698531) | ||||
| 80A | 6699945@1417 | 76.04 | 90.48 | |
| Olie Keerring | ||||
| 81 | 6698914@1417 | 3.15 | 3.75 | |
| Kugellager | ||||
| 82 | 6202C3@1417 | 4.35 | 5.18 | |
| Kurbelwelle | ||||
| 83 | 6698532@1417 | 55.14 | 65.61 | |
| Crank Case Packing (c51) | ||||
| 84 | 6698535@1417 | 2.10 | 2.50 | |
| Zuiger Pin | ||||
| 85 | 6696855@1417 | 2.10 | 2.50 | |
| Nadellager | ||||
| 86 | 6698911@1417 | 9.15 | 10.89 | |
| Motorgehäuse | ||||
| 87 | 6698530@1417 | 66.55 | 79.19 | |
| Achterdemper | ||||
| 88 | 6698709@1417 | 1.20 | 1.43 | |
| Brake Handle | ||||
| 89 | 6698572@1417 | 6.60 | 7.85 | |
| Warnschild For Aus | ||||
| 90 | 6696335@1417 | 2.10 | 2.50 | |
| Warnschild | ||||
| 90 | 6696336@1417 | 2.10 | 2.50 | |
| Brake Lever Spring | ||||
| 91 | 6698912@1417 | 1.20 | 1.43 | |
| Gummi f.drosselgestell | ||||
| 92 | 6685369@1417 | 1.05 | 1.25 | |
| Choke Knop | ||||
| 93 | 6698593@1417 | 1.20 | 1.43 | |
| Operation Plate | ||||
| 94 | 6698565@1417 | 1.20 | 1.43 | |
| Stop Switch | ||||
| 95A | 6601275@1417 | 1.35 | 1.61 | |
| Hex. Socket Hd. Bolt M5x20 (w/button) | ||||
| 96 | 6698988@1417 | 1.20 | 1.43 | |
| Chain Bar Bolt | ||||
| 98A | 6699029@1417 | 1.04 | 1.23 | |
| Moer M8 | ||||
| 112 | 6698581@1417 | 1.20 | 1.43 | |
| Flensmoer M8 | ||||
| 112A | 6699028@1417 | 1.04 | 1.23 | |
| Zijdeksel | ||||
| 113A | 6698585@1417 | 40.01 | 47.61 | |
| Chain Puller Bolt | ||||
| 114 | 6698591@1417 | 6.90 | 8.21 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 115 | 6698710@1417 | |||
| Geleidingsplaat (b) | ||||
| 116 | 6698592@1417 | 3.15 | 3.75 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 117 | 6698641@1417 | |||
| Oliedoorvoer | ||||
| 118 | 6696868@1417 | 1.05 | 1.25 | |
| Brandstofleiding (oud 6698453) | ||||
| 119 | 6698719@1417 | 9.75 | 11.60 | |
| Ring | ||||
| 120 | 6685407@1417 | 1.05 | 1.25 | |
| Oliefilter | ||||
| 121 | 6698455@1417 | 1.05 | 1.25 | |
| Oil Filter Body | ||||
| 122 | 6698536@1417 | 2.25 | 2.68 | |
| Geleidingsplaat (a) | ||||
| 123 | 6698561@1417 | 3.15 | 3.75 | |
| Damper (c51) | ||||
| 124 | 6698913@1417 | 1.20 | 1.43 | |
| Chain Catcher | ||||
| 125A | 6699027@1417 | 1.04 | 1.23 | |
| Brake Link | ||||
| 126 | 6698587@1417 | 4.65 | 5.53 | |
| Remveer | ||||
| 127 | 6698588@1417 | 3.15 | 3.75 | |
| Remband | ||||
| 128 | 6698589@1417 | 6.15 | 7.32 | |
| Nadelrolle | ||||
| 129 | 6685391@1417 | 1.05 | 1.25 | |
| Brake Link Cover | ||||
| 130 | 6698590@1417 | 3.15 | 3.75 | |
| Clutch | ||||
| 131 | 6698560@1417 | 13.80 | 16.42 | |
| Ring (b) | ||||
| 132 | 6696882@1417 | 2.10 | 2.50 | |
| Clutch Housing | ||||
| 133 | 6698558@1417 | 13.80 | 16.42 | |
| Nadellager | ||||
| 134 | 6696884@1417 | 5.10 | 6.07 | |
| Rim Sprocket | ||||
| 135 | 6698557@1417 | 5.70 | 6.78 | |
| Ring | ||||
| 136 | 6698556@1417 | 1.20 | 1.43 | |
| Oliepomp Deksel | ||||
| 137 | 6698555@1417 | 2.10 | 2.50 | |
| Worm | ||||
| 138A | 6600927@1417 | 4.95 | 5.89 | |
| Schwamm,belüftung | ||||
| 139 | 6685371@1417 | 1.05 | 1.25 | |
| Entlüftungsventil | ||||
| 140 | 6685370@1417 | 2.10 | 2.50 | |
| Schneidschraube D4x16 Mit Flansch (schwarz), Cm9b | ||||
| 141 | 305812@1417 | 1.04 | 1.23 | |
| Rear Handle Grip | ||||
| 142 | 6698805@1417 | 1.05 | 1.25 | |
| Gashebelsperre | ||||
| 143 | 6685350@1417 | 1.05 | 1.25 | |
| Throttle Lever Spring (old 6685349) | ||||
| 144A | 6600341@1417 | 1.04 | 1.23 | |
| Achtergreep | ||||
| 146 | 6698579@1417 | 24.75 | 29.45 | |
| Feder | ||||
| 147 | 6685282@1417 | 1.15 | 1.37 | |
| Zugstange | ||||
| 148 | 6698564@1417 | 1.20 | 1.43 | |
| Throttle Lever (vermilion) | ||||
| 149 | 6698916@1417 | 1.20 | 1.43 | |
| Air Valve Cap | ||||
| 150 | 6698580@1417 | 4.65 | 5.53 | |
| innerer Tankdeckel | ||||
| 151 | 6685351@1417 | 4.50 | 5.36 | |
| Benzin Durchführung alte Art.nr. 701-72930-20 | ||||
| 152 | 6696167@1417 | 1.15 | 1.37 | |
| Filterpumpen Gehäuse alte Art.nr.675-11657-90 | ||||
| 153 | 6692285@1417 | 7.26 | 8.64 | |
| Voordemper | ||||
| 154 | 6696873@1417 | 1.05 | 1.25 | |
| Veerhouder | ||||
| 155 | 6698409@1417 | 2.10 | 2.50 | |
| Tapschroef D6 | ||||
| 156 | 6696872@1417 | 1.05 | 1.25 | |
| Anti-trilveer | ||||
| 157 | 6698408@1417 | 2.10 | 2.50 | |
| Tank Mark Label | ||||
| 158 | 6698921@1417 | 1.20 | 1.43 | |
| Tankkappen Verpackung | ||||
| 159 | 6685179@1417 | 1.15 | 1.37 | |
| Tank Dop Compleet | ||||
| 160 | 6698854@1417 | 4.20 | 5.00 | |
| Snoerklem | ||||
| 161 | 988054@1417 | 1.04 | 1.23 | |
| Plug Cap | ||||
| 162 | 6698548@1417 | 2.10 | 2.50 | |
| Cord (a) | ||||
| 163 | 6698545@1417 | 2.10 | 2.50 | |
| Cord (b) | ||||
| 164 | 6698546@1417 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 165A | 6699180@1417 | |||
| Bobine | ||||
| 166 | 6698544@1417 | 45.65 | 54.32 | |
| Abzweigdosen Bolzen | ||||
| 167 | 6696326@1417 | 1.20 | 1.43 | |
| Magneto Ass'y | ||||
| 168 | 6698918@1417 | 22.83 | 27.16 | |
| Magneto Rotor | ||||
| 169 | 6698543@1417 | 17.19 | 20.45 | |
| Veer (oud 6698417) | ||||
| 170A | 6699405@1417 | 1.05 | 1.25 | |
| Ring 0.8 | ||||
| 171 | 6696857@1417 | 1.05 | 1.25 | |
| Starter Pawl | ||||
| 172 | 6696877@1417 | 2.10 | 2.50 | |
| Chim | ||||
| 173 | 6696434@1417 | 1.04 | 1.23 | |
| Bolzen | ||||
| 174 | 6696878@1417 | 1.05 | 1.25 | |
| Luchtkeerschot | ||||
| 175 | 6698571@1417 | 4.20 | 5.00 | |
| Recoil Starter (oud 6698583) | ||||
| 176A | 6699421@1417 | 18.43 | 21.93 | |
| Tank Dop Compleet | ||||
| 179 | 6698358@1417 | 4.20 | 5.00 | |
| Set Screw | ||||
| 180 | 6699477@1417 | 1.04 | 1.23 | |
| Scheibe (1) | ||||
| 181 | 6699474@1417 | 1.04 | 1.23 | |
| Reel | ||||
| 182 | 6699482@1417 | 3.30 | 3.93 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 183 | 6699480@1417 | |||
| Starter Rope | ||||
| 184 | 6699470@1417 | 1.04 | 1.23 | |
| Starter Knob | ||||
| 185 | 6699466@1417 | 1.50 | 1.78 | |
| Starter Handle Ass'y | ||||
| 186 | 6699472@1417 | 2.25 | 2.68 | |
| Lüftergehäuse | ||||
| 187 | 6699488@1417 | 16.78 | 19.96 | |
| Mutter M6 | ||||
| 188 | 329934@1417 | 1.73 | 2.05 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 501 | 6698577@1417 | |||
| Combi Box Spanner 13x19 | ||||
| 502 | 6698582@1417 | 4.65 | 5.53 | |
