Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki CG27EBDP'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

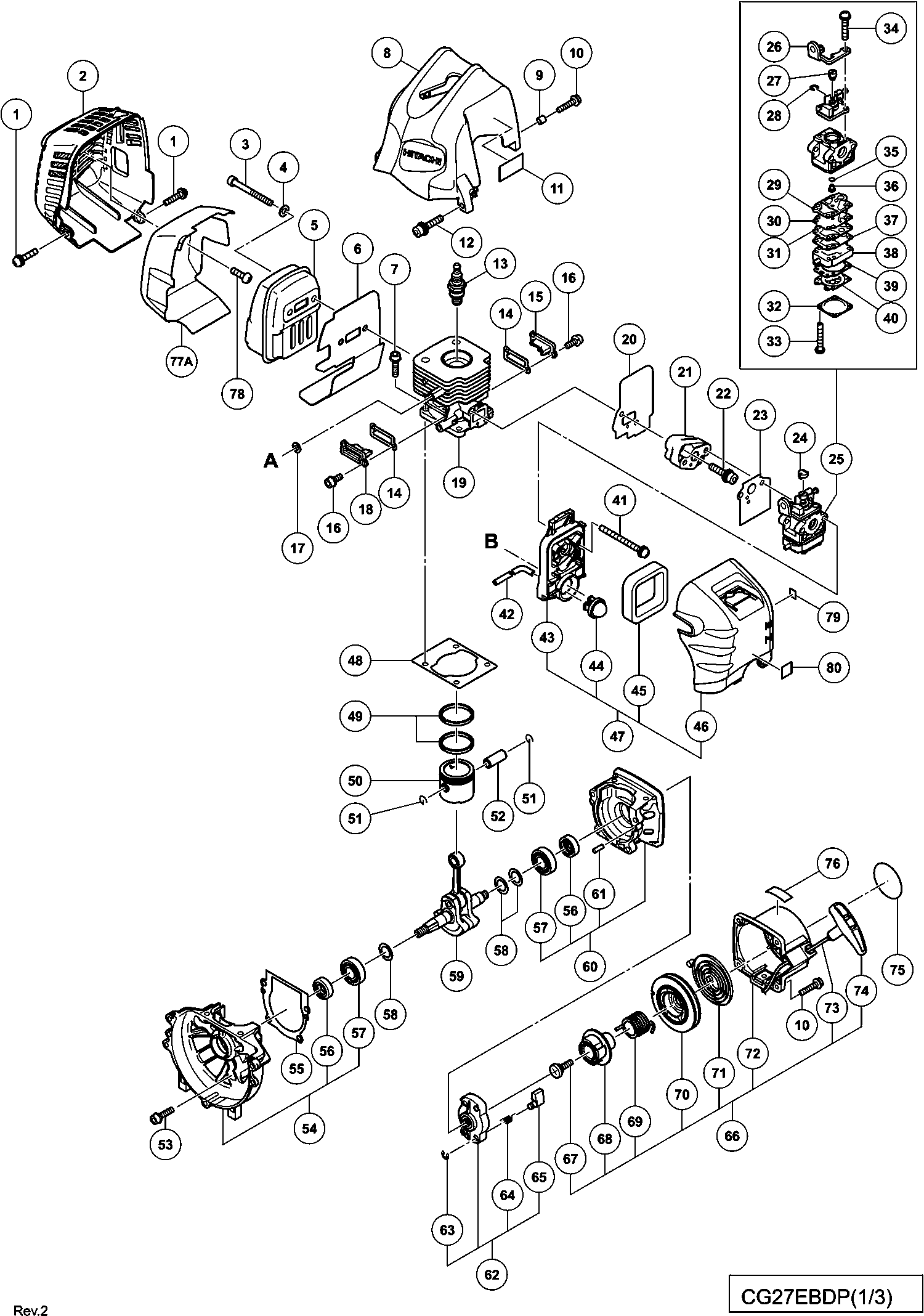

Zeichnungen der Hikoki CG27EBDP
Teileliste der Hikoki CG27EBDP
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 1 | 887021@1417 | |||
| Knaldemper Afdekkap | ||||
| 2 | 6600322@1417 | 6.90 | 8.21 | |
| Hex. Socket Hd Bolt M6x65 | ||||
| 3 | 6698384@1417 | 1.05 | 1.25 | |
| Unterlegscheibe M6 (10st), C 8fshe, C8fse, Cg18dl | ||||
| 4 | 949432@1417 | 1.05 | 1.25 | |
| Muffler (b) | ||||
| 5 | 6600004@1417 | 25.85 | 30.76 | |
| Hitteschild | ||||
| 6 | 6600324@1417 | 1.35 | 1.61 | |
| Hex. Socket Bolt M5 | ||||
| 7 | 6696958@1417 | 2.10 | 2.50 | |
| Cilinder Afdekkap | ||||
| 8 | 6699430@1417 | 7.05 | 8.39 | |
| Collar (b) | ||||
| 9 | 6600008@1417 | 1.04 | 1.23 | |
| Abzweigdosen Bolzen | ||||
| 10 | 6696326@1417 | 1.20 | 1.43 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 12 | 6698950@1417 | 1.20 | 1.43 | |
| Bougie Bmr7a | ||||
| 13 | 6699316@1417 | 8.91 | 10.61 | |
| Cover Packing | ||||
| 14 | 6698365@1417 | 1.05 | 1.25 | |
| Uitlaatgas Ventiel Deksel (a) | ||||
| 15 | 6698484@1417 | 2.10 | 2.50 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 16 | 6698385@1417 | 1.05 | 1.25 | |
| Ring | ||||
| 17 | 6698700@1417 | 1.20 | 1.43 | |
| Uitlaatgas Ventiel Deksel (b) | ||||
| 18 | 6698485@1417 | 2.10 | 2.50 | |
| Zylinder | ||||
| 19 | 6698480@1417 | 45.65 | 54.32 | |
| Dichtung | ||||
| 20 | 6699437@1417 | 1.04 | 1.23 | |
| Carburetor Insulator | ||||
| 21 | 6698387@1417 | 3.15 | 3.75 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 22 | 6698844@1417 | 1.20 | 1.43 | |
| Carbureteur Pakking | ||||
| 23 | 6698405@1417 | 2.10 | 2.50 | |
| Spannschlosskappe Since C026901 | ||||
| 24 | 6691337@1417 | 1.15 | 1.37 | |
| Carburator Wyc-37 | ||||
| 25 | 6600326@1417 | 29.84 | 35.51 | |
| Cable Adjust Stay | ||||
| 26 | 6699287@1417 | 4.13 | 4.91 | |
| Swivel | ||||
| 27 | 6696830@1417 | 4.45 | 5.30 | |
| Anschlagring Cg24ekb alte Art.nr. 489-25100-20 | ||||
| 28 | 6684696@1417 | 2.15 | 2.56 | |
| Pumpendichtung Cg24ekb alte Art.nr. 577-25292-20 | ||||
| 29 | 6684692@1417 | 29.19 | 34.73 | |
| Membranabdeckung Cg24ekb alte Art.nr.576-25100-20 | ||||
| 30 | 6684693@1417 | 8.58 | 10.20 | |
| Pumpenplatte alte Art.nr.523-25100-20 | ||||
| 31 | 6691242@1417 | 2.31 | 2.75 | |
| Membranabdeckung | ||||
| 32 | 6685222@1417 | 4.45 | 5.30 | |
| Schrauben Set alte Art.nr.548-25101-20 | ||||
| 33 | 6691312@1417 | 1.15 | 1.37 | |
| Set Screw M3x12 | ||||
| 34 | 6696829@1417 | 1.04 | 1.23 | |
| O-RING (OUD 550-25100-20) | ||||
| 35 | 6684695@1417 | 4.29 | 5.10 | |
| Schaltplatte alte Art.nr.522-25100-20 | ||||
| 37 | 6691234@1417 | 3.30 | 3.93 | |
| Pump Body | ||||
| 38 | 6696828@1417 | 13.36 | 15.90 | |
| Membran Verpackung | ||||
| 39 | 6685220@1417 | 2.31 | 2.75 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 40 | 6684690@1417 | 18.00 | 21.42 | |
| Kopfschraube M5x60 M.u-scheibe (schwarz) | ||||
| 41 | 307224@1417 | 1.05 | 1.25 | |
| Brandstofleiding L70 | ||||
| 42 | 6699014@1417 | 1.65 | 1.96 | |
| Fuel Pipe | ||||
| 42B | 6601444@1417 | 1.04 | 1.23 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 43 | 6696832@1417 | |||
| Hauptpumpe | ||||
| 44 | 6685139@1417 | 5.94 | 7.07 | |
| Filter Element | ||||
| 45 | 6690347@1417 | 4.45 | 5.30 | |
| Filterabdeckung | ||||
| 46 | 6699185@1417 | 7.20 | 8.57 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 47 | 6699132@1417 | |||
| Cylinder Packing | ||||
| 48 | 6698366@1417 | 1.05 | 1.25 | |
| Kolbenring alte Art.nr. 041-01700-20 | ||||
| 49 | 6686121@1417 | 4.45 | 5.30 | |
| Kolben | ||||
| 50 | 6699432@1417 | 8.10 | 9.64 | |
| Kolbenstift Cg24ekb | ||||
| 51 | 6684590@1417 | 2.15 | 2.56 | |
| Kolbenstift Cg24ekb | ||||
| 52 | 6684591@1417 | 4.29 | 5.10 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 53 | 6698386@1417 | |||
| Crank Case Ass'y (b) | ||||
| 54 | 6698370@1417 | 15.68 | 18.65 | |
| Crank Case Packing | ||||
| 55 | 6698371@1417 | 1.05 | 1.25 | |
| Öldichtung Cg24ekb | ||||
| 56 | 6684607@1417 | 4.29 | 5.10 | |
| Kugellager Cg24ekb | ||||
| 57 | 6684608@1417 | 3.80 | 4.52 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 58 | 6698490@1417 | |||
| Kurbelwelle | ||||
| 59 | 6699438@1417 | 34.10 | 40.58 | |
| Crank Case Ass'y (a) | ||||
| 60 | 6698369@1417 | 13.35 | 15.89 | |
| Knock Pin 4x12 | ||||
| 61 | 6696947@1417 | 1.05 | 1.25 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 62 | 6684681@1417 | 13.20 | 15.71 | |
| Anschlagring Cg24ekb Neue Art.-nr. 6684683 Since | ||||
| 63 | 6684683@1417 | 2.15 | 2.56 | |
| D4eretainingringnew | ||||
| 63 | 6685101@1417 | 1.15 | 1.37 | |
| Feder f. Startersperre Cg24ekb | ||||
| 64 | 6684684@1417 | 4.29 | 5.10 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 65 | 6684685@1417 | 4.29 | 5.10 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 66 | 6699995@1417 | |||
| SET SCREW (OLD 839-03045-20) | ||||
| 67 | 6684679@1417 | 2.15 | 2.56 | |
| Cam Plate | ||||
| 68 | 6699996@1417 | 2.55 | 3.03 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 69 | 6684677@1417 | 8.58 | 10.20 | |
| Starter Rope Reel | ||||
| 70 | 6699997@1417 | 8.41 | 10.01 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 71 | 6684675@1417 | 11.55 | 13.74 | |
| Seilzugstarter Gehäuse Cg24ekb For (s) Type Since | ||||
| 72 | 6684673@1417 | 19.06 | 22.68 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 73 | 6684674@1417 | 4.29 | 5.10 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 74 | 6684680@1417 | 2.15 | 2.56 | |
| Tank Mark Label | ||||
| 76 | 6698921@1417 | 1.20 | 1.43 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 77 | 6600323@1417 | |||
| Muffler Heat Cover | ||||
| 77A | 6600422@1417 | 5.70 | 6.78 | |
| Tapping Screw D4x10 | ||||
| 78 | 6600325@1417 | 1.04 | 1.23 | |
| Mark Plate (t) | ||||
| 79 | 6600327@1417 | 1.04 | 1.23 | |
| Primer Label | ||||
| 80 | 6699000@1417 | 1.04 | 1.23 | |
| Machine Screw M5x20 (black) | ||||
| 91 | 6699195@1417 | 1.20 | 1.43 | |
| P Tight Screw D4x20 (black) | ||||
| 92 | 6699194@1417 | 1.20 | 1.43 | |
| Switch Wire Set | ||||
| 93 | 6699197@1417 | 10.20 | 12.14 | |
| Mutter M5 | ||||
| 94 | 6699196@1417 | 1.04 | 1.23 | |
| Stop Lever | ||||
| 95 | 6699192@1417 | 1.65 | 1.96 | |
| Long Lever | ||||
| 96 | 6699191@1417 | 2.55 | 3.03 | |
| Return Spring | ||||
| 97 | 6699193@1417 | 1.04 | 1.23 | |
| Stay Set | ||||
| 98 | 6699190@1417 | 16.36 | 19.47 | |
| Regulateur | ||||
| 99 | 6699133@1417 | 21.18 | 25.20 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 100 | 6699176@1417 | 1.04 | 1.23 | |
| Sechskantbolzen 5x22/s alte Art.nr. 994-61050-224 | ||||
| 101 | 6695492@1417 | 1.15 | 1.37 | |
| Anti Vibe Rubber (a) | ||||
| 102 | 6696963@1417 | 3.33 | 3.96 | |
| Pipe Holder (a) | ||||
| 103 | 6698643@1417 | 2.10 | 2.50 | |
| Pipe Holder (b) | ||||
| 104 | 6698644@1417 | 2.10 | 2.50 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964@1417 | 3.33 | 3.96 | |
| Sicherungsring D12 (10st), G23ss | ||||
| 106 | 939542@1417 | 1.50 | 1.78 | |
| Lüftergehäuse | ||||
| 107 | 6699433@1417 | 14.99 | 17.84 | |
| BALL BEARING 6301ZZC3 | ||||
| 108 | 6699435@1417 | 2.55 | 3.03 | |
| VEERRING 37MM | ||||
| 109 | 322813@1417 | 1.65 | 1.96 | |
| CLUTCH SHAFT | ||||
| 110 | 6699434@1417 | 7.20 | 8.57 | |
| Abstandsbolzen | ||||
| 111 | 6696469@1417 | 1.04 | 1.23 | |
| Ring | ||||
| 112 | 6684648@1417 | 2.15 | 2.56 | |
| Clutch Plate (a) | ||||
| 113 | 6696546@1417 | 1.05 | 1.25 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 114 | 6699130@1417 | |||
| Ring (b) | ||||
| 115 | 6699131@1417 | 1.04 | 1.23 | |
| Mutter | ||||
| 116 | 6685337@1417 | 1.05 | 1.25 | |
| Bolzenscheibe H65sd2 | ||||
| 117 | 323212@1417 | 1.05 | 1.25 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388@1417 | 1.05 | 1.25 | |
| Bobine | ||||
| 119 | 6699436@1417 | 26.40 | 31.42 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 120 | 6699932@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 120A | 6601421@1417 | |||
| Metal Fitting Of Plug Cap | ||||
| 121 | 6699933@1417 | 1.65 | 1.96 | |
| Cord | ||||
| 122 | 6696544@1417 | 1.05 | 1.25 | |
| Earth Cord | ||||
| 123 | 6696545@1417 | 1.05 | 1.25 | |
| Magneto Rotor | ||||
| 124 | 6698396@1417 | 8.70 | 10.35 | |
| Brandstofleiding | ||||
| 125 | 6698716@1417 | 3.45 | 4.11 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 126 | 6698401@1417 | |||
| Brandstofleiding L70 | ||||
| 126A | 6699014@1417 | 1.65 | 1.96 | |
| Return Grommet (old 6684627) | ||||
| 127 | 6697846@1417 | 1.04 | 1.23 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 128 | 6698402@1417 | |||
| Tank Cap Chain | ||||
| 129 | 6698732@1417 | 1.20 | 1.43 | |
| Gummidichtung f. Kraftstoffleitung | ||||
| 130 | 6688156@1417 | 1.15 | 1.37 | |
| Fuel Grommet | ||||
| 130A | 6600358@1417 | 1.04 | 1.23 | |
| Distanzring (1) | ||||
| 131 | 6699558@1417 | 1.04 | 1.23 | |
| Behalter | ||||
| 132 | 6600317@1417 | 7.95 | 9.46 | |
| Tank (c) | ||||
| 132A | 6600354@1417 | 3.45 | 4.11 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 133 | 6684620@1417 | |||
| Pomp Filter | ||||
| 133A | 6600351@1417 | 2.70 | 3.21 | |
| Clip | ||||
| 134 | 6696949@1417 | 1.68 | 1.99 | |
| Stand alte Art.nr.940-07350-20 | ||||
| 135 | 6694787@1417 | 3.30 | 3.93 | |
| Flange Bolt | ||||
| 136 | 6696557@1417 | 1.05 | 1.25 | |
| Bout L27.8 | ||||
| 137 | 6698991@1417 | 1.20 | 1.43 | |
| Sechskantbolzen Cg24ekd | ||||
| 151 | 6684824@1417 | 2.15 | 2.56 | |
| Griffknopf Cg24ekd, Cg18dl | ||||
| 152 | 6684823@1417 | 4.29 | 5.10 | |
| Ring | ||||
| 153 | 6684822@1417 | 2.15 | 2.56 | |
| Sechskantbolzen Cg24ekd | ||||
| 154 | 6684829@1417 | 2.15 | 2.56 | |
| Spring Washer M5 | ||||
| 155 | 6698884@1417 | 1.80 | 2.14 | |
| Sechskantbolzen Cg24ekd | ||||
| 156 | 6684825@1417 | 2.15 | 2.56 | |
| Federscheibe M6 (10st), C8fshe, C8fse, Cg18dal, C | ||||
| 157 | 949455@1417 | 1.05 | 1.25 | |
| Unterlegscheibe M6 (10st), C8fse | ||||
| 158 | 949425@1417 | 1.05 | 1.25 | |
| Abstandshalter 1.6 | ||||
| 159 | 6689139@1417 | 1.15 | 1.37 | |
| Distanzstück Cg24ekd, Cg18dl | ||||
| 160 | 6684819@1417 | 4.29 | 5.10 | |
| Ring | ||||
| 161 | 6684820@1417 | 2.15 | 2.56 | |
| Sicherungsring D10 (10st), Cm9uby, Cg18dl Till 12 | ||||
| 162 | 939540@1417 | 1.95 | 2.32 | |
| Main Pipe (a) | ||||
| 163 | 6699460@1417 | 14.16 | 16.85 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 164 | 6684852@1417 | 2.15 | 2.56 | |
| Drive Shaft | ||||
| 165 | 6699462@1417 | 17.88 | 21.27 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 166 | 6696493@1417 | |||
| Hanger | ||||
| 166A | 6600504@1417 | 1.20 | 1.43 | |
| Loop Handle (w/barrier) | ||||
| 167 | 6699448@1417 | 10.80 | 12.85 | |
| Verschlussmutter Cg24ekd | ||||
| 168 | 6684828@1417 | 2.15 | 2.56 | |
| Gehäusedichtung Cg24ekd, Cg18dl | ||||
| 169 | 6684817@1417 | 38.58 | 45.90 | |
| Getriebegehaeuse | ||||
| 170 | 6699439@1417 | 46.61 | 55.47 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 171 | 949664@1417 | 3.75 | 4.46 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 172 | 6695414@1417 | 1.15 | 1.37 | |
| Kappe | ||||
| 173 | 6600005@1417 | 2.70 | 3.21 | |
| Feder (1) | ||||
| 174 | 6600006@1417 | 3.60 | 4.28 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 175 | 6684737@1417 | 2.15 | 2.56 | |
| Lock Pin | ||||
| 176 | 6600007@1417 | 11.25 | 13.39 | |
| Cutter Holder (a) | ||||
| 177 | 6699441@1417 | 8.25 | 9.82 | |
| Cutter Holder (b) | ||||
| 178 | 6698659@1417 | 13.04 | 15.51 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 179 | 6699188@1417 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 180 | 335759@1417 | 1.04 | 1.23 | |
| Abdeckung (1) | ||||
| 181 | 6698937@1417 | 16.78 | 19.96 | |
| Set Screw | ||||
| 183 | 6698795@1417 | 1.35 | 1.61 | |
| Reel | ||||
| 184 | 6698939@1417 | 7.35 | 8.75 | |
| Return Spring | ||||
| 185 | 6698941@1417 | 1.95 | 2.32 | |
| Knopf (1) | ||||
| 186 | 6698940@1417 | 5.55 | 6.60 | |
| Cord Guide | ||||
| 187 | 6698942@1417 | 3.75 | 4.46 | |
| Case | ||||
| 188 | 6698938@1417 | 13.65 | 16.24 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 189 | 6698639@1417 | |||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 190 | 6684714@1417 | 2.15 | 2.56 | |
| Cover Bracket | ||||
| 191 | 6699442@1417 | 1.50 | 1.78 | |
| Lagerbuchse Cg24ekd, Cg18dl For (sl) | ||||
| 192 | 6684833@1417 | 2.15 | 2.56 | |
| Caution Mark Hitachi (old 6684850) | ||||
| 193 | 6697625@1417 | 1.98 | 2.35 | |
| Füllstandsmarkierung Cg24ekb | ||||
| 194 | 6684851@1417 | 2.15 | 2.56 | |
| Main Pipe (a) | ||||
| 195 | 6699461@1417 | 14.16 | 16.85 | |
| Antriebswelle Cg24ekd, Cg18dl For (sl) | ||||
| 196 | 6684832@1417 | 20.73 | 24.66 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 197 | 6696980@1417 | |||
| Safety Cover Holder | ||||
| 198 | 6696951@1417 | 3.33 | 3.96 | |
| Cover Guard | ||||
| 199 | 6696950@1417 | 10.98 | 13.06 | |
| Schneidschraube Cg24ekd | ||||
| 200 | 6684751@1417 | 2.15 | 2.56 | |
| Messer Cg24ekd For Irl | ||||
| 201 | 6684750@1417 | 4.29 | 5.10 | |
| Caution Label (hedge) | ||||
| 202 | 6600328@1417 | 1.04 | 1.23 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 203 | 949236@1417 | 1.05 | 1.25 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 501 | 6684764@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 502 | 944458@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 503 | 875769@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 504 | 6696448@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 504A | 6601420@1417 | |||
