Hier finden Sie alle verfügbaren Teile und Zeichnungen der 'Hikoki CG24ECMP'. Von hier aus können Sie alle gewünschten Teile direkt bestellen. Viele Teile müssen je nach Marke beim Hersteller bestellt werden, dies dauert ein bis vier Wochen. Alle Informationen, die wir haben, befinden sich auf unserer Website. Wir können Sie nicht beraten, was Sie benötigen. Dazu müssen Sie die Maschine zur Reparatur zurücksenden. Bitte beachten Sie bei der Bestellung Folgendes:

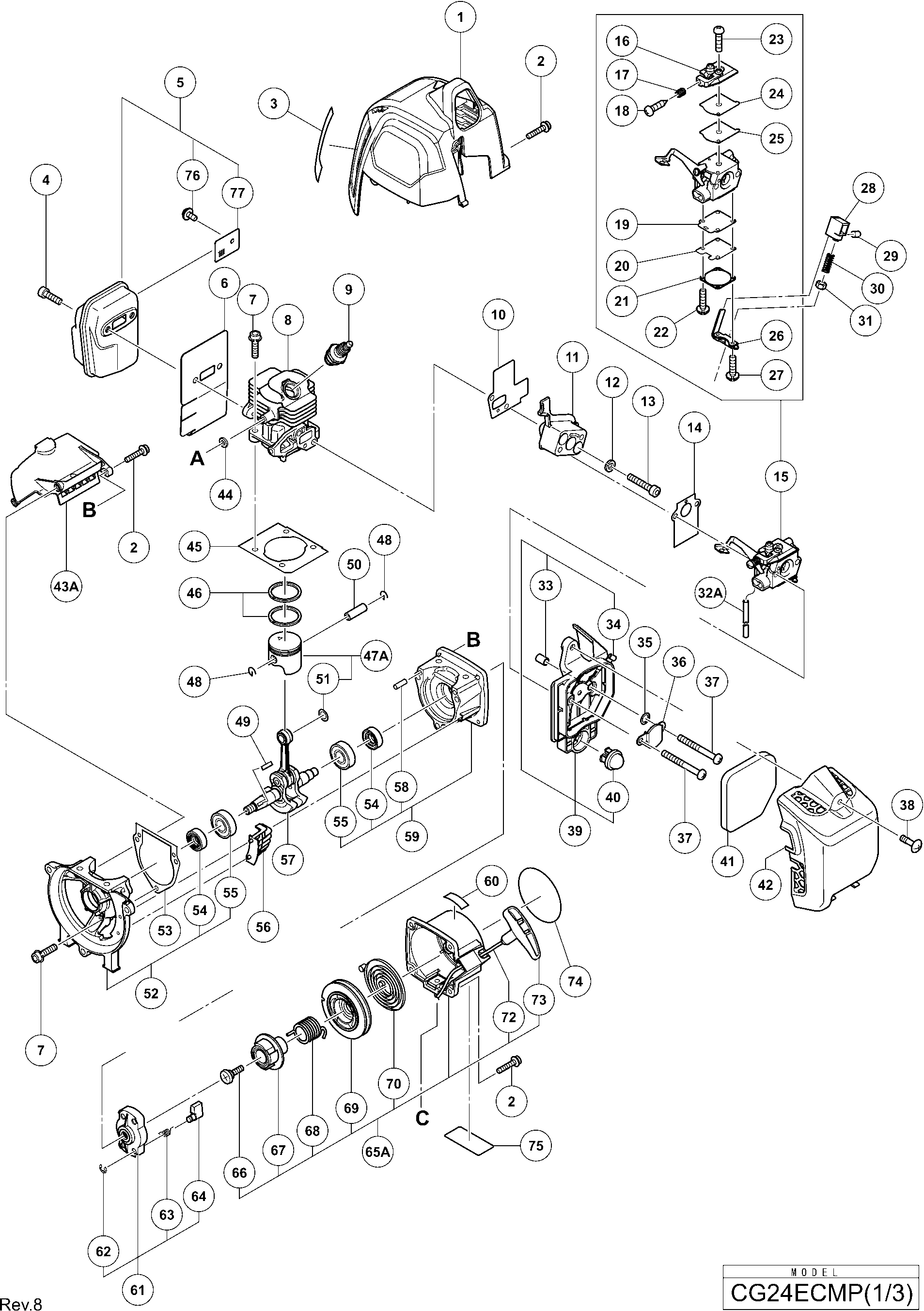

Zeichnungen der Hikoki CG24ECMP
Teileliste der Hikoki CG24ECMP
| Pos. | Beschreibung | Preis ohne MwSt | Preis inkl. MwSt | |
| Die angegebenen Preise enthalten die Mehrwertsteuer | ||||
| Cylinder Cover | ||||
| 1 | 6600546@1417 | 8.85 | 10.53 | |
| Seal Lock Hex. Socket Hd. Bolt M4 | ||||
| 2 | 6600918@1417 | 1.04 | 1.23 | |
| Seal Lock Hex. Socket Hd. Bolt M6x16 | ||||
| 4 | 6600518@1417 | 1.04 | 1.23 | |
| Muffler | ||||
| 5 | 6600908@1417 | 27.36 | 32.56 | |
| Heat Protection Panel | ||||
| 6 | 6600517@1417 | 1.20 | 1.43 | |
| Hex. Socket Hd. Bolt M5x22 (w/sp.washer) | ||||
| 7 | 6601339@1417 | 1.05 | 1.25 | |
| Cylinder N24 | ||||
| 8 | 6600902@1417 | 29.98 | 35.67 | |
| Bougie (oud 6685775) | ||||
| 9 | 6699326@1417 | 3.30 | 3.93 | |
| Intake Packing | ||||
| 10 | 6600524@1417 | 1.04 | 1.23 | |
| Carburetor Insulator (ecm) | ||||
| 11 | 6600533@1417 | 4.65 | 5.53 | |
| Spring Washer D6 | ||||
| 12 | 6600910@1417 | 1.04 | 1.23 | |
| Seal Lock Hex. Socket Hd. Bolt M6x27 | ||||
| 13 | 6601358@1417 | 1.04 | 1.23 | |
| Carburetor Packing (ecm) | ||||
| 14 | 6600534@1417 | 1.04 | 1.23 | |
| Carburetor Ass'y Wt-1147 | ||||
| 15 | 6600535@1417 | 44.69 | 53.18 | |
| Pump Body | ||||
| 16 | 6601350@1417 | 6.28 | 7.47 | |
| Leerlauf Justierfede | ||||
| 17 | 6690766@1417 | 2.31 | 2.75 | |
| Leerlauf Justierschraube | ||||
| 18 | 6690736@1417 | 3.30 | 3.93 | |
| Membran Verpackung | ||||
| 19 | 6685220@1417 | 2.31 | 2.75 | |
| Dosiermembrane Cg24ekb alte Art.nr. 474-25601-20 | ||||
| 20 | 6684690@1417 | 18.00 | 21.42 | |
| Membranabdeckung | ||||
| 21 | 6685222@1417 | 4.45 | 5.30 | |
| Schraube | ||||
| 22 | 6685223@1417 | 1.15 | 1.37 | |
| Schraube | ||||
| 23 | 6685210@1417 | 1.15 | 1.37 | |
| Pumpendichtung | ||||
| 24 | 6685212@1417 | 2.31 | 2.75 | |
| Pumpen Membrane | ||||
| 25 | 6685213@1417 | 4.45 | 5.30 | |
| Traeger (1) | ||||
| 26 | 6601352@1417 | 8.09 | 9.62 | |
| Screw M3 | ||||
| 27 | 6601351@1417 | 1.04 | 1.23 | |
| Stopper Slider | ||||
| 28 | 6600537@1417 | 1.80 | 2.14 | |
| Set Screw M3 | ||||
| 29 | 6600915@1417 | 1.04 | 1.23 | |
| Return Spring | ||||
| 30 | 6600914@1417 | 1.04 | 1.23 | |
| Moer M6 (10 Stuks) | ||||
| 31 | 949567@1417 | 1.05 | 1.25 | |
| Fuel Pipe | ||||
| 32A | 6601443@1417 | 1.04 | 1.23 | |
| Collar M5 | ||||
| 33 | 6601340@1417 | 1.95 | 2.32 | |
| Choke Valve | ||||
| 34 | 6601342@1417 | 2.85 | 3.39 | |
| Wave Washer 8 | ||||
| 35 | 334242@1417 | 1.73 | 2.05 | |
| Spit Back Shield | ||||
| 36 | 6600913@1417 | 1.80 | 2.14 | |
| Schraube 5x55 alte Art.nr. 990-11050-552 | ||||
| 37 | 6694914@1417 | 1.15 | 1.37 | |
| Special Screw M5 | ||||
| 38 | 6600532@1417 | 1.04 | 1.23 | |
| Air Cleaner Base Ass'y | ||||
| 39 | 6600912@1417 | 12.30 | 14.64 | |
| Hauptpumpe | ||||
| 40 | 6685139@1417 | 5.94 | 7.07 | |
| Air Cleaner Element | ||||
| 41 | 6600529@1417 | 1.04 | 1.23 | |
| Luftfilterabdeckung | ||||
| 42 | 6600531@1417 | 1.35 | 1.61 | |
| MUFFLER TANK PARTITION | ||||
| 43A | 6601430@1417 | 2.55 | 3.03 | |
| Ring | ||||
| 44 | 6698700@1417 | 1.20 | 1.43 | |
| Cylinder Packing | ||||
| 45 | 6600510@1417 | 1.04 | 1.23 | |
| Zuiger Ring | ||||
| 46 | 6698404@1417 | 4.20 | 5.00 | |
| PISTON SET | ||||
| 47A | 6601476@1417 | 7.80 | 9.28 | |
| Kolbenstift Cg24ekb | ||||
| 48 | 6684590@1417 | 2.15 | 2.56 | |
| Woodruff Key 3x13x4.5 | ||||
| 49 | 6601343@1417 | 1.95 | 2.32 | |
| Piston Pin | ||||
| 50 | 6601344@1417 | 2.85 | 3.39 | |
| Shim | ||||
| 51 | 6600909@1417 | 1.04 | 1.23 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 52 | 6600907@1417 | |||
| Crank Case Packing | ||||
| 53 | 6600514@1417 | 1.04 | 1.23 | |
| Öldichtung Cg24ekb | ||||
| 54 | 6684607@1417 | 4.29 | 5.10 | |
| Kugellager Cg24ekb | ||||
| 55 | 6684608@1417 | 3.80 | 4.52 | |
| Crank Case Guard | ||||
| 56 | 6600924@1417 | 1.04 | 1.23 | |
| Crank Shaft | ||||
| 57 | 6600511@1417 | 26.81 | 31.91 | |
| Knock Pin 4x12 | ||||
| 58 | 6696947@1417 | 1.05 | 1.25 | |
| Crank Case (r) Ass'y | ||||
| 59 | 6600906@1417 | 13.95 | 16.60 | |
| Tank Mark Label | ||||
| 60 | 6698921@1417 | 1.20 | 1.43 | |
| Starterscheibe Cg24ekb alte Art.nr. 798-0651h-90 | ||||
| 61 | 6684681@1417 | 13.20 | 15.71 | |
| D4eretainingringnew | ||||
| 62 | 6685101@1417 | 1.15 | 1.37 | |
| Feder f. Startersperre Cg24ekb | ||||
| 63 | 6684684@1417 | 4.29 | 5.10 | |
| Startersperre Cg24ekb alte Art.nr.788-0651h-20 | ||||
| 64 | 6684685@1417 | 4.29 | 5.10 | |
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 65A | 6601570@1417 | 15.81 | 18.82 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 66 | 6684679@1417 | 2.15 | 2.56 | |
| Cam Plate | ||||
| 67 | 6699996@1417 | 2.55 | 3.03 | |
| Dämpfungsfeder Cg24ekb alte Art.nr. 758-0651h-20 | ||||
| 68 | 6684677@1417 | 8.58 | 10.20 | |
| Starter Rope Reel | ||||
| 69 | 6699997@1417 | 8.41 | 10.01 | |
| Rückholfeder Cg24ekb alte Art.nr. 783-0720f-20 Ti | ||||
| 70 | 6684675@1417 | 11.55 | 13.74 | |
| Starterkabel Cg24ekb alte Art.nr. 783-0720f-20 Fo | ||||
| 72 | 6684674@1417 | 4.29 | 5.10 | |
| Startergriff Cg24ekb alte Art.nr. 785-03045-20 Fo | ||||
| 73 | 6684680@1417 | 2.15 | 2.56 | |
| Machine Screw M4x8 (w/washers) Black | ||||
| 76 | 6601439@1417 | 1.04 | 1.23 | |
| Spark Arrester | ||||
| 77 | 6601438@1417 | 1.04 | 1.23 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5 | ||||
| 81 | 6600919@1417 | 1.04 | 1.23 | |
| Ring | ||||
| 82 | 6685407@1417 | 1.05 | 1.25 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 83 | 6600372@1417 | 1.80 | 2.14 | |
| Metallfitting | ||||
| 84 | 6689664@1417 | 3.30 | 3.93 | |
| Pipe Holder | ||||
| 85 | 6600551@1417 | 2.70 | 3.21 | |
| Damper (holder) | ||||
| 86 | 6600552@1417 | 2.85 | 3.39 | |
| Tapping Screw D4.5x16 | ||||
| 87 | 6698878@1417 | 1.20 | 1.43 | |
| Fan Case | ||||
| 88 | 6600548@1417 | 14.44 | 17.18 | |
| Clutch Shaft | ||||
| 89 | 6600549@1417 | 6.60 | 7.85 | |
| Abstandsbolzen | ||||
| 90 | 6696469@1417 | 1.04 | 1.23 | |
| Ring | ||||
| 91 | 6684648@1417 | 2.15 | 2.56 | |
| Clutch | ||||
| 92 | 6696948@1417 | 11.64 | 13.85 | |
| Ring (b) | ||||
| 93 | 6696547@1417 | 1.05 | 1.25 | |
| Mutter | ||||
| 94 | 6685337@1417 | 1.05 | 1.25 | |
| Bolzenscheibe H65sd2 | ||||
| 95 | 323212@1417 | 1.05 | 1.25 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 96 | 6698388@1417 | 1.05 | 1.25 | |
| Ignition Coil | ||||
| 97 | 6600515@1417 | 23.10 | 27.49 | |
| Cord Insulation Tube L100 | ||||
| 98 | 6600051@1417 | 1.04 | 1.23 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 99 | 6699186@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 100A | 6601421@1417 | |||
| Band | ||||
| 101 | 6698943@1417 | 1.20 | 1.43 | |
| Cord | ||||
| 103 | 6698495@1417 | 2.10 | 2.50 | |
| Earth Cord | ||||
| 104 | 6696545@1417 | 1.05 | 1.25 | |
| Vliegwiel | ||||
| 105 | 6699289@1417 | 25.71 | 30.60 | |
| Machine Screw (w/washers) M5x18 | ||||
| 106 | 6600920@1417 | 1.04 | 1.23 | |
| Behalter | ||||
| 107 | 6600519@1417 | 4.95 | 5.89 | |
| Bolt (w/flange) | ||||
| 108 | 6696574@1417 | 1.05 | 1.25 | |
| Pomp Filter | ||||
| 109 | 6600351@1417 | 2.70 | 3.21 | |
| Clip | ||||
| 110 | 6696949@1417 | 1.68 | 1.99 | |
| Bout L23.8 | ||||
| 111 | 6698512@1417 | 1.05 | 1.25 | |
| Distanzring (1) | ||||
| 112 | 6699558@1417 | 1.04 | 1.23 | |
| Brandstofleiding L70 | ||||
| 113A | 6699014@1417 | 1.65 | 1.96 | |
| Fuel Grommet | ||||
| 114 | 6600358@1417 | 1.04 | 1.23 | |
| Fuel Pipe L180 | ||||
| 115 | 6600523@1417 | 1.04 | 1.23 | |
| Nicht mehr lieferbar, kein Ersatz | ||||
| 116 | 6698402@1417 | |||
| Tank Cap Chain | ||||
| 117 | 6698732@1417 | 1.20 | 1.43 | |
| Throttle Lever (d) | ||||
| 131 | 6600917@1417 | 13.65 | 16.24 | |
| Band | ||||
| 132 | 6698943@1417 | 1.20 | 1.43 | |
| Handle Collar | ||||
| 133 | 6600503@1417 | 1.04 | 1.23 | |
| Sechskantbolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 134 | 6684709@1417 | 2.15 | 2.56 | |
| Handle Holder (a) | ||||
| 135 | 6600561@1417 | 1.80 | 2.14 | |
| U-handle | ||||
| 136 | 6600896@1417 | 19.25 | 22.91 | |
| Handle Holder (b) | ||||
| 137 | 6600562@1417 | 3.00 | 3.57 | |
| Getriebegehaeuse | ||||
| 138 | 6699439@1417 | 46.61 | 55.47 | |
| Hex.socket Hd.bolt M5x30 (10 Pcs) | ||||
| 139 | 949664@1417 | 3.75 | 4.46 | |
| Schraube 5x12ws alte Art.nr. 994-16050-121 | ||||
| 140 | 6695414@1417 | 1.15 | 1.37 | |
| Kappe | ||||
| 141 | 6600005@1417 | 2.70 | 3.21 | |
| Feder (1) | ||||
| 142 | 6600006@1417 | 3.60 | 4.28 | |
| Bolzen Cg24ekd, Cg18dal, Cg18dl | ||||
| 143 | 6684737@1417 | 2.15 | 2.56 | |
| Lock Pin | ||||
| 144 | 6600007@1417 | 11.25 | 13.39 | |
| Cutter Holder (a) | ||||
| 145 | 6699441@1417 | 8.25 | 9.82 | |
| Cutter Holder (b) | ||||
| 146 | 6698659@1417 | 13.04 | 15.51 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 147 | 6699188@1417 | |||
| Linksmoer M10 (oud 6698658) | ||||
| 148 | 335759@1417 | 1.04 | 1.23 | |
| Handle Holder (c) | ||||
| 149 | 6600563@1417 | 1.35 | 1.61 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 150 | 6684714@1417 | 2.15 | 2.56 | |
| Cover Bracket | ||||
| 151 | 6699443@1417 | 2.10 | 2.50 | |
| Caution Mark Hitachi | ||||
| 152 | 6600450@1417 | 1.80 | 2.14 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 153 | 6600556@1417 | |||
| Drive Shaft (damper) | ||||
| 154 | 6600560@1417 | 40.70 | 48.43 | |
| Waist Protecter | ||||
| 155 | 6600540@1417 | 9.30 | 11.07 | |
| Hanger | ||||
| 156 | 6600504@1417 | 1.20 | 1.43 | |
| Kopfschraube M5x10 (10st), G23ss For Irl | ||||
| 157 | 949236@1417 | 1.05 | 1.25 | |
| Protection Tube L230 | ||||
| 158 | 6601346@1417 | 1.95 | 2.32 | |
| Guard Ass'y (eu) | ||||
| 159 | 6600528@1417 | 4.50 | 5.36 | |
| Cover Guard (eu) Ass'y | ||||
| 160 | 6601356@1417 | 6.30 | 7.50 | |
| Schneidschraube Cg24ekd | ||||
| 161 | 6684751@1417 | 2.15 | 2.56 | |
| Messer Cg24ekd For Irl | ||||
| 162 | 6684750@1417 | 4.29 | 5.10 | |
| Ignition Coil Ass'y | ||||
| 202 | 6601380@1417 | 34.65 | 41.23 | |
| Fan Case (a) Ass'y | ||||
| 203 | 6601378@1417 | 30.53 | 36.32 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 501 | 6684764@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 502 | 944458@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 503 | 875769@1417 | |||
| Messer Abdeckung For (s) | ||||
| 504 | 6684768@1417 | 2.15 | 2.56 | |
| Tool Bag | ||||
| 505 | 6600923@1417 | 1.65 | 1.96 | |
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 506 | 6696184@1417 | |||
| Keine Informationen verfügbar, nicht bestellbar | ||||
| 507 | 6698711@1417 | |||
